Product Description

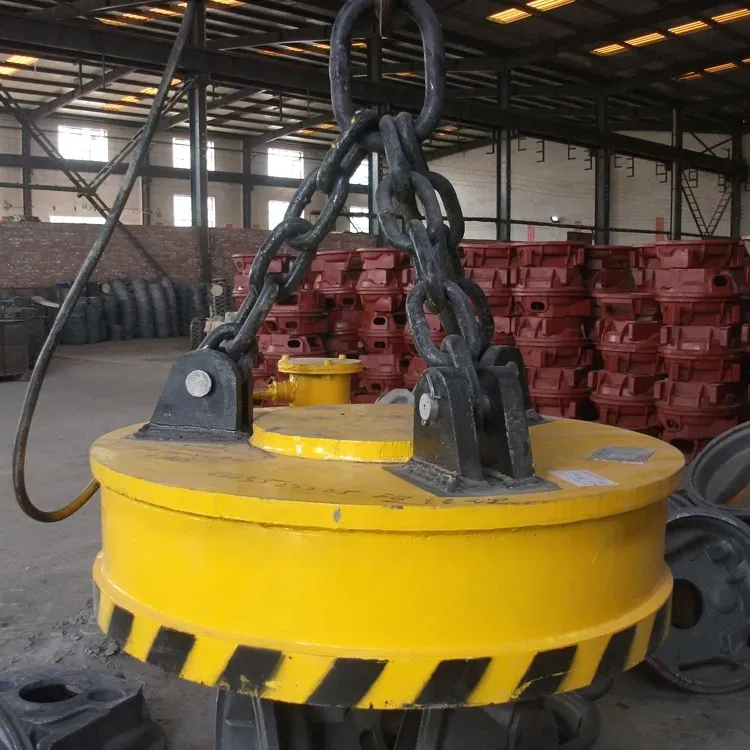

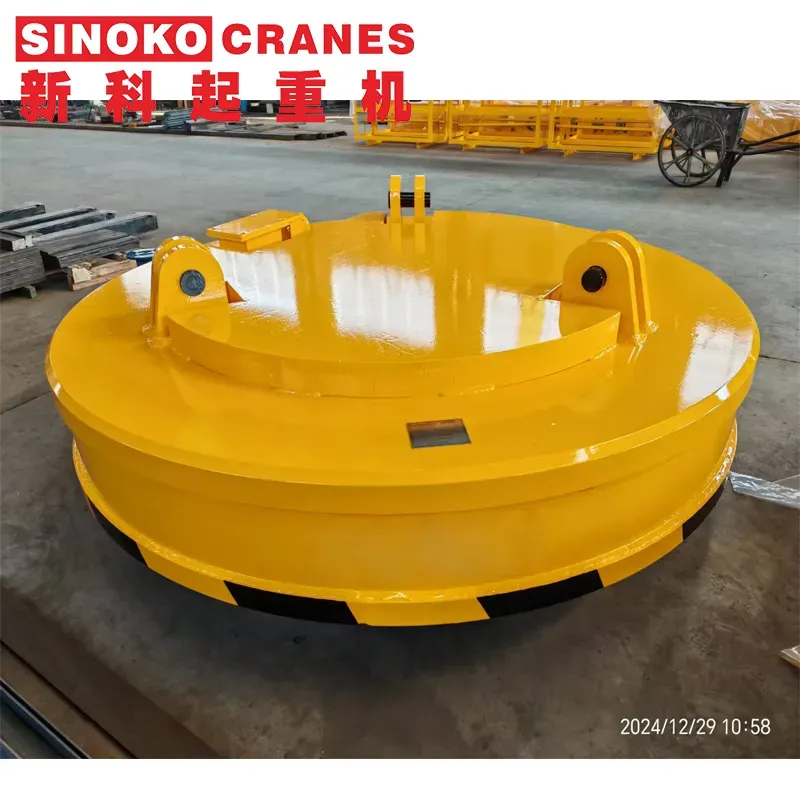

DC 24v 12 v electromagnets excavator circular lifting magnet scrap metal electromagnet

Lifting magnets are widely used in different industrial areas, such as steel making, foundry, mining, machinery, transportation and other industries. Suitable for handling cast iron ingots, steel balls, steel plates, steel tubes, steel bars, and various type steel scrap. The excitation method adapts constant voltage, strong excitation and over-excitation method.

Technical Data

2 Ton Circular Type Eot Crane Electro Lifting Magnet for Steel Scrap

Model	KM-70	KM-120	KM-200
Matching excavator weight t	6-7	10-15	20-25
Electromagnetic disk diameter mm	750	900	1100
Output Power kw	3.5	6	10
Oil quantity l/min	18	32	46
Oil pressure (kg/cm2)	210	210	210
Back pressure kg/cm2	5	5	5
Full height (mm)	935	1250	1250
Weight (kg)	550	1050	1600

Product Advantages

Using a fully sealed structure, good moisture resistance.
Optimized by computer design, reasonable structure, light weight, large suction, low energy consumption.
Excitation coils are treated by a special process to improve the electrical and mechanical properties of the coils. The heat-resistance grade of the insulation material is up to Class C, the overall insulation of the suction cups is H-class and the service life is long.
The rated electrification continuation rate of ordinary electromagnets has been increased from the previous 50% to 60%, which has increased the use efficiency of electromagnets.
The high-temperature type electromagnet adopts a unique heat insulation method. The temperature of the sucked object is increased from the previous 600°C to 700°C, which expands the adaptability of the electromagnet.
Easy installation, operation and maintenance.

Product Design

Application Scenarios

Company Introduction

Basic Info.

Shape	Round
Color	Yellow
Rated Voltage	DC-220V
Duty Cycle	Td-60%
Model	MW5
Cold State Power	2.6-11.8 Kw
Max. Temperature	Can Reach to 700-800ºC
Coil	Aluminum or Copper Optional
Lifting Capacity for Steel Scrap	220
Cold-State Power	11.8
Electric Current	DC220
Turnings	80/65
Steel Ball	2500-26000
Energy Saving	Energy Saving
Material Feature	Heat Resistant
Weight	1t
Certification	ISO9001:2008, ISO9001:2000, CE
Transport Package	Wooden Packing
Specification	standard
Trademark	Sinoko
Origin	China
HS Code	8428909090
Production Capacity	1000 Set/Sets Per Month
