Copper Wire Stripping Machine
Description
Overview
Basic Info.
- Model NO. Model 1500
- Type Scrap Metal Shredder
- Automation Automatic
- Certification ISO, CE
- Floor Size 1800*1600*1750mm
- Application Principle1 Gravity Separation
- Application Principle2 High Voltage Electrostatic
- Total Power 20.6kw
- Copper Purity 99%
- Purity of Plastic Skin 99.5%
- Tool Properties SKD-11
- Number of Moving Knives 24slice
- Number of Fixed Cutters 2slice
- Suitable for Raw Materials Waste Wires
- Output Per Hour 100-200kg/H
- Source of Production Henan China
- Transport Package Customizable
- Specification HV-400
- Trademark HARVEST
- Origin Henan China
- HS Code 8479820090
- Production Capacity 100-200kg/H
Packaging & Delivery
- Package Size 1200.00cm * 400.00cm * 400.00cm
- Package Gross Weight 8000.000kg
Product Description

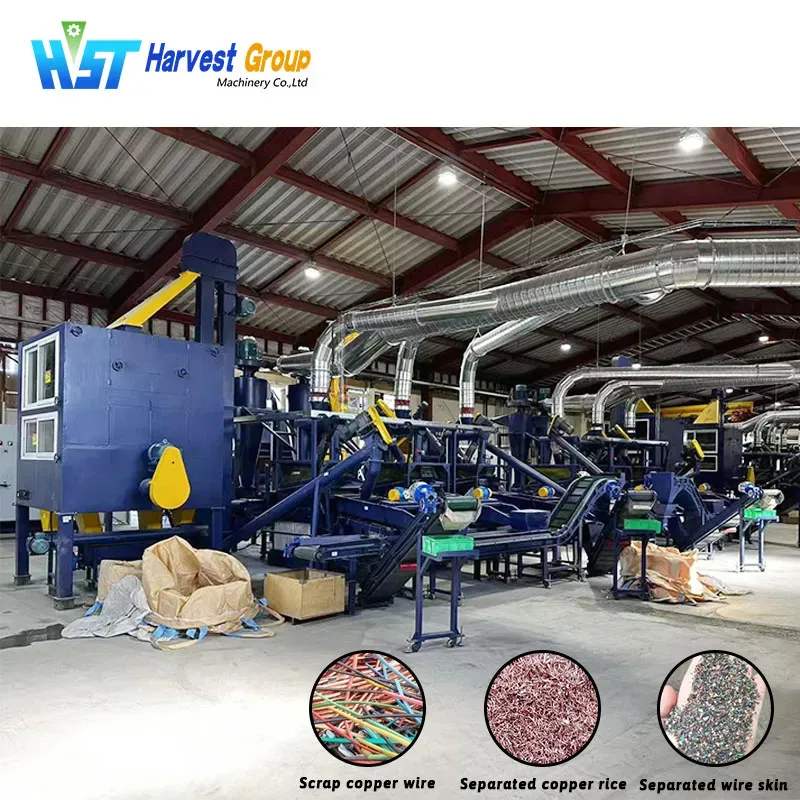

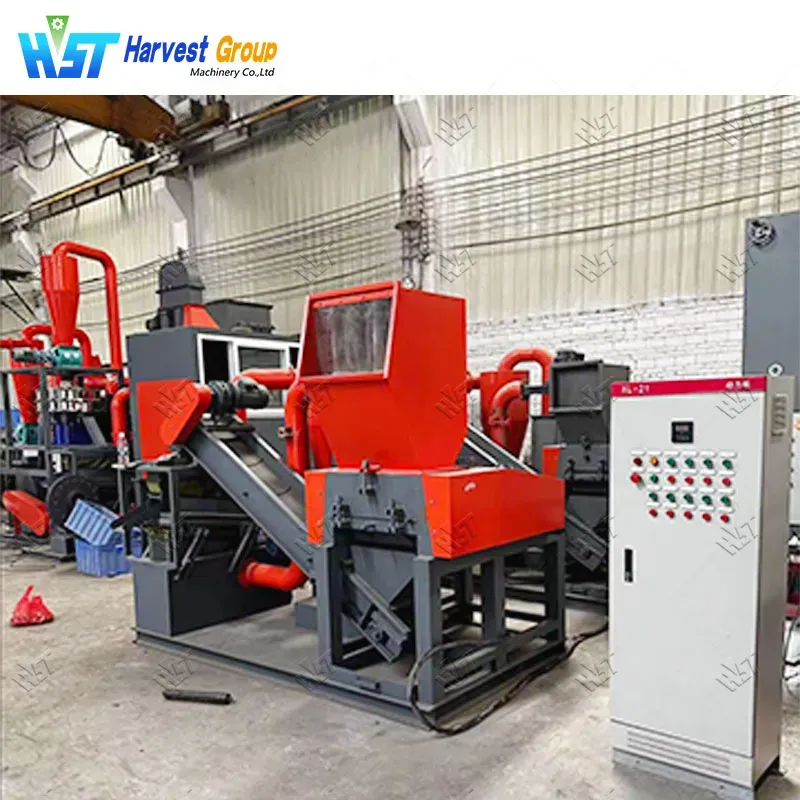

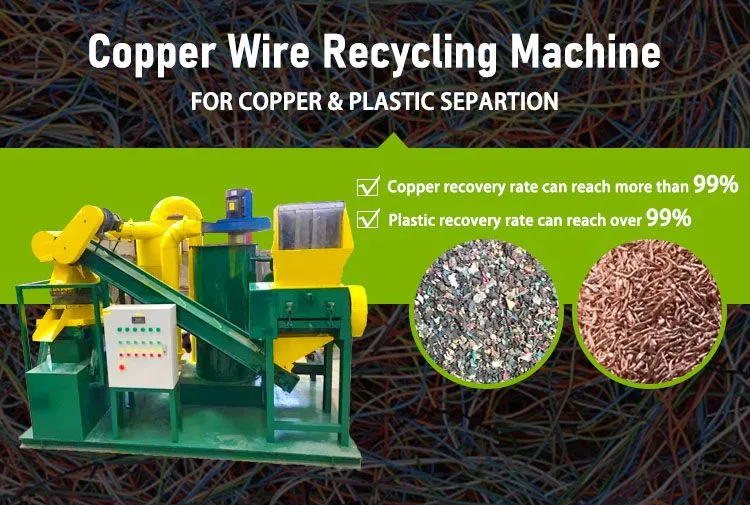

Copper Wire Recycling Machine

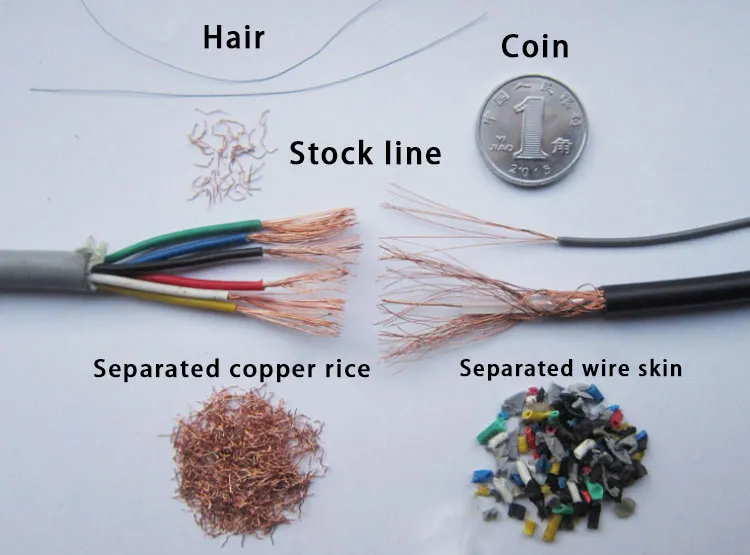

The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameter is 0.3mm-20mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication cable, etc.
Model Specifications
| Model | External dimension(mm) | Dust removal power(kw) | Sorting(Kw) | Host Power(kw) | Output(KG/H) | Weight(kG) |
|---|---|---|---|---|---|---|
| HVST400 | 2600*1600*2300 | 4 | 2.2 | 15 | 100-150 | 1800 |
| HVST600 | 3700*2000*2200 | 4.5 | 5.2 | 22 | 200-300 | 3500 |
| HVST800 | 4000*2000*2200 | 9 | 5.2 | 45 | 400-600 | 3800 |
| HVST1000 | 9000*5000*2600 | 12 | 10.4 | 55 | 800-1000 | 4600 |

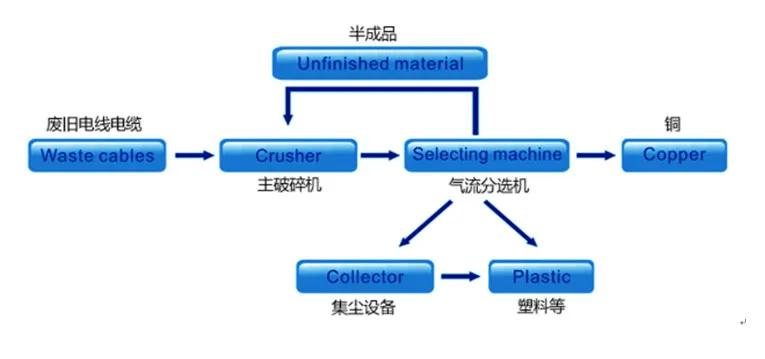

Equipment Workflow
For scenarios with smaller processing volumes, the raw materials of cable wires can be directly fed into an all-in-one machine. After crushing, an air separation system is employed to suspend the copper and plastic particles on a screen. Subsequently, the copper is separated from the plastic through a weight-based method and the friction generated by the mesh surface.

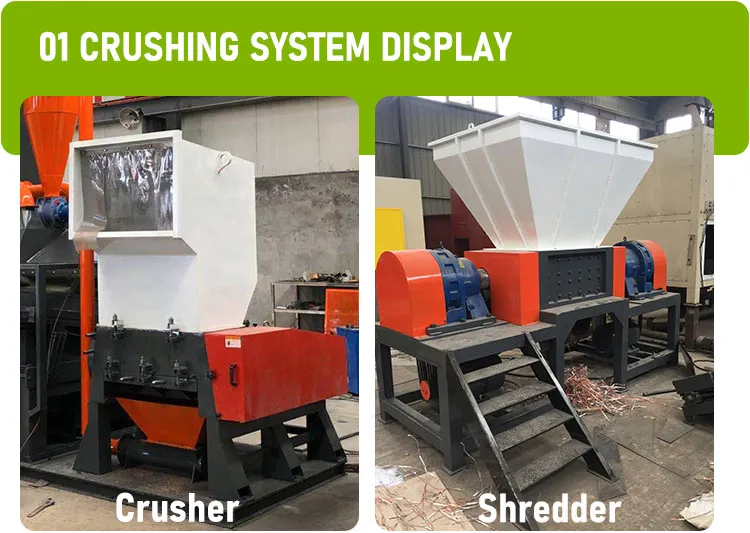

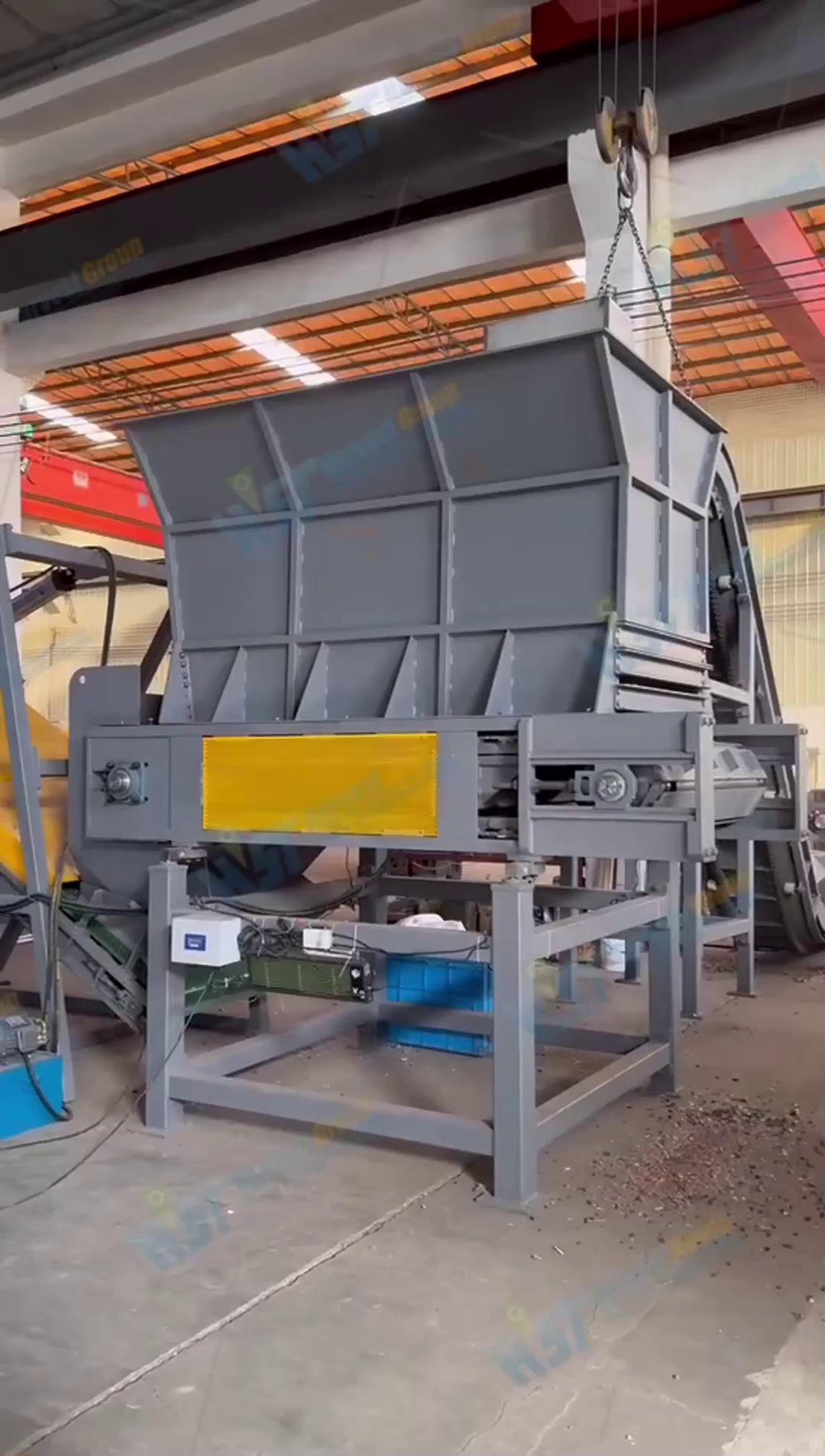

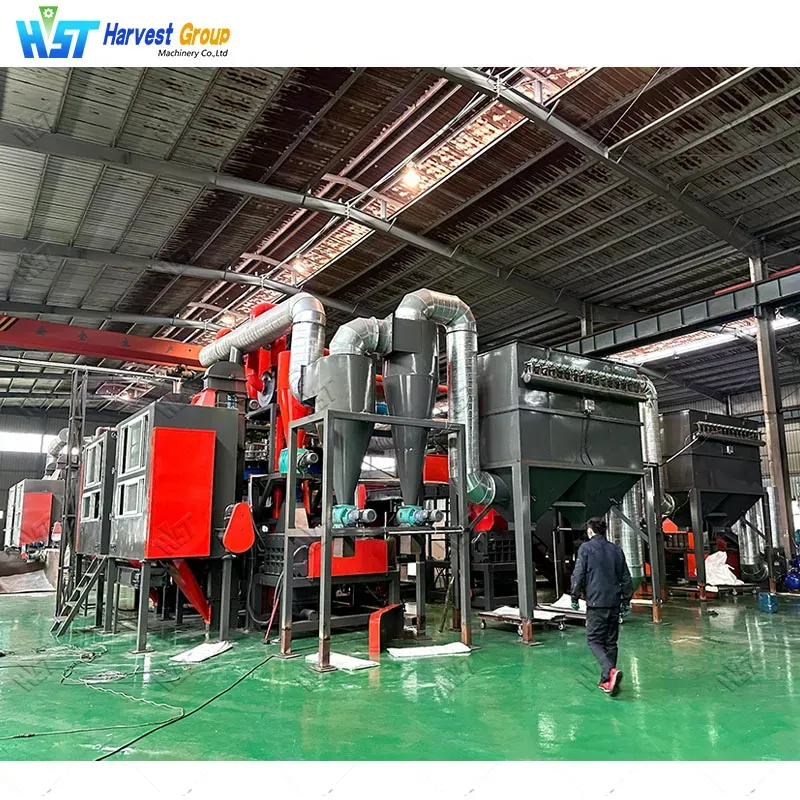

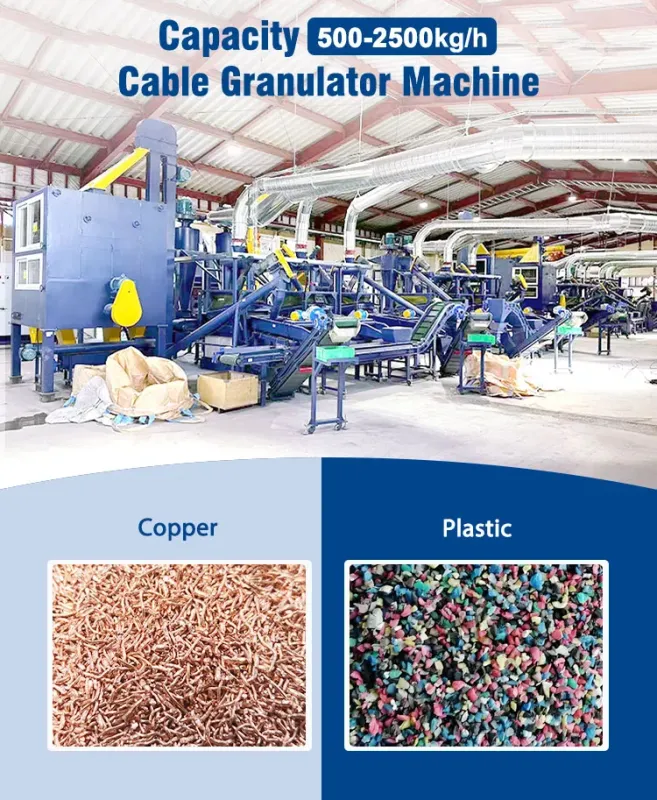

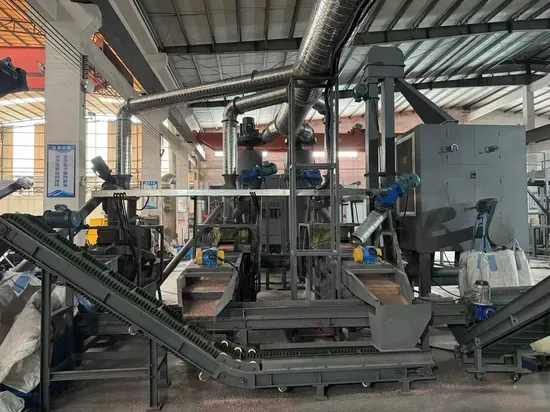

For larger-scale operations, the raw cable wire materials are initially placed into a shredder, followed by a crusher to reduce them into smaller wire pieces. Our pulse air separator then suspends the copper and plastic on a screen, separating them using the same weight-based method and mesh surface friction. To enhance both purity and processing capacity, the remaining materials are further processed through a high-voltage electrostatic separator. This comprehensive system includes a primary crusher, pulse air separator, dust and fiber collection system, and a high-voltage electrostatic separator.
Product Application

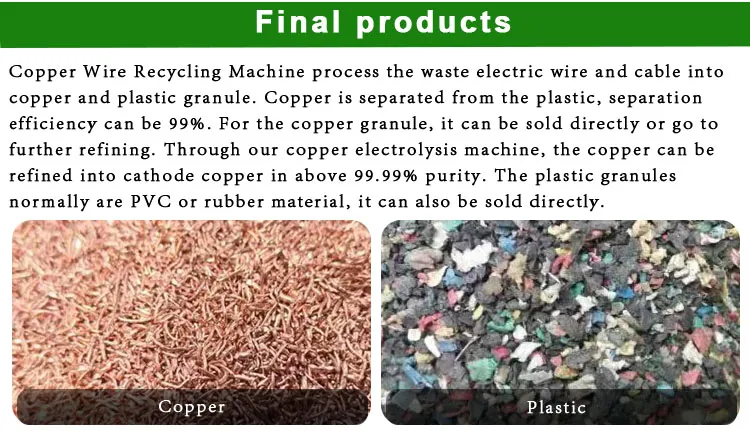

Copper Wire Recycling Machine process the waste electric wire and cable into copper and plastic granule. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules normally are PVC or rubber material, it can also be sold directly.

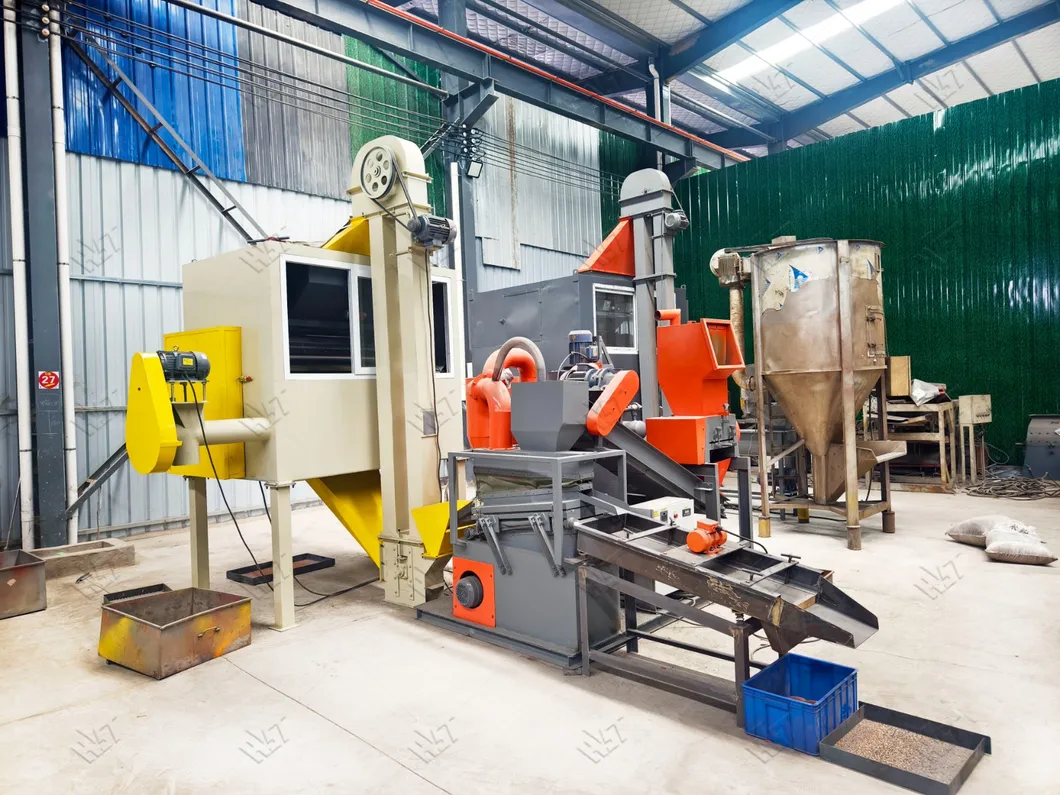

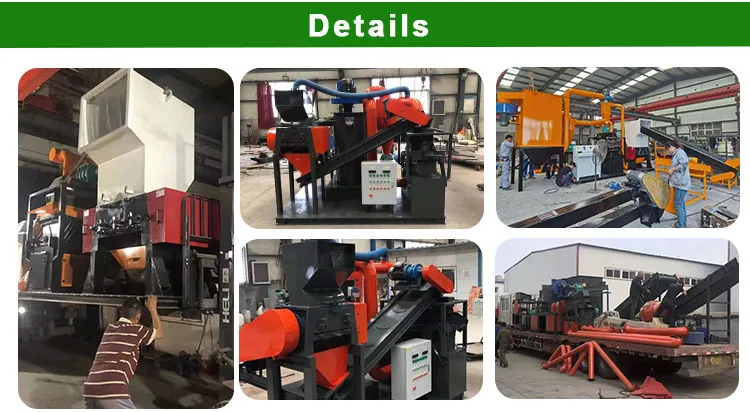

Product Display
Structural Characteristics
- Integrated structure design, compact structure, small occupied area, easy to move and it can be operated by putting it on flat ground and turning on the power.

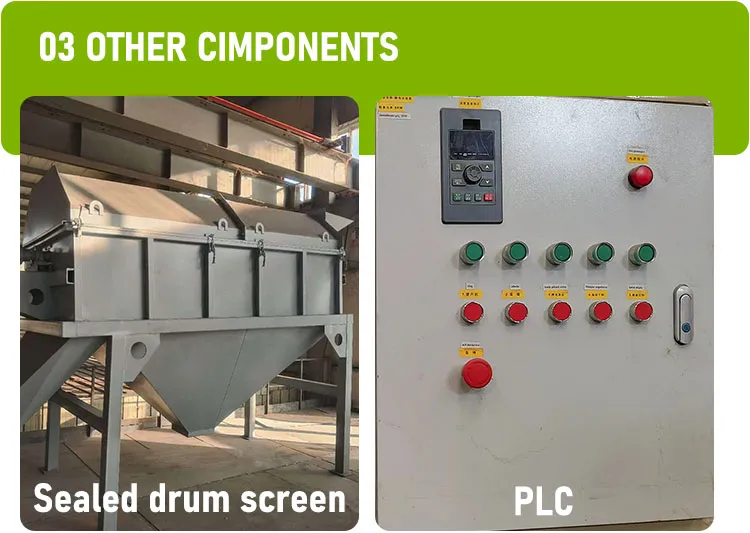

- It adopts PLC control, the appearance is simple and beautiful and the operation is simple. One operator can operate it.

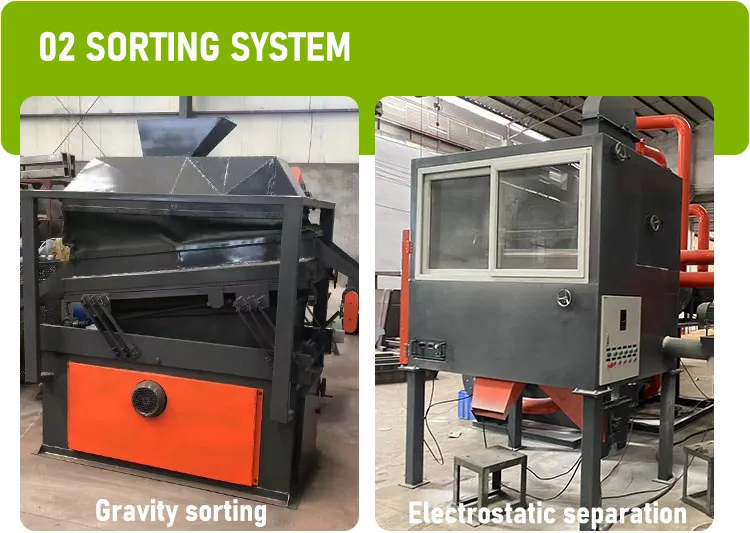

- As an important part of the separation of copper wire and plastic, gravity separation adopts Italy air suspension separation process, and the vibration frequency and material suspension air supply device can be adjusted precisely according to different materials.
- Crushing system adopts SKD-11 alloy cutting tool, the processing hardness is HR58. It can ensure the high-wearing resistance as well as a certain tenacity of the crushing blade. The structure is designed as splayed alternate shearing structure, the shell of wire grinding equipment adopts water cooling system, thus avoiding, material heating and melting after long time operation.
- The operation of the complete set of equipment is fully enclosed, it is equipped with an advanced pulse dust removal system that effectively collects dust in the production process and discharges it from the dust outlet.
- In view of the fact that the copper wire crusher manufactured in other countries can recover the copper with a purity more than 99.5%, but 3-5% of the copper powder and brushed copper will be lost into the plastic in the sorting process, our company is equipped with electrostatic selection equipment, the remaining copper in the plastic can be sorted out again, so that there is no plastic in the copper and no copper in the plastic.

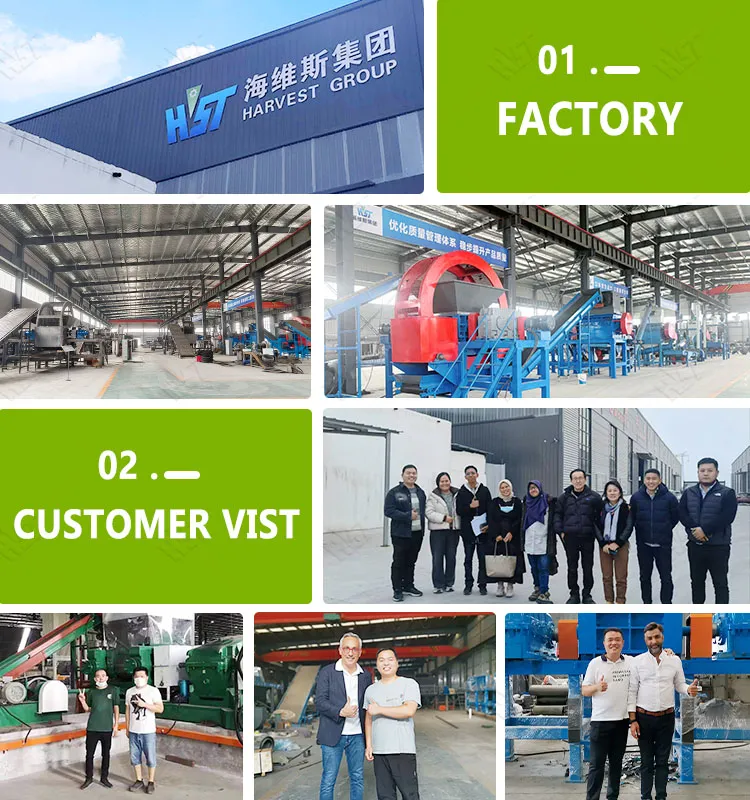

Who Choose US
FAQ
- 1) Are you a factory or trade company? We are manufacturer with own factory for 15 years, export proportion 70~80%.
- 2) How can I trust your company?
- a. With professional design and sales team, we can serve you the perfect solution with lowest cost.
- b. Assessed by third party, national patents for all equipment, also CE, ISO.
- c. Agents in RU, UKR, MYS, PH; Users around the world.
- d. Welcome to inspect anytime. We are near to Shanghai airport.
- 3) How about the test running & installation? Before delivery, we finish the test over 3 days. If you take integral design, no need to installation at all. If parted design, we can send our technicians to your place if necessary.
- 4) Any warranty? Under the proper usage, one year for whole machine except the wear parts.
- 5) Is your price competitive? Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
- For more information, please contact us freely.
