Plastic Film Shredder Machine for Tyre, Scrap Metal, Mattress, and Solid Waste
Description
Overview
Basic Info.
- Model NO. ZT-502
- Material Alloy Steel
- Usage Coal, Industrial, Metal, Plastic, Wood, Solid Waste, Animal Carcass, Medical/Solid/Industrial/Household Waste, etc.
- Crushing Degree Fine Grinding Machine
- Principle Fixed Culling
- Cutter Material Hard Alloy
- Finished Surface Cut off Tool
- Compressive Strength (for Crushing) >300MPa
- Tongs' Features Adjustable Tongs
- After-Sales Service 24 Hours Service
- Warranty 1year
- Type Two Sharft Crusher
- Object Medical Waste
- Crushing Style Shearing
- Product Name Crusher Shredder Machine
- Model Zt-600
- Crushing Chamber Width(mm) 600*550
- Overall Size(mm) 3000*2000*1100
- Capacity(T/H) 0.3-5
- Power(Kw) 18.5*2
- Blade Diameter(mm) 260
- Body Dimension Customizable According to The Venue
- Control Full PLC Control
- Packing in Wooden Case or Carton with Export Standard
- Core Components PLC, Gearbox, Motor, Gear, Pump
- Sharft Design Double
- Voltage 380V
- Transport Package with Wooden Box
- Specification ZT-600
- Trademark ZTHB
- Origin Shandong Province, China
- HS Code 8477800000
- Production Capacity 30sets Per Month
Packaging & Delivery
- Package Size 3000.00cm * 2000.00cm * 1100.00cm
- Package Gross Weight 2850.000kg
Product Description
Plastic Film Shredder Machine Woven Bag Shredding Crusher for Tyre/Scrap Metal/Mattress/Solid Waste
The main function of the two shaft scrap metal shredder crusher is to squeeze large pieces of material and large diameter drums of metal materials transported through the front cut of the shredder into sheet materials that meet the requirements. Large metal shredder not only improves the production capacity and crushing efficiency, but also expands the scope of application, metal shredder products make full use of impact, shear, mutual impact, grinding and other theories. It can process wallpaper, paper tube and other raw materials into fragments at one time, with less investment, low energy consumption, high productivity, good economic benefits, convenient use and maintenance. The crusher is mainly composed of a chip cutting device, a crushing device and a fan. The mill is equipped with a small particle size after cutting, and can be sent to the crushing device for further crushing without drying, and the powder fiber finished after crushing is sent to the aggregate site by the fan.
Product Parameters
| Model | Blade thickness(mm) | Blade diameter(mm) | Crushing chamber size (mm) | Capacity(t/h) | Power(kw) | Overall size(m) | Weight(kg) |
|---|---|---|---|---|---|---|---|
| 600 | 15-30 | 260 | 600*550 | 0.3-5 | 18.5*2 | 3*2*1.1 | 2850 |
| 800 | 15-40 | 300 | 800*600 | 0.5-6 | 22*2 | 3.3*2*2.42 | 4200 |
| 1000 | 15-40 | 350 | 1000*700 | 1-15 | 30*2 | 3.5*2*2.82 | 6500 |
| 1200 | 30-50 | 400 | 1200*800 | 1.5-20 | 37*2 | 3.8*2*2.82 | 7800 |
| 1400 | 30-60 | 450 | 1400*900 | 2-25 | 55*2 | 4.4*2*3 | 9600 |
| 1600 | 40-60 | 600 | 1600*1000 | 3-35 | 75*2 | 4.7*2*3.1 | 12560 |
Technical Characteristics
- Heavy moving blade, high crushing power, the blade is made of wear-resistant steel, strong wear resistance, long service life.
- It is driven by decelerating motor, with strong power, low speed, large torque, low noise, time-saving and labor-saving.
- The product belongs to the fully automated equipment, set up start, stop, reverse and overload automatic reverse control functions, the use of complete functions, convenient and fast.
- The blade arrangement and bite mode are designed for metal, and the thickness of props and the number of claws can be changed according to different materials.
- Easy to adjust, low maintenance cost, uniform discharge, long use time.

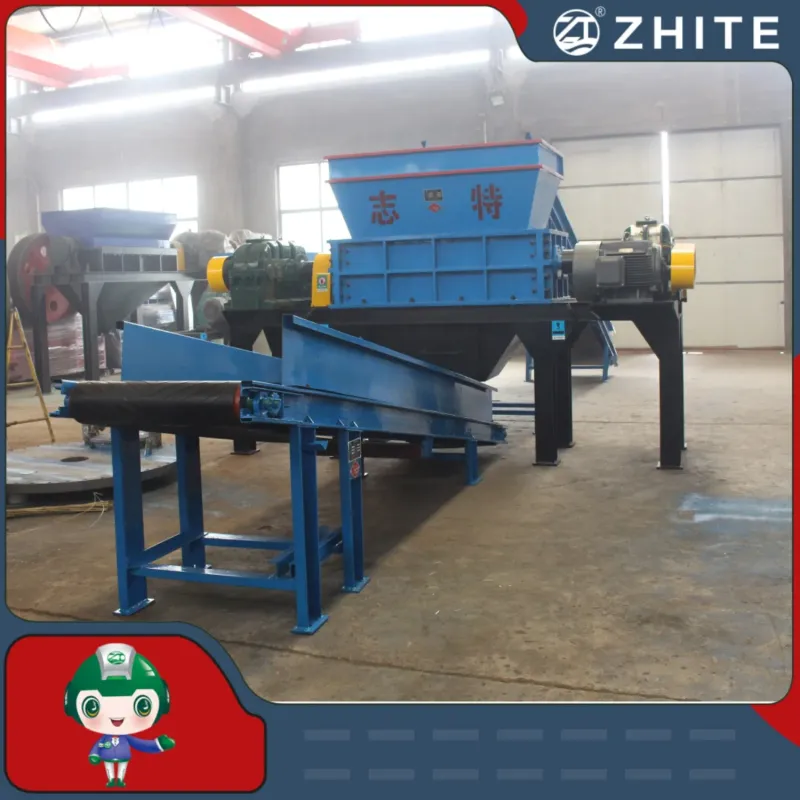

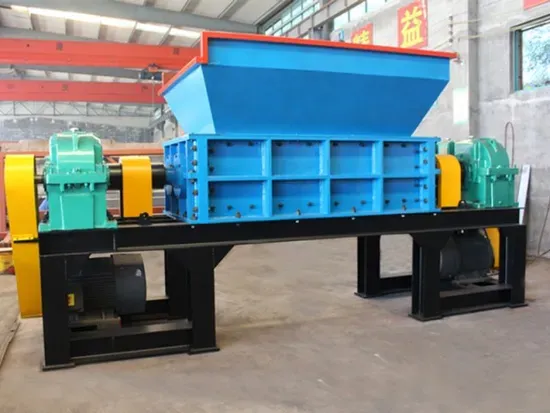

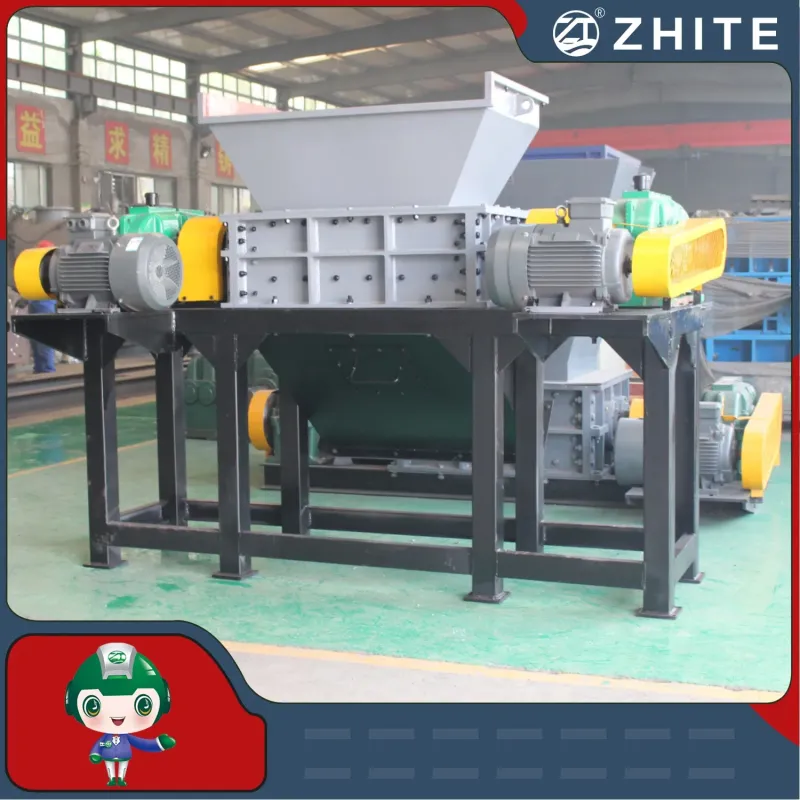

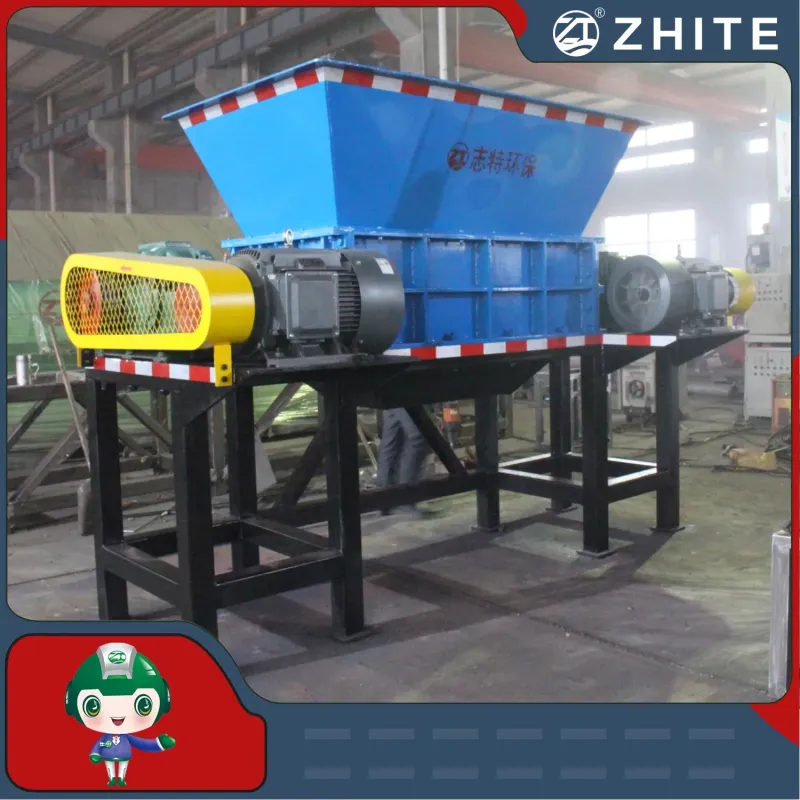

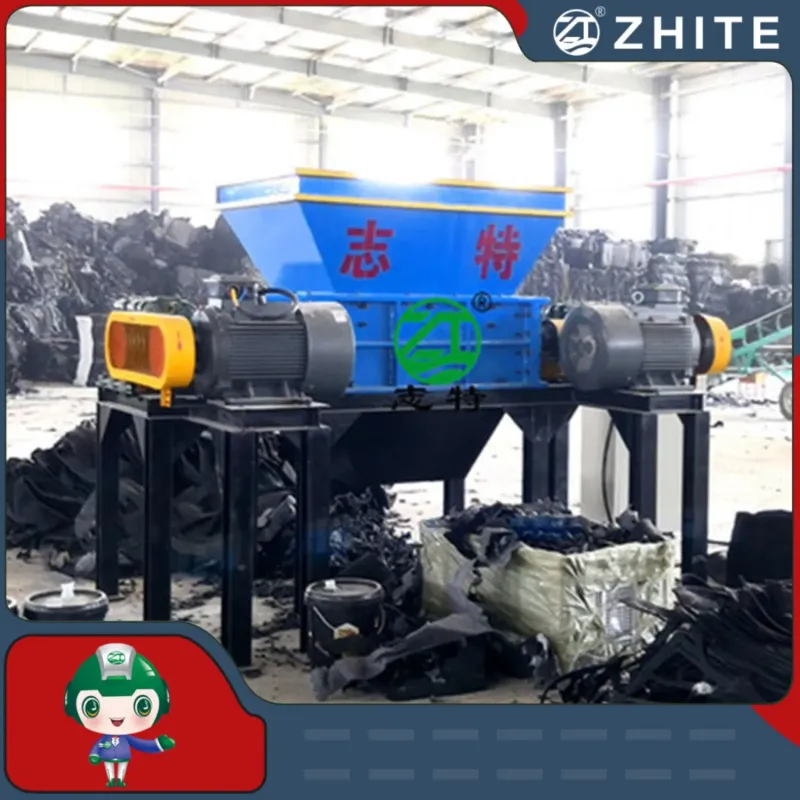

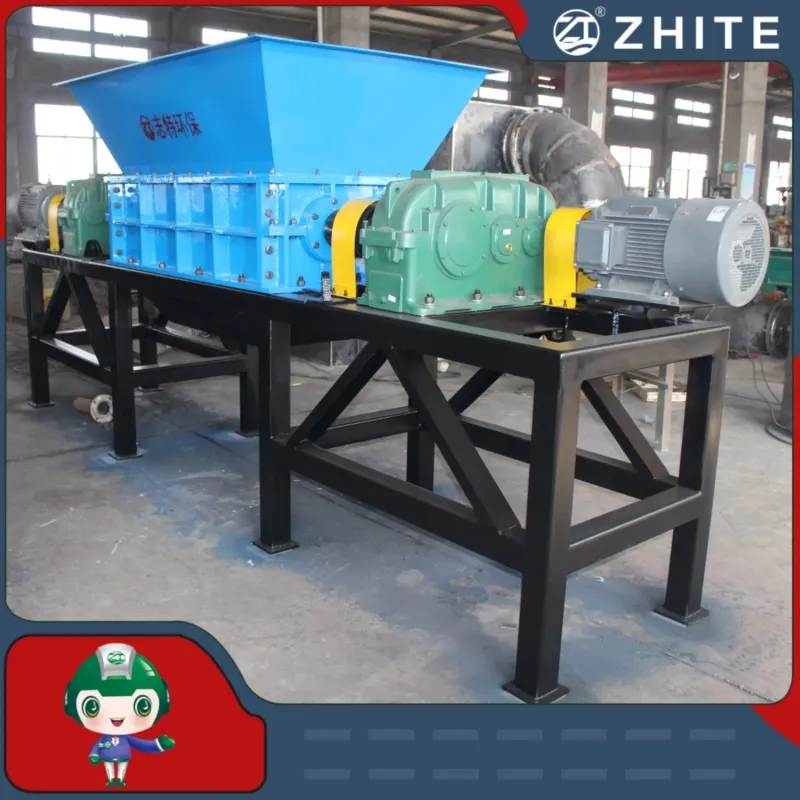

Detailed Photos
Other Product
Packaging & Shipping

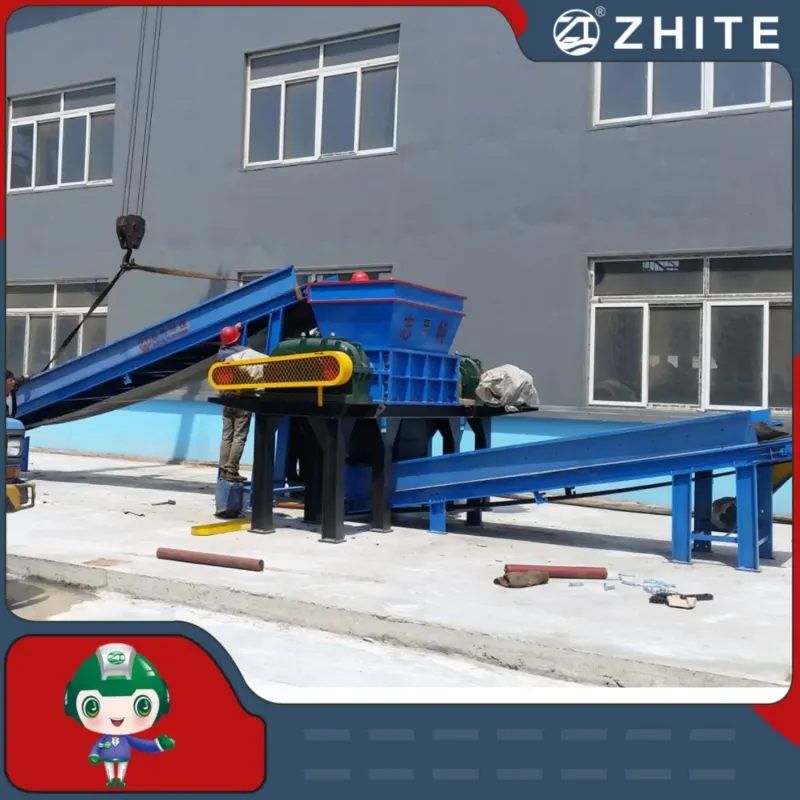

Customer visit
