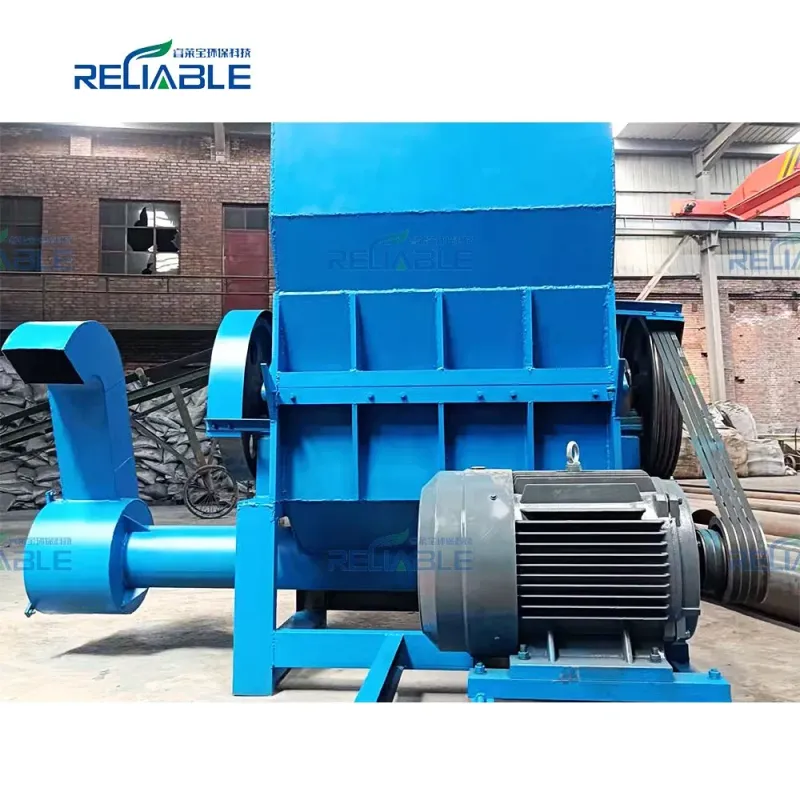

Heavy Duty Scrap Metal Shredder Machine
Description
Overview
Basic Info
- Model NO. S-600
- Type Scrap Metal Shredder
- Automation Automatic
- Certification ISO, CE
- Name Double Shaft Shredder
- Application Crush Different Materials
- Usage Shredding Scrap Metal Material
- Function Multifunctional Waste Material Shredder
- Keyword Metal Shredder Crusher
- Key Words Plastic Shredder Machine
- Raw Material Scrap Metal Material
- Shaft Two
- Core Components Motor, Pump
- Advantage Environment-Friendly
- Transport Package Wood
- Origin China
Product Description
High Capacity Shredder Machine Double Shaft Cable and Wire Shredding Machine
Introduction of Double shaft shredder

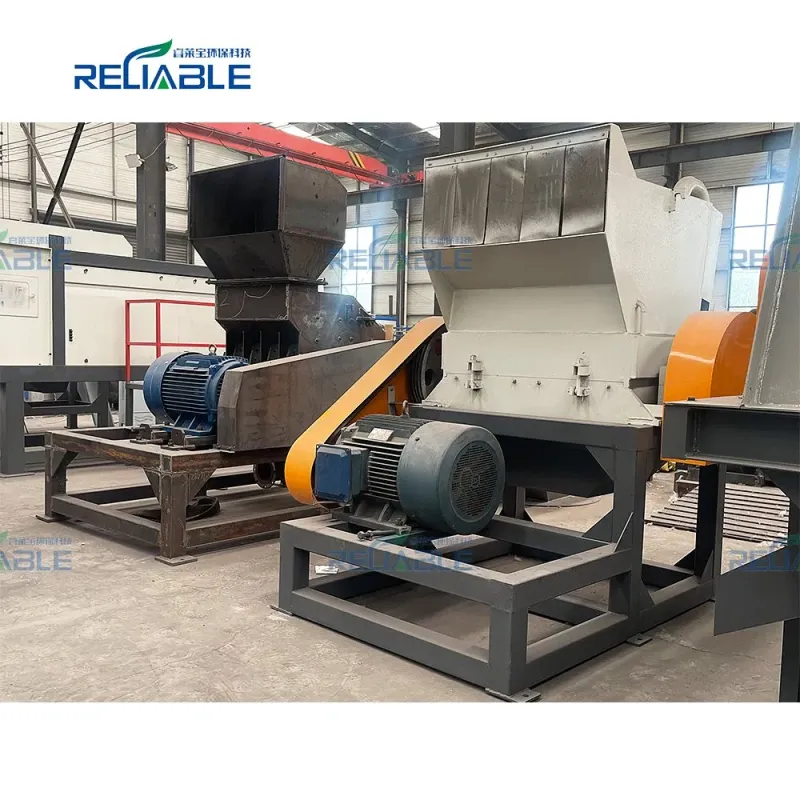

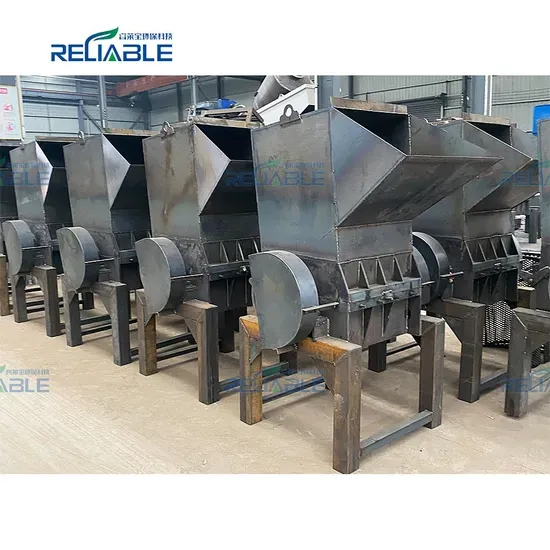

Metal crusher is mainly used in the decomposition and crushing work of waste metal, thereby reducing the cost of transportation costs and the melting of the waste of waste. Whether it is scrapped cars or waste cans, hammer mill metal crusher employs a hammering principle: driven by a high-speed, large-torque motor, rotating hammer heads in the main unit strike materials within the crushing chamber, breaking them down between the lining plate and hammer heads. The scrap metal is processed by a crusher/shredder, and then the crushed metal is sorted by a sorting system to obtain high-quality recyclables.
Product Parameters
Technical Parameters of Double shaft shredder
| Mode | D600 | D800 | D1000 | D1200 |
|---|---|---|---|---|
| Motor power | 7.5+7.5 | 15+15 | 18.5+18.5 | 30+30 |
| Capacity(kg/h) | 500-600 | 700-800 | 800-1000 | 1000-1200 |
| Cutter(pcs) | 22 | 30 | 30 | 36 |
| Shredding room size (mm) | 600x430 | 800x430 | 1000x500 | 1000x580 |
| Weight (kg) | 2300 | 3300 | 5000 | 6800 |
Raw material & Final Product
Application of Double shaft shredder
Double shaft shredder has a wide range of applications in industrial waste recycling, medical recycling, electronics manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper making and other industries, which can achieve waste reduction, recycling and reuse.
- Scrap metal: such as scrap car shells, metal drums, refrigerators, scrap steel, etc.
- Plastics and rubber: such as plastic drums, used tires, packaging materials, etc.
- Wood and paper: branches, boards, cartons, etc.
- Domestic and industrial waste: municipal garbage, construction waste, industrial waste, etc.
- E-waste and medical waste: waste electrical appliances, medical waste, etc.
Working Process
Working Principle of Double shaft shredder

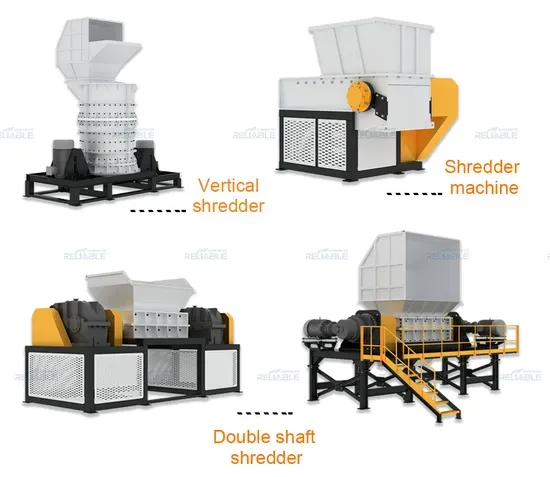

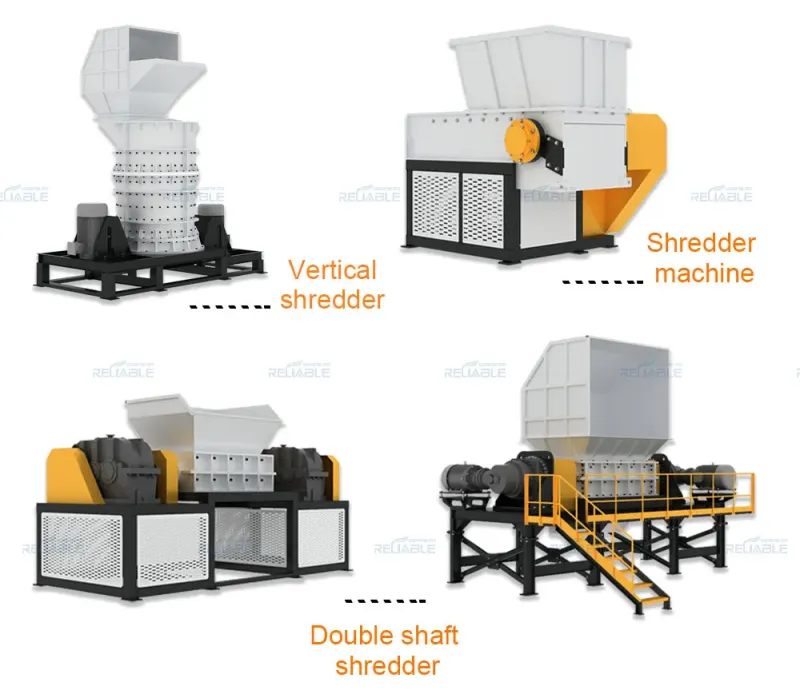

The working principle of shredder is mainly based on the destructive effect of mechanical force on materials. Common types of shredders include single-shaft shredders, double-shaft shredders.

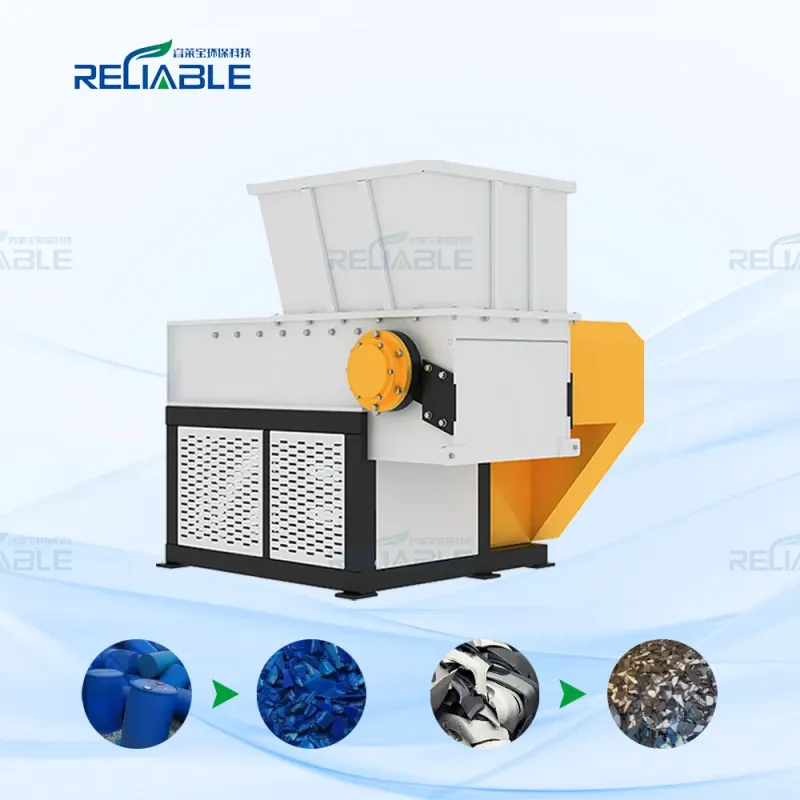

- Single shaft shredder: through a rotating knife roller and fixed blade on the material for shearing and tearing, suitable for processing lighter, softer materials, such as plastic film, paper, wood and so on.
- Double shaft shredder: consists of two relatively rotating knife rollers, the blade on the knife rollers bite each other, shear and tear the material strongly, suitable for processing harder and thicker materials, such as metal, rubber, plastic drums and so on.
Waste Metal Crusher Advantages
- High-Manganese Steel Hammer Heads: Resistant to wear, ideal for crushing high-hardness materials.

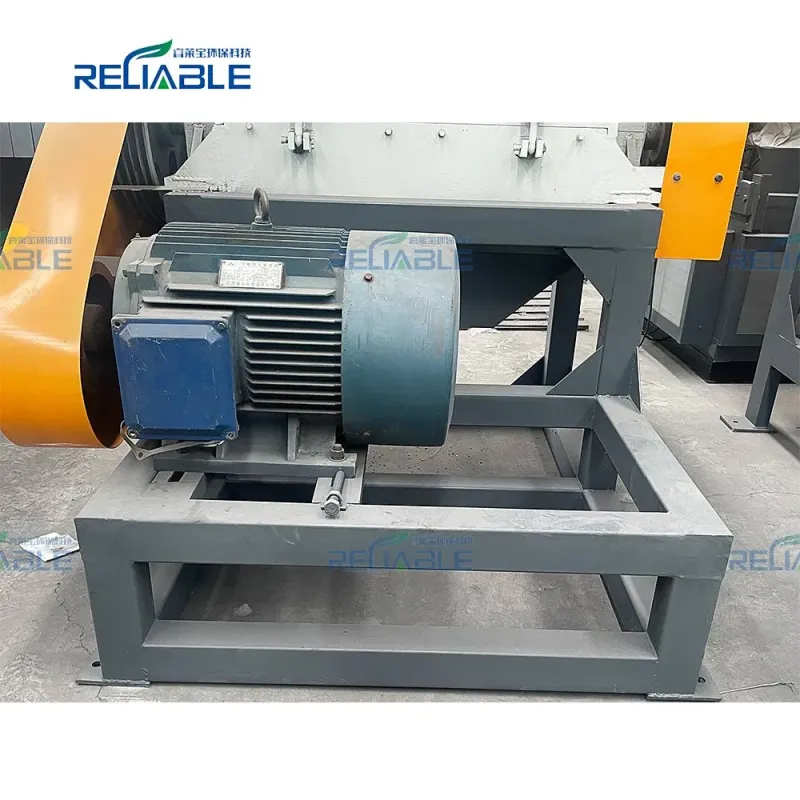

- Energy-Efficient Motor: Low power consumption with stable performance.
- Smooth Operation: Minimal noise, solid foundation mounting, and vibration reduction.
- Robust Construction: Thickened panels and reinforced housing ensure structural integrity.
Our Advantages
Features of Double shaft shredder

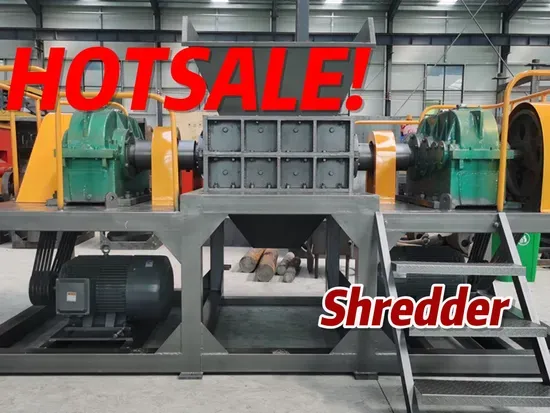

- High-efficiency crushing: the double-shaft shredder adopts "double motor + double planetary reducer" drive, strong power, high operational stability, high crushing efficiency.
- low speed, high torque: the equipment has the characteristics of low speed, high torque, large shear force, good shredding effect, low noise, low energy consumption.
- Strong durability: the movable knife and fixed knife are casted with alloy steel, which is sturdy and durable with long service life. The iron frame plate is thick, which can resist high torque, and the whole equipment is solid and reliable.
- Automatic control: PLC control system is adopted, which can automatically control the starting, stopping and reversing of the equipment as well as the automatic reversing function of overload, which is easy to operate.
- Convenient maintenance: the blade adopts welding repair technology, which can be reused many times and reduce the maintenance cost. Modularized box design, easy to disassemble and maintain.
- Environmental: low speed operation, low noise and dust emission, in line with environmental standards.
Packaging & Shipping
Packaging:
- Single machines: Free fumigated wooden cases with steel frames for damage protection and export compliance.
- Multiple machines/production lines: Wrapped in plastic and loaded into 20GP/40GP/40HQ containers.
Shipping Terms:
- EXW: Buyer arranges logistics from factory to port.
- FOB: Seller delivers to Chinese ports (Qingdao, Shanghai, etc.), buyer arranges international shipping.
- CIF: Seller handles full logistics to buyer's port, ensuring smooth delivery.
Our Services:
- Pre-Sale Support
- 24/7 online response via email, WeChat, WhatsApp, Skype, etc. for inquiries.
- Professional product introductions with detailed photos and working videos.
