Basic Info

Model NO.	LS-133
Material Feature	Oil Resistant, Heat Resistant, Fire Resistant, Anti-Corrosion
Application	Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition	New
Product Name	Vertical Screw Conveyor
Machine Type	Horizontal or Inclined Type
MOQ	Only One Set
Function	Transfer Bulk Materials
Driving Device	Motor+Reducer
Movable Support	Supply as Demand
Power	380V, 50Hz, 3phase or as Request
Guarantee Period	1 Year
Transport Package	Wooden Case
Specification	size as requested
Trademark	Hengyu
Origin	China
HS Code	84283910
Production Capacity	50 Per Week

Product Description

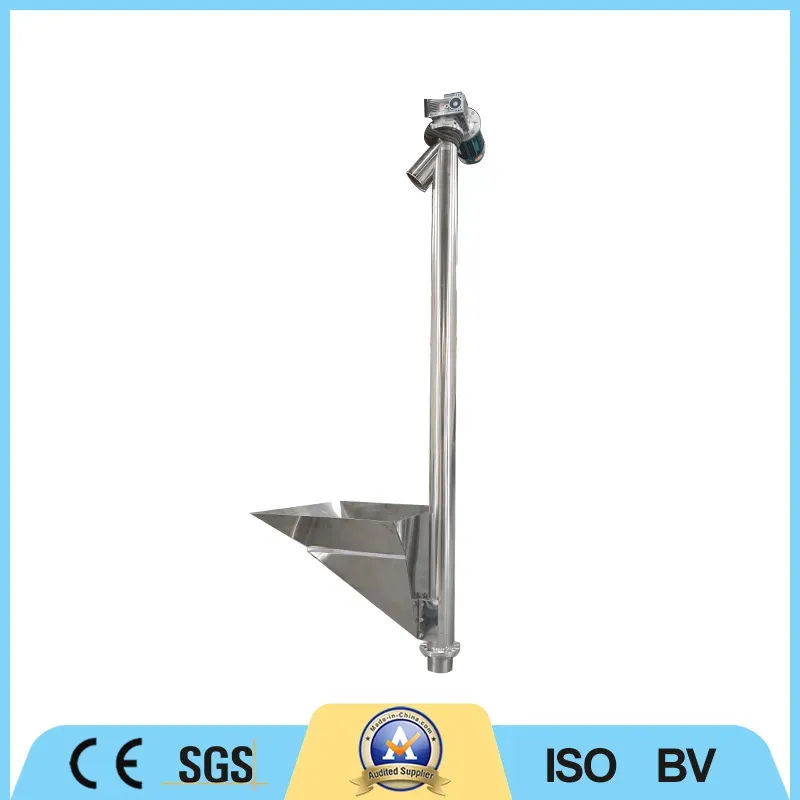

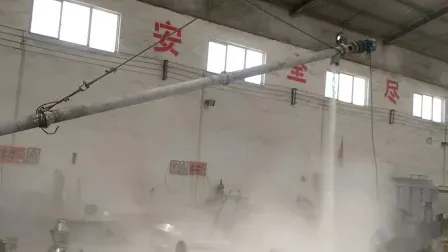

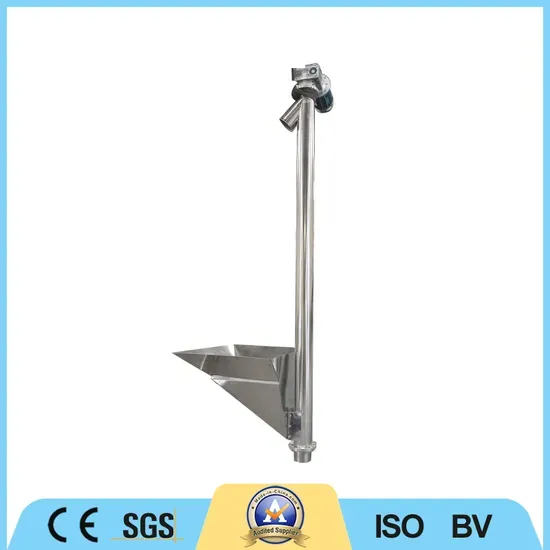

Description of Vertical Screw Conveyor for Feeding Powder or Pellet

Screw conveyor We use the strongest and most durable steels to fabricate screw conveyor systems that withstand the harshest conditions. We will work with you to determine the appropriate screw size and motor size to ensure the good performance of your screw conveyor systems. From determining screw diameter and length to identifying multiple discharge points, screw conveyors from our team are custom designed for your facility's specific needs.

Notes of vertical screw conveyor

[conveying distance]: less than 30 meter
[conveying temperature]: less than 200ºC
[conveying capacity]: less than 100m³/h
[application industry]: suitable for various industries: food, chemical, electric power, metallurgy, mining etc…

Features for vertical screw conveyor

Installation, disassembly and maintenance is very convenient, and low failure rate
Simple structure, small size, so the occupied area and space is not very big
Can have multiple feeding port and discharging port as needed
Easy to form the production line, can be connected with packaging equipment, storage equipment, mixing equipment or screening equipment
can be customized with hopper or running wheels and others

Technical parameters

Model	LS100	LS160	LS200	LS250	LS315	LS400	LS500
Diameter (mm)	100	160	200	250	315	400	500
Screw pitch (mm)	100	160	200	250	315	355	400
N (r/min)	140	112	100	90	80	71	63
Q	2.2	8	14	24	34	64	100
N (r/min)	112	90	80	71	63	56	50
Q	1.7	7	12	20	26	52	80
N (r/min)	90	71	63	56	50	45	40
Q	1.4	6	10	16	21	41	64
N (r/min)	71	50	50	45	40	36	32
Q	1.1	4	7	13	16	34	52

For Choosing different type according to your special situation:

1. Tubular screw conveyor
2. Trough type screw conveyor

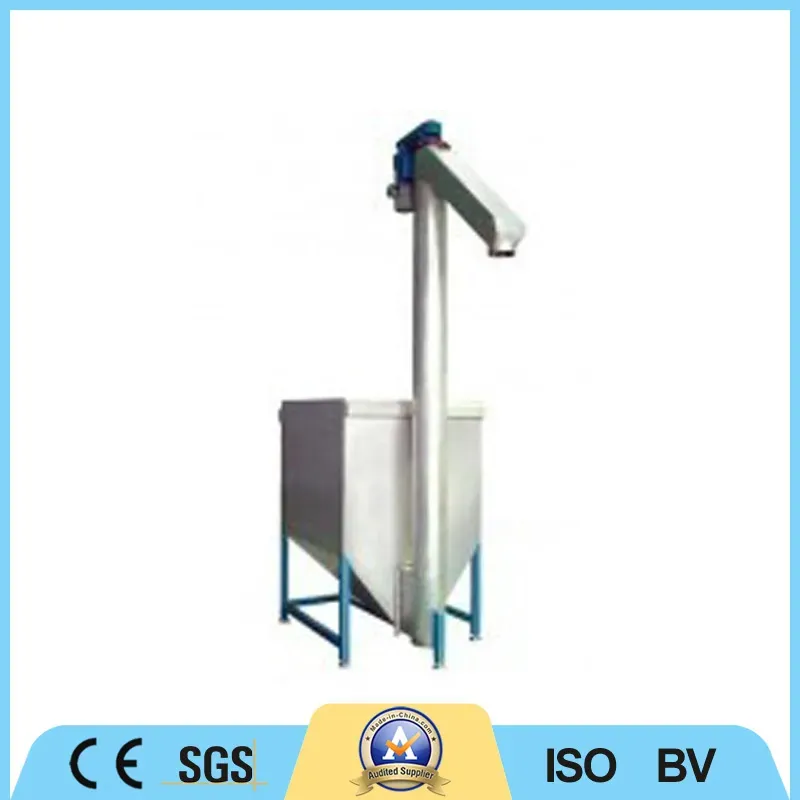

3. Hopper type screw conveyor mized batching, discharging and stacking, being used with other conveying device together.

How to choose vertical screw conveyor for you:

1. What's name of bulk material and the characteristics? Such as coal, cement, stone, grain etc.
2. Distance from inlet to outlet? Such as 5m,20m,50m,100m etc.
3. How much about the capacity? Such as 5t/h, 10t/h, 20t/h etc.
4. How much about the max inclined angle? Such as 5°,10°,15°,25° etc.

Tell us those data and let's make the right solution for you.
