Overview

Basic Info.

Model NO. MW5-210L/1
Shape Round
Color Red, Yellow, Orange or Others
Rated Voltage DC220V
Duty Cycle 60%
Electric Current 129A
Cold-State Power 28.4kw
Weight 7000kg
Lifting Capacity for Cast Iron 3500/2800kg
Lifting Capacity for Steel Ball 21000kg
Lifting Capacity for Steel Scrap 2200/1850kg
Coil Material Aluminum or Copper
Application It Is Used to Lifting All Kinds of Steel Scraps
Transport Package Standard Export Package
Specification 2100*2100mm
Trademark SHENGANG MAGNET
Origin China
HS Code 85059010
Production Capacity 100 Sets Per Month

Packaging & Delivery

Package Size 212.00cm * 212.00cm * 72.00cm
Package Gross Weight 7200.000kg

Product Description

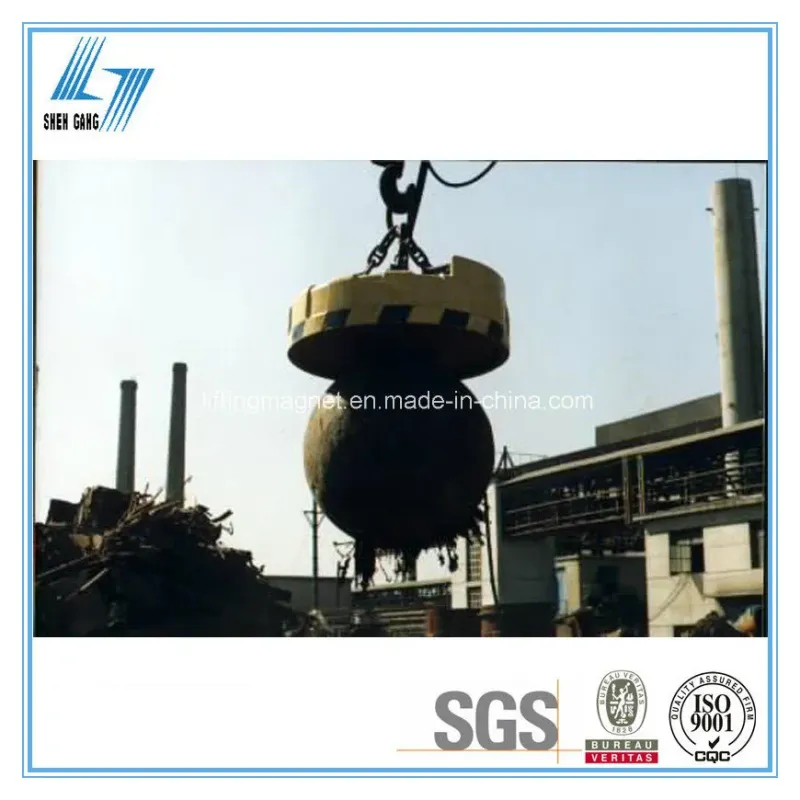

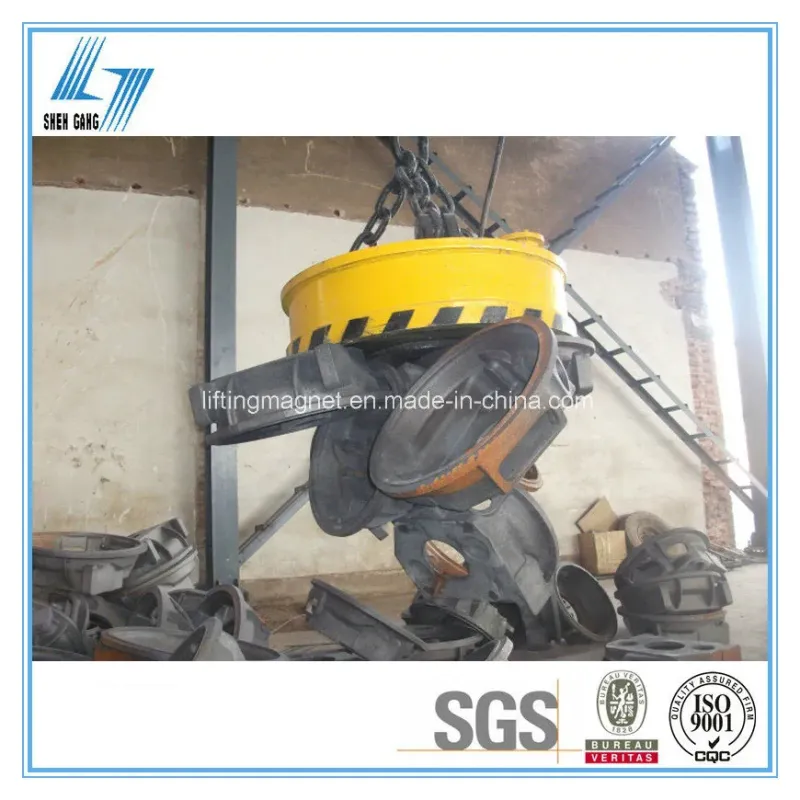

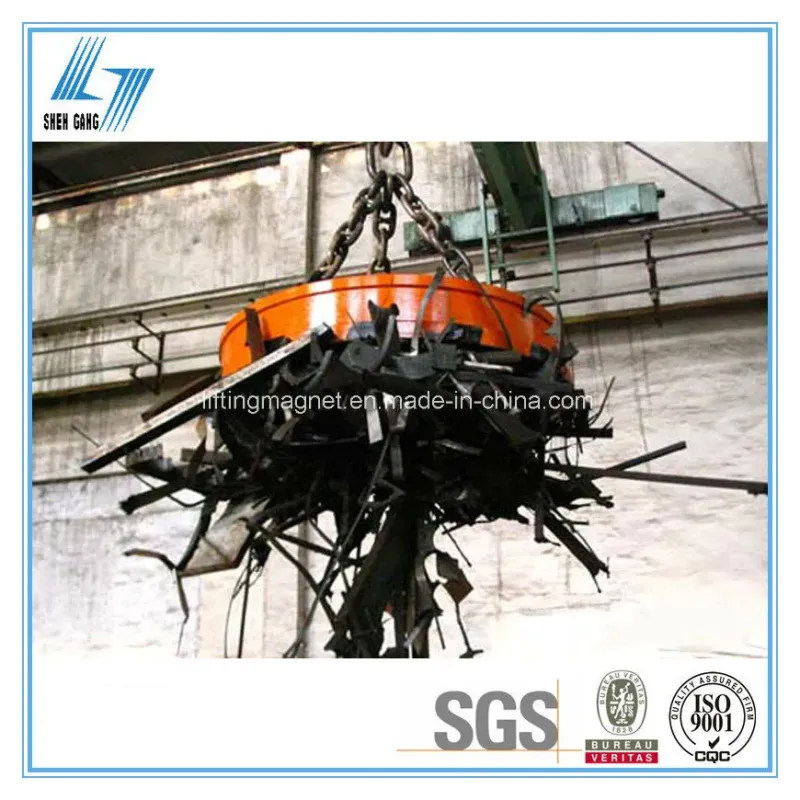

Lifting electro magnet is used for lifting and transporting iron scraps, ingots, steel chips, slabs, steel plates and steel sheets. We have both types that are suitable for installing with excavator and crane; And we also have electro lifting magnet that can be submerged under water. The electro lifting magnet can be used at very high and normal temperature in metallurgical plants, scrap yards and ship-building plants.

Features:

Heavy-Duty Fabricated
High-Impact Resistant Manganese Steel Bottom Plate
Ground-Wired, Easy-Access Terminal Box
Wear Resistant Hard-Faced Pole Shoes
DC 220/230V Operation
Deep-Field Aluminum or Copper Coils
Class "H" Insulations
Moisture & Shock Resistant High-Dielectric Compound
Watertight Construction

Application:

Recycling Industry
Railroad Industry
Demolition Industry
Iron & Steel Industry
Scrap Yard Processing
Waste Processing
Under Water Applications
Manufacturing Scrap Waste Handling

2 Ton Circular Type Eot Crane Electro Lifting Magnet for Steel Scrap

Product Parameters

Model	Electric current (A)	Cold-state power (kw)	lifting capacity (kg) cold/hot state	Mass (kg)	Overall dimension (mm)
A	B	C	D	E
MW5-70L/1	15	3.3	2500	380/200	490	700	800	160	90	30
MW5-80L/1	18	3.96	3000	480/250	620	800	800	160	90	30
MW5-90L/1	26.6	5.9	4500	650/440	800	900	1090	200	125	40
MW5-110L/1	35	7.7	6500	1000/800	1350	1100	1140	220	150	45
MW5-120L/1	45.5	10	7500	1300/1000	1700	1200	1100	220	150	45
MW5-130L/1	54	12	8500	1400/1100	2010	1300	1240	250	175	50
MW5-150L/1	71.2	15.6	11000	1900/1500	2830	1500	1250	350	210	60
MW5-165L/1	75	16.5	12500	2300/1800	3200	1650	1590	370	230	75
MW5-180L/1	102	22.5	14500	2750/2100	4230	1800	1490	370	230	75
MW5-210L/1	129	28.4	21000	3500/2800	2200/1850	7000	2100	1860	400	250	80
MW5-240L/1	154	33.9	28000	4800/3800	2850/2250	9000	2400	2020	450	280	90

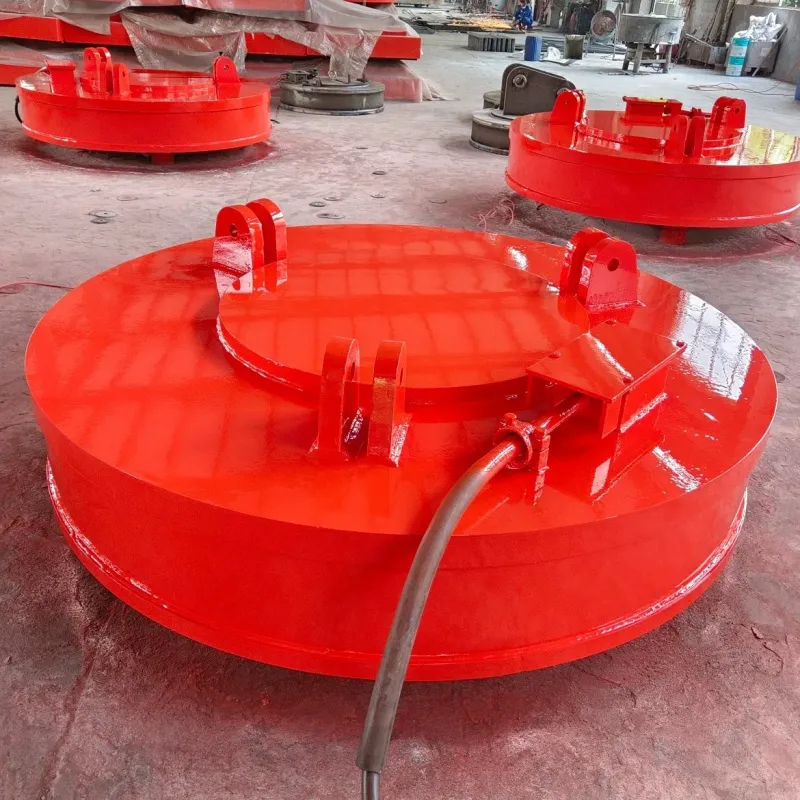

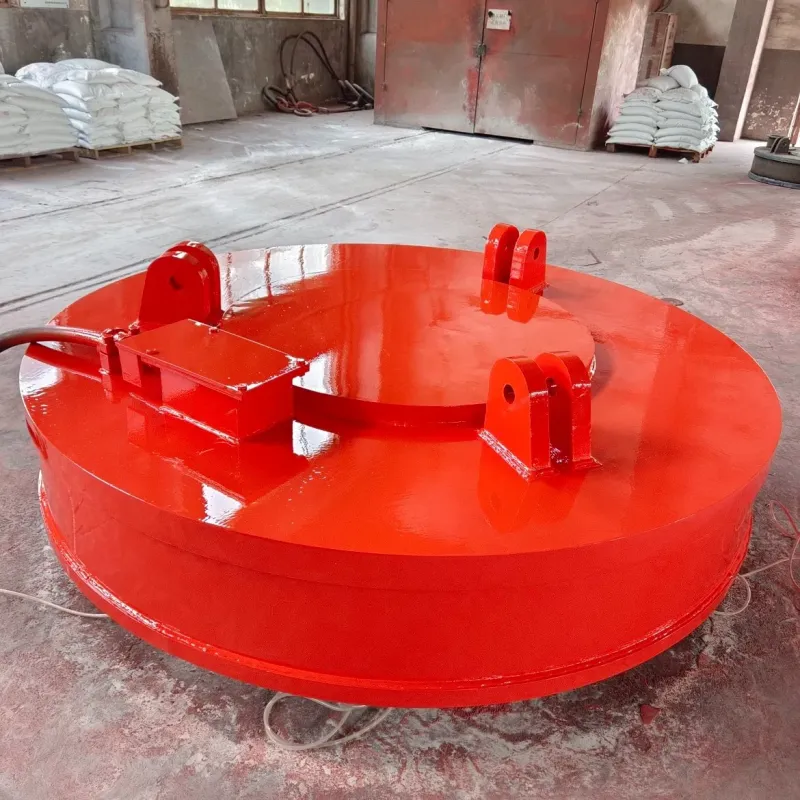

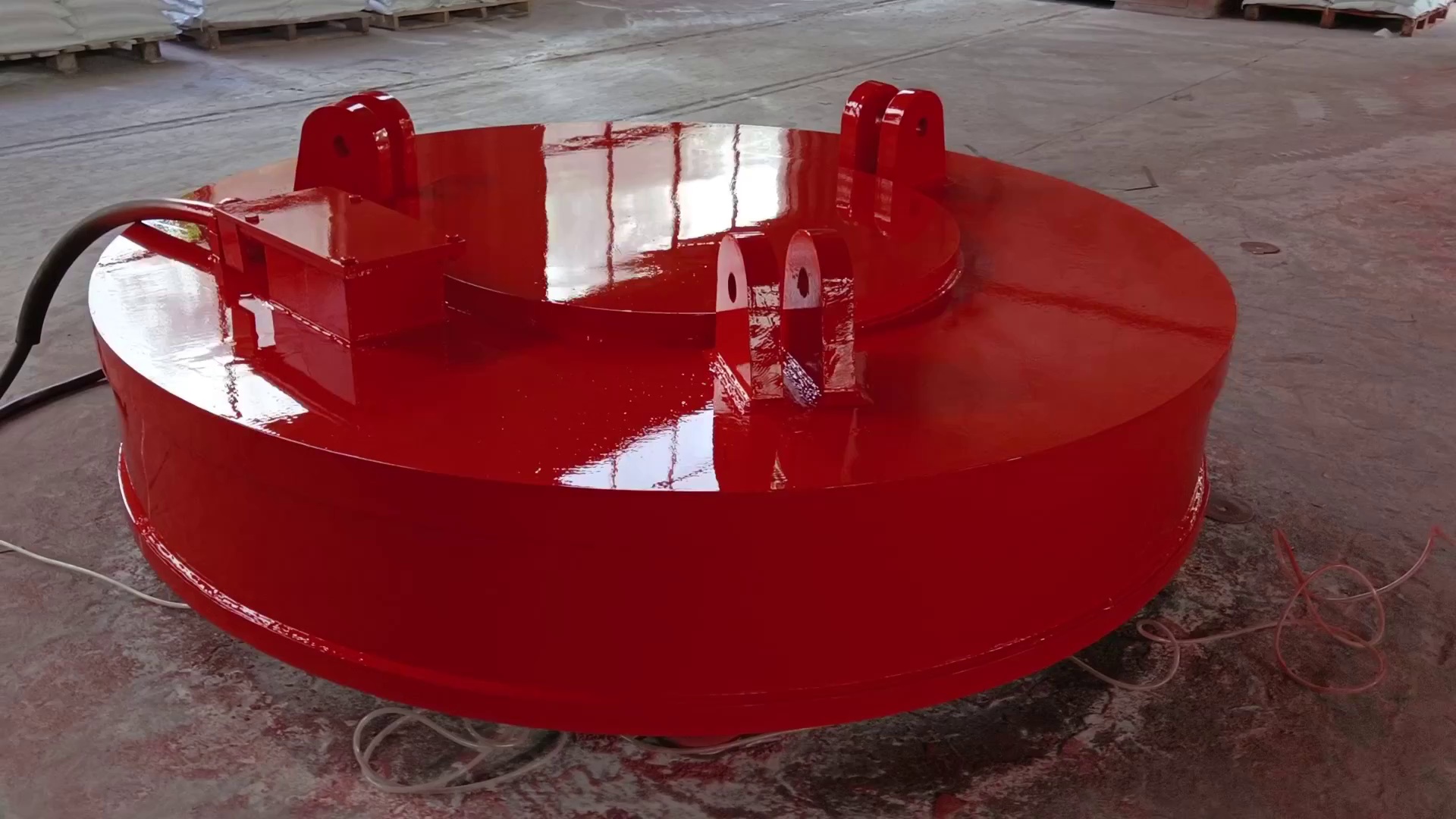

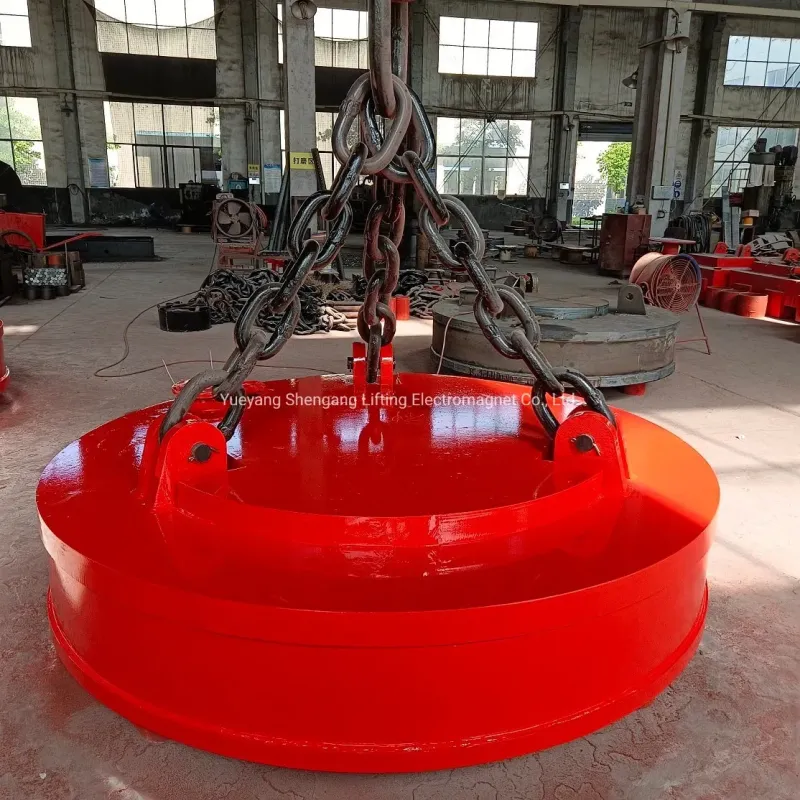

Detailed Photos

Complete set of Equipment: · Lifting electro magnet; · Spring type cable reel with Cable; · Rectifier control cabinet (Normal type, Strong excitation type, Battery back-up type); · Cable connector / Quick coupling.

Processing flow and Package: The package is angle steel welded frame and fixed with five-layer plywood around the outside to keep safety long-distance transportation; Don't need to be fumigated.

About Enquiry

To help you get the best electro lifting magnet for your application, we should have the following information:

What are the materials you want to lift? Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length × Width × Thickness mm)
What's the lifting capacity you expect?
What kind of working site does the magnet work? Indoor or outdoor?
Kindly provide your power supply information (__V, DC/AC, __Hz), and information for crane (single beam or double beam, single hook or double hook, how about its loading capacity).
Do you need full set with cable reel, control cabinet or only magnet?
Do you need FOB or CIF price, which port?

(More details, please feel free to contact us directly.)
