Tube Vertical Screw Conveyor for Feeding
Description
Overview
Basic Info.
| Model NO. | LS-89-2000 |
| Structure | Conveyor System |
| Material | Stainless Steel |
| Material Feature | Oil Resistant, Heat Resistant, Fire Resistant |
| Application | Chemical Industry, Grain Transport, Mining Transport, Power Plant |
| Condition | New |
| Usage | Conveying Products |
| Speed | Adjustable Speed |
| Advantage | Adjustable Speed |
| Length | Customized 1~100m |
| Feature | Feature |
| Installation | Installation |
| Transport Package | Wooden Case |
| Specification | Stainless steel/carbon steel |
| Trademark | Sanyuantang |
| Origin | China |
| HS Code | 8428399000 |
| Production Capacity | 2000 sets/Years |
Product Description

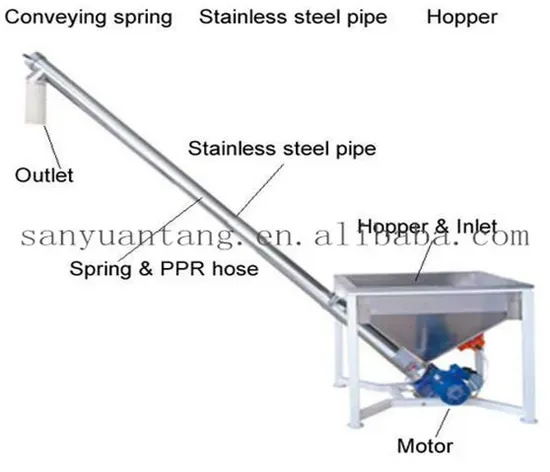

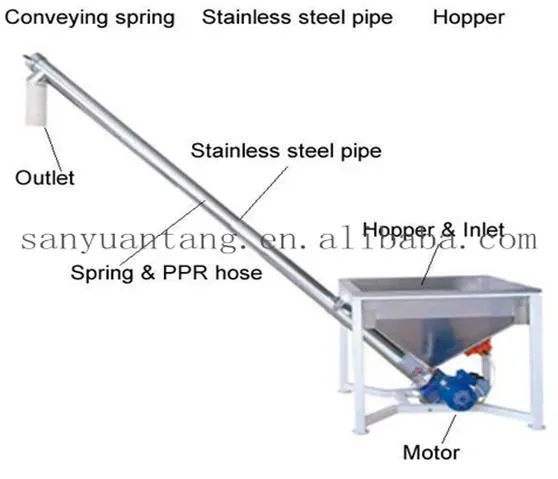

Screw conveyor description: ♦ Screw conveyor, also called spiral conveyer, auger conveyor, screw feeder, vibrating conveyor, flexible screw conveyor, etc.
♦ Screw conveyor is designed to transport series materials from one place to another. Combined with the vibrating screen of our company, it can do material situation tracing, also can be used separately.
♦ This kind of screw conveyor can be used to transport series materials of powder, granular or small block in industry, food and environment protection industries, medicine etc.
Screw conveyor features:
1. The machine is especially suitable for conveying all kinds of powdery material, also can be used for conveying all kinds of granular or flake materials.
2. Using unique designed stainless steel screw-shaped blade;
3. High conveying capacity, safe and reliable operation, easy to disassemble and clean;
4. Good adaptability and long service life;
5. Good sealing quality and rigidity;
6. Can be customized as customer requests;
7. Can add vibrator for speed up the feeding speed.
Screw conveyor application:
Auger conveyor has been widely used in various departments of the national economy, such as building material, metallurgy, chemical industry, electric power, coal, machinery, light industry, food and the food industry, is suitable for conveying powder, granulated and small lump materials, such as cement, coal, grain, chemical fertilizer, ash, sand, coke, etc. Should not be transporting perishable materials, big viscosity, easy to agglomerate, LS screw conveyor working environment temperature is usually -20 ~ 40 ºC, the temperature of the conveying material is commonly -20 ~ 80 ºC, the LS screw conveyor is suitable for level and layout of the small Angle, inclination Angle with no more than 15 ° advisable, such as Angle is too large, please choose GX series screw conveyor, or contact our.
Product Parameters
| Screw conveyor | 100 | 160 | 200 | 250 | 315 | 400 |
|---|---|---|---|---|---|---|
| Screw diameter (mm) | 100 | 160 | 200 | 250 | 315 | 400 |
| Screw pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 |
| Rotating speed (r/min) | 100 | 120 | 90 | 90 | 75 | 75 |
| Production capacity Qφ=0.33 (m³/h) | 2.2 | 7.6 | 11 | 22 | 36.4 | 66.1 |
| Power Pd 1=10m (kw) | 1.1 | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 |

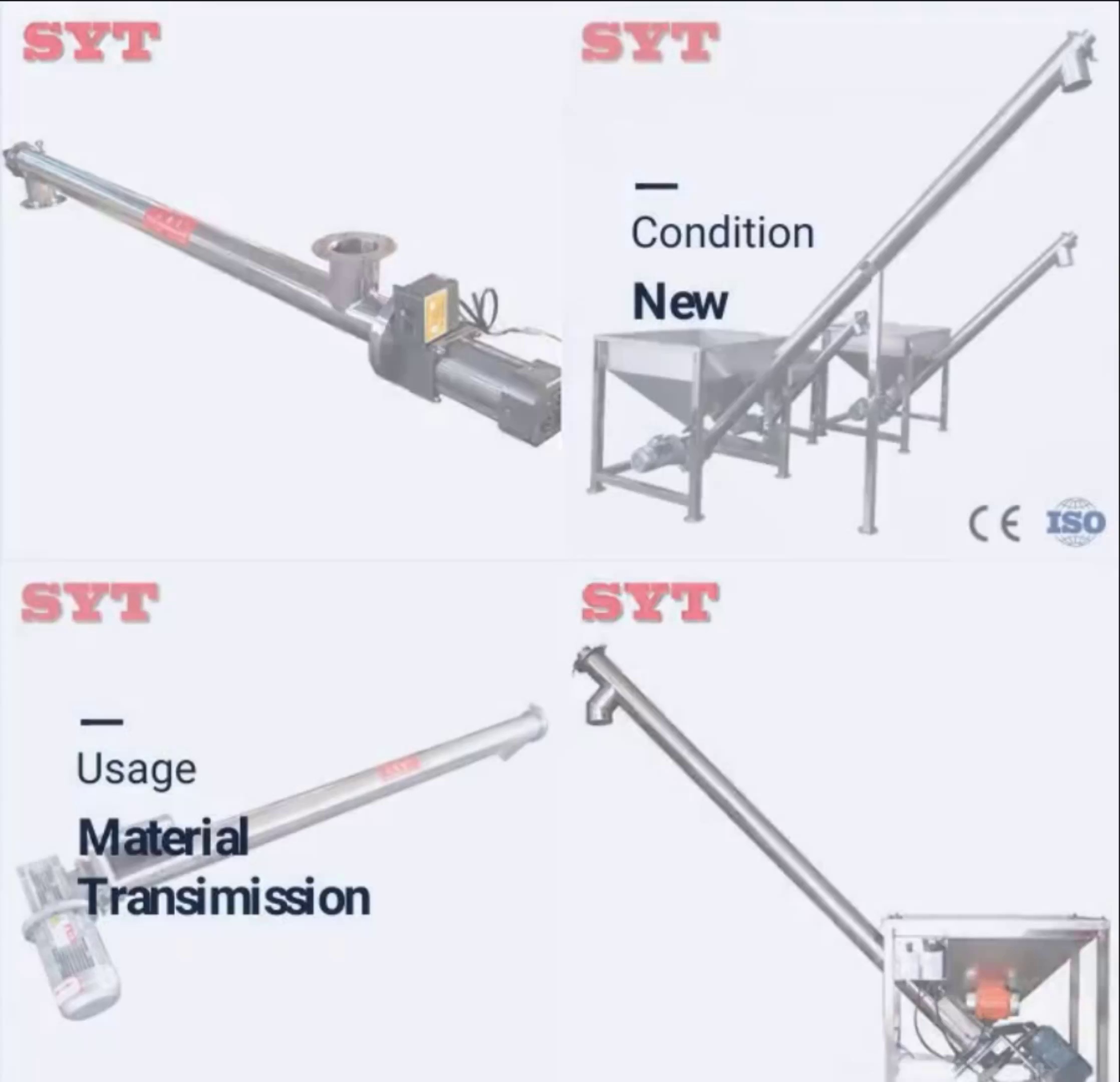

Product Show
Packaging & Shipping
1. Machine Packing: Our machine uses export standard wooden packing for our customers.
2. Machine Shipping: We usually ship machines for our customers with the following modes:
1). by sea
2). by air
3). by express
4). by train
3. Delivery time: We will delivery your machines in 5-10 days after received 100% of the whole payment.
Our Services
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
- a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
- b, Operation video & instruction will be sent to clients, to help them use the machines better.
- Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
- a, Any problems occur while using, professional advice will be offered.
- b, All kinds of frequently used parts are supplied all the year round.
