Overview

Basic Info.

Model NO. DJS
Material Carbon Steel
Material Feature Oil Resistant
Certification ISO9001:2008, ISO9001:2000, CE
Energy Saving Energy Saving
Warranty 1 Year
Color Multi Color
Customized Customized
Condition New
After-sales Service One-Stop Service
Mining Object Coal Machinery
Model Djb
Belt Width 500/600/800/1000/1200/1400mm
Sidewall Height 100/120/160/200/240/300mm
Transport Package as Customers' Request
Specification ISO9001: 2000/ CE
Trademark PK
Origin Henan, China(Mainland)
HS Code 4010190000
Production Capacity 1000 PCS/Year

Product Description

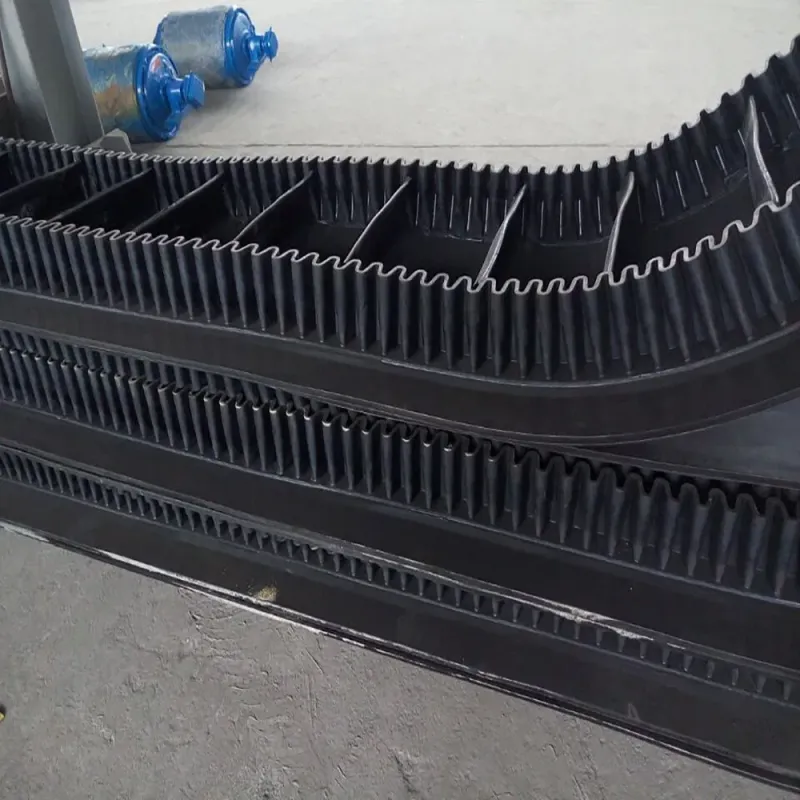

Introduction: Sidewall belt conveyors are the best solution for horizontal, sloping or vertical product transport. It adopts high quality conveyor belt with corrugated sidewall and horizontal baffle. Sidewall belt conveyor is widely applied in coal and wood-chip fired power stations, underground mining (coal and ore), steel industry, ship loading and unloading, foundry plants, silo feeding industry, waste recycling, soil purification and water treatment, etc.

Advantages and Features

No spillage with steep angle conveying, long lifespan
Larger production grain sizes can be handled
Reduced energy consumption to save money for you

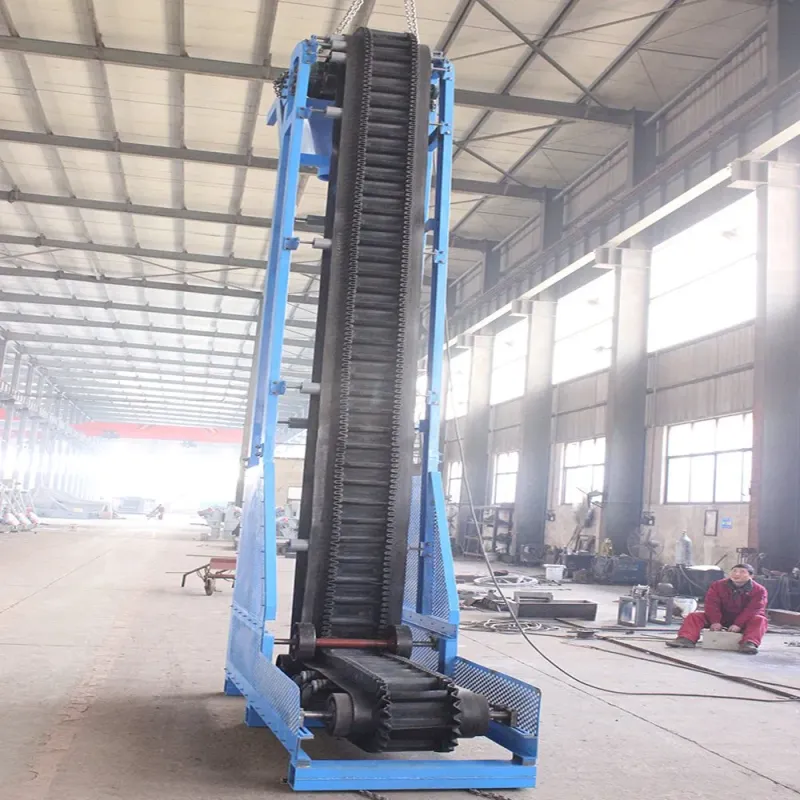

Able to conveyor material at any angles up to 90 degree to save space for you
Higher conveyance capacity
Extremely high stability is provided in the traverse direction, good longitudinal flexibility
Low maintenance requirements
Hot vulcanization provides 5 times greater adhesion between the belt and sidewall, eliminating the need for bolting the sidewall to the base belt.
Can be sealed and environmental friendly

Product Parameters

Belt Width	Sidewall Height	Baffle Height	Effective Width	Particle Range (mm)	Speed Range (m/s)	Capacity (m³/h)
500mm	80mm	75mm	250mm	50-100	1.0-2.0	84
500mm	100mm	90mm	250mm	55-110	1.0-2.0	112
500mm	120mm	110mm	250mm	60-120	1.0-2.0	98
650mm	100mm	90mm	350mm	55-120	1.25-2.0	156
650mm	120mm	110mm	350mm	60-140	1.25-2.0	140
650mm	160mm	140mm	300mm	80-160	1.25-2.0	186
800mm	120mm	110mm	460mm	60-140	1.25-2.0	186
800mm	160mm	140mm	410mm	80-180	1.25-2.5	318
