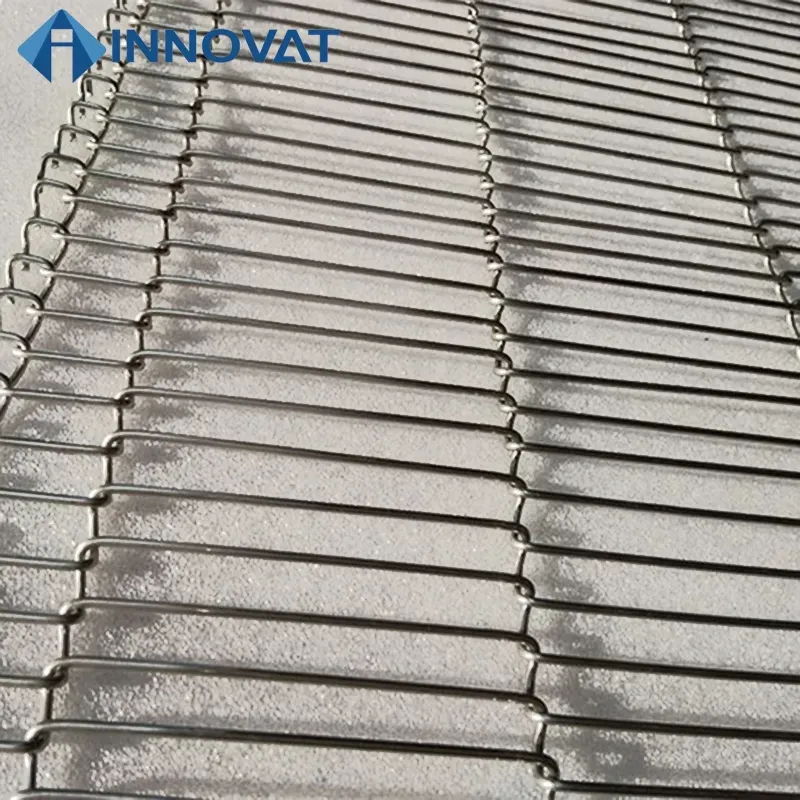

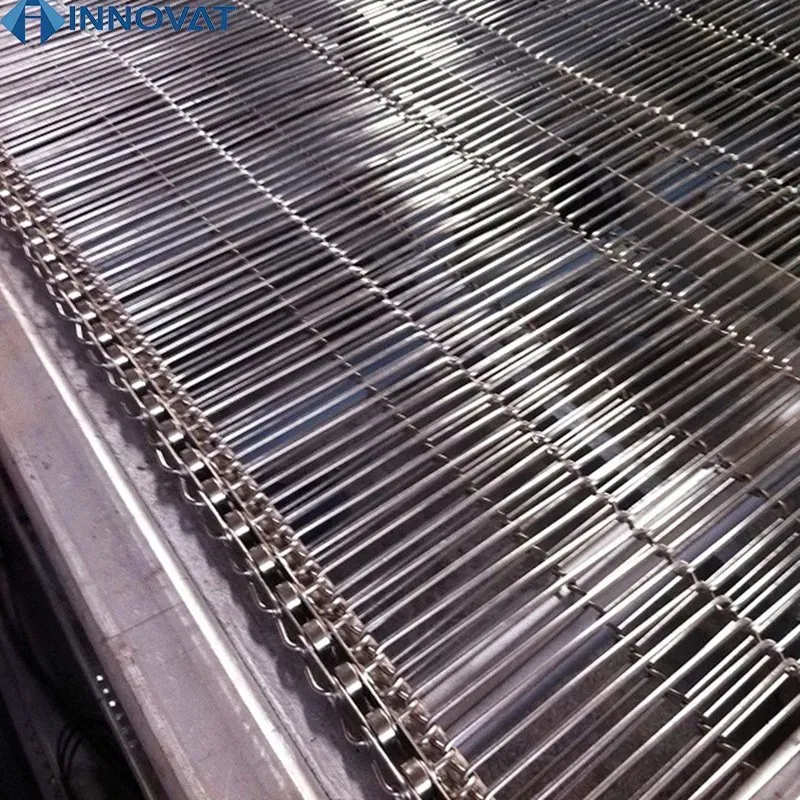

Flat Flex Conveyor Belt System with Chain Roller SUS 304/316
Description
Basic Info.
Model NO.: conveyor belt
Inside Material: Metal
Feature: Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant
Tensile Strength: Strong
Transport Package: Plywooden Pallet/Wooden Case
Specification: 200 mm to 5,000 mm
Origin: China
Packaging & Delivery
Package Size: 50.00cm * 50.00cm * 50.00cm
Package Gross Weight: 20.000kg
Product Description
It is usually used as a gear transmission mesh belt. It has the advantages of uniform tension, fine workmanship, good air permeability, and has the characteristics of flexible rotation, good stability, high temperature resistance, pressure resistance, corrosion resistance, and long life.
Material: SS 304, SS 316.
Pitch: 4.8 mm to 12.7 mm.
Diameter: 1 mm, 1.2 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.3 mm, 2.35 mm.
Belt width: 200 mm to 3600 mm.

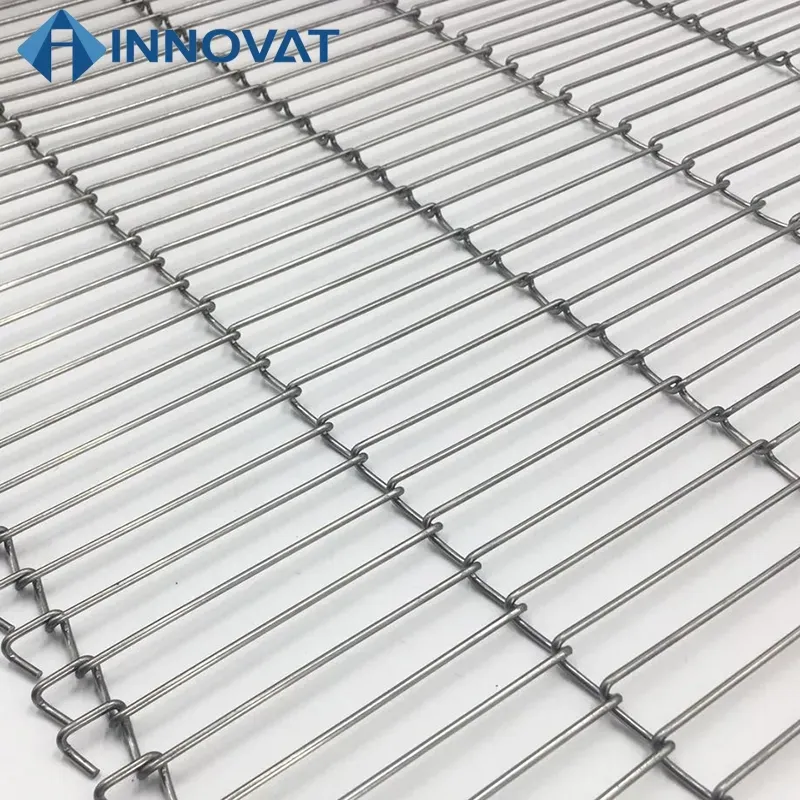

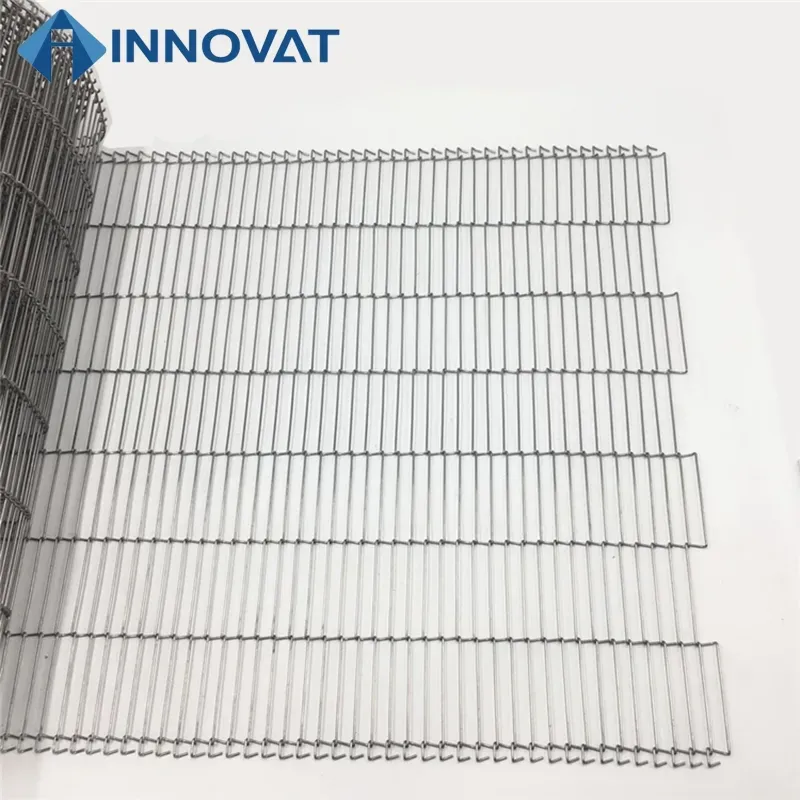

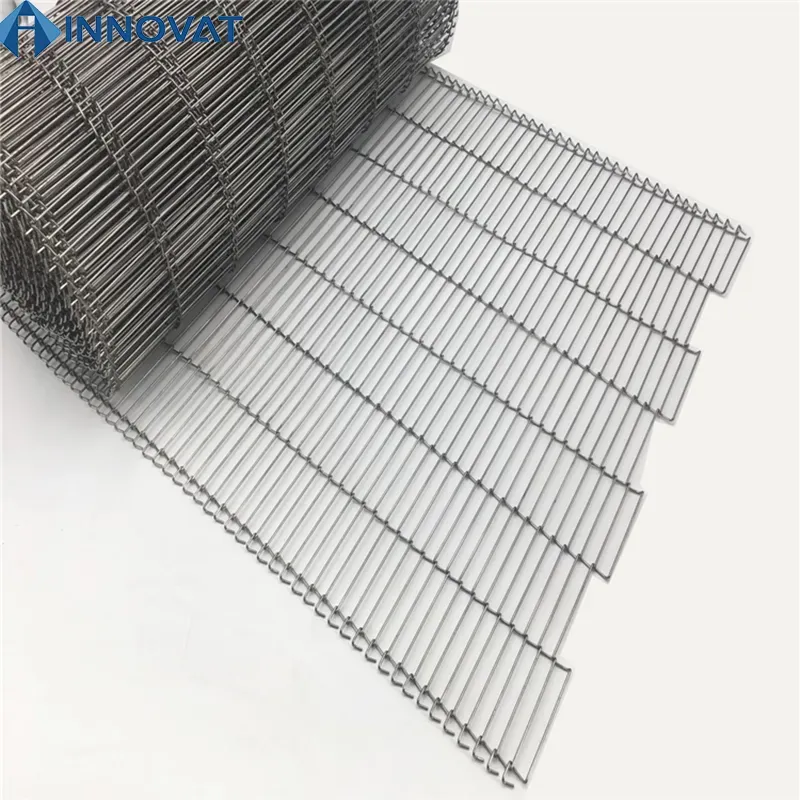

Edge Loop Types: C-shaped Edge, Single Loop Edge, Double Loop Edge
| Pitch | Strands Per Foot | Opening between Wires | Edge Loop Size | Weight (lbs/sq.ft) | Min Transfer Dia. (grooved) | Typical Open Area (%) | Single Loop Edge | Double Loop Edge | C-edge |
|---|---|---|---|---|---|---|---|---|---|
| .167" | 72.0 | .132" | 0.188" | 0.26 sq.ft | 0.375" | 77.0 | √ | √ | |
| .167" | 72.0 | .117" | 0.188" | 0.53 | 0.438" | 67.5 | √ | ||
| .222" | 54.0 | .187" | 0.188" | 0.20 | 0.500" | 82.5 | √ | √ | |
| .250" | 48.0 | .200" | 0.313" | 0.37 sq.ft | 0.625" | 77.5 | √ | √ | |
| .289" | 41.5 | .239" | 0.281" | 0.33 sq.ft | 0.625" | 80.0 | √ | √ | √ |
| .289" | 41.5 | .230" | 0.281" | 0.52 sq.ft | 0.750" | 75.0 | √ | √ | |
| .375" | 32.0 | .303" | 0.313" | 0.58 sq.ft | 1.000" | 79.0 | √ | √ | |
| .375" | 32.0 | .293" | 0.313" | 0.72 sq.ft | 0.875" | 75.0 | √ | √ | |
| .453" | 26.5 | .403" | 0.25" | 0.24 sq.ft | 1.000" | 86.0 | √ | √ | |
| .500" | 24.0 | .428" | 0.281" | 0.44 sq.ft | 1.125" | 82.0 | √ | √ | |
| .500" | 24.0 | .408" | 0.5" | 0.73 sq.ft | 1.250" | 78.0 | √ | √ | |
| .500" | 24.0 | .390" | 0.512" | 1.04 sq.ft | 1.500" | 72.0 | √ | ||
| .774" | 15.0 | .682" | 0.313" | 0.52 sq.ft | 1.500" | 85.0 | √ |
High proportion of open area up to 86% makes the belt efficient in cooling, drying, heating applications. The rod network belts provide stable conveying of delicate products. Various sizes with different openness to suit different applications providing superb strength and min contact surface between the products and the belts. Low belt mass than balanced weave belts for lower power consumption, faster processing and more product throughput.
