Vertical Leaf Oil Filter Machine for Cooking Oil Filtration and Liquid Separation
Description
Overview
Basic Info.
| Model NO. | HT-LY-8 |
| Type | Return Filter |
| Mechanical Principle | Vibrating |
| Performance | Automatic |
| Product Name | Vertical Leaf Oil Filter |
| Material | Carbon Steel |
| Color | Green |
| After-Sale Service | Engineers Available to Service Machinery Overseas |
| Layers of Leaf | 5 Layers |
| Condition | New |
| Working Temperature | <150 Degrees |
| Working Pressure | 0.1-0.4MPa |
| Advantage | High Efficient and Energy Saving |
| Application | Cooking Oil Filtration |
| Transport Package | Wooden Case |
| Specification | 1.05*1.05*2.435m |
| Trademark | Hongte |
| Origin | China |
| Production Capacity | 100000sets/Year |
Product Description
We manufacture various kinds of oil filters, it is also named vertical leaf filter to be mainly used in edible oil industries.

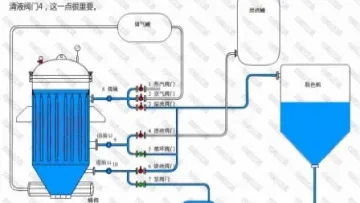

All the leaves are commonly made of 5 layers stainless steel mesh or carbon steel wire mesh including 2 layers fine filter mesh, 2 layers supporting mesh and 1 drain mesh. They are held together by a tubular frame and one or more pipes are mounted to let the filtered liquid flow out.
There are two types of pressure filters: Vertical Pressure Leaf Filter and Horizontal Pressure Leaf Filter. Vertical leaf filter is mainly used for solid or liquid separation and well-suited for handling toxic, flammable and corrosive material. Horizontal leaf filter fits for batch processing applications which require high flow rates and safe operations with low solids removal. Suitable for filtration of various edible oils:
Product Parameters
| Model | Filtration area (meter square) | Filter cake column(L) | Processing capacity (T/H) | Operate pressure(Mpa) | Operating temperature(C) | Fliter Crock Volume(L) |
|---|---|---|---|---|---|---|
| HT-LF-2 | 2 | 30 | 0.4-0.6 | 0.1-0.4 | ≤150 | 120 |
| HT-LF-4 | 4 | 60 | 0.5-1.2 | 0.1-0.4 | ≤150 | 250 |
| HT-LF-8 | 8 | 105 | 1-1.8 | 0.1-0.4 | ≤150 | 420 |
| HT-LF-10 | 10 | 150 | 1.6-3 | 0.1-0.4 | ≤150 | 800 |
| HT-LF-12 | 12 | 240 | 2-4 | 0.1-0.4 | ≤150 | 1000 |
| HT-LF-15 | 15 | 300 | 3-5 | 0.1-0.4 | ≤150 | 1300 |
| HT-LF-20 | 20 | 400 | 4-6 | 0.1-0.4 | ≤150 | 1680 |
| HT-LF-25 | 25 | 500 | 5-7 | 0.1-0.4 | ≤150 | 1900 |
| HT-LF-30 | 30 | 600 | 6-8 | 0.1-0.4 | ≤150 | 2300 |

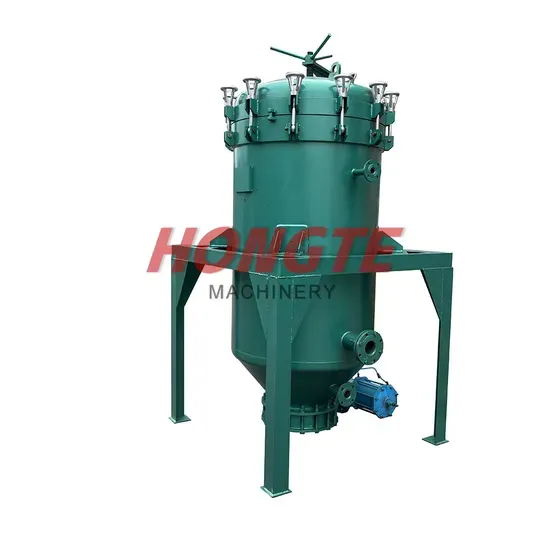

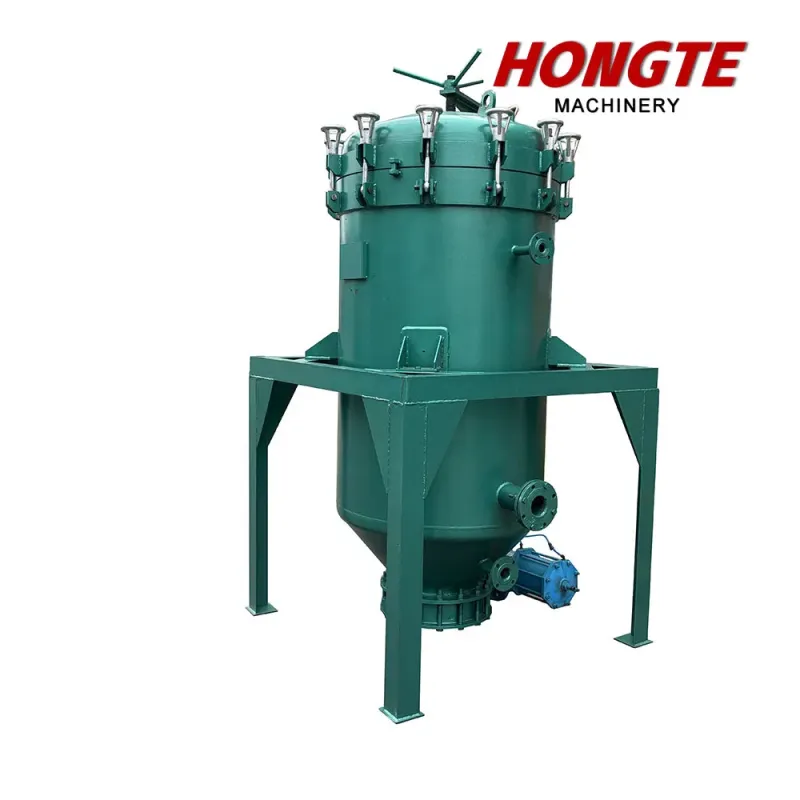

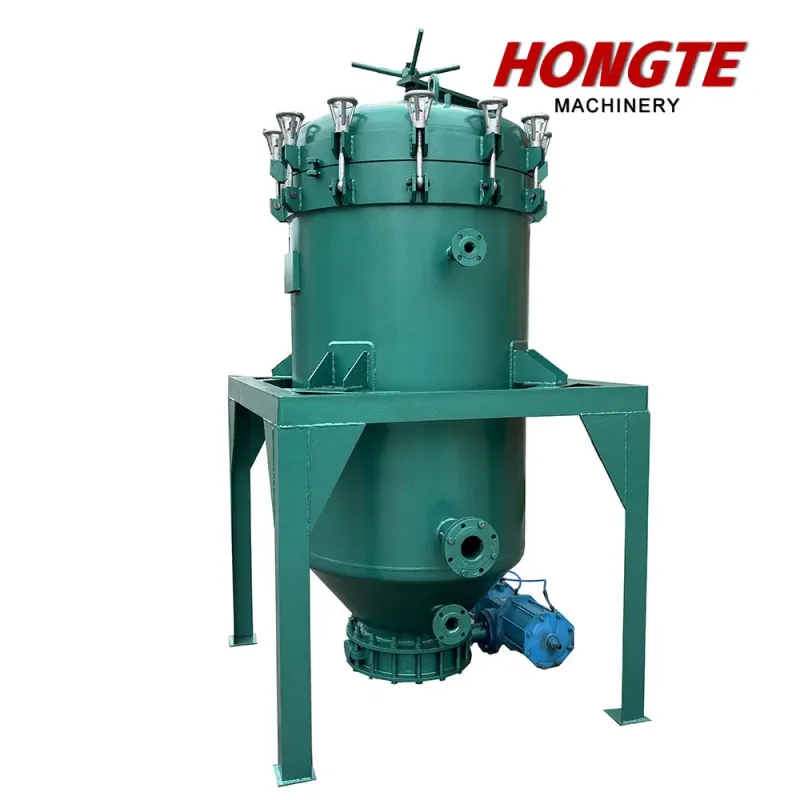

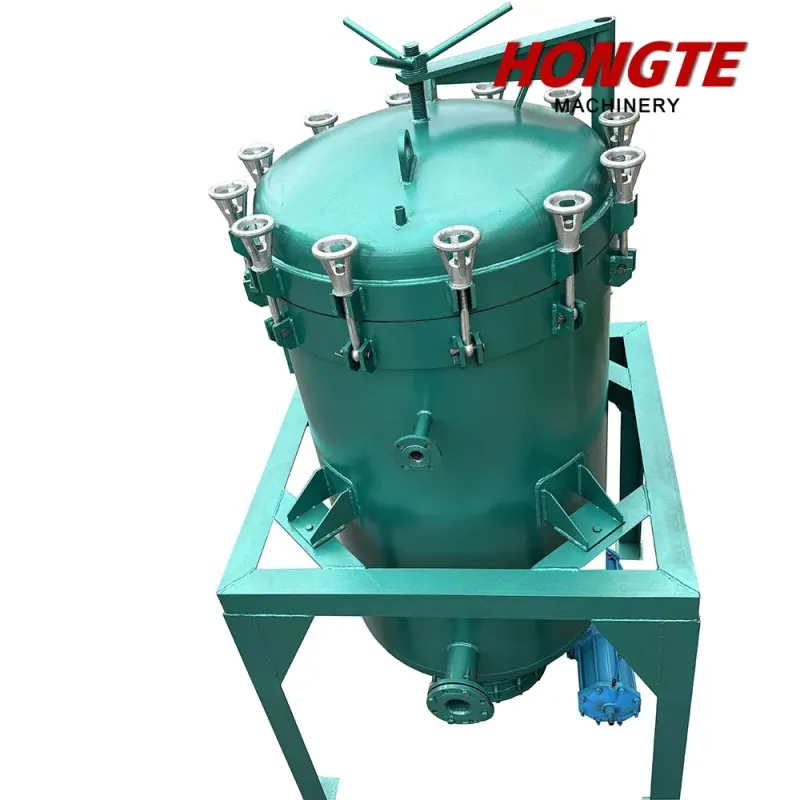

Detailed Photos
Application
- Oil industry: oil filter for decolorization, oil filter for dewaxing, oil filter for filtering the crude oil
- Food industry: sugar, glucose, wine, fruit juice, soft drinks and so on
- Chemical industry: petrochemical industry, inorganic chemicals, organic chemicals (used in the process of the crystals separated from the catalyst for a variety of filtering separation).
- Environmental protection industry: rivers, lakes, water, sewage treatment station, water purification back to the swimming pool.
Feature & Advantage
- Reasonable structure, covering less area.
- Efficient filtration, higher precision, lower loss of material (no need the filter cloth, filter paper or paper element, but only consume the filter aid)
- Discharging the slag by automatic vibrating. Easy operation and reduce the labor intensity.
- The mesh is made of stainless steel. No need to be changed. The production can be continuous.
Packing & Shipping
- Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
- Spare parts, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other equipment will be packed by Color-Stripes Plastic Cloth.
- Or as per customer's requirements.
