Fully Automatic Vertical Pressure Leaf Filter for Oil and Diatomaceous Earth Filtration

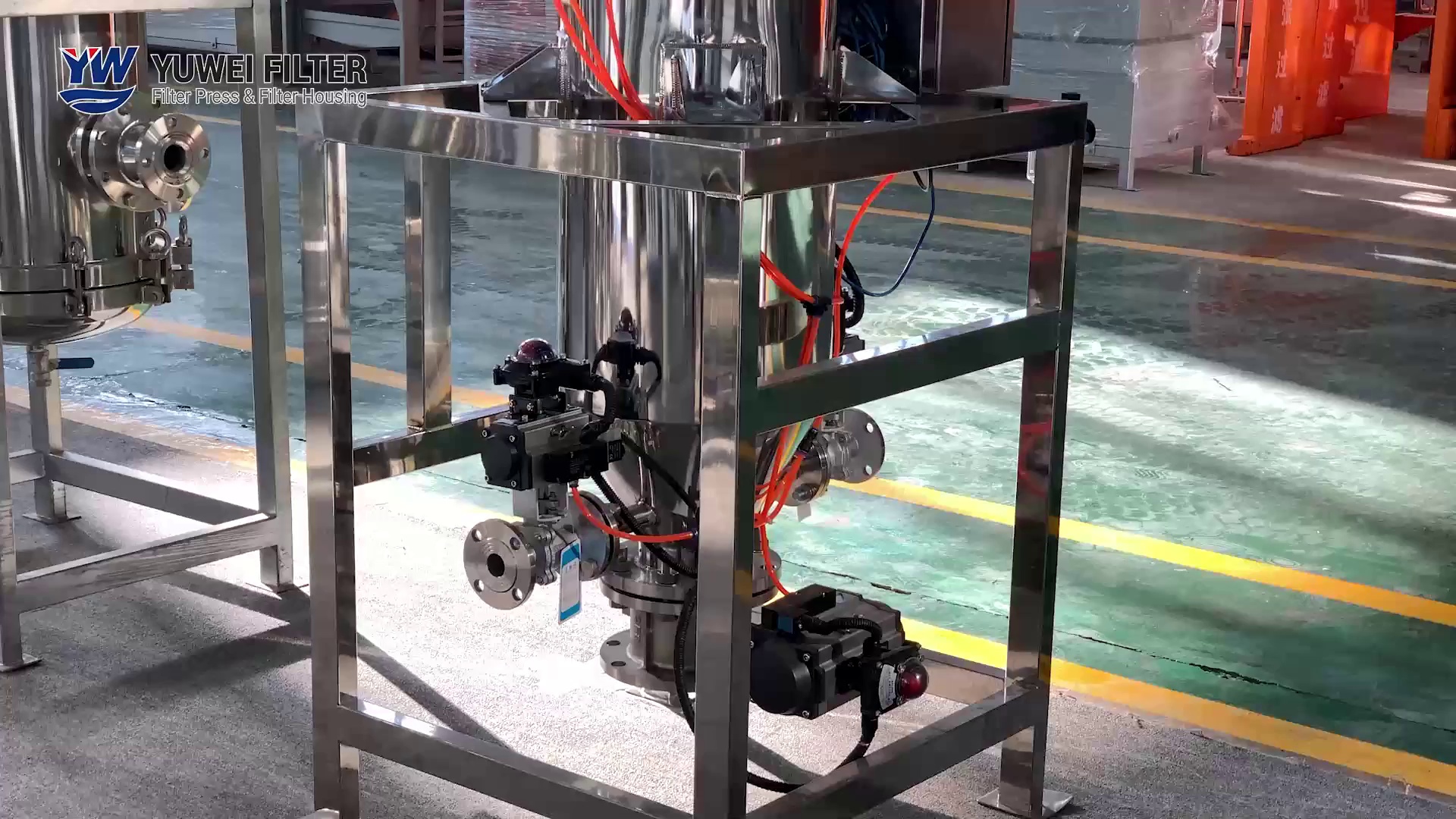

Video

Product ID: 68589990

Fully Automatic Vertical Pressure Leaf Filter for Oil and Diatomaceous Earth Filtration

Contact Now

Description

Basic Info

Model NO.	Pressure Leaf Filter
Motive Force	Pressure
Style	Vertical
Performance	Efficient Filtration
Certification	CE, GS
Housing Material	Carbon Steel / Stainless Steel
Working Pressure	0.1-0.4 MPa
Control Mode	Manual / Automatic Optional
Transport Package	Wooden Case / Bubble Wrap
Specification	YWBL-2 to YWBL-80
Trademark	Yuwei Filter Press
Origin	China, Henan, Yuzhou

Packaging & Delivery

Package Size	170.00cm * 170.00cm * 350.00cm
Package Gross Weight	2000.000kg

Product Description

Description of Leaf Filter: Yuwei leaf filter is composed of shell, filter mesh, cover lifting mechanism, automatic slag discharging device. It can also be customized according to the different filtration media. The filter mesh is composed of multi-layer stainless steel mesh, which is installed on the central aggregate pipe, and it is very convenient to install and disassemble.

After the filter aid is mixed with the material in the mixing cylinder, a stable filter cake layer will be formed on the filter mesh through the circulation of the conveying pump, that is, the filter aid is precoated. In the process of filtering, numerous tiny channels will be formed by filter aid particles and suspended debris will be trapped. The cake will not be blocked by adding a diatomite filter aid to form a new filter layer.

Specification of Leaf Filter

Model	Filteration Area (m²)	Filter cake volume (L)	Processing power (t/h)	Work pressure (MPa)	Filtering cylinder volume (L)	I/O Connection	Overflow port	Discharging outlet	Cylinder diameter (mm)	Cylinder height (mm)	Filter spacing (mm)	Weight (Kg)	Projection area (mm)
Grease	Resin	Drinks	YWBL-2	2	30	0.4-0.6	1-1.5	1-2	0.1-0.4	120	DN25	DN25	DN100	400*3	1280	50	150	500×70
YWBL-4	4	60	0.8-1.2	2-3	2-4	250	DN40	DN25	DN125	500*3	1520	50	180	600×800
YWBL-7	7	105	1.4-2	3-5	4-8	420	DN40	DN25	DN150	600*3	1920	50	326	750×100
YWBL-10	10	150	2-3	5-8	5-10	890	DN50	DN25	DN200	800*4	2120	70	474	1000×1200
YWBL-12	12	240	2.4-3.6	6-9	6-12	1190	DN50	DN40	DN250	900*4	2220	70	554	1200×1300
YWBL-15	15	300	3-5	7-12	8-16	1580	DN50	DN40	DN250	1000*5	2370	70	815	1400×1500
YWBL-20	20	400	4-6	10-15	10-20	1770	DN65	DN40	DN250	1000*5	2670	70	910	1400×1500
YWBL-25	25	500	5-7	12-18	12-24	2200	DN65	DN40	DN300	1100*6	2740	70	1024	1500×1700
YWBL-30	30	600	6-9	14-22	15-30	2770	DN65	DN40	DN300	1200*6	2870	70	1165	1600×1800
YWBL-36	36	720	7-10	16-24	18-36	2870	DN80	DN50	DN300	1200*6	2970	70	1202	1600×1800
YWBL-40	40	800	8-12	20-30	20-40	3500	DN80	DN50	DN350	1300*6	3070	70	1342	1700×1900
YWBL-45	45	900	9-13	22-32	22-44	3630	DN100	DN50	DN350	1300*6	3270	70	1422	1700×1900
YWBL-52	52	1040	10-15	25-40	26-52	4380	DN100	DN50	DN350	1400*6	3370	75	1900	1800×2000
YWBL-60	62	1200	12-18	38-42	30-60	5100	DN100	DN50	DN400	1500*8	3530	75	2114	2000×2200
YWBL-70	70	1400	14-20	35-50	35-70	6940	DN125	DN50	DN400	1600*8	4220	80	2662	2200×2400
YWBL-80	80	1600	16-24	40-60	40-80	8300	DN125	DN50	DN400	1800*8	4220	80	3882	2400×2600

Features of Leaf Filter

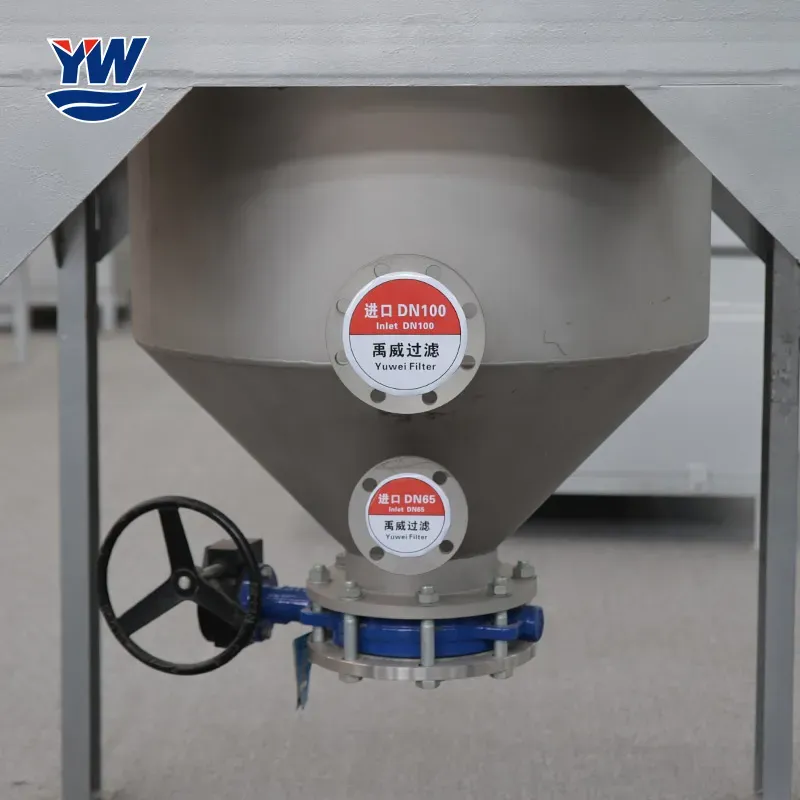

Mechanical vibration for automatic slag removal, open the butterfly valve, start the vibration slag removal device, and remove the slag by vibration to reduce the labor intensity of workers.
The specially customized filter plate does not need filter cloth and paper. The automatic slag removal filter uses a specially made stainless steel composite woven filter screen, which is corrosion resistant, easy to clean, has a long service life, can be used continuously for 3-5 years, and has low maintenance cost.
Closed and environmentally friendly, in line with environmental protection standards, pipeline connection, fully closed filtration, products do not volatilize, do not throw away, and have good quality.
High energy saving efficiency, filtering the residue or activated carbon (clay) in the liquid, or decolorization filtering, can replace the plate and frame filter.

Application of Leaf Filter

The filter can be widely used for oil industry (such as crude oil, hydrogenated oil, winterized oil, etc), food industry (such as: activated carbon decoloration for granulated sugar and glucose, clarification filtering of liquor, juice, beverage, etc), chemical industry (such as: the crystal separation of petrochemical industry, inorganic chemical industry and organic chemical industry, separation of catalyzers, decoloration of chemical products), environmental protection industry (such as: using water from rivers and lakes, supernatant purification of sewage treatment plant, purification of water from swimming pool etc).
