Vertical Pressure Leaf Filter for Palm Oil Filtering
Description
Basic Info.
- Model NO. NBY-20, 25, 30, 40, 50, 60, 90
- Wire Mesh Leaf Filter
- Filter Industry
- Filter Leaf Equipment
- Filter Equipment Machinery
- Transport Package Standard Wooden
- Specification NYB-5, 15, 20, 25, 30, 50, 60, 90
- Trademark leneng
- Origin Yangzhou
- HS Code 84212990
- Production Capacity Two Sets /Day
Product Description

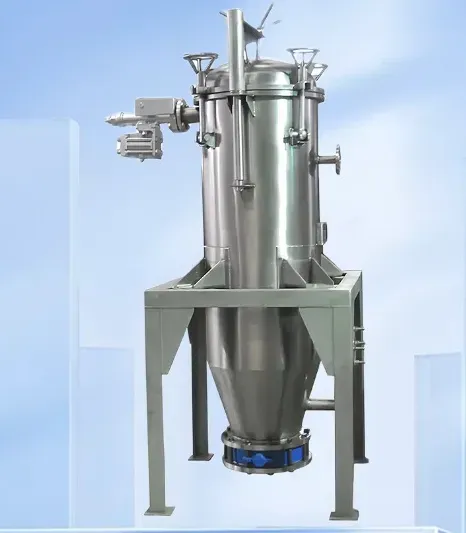

Vertical leaf filter
NYB series plate leaf filter is a kind of high efficiency, energy saving, closed operation of precision filtration equipment, suitable for salad oil, crude oil, oil, resin, food, pharmaceutical, polyether, environmental protection and water treatment and other industries.
The design of the product structure is unique, have small volume, high filtration efficiency, transparency and fineness good filtrate, no material consumption, no consumption of paper, cloth or paper core, and only a small amount of consumption of filter aid, the filter is very low cost, equipment operation, maintenance, convenient cleaning.
Factory technical force is abundant, reliable production process and improve the means of detection, our engineers will be happy to serve you, to provide filtering system is most suitable for your factory use for you, and the process can be foreign or domestic, can complete unit or single supply, service door assist in debugging, reasonable price, welcome visit guidance.
Two, the main structure and working principle:
NYB type high efficient plate sealed filter is mainly composed of a filter host and the mixing cylinder, pump, piping, valves, electrical control and other ancillary equipment forming a complete filtering system, filtering technology was considered the filter medium and.

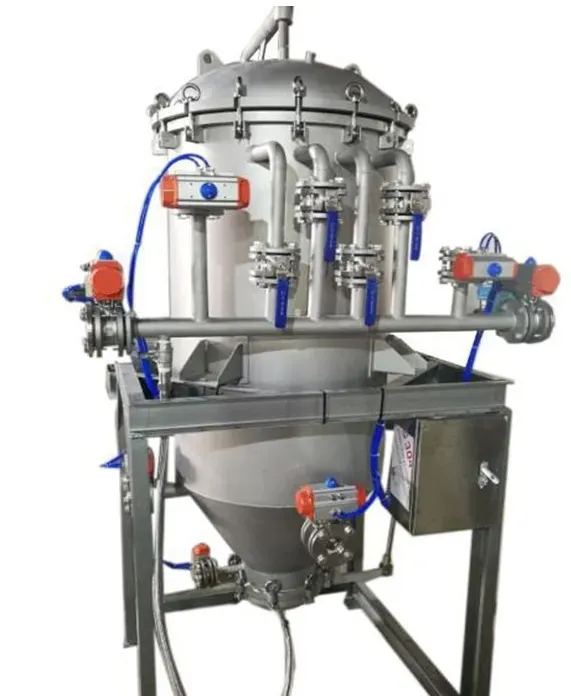

The filter body is composed of filter tank, filter plate, cover machinery, automatic slag discharging device. Filter aid and material mixed in a mixing tank, the pump cake layer was formed on the filter plate, filter cake layer to achieve stable, help filter small particles can provide fine channels countless, trapped floating debris, but also allow clear liquid through, will not be blocked, so that the material is the actual filter through the filter cake layer. The filter is composed of multi rust steel wire, installed in the center of aggregate pipe handling, cleaning is very convenient.
A high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

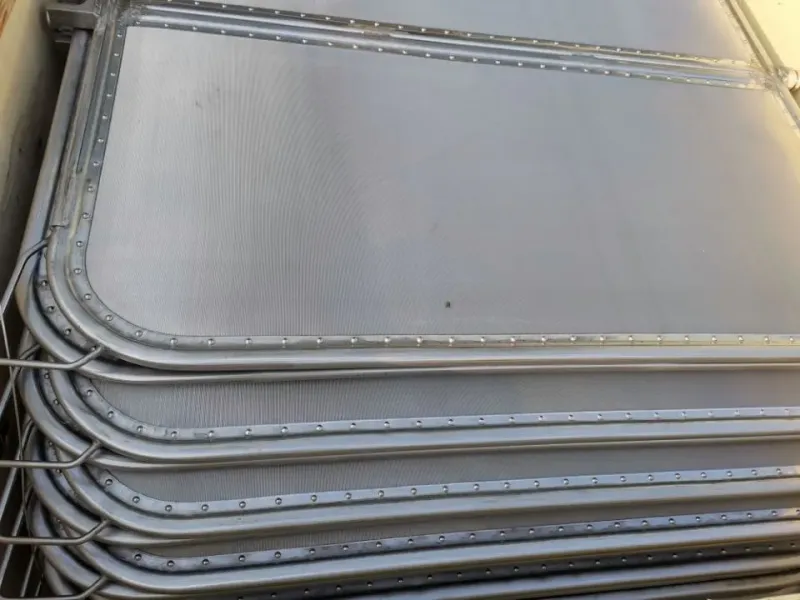

The main body of the filter is made up of vessel, filter gauzes lifting structure and automatic discharging device. Filter gauzes are made by material of multilayer stainless steel which installed at center liquid pipe and cleaned up conveniently.
In the process of filtration ,the unfiltered liquid with filter aid come into the body through transmission system(pump or other tools.)After a stable filter cake formed on the filter gauze flakes, the filtrate are filtered through the micropores of filter cake.
A high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
TYPE
| TYPE | The diameter of the cylinder | Plate spacing | The inlet pipe | The outlet pipe | The overflow port | Discharging port | Height |
|---|---|---|---|---|---|---|---|
| JYB-2 | 400 | 50 | Dg25 | 32 | Dg25 | 50 | 1200 |
| JYB-4 | 500 | 50 | Dg40 | 45 | Dg25 | 50 | 1750 |
| JYB-7 | 600 | 50 | Dg40 | 45 | Dg25 | 50 | 1850 |
| JYB-10 | 800 | 50 | Dg50 | 57 | Dg25 | 300 | 2500 |
| JYB-12 | 900 | 70 | Dg50 | 57 | Dg40 | 400 | 2550 |
| JYB-15 | 1000 | 70 | Dg50 | 57 | Dg40 | 500 | 2580 |
| JYB-20 | 1000 | 70 | Dg50 | 57 | Dg40 | 500 | 2800 |
| JYB-25 | 1100 | 70 | Dg50 | 57 | Dg40 | 500 | 2950 |
| JYB-30 | 1200 | 70 | Dg50 | 57 | Dg40 | 600 | 3000 |
| JYB-36 | 1200 | 75 | Dg70 | 70 | Dg50 | 600 | 3500 |
| JYB-45 | 1300 | 70 | Dg70 | 70 | Dg50 | 600 | 3600 |
| JYB-52 | 1400 | 75 | Dg80 | 80 | Dg50 | 600 | 3700 |
| JYB-60 | 1500 | 75 | Dg80 | 80 | Dg50 | 600 | 3800 |
| JYB-70 | 1600 | 80 | Dg80 | 80 | Dg50 | 600 | 3900 |
| JYB-80 | 1600 | 80 | Dg80 | 80 | Dg50 | 600 | 3900 |
| JYB-90 | 1700 | 80 | Dg80 | 80 | Dg50 | 600 | 4000 |
