Overview

Model NO. CMCB001
Surface Treatment Baking Paint
Chain Size Customized
Feature Fire Resistant, Oil Resistant, Heat Resistant
Keywords 1 Plate Conveyer Belt
Belt Length 10-50m
Rod Pitch 10mm, 12.7mm, 13mm, 15mm, 20mm
Tensile Strength Strong

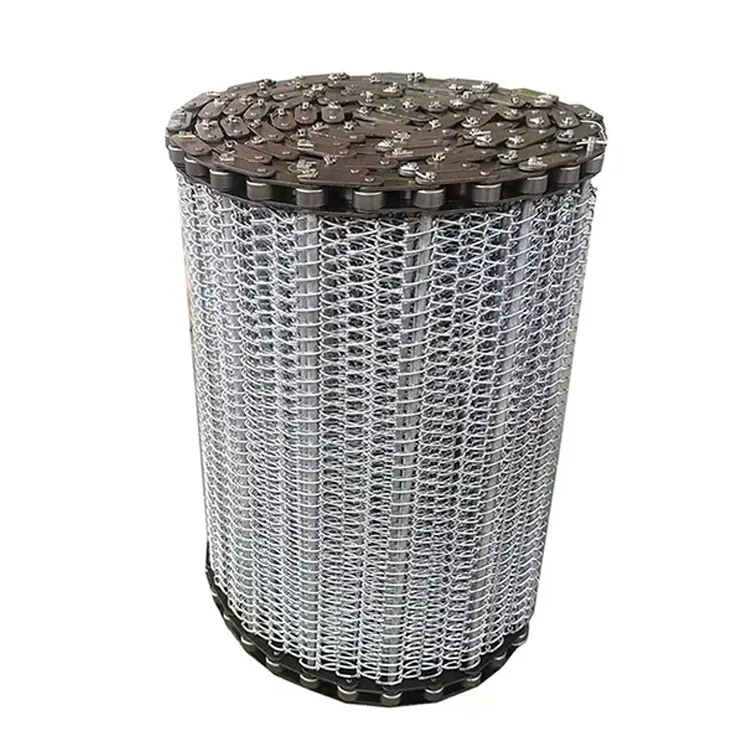

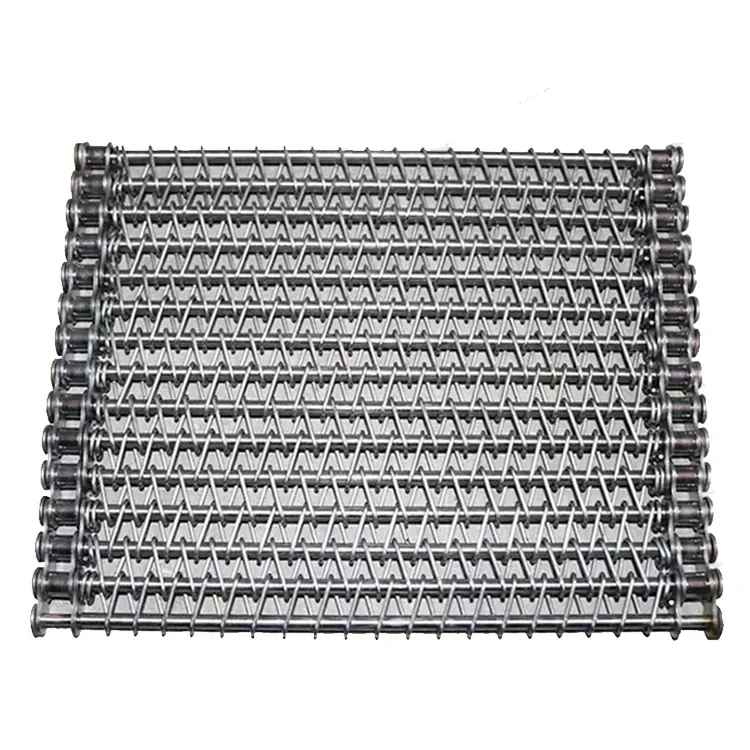

Name SS304 Stainless Steel Flat Flex Conveyor Belt
Wire Diameter 1.5mm, 1.8mm, 2mm, 2.5mm
Keywords 2 Conveyer Belt
Keywords 3 Stainless Steel Chain Plate Conveyer Belt
Keywords 4 Chain Plate Conveyer Belt
Keywords 5 Chain Conveyer Belt
Keywords 6 Stainless Steel Conveyer Belt
Chain Pitch 3-20mm
Spiral Pitch 2-20mm
Materials Stainless Steel 304 Wire, Low Carbon Steel Wire
Application Construction Wire Mesh, Protecting Mesh, Screen, F
Transport Package Wooden Box
Specification Customized
Trademark Chumesh
Origin Hebei
HS Code 7314490000
Production Capacity 10000 Roll/Rolls Per Week

Product Description

Custom chain conveyor belt high temperature equipment conveyer belt stainless steel chain plate conveyer belt.

Chain plate:

According to material: carbon steel chain plate conveyor belt, galvanized chain plate conveyor belt, stainless steel 201 chain plate conveyor belt, stainless steel 304 chain plate conveyor belt, other stainless steel chain plate conveyor belt.
According to the shape of the conveyor belt: flat chain plate conveyor belt, belt chain plate conveyor belt, punching chain plate conveyor belt (round hole, long hole), belt protruded chain plate conveyor belt.
According to the form of transport: direct transmission chain conveyor belt, bend chain conveyor belt.
Hinge chain plate conveyor belt, scraps chain plate conveyor belt, channel steel chain plate conveyor belt.
Double pitch chain plate belt, precision roller chain plate conveyor belt.

Customer custom-made chain plate need to provide data:

Chain pitch chain material
Chain plate material effective conveyor width chain plate thickness
Supporting shaft diameter material support shaft length
The supporting shaft on either side of the chain plate is welded or pinned.
Other attachment
With side baffle, how big the hole spacing is, how big the aperture is

Chain plate conveyor belt is very strong, driven by stainless steel chain, using stainless steel plate production, suitable for the transport of small high-density objects, smooth operation in the transportation process, convenient installation and replacement, long service life. For medium and heavy load conveyance. The steel plate bends to form a composite leaf, which is strung together with the chain using a supporting shaft. The chain at both ends can be fixed by opening pin or gasket, easy to disassemble and maintain.

Belt classification

Metal conveyor belt

Belt material

SS304/SS316

Bandwidth (mm)

100-6000

Applicable temperature (ºC)

-50-1150

Conveying speed (m/min)

0.1-50m

Equipment size (LWH)

According to customer production requirements

Product Application

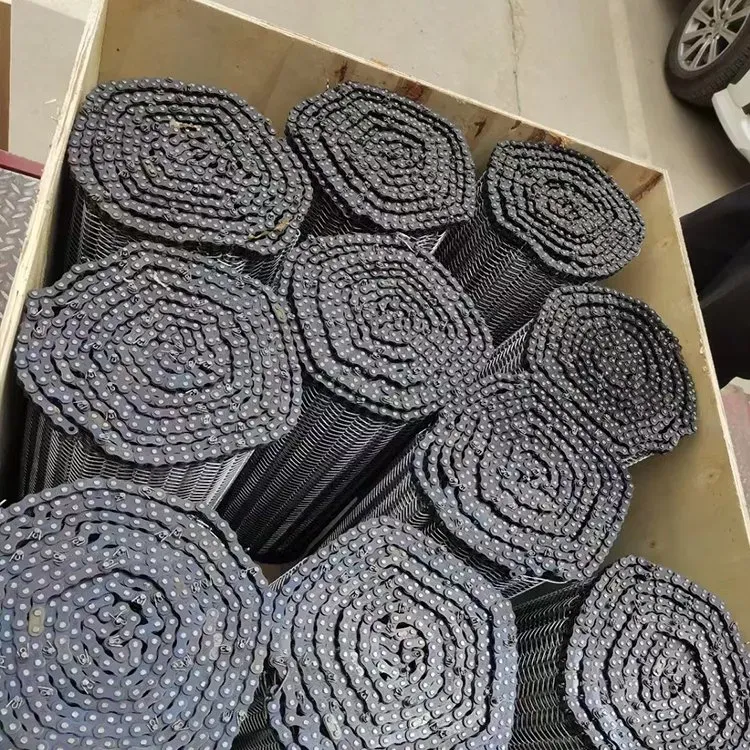

Package
