Overview

Basic Info.

Model NO. CMCB001

Surface Treatment Baking Paint

Chain Size Customized

Feature Fire Resistant, Oil Resistant, Heat Resistant

Keywords 1 Plate Conveyer Belt

Belt Length 10-50m

Rod Pitch 10mm,12.7mm,13mm,15mm,20mm

Tensile Strength Strong

Name SS304 Stainless Steel Flat Flex Conveyor Belt

Wire Diameter 1.5mm,1.8mm,2mm,2.5mm

Keywords 2 Conveyer Belt

Keywords 3 Stainless Steel Chain Plate Conveyer Belt

Keywords 4 Chain Plate Conveyer Belt

Keywords 5 Chain Conveyer Belt

Keywords 6 Stainless Steel Conveyer Belt

Chain Pitch 3-20mm

Spiral Pitch 2-20mm

Materials Stainless Steel 304 Wire, Low Carbon Steel Wire

Application Construction Wire Mesh, Protecting Mesh, Screen, F

Transport Package Wooden Box

Specification Customized

Trademark Chumesh

Origin Hebei

HS Code 7314490000

Production Capacity 10000 Roll/Rolls Per Week

Product Description

Custom chain conveyor belt high temperature equipment conveyer belt stainless steel chain plate conveyer belt.

Chain plate:

1. According to material: carbon steel chain plate conveyor belt, galvanized chain plate conveyor belt, stainless steel 201 chain plate conveyor belt, stainless steel 304 chain plate conveyor belt, other stainless steel chain plate conveyor belt.
2. According to the shape of the conveyor belt: flat chain plate conveyor belt, belt chain plate conveyor belt, punching chain plate conveyor belt (round hole, long hole), belt protruded chain plate conveyor belt.
3. According to the form of transport: direct transmission chain conveyor belt, bend chain conveyor belt.
4. Hinge chain plate conveyor belt, scraps chain plate conveyor belt, channel steel chain plate conveyor belt.
5. Double pitch chain plate belt, precision roller chain plate conveyor belt.

Customer custom-made chain plate need to provide data:

1. chain pitch chain material
2. chain plate material effective conveyor width chain plate thickness
3. supporting shaft diameter material support shaft length
4. The supporting shaft on either side of the chain plate is welded or pinned.
5. other attachment
6. with side baffle, how big the hole spacing is, how big the aperture is

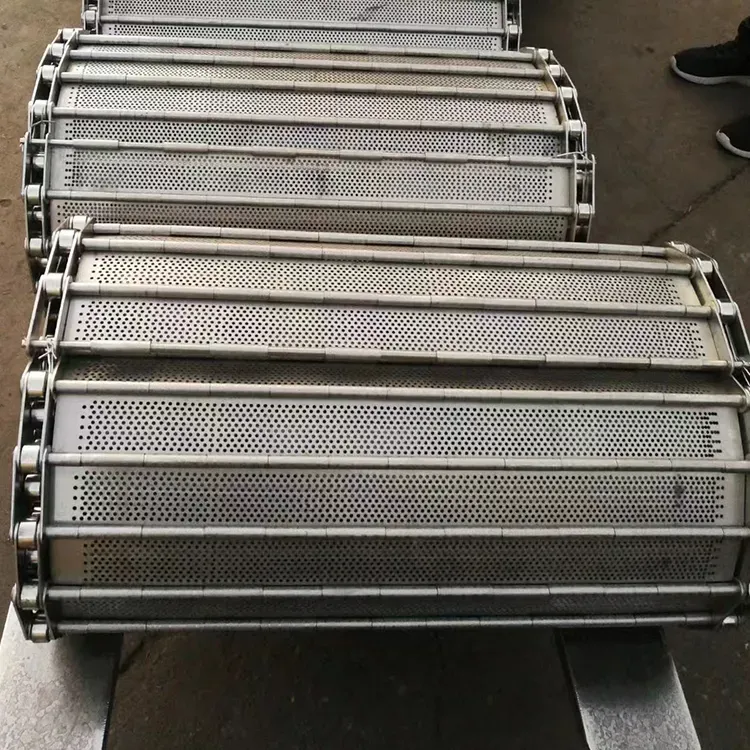

Chain plate conveyor belt is very strong, driven by stainless steel chain, using stainless steel plate production, suitable for the transport of small high-density objects, smooth operation in the transportation process, convenient installation and replacement, long service life. For medium and heavy load conveyance. The steel plate bends to form a composite leaf, which is strung together with the chain using a supporting shaft. The chain at both ends can be fixed by opening pin or gasket, easy to disassemble and maintain.

Belt classification

Metal conveyor belt

Belt material

SS304/SS316

Bandwidth (mm)

100-6000

Applicable temperature (ºC)

-50-1150

Conveying speed (m/min)

0.1-50m

Equipment size (L*W*H)

According to customer production requirements

Product Application

Package

Company Profile

ApplicationChumash Metal Products Ltd is located in Anping County, Hebei Province, the famous Wire Mesh Land of China. The company is primarily engaged in the manufacture of wire mesh products, fence products and wire products. We have advanced equipment, skilled workers, complete quality management system, strong R&D capability.

Our products have been widely used in railways, highways, mines, hydropower stations, tourist areas, and other slope protection projects, and has achieved remarkable results.

Safety is our core value and guiding principle. We have been developing and manufacturing protective products for more than 20 years. Our high-strength wire mesh and complementary services monitor and protect against natural hazards such as rockfalls, landslides, mudslides, avalanches or coastal erosion. They ensure safety in mining, tunneling, race tracks, industrial and testing facilities. With our extensive experience, research spirit, continuous in-house training and close cooperation with research institutes, we continue to drive innovation and industry standards.
