Four Rope Grab Bucket with Electro-Hydraulic System
Description
Overview
Basic Info.
- Model NO. 500kg-1200kg
- Warranty 2 Years
- Certification GS, RoHS, CE, ISO9001
- Color Optional
- Crane System Remote Control System
- Painting Color According to Your Needs
- Max Elevation Angle 360 degree
- Transport Package by Standard Package or According to Your Needs
- Specification 5T 2.3CBM
- Trademark YFM
- Origin China
- HS Code 84269900
- Production Capacity 200
Product Description
Product introduction: Hydraulic orange peel grabs are specially designed for charging and discharging of sand, waste steel and big stone. The grabs can be executed with open or closed shells depending on the job and the type of material to be handled. The grabs are manufactured of high wear resistant steels. All bearings are heavy-duty and sealed for high performance. The grabs can be executed with a hydraulic rotator for 360° Rotation. It is an efficient tool for handling grains, fertilizers, ores, clinker, bauxite and other bulk material. TR 300 has 2-20m³ capacity it has 2 line opening and 2 line closing functions. The mechanical structure for opening & closing is succinct and original. No maintenance required except greasing. It is easy to use and can work under any circumstances in order.
- This type grab bucket can be used for grabbing soil, waste steel and big stone.
- The grab bucket can autorotate and the pattern of head connection is decided by our customer.
- According to the different specific gravity of the material, we can produce standard, light and heavy duty grab buckets.
Product Parameters
| Type | Max. Lifting Capacity(t) | Volume(m3) | Power(kw) | Close/Open time | Max. operating pressure,bar | No.of clamshell | 440V/60Hz | 380VDead weight full close (t)/50HNo.z | 440V/60Hz | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | YFMEMG4-0.8-2.4 | 4 | 0.8 | 2.4 | 15 | 18 | 8/6 | 7/5 | 180 | 5 |
| 2 | YFMEMG5-1-2.5 | 5 | 1.0 | 2.5 | 15 | 18 | 8/6 | 7/5 | 180 | 5 |
| 3 | YFMEMG6.3-1.25-3.2 | 6.3 | 1.3 | 3.2 | 18.5 | 22 | 10/7 | 8/6 | 180 | 6 |
| 4 | YFMEMG8-1.6-3.6 | 8 | 1.6 | 3.6 | 18.5 | 22 | 10/7 | 8/6 | 180 | 6 |
| 5 | YFMEMG10-2-4.8 | 10 | 2.0 | 4.8 | 30 | 35 | 13/9 | 11/8 | 200 | 6 |
| 6 | YFMEMG10-2.5-5 | 10 | 2.5 | 5.0 | 30 | 35 | 13/9 | 11/8 | 200 | 6 |
| 7 | YFMEMG12.5-3.2-5.2 | 12.5 | 3.2 | 5.2 | 30 | 35 | 13/9 | 11/8 | 200 | 6 |
| 8 | YFMEMG16-4-6.5 | 16 | 4.0 | 6.5 | 37 | 44 | 16/11 | 14/10 | 200 | 6 |
| 9 | YFMEMG20-5-7 | 20 | 5.0 | 7.0 | 37 | 44 | 16/11 | 14/10 | 200 | 6 |
| 10 | YFMEMG25-6.3-9.5 | 25 | 6.3 | 9.5 | 45 | 54 | 20/14 | 17/12 | 220 | 7 |
| 11 | YFMEMG25-8-10 | 25 | 8.0 | 10.0 | 45 | 54 | 20/14 | 17/12 | 220 | 7 |
| 12 | YFMEMG32-10-10.7 | 32 | 10.0 | 10.7 | 45 | 54 | 24/17 | 19/13 | 220 | 7 |
| 13 | YFMEMG40-12.5-12.6 | 40 | 12.5 | 12.6 | 55 | 65 | 24/17 | 19/13 | 230 | 8 |
| 14 | YFMEMG45-15-13.4 | 45 | 15.0 | 13.4 | 55 | 65 | 24/17 | 19/13 | 230 | 8 |

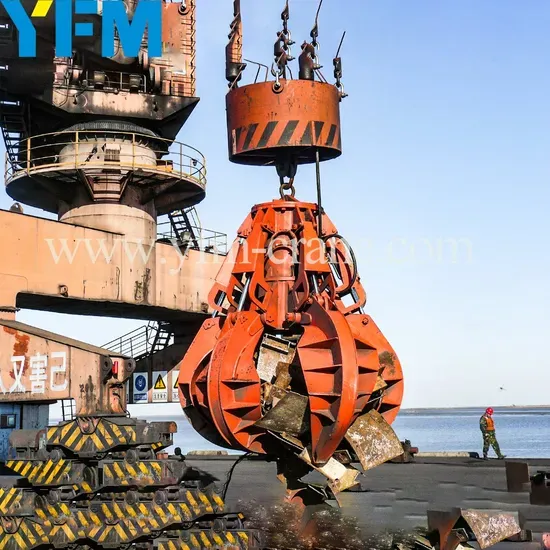

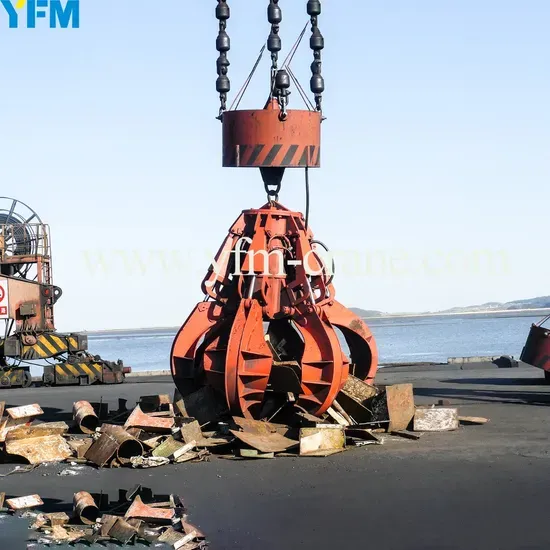

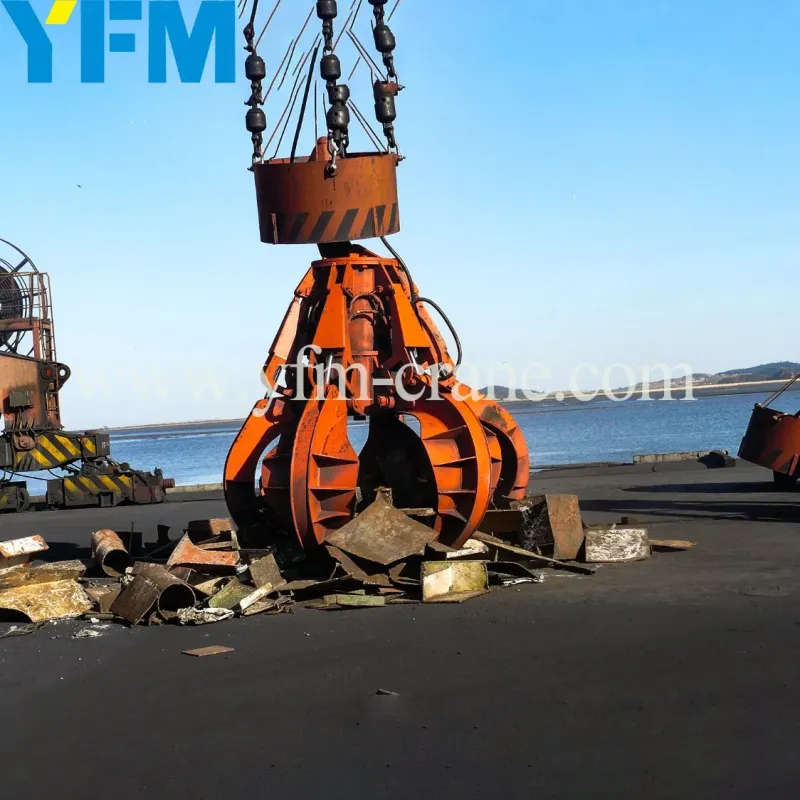

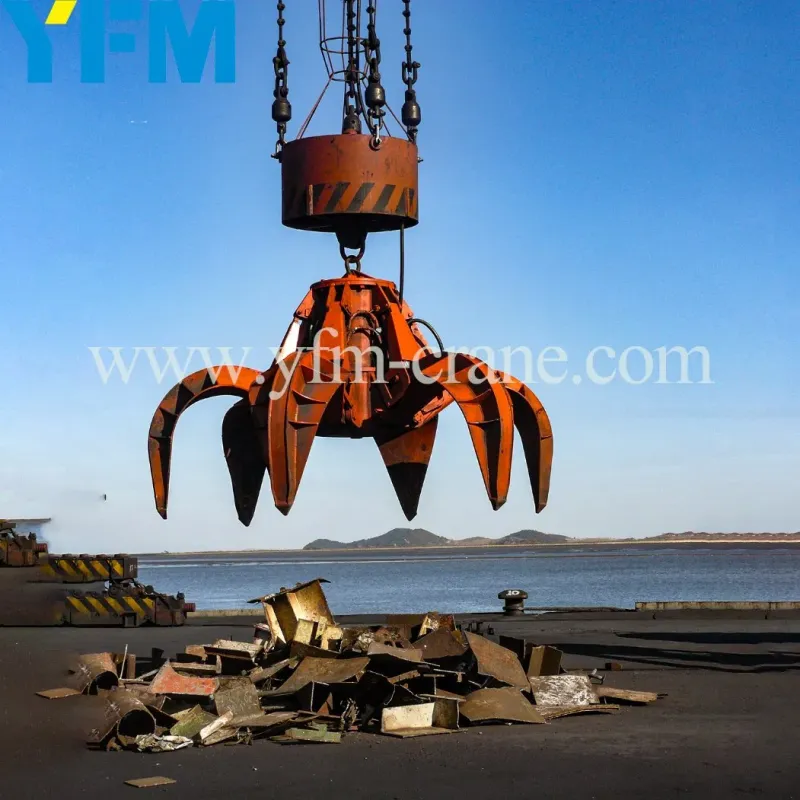

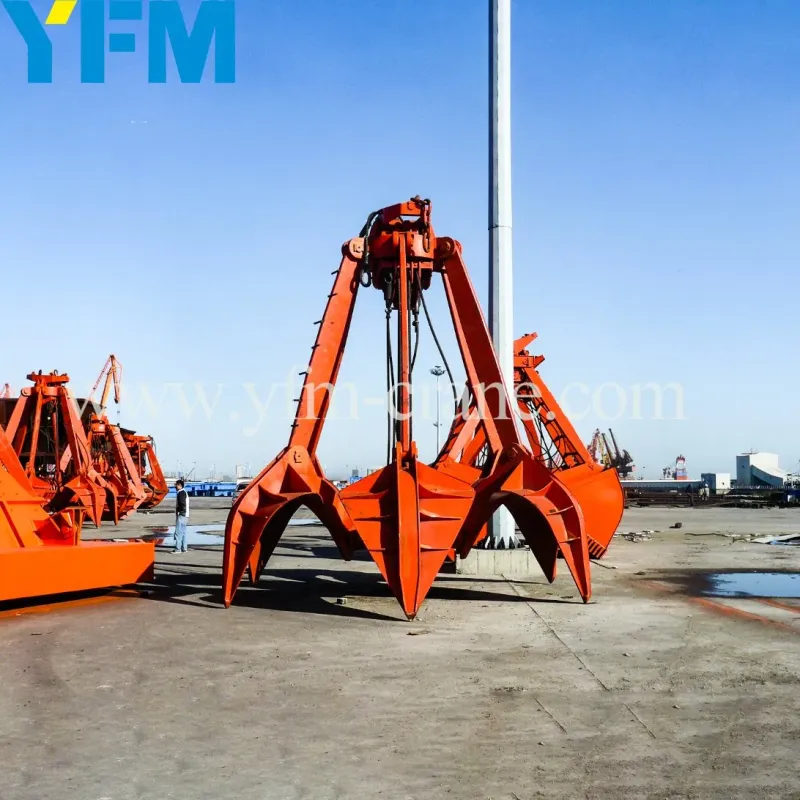

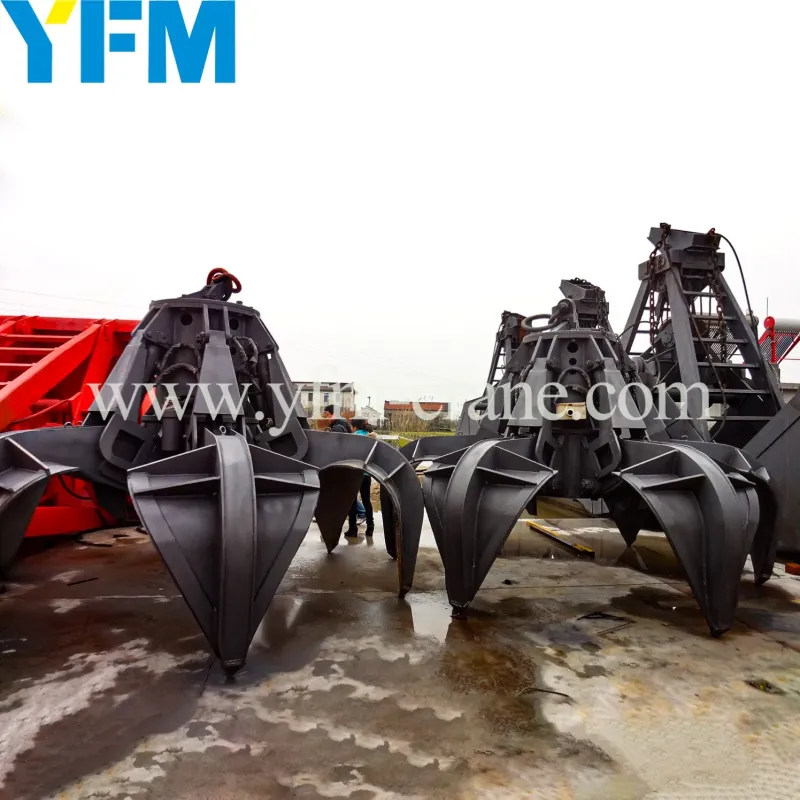

Detailed Photos
Our Advantages
Our Advantage:
- Factory area 20000m3 with advanced equipment.
- Experienced engineers and workers with many practical experiences.
- Top quality cranes by strictly complying with the quality standards and using reliable brand purchased parts original imported.
- Safety protection devices--- we only offer safe cranes for the society.
Our Certificates: We offer the CCS third party certification, which is recognized world widely.
What the CCS certificate tells:
- The design all the productions drawings and the calculation is reasonable and meet the international standards. CCS will audit all the productions drawings and calculation sheets before production.
- The welding is good quality and meet the international standards. No damage detection report is required.
- On site testing CCS inquiry the safety rate is 1.25 times, which means the actual lifting capacity is 1.25 time the rated lifting capacity. And will issued exactly testing report according to the technical agreements.
