solar press pilling machine
Description
产品描述

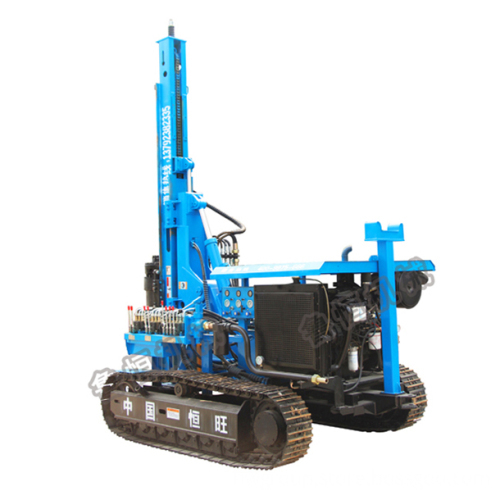

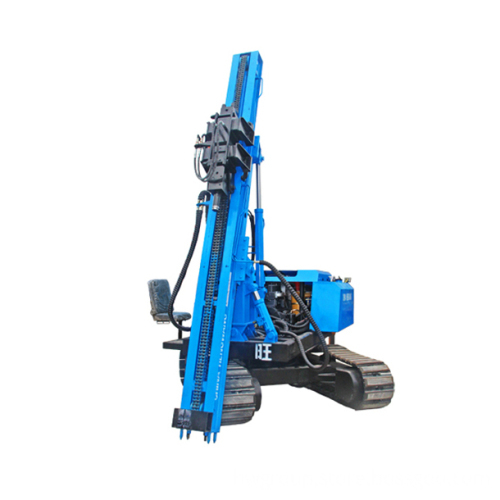

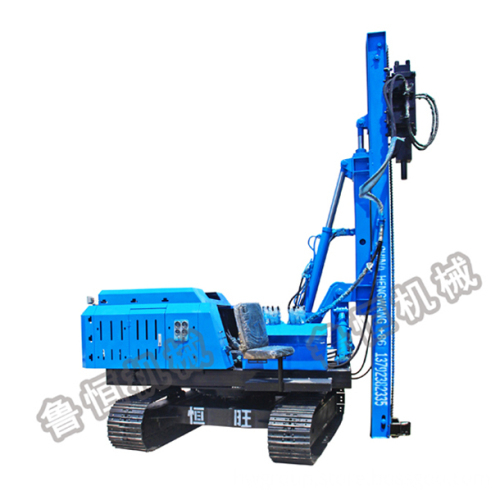

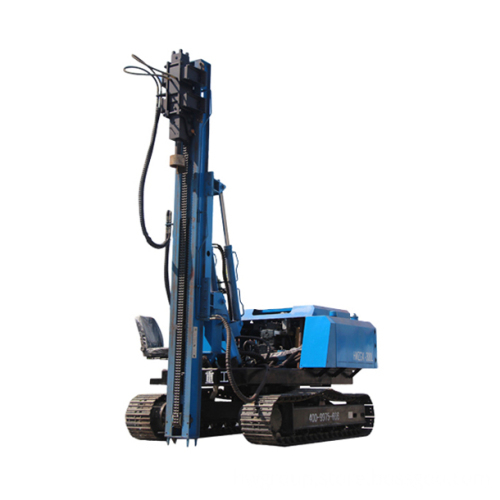

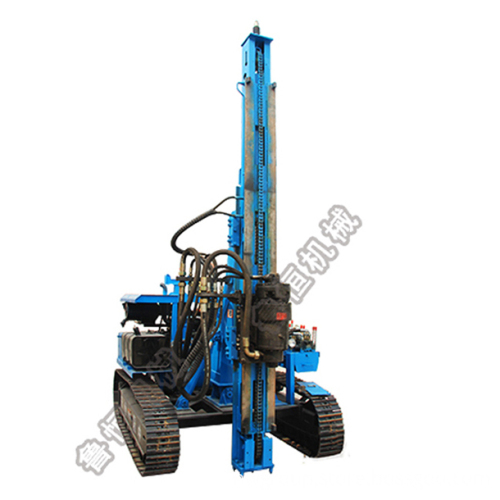

The Photovoltaic Pile Driver is a track type pile driver. Photovoltaic Pile Driver can be used for both power generation and external power supply.The Hydraulic Photovoltaic Pile Driver is suitable for highway foundation reinforcement, building foundation construction, high-speed way power facilities, wind power plants, solar photovoltaic power plants. Photovoltaic Solar Pile Driver features: reasonable design, beautiful appearance,can move back and forth, simple operation, 270 degrees left and right, 360 degrees two products. It has fast positioning, fast piling, quick pulling, high efficiency.The pile driver can also be customized according to customer requirements.
Parameters of Photovoltaic Pile Driver With Crawler:
|
Model |
HWZGX-390L |
|
Hammer Model |
390 |
|
stroke m |
5m |
|
Duplex gear pump pressure(mpa) |
20 |
|
Rod Diameter /mm |
0-400 |
|
Duplex gear pump displacement(ml/r) |
40 |
|
Hydraulic system pressure(mpa) |
20 |
|
Overall Machine weight /T |
6.3 |
|
Rotation angle /° |
360 |
|
Diesel engine (kw) |
80 |
|
Dimension(LXWXH)/mm |
5150*2150*2700 |
|
Track shoe (mm) |
350 |
|
Walking motor total emissions(ml/n) |
1575 |
|
Walking motor rotation (r/min) |
50 |
