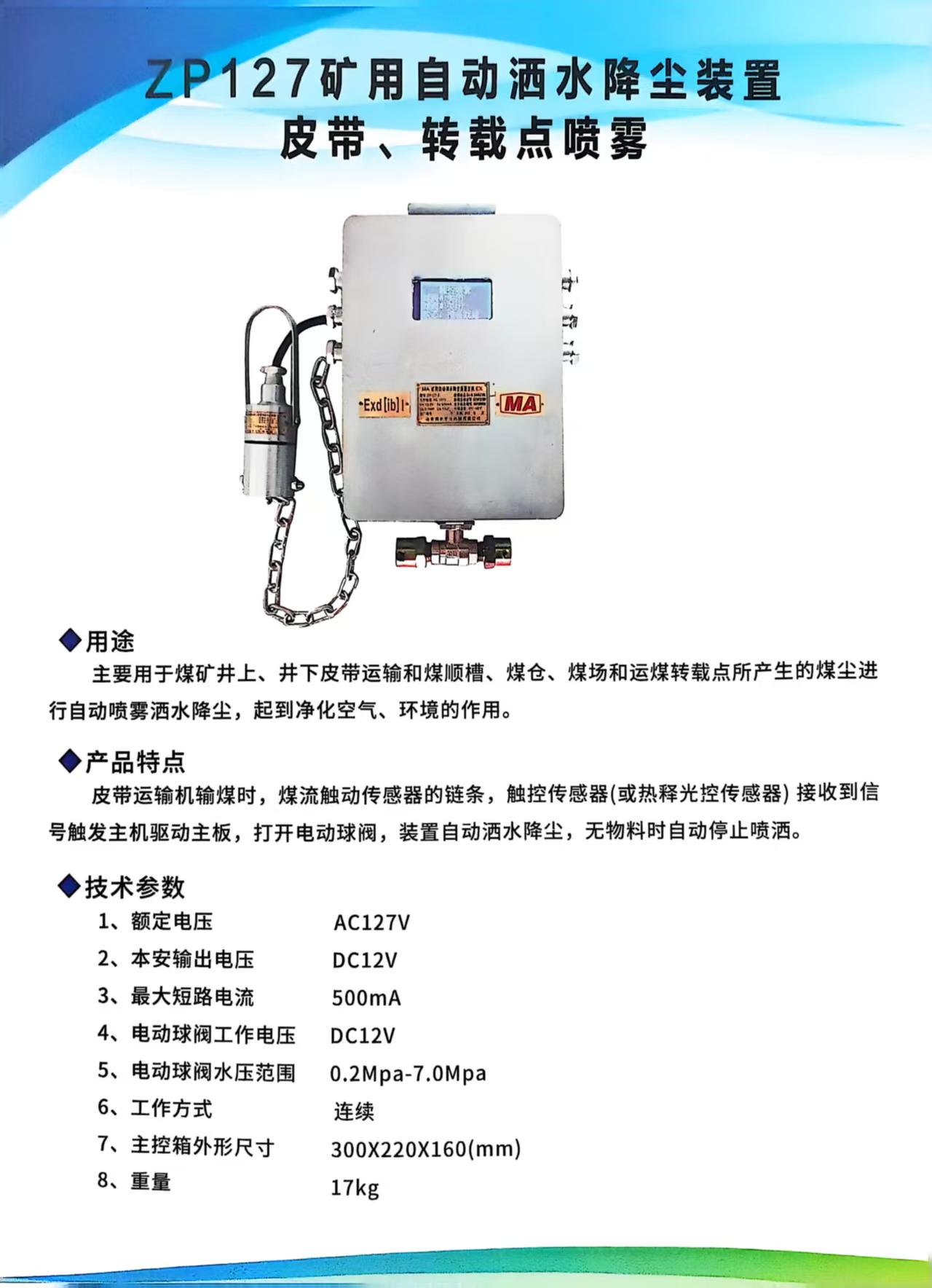

ZP127 Mining Automatic Wine Dust Reduction Device Belt, Reloading Point Spray
Contact Now
Description
> uses
It is mainly used for automatic spraying of coal dust generated by coal mine upper, underground belt transportation and coal trough, coal bunker, coal yard and coal transportation transfer point, which plays a role in purifying the air and environment.
◆ Product features
When the belt conveyor conveys coal, the coal flow touches the chain of the sensor, and the touch sensor (or thermoluminescence control sensor) receives the signal to trigger the main engine to drive the main board, open the electric ball valve, and the device automatically reduces the dust of the wine, and automatically stops the wine spraying when there is no material.
Technical parameters
1. Rated voltage
AC127V
2. Intrinsically safe output voltage DC12V
3. Maximum short-circuit current
500mA
4. The working voltage of the electric ball valve
5. The water pressure range of the electric ball valve
6. Working methods
7. The overall dimensions of the main control box
8. Weight
DC12V
0.2Mpa-7.0Mpa
coiled
300X220X160(mm)
17kg
It is mainly used for automatic spraying of coal dust generated by coal mine upper, underground belt transportation and coal trough, coal bunker, coal yard and coal transportation transfer point, which plays a role in purifying the air and environment.
◆ Product features
When the belt conveyor conveys coal, the coal flow touches the chain of the sensor, and the touch sensor (or thermoluminescence control sensor) receives the signal to trigger the main engine to drive the main board, open the electric ball valve, and the device automatically reduces the dust of the wine, and automatically stops the wine spraying when there is no material.
Technical parameters
1. Rated voltage
AC127V
2. Intrinsically safe output voltage DC12V
3. Maximum short-circuit current
500mA
4. The working voltage of the electric ball valve
5. The water pressure range of the electric ball valve
6. Working methods
7. The overall dimensions of the main control box
8. Weight
DC12V
0.2Mpa-7.0Mpa
coiled
300X220X160(mm)
17kg
