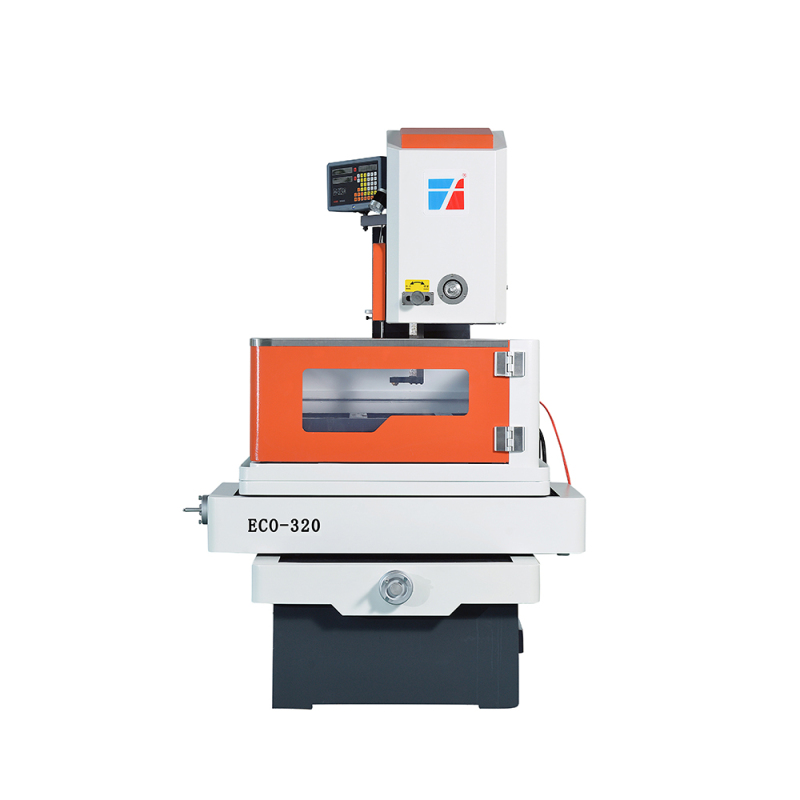

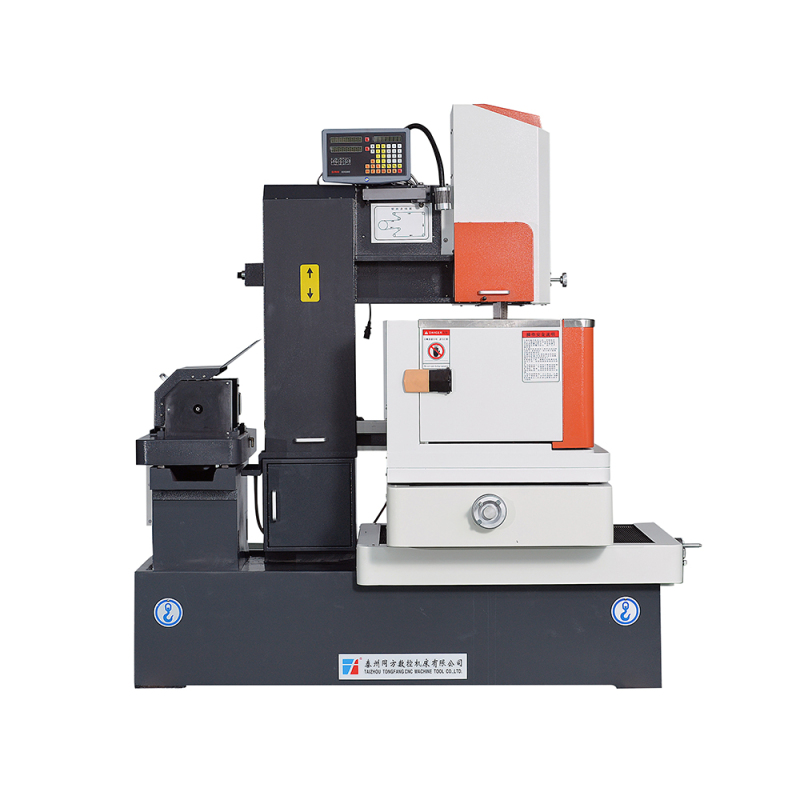

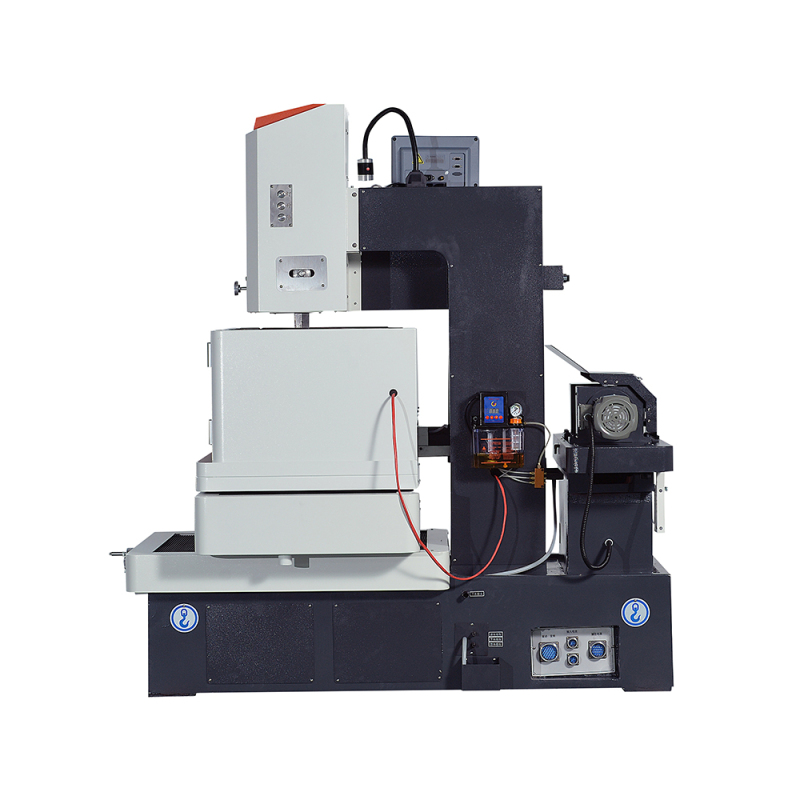

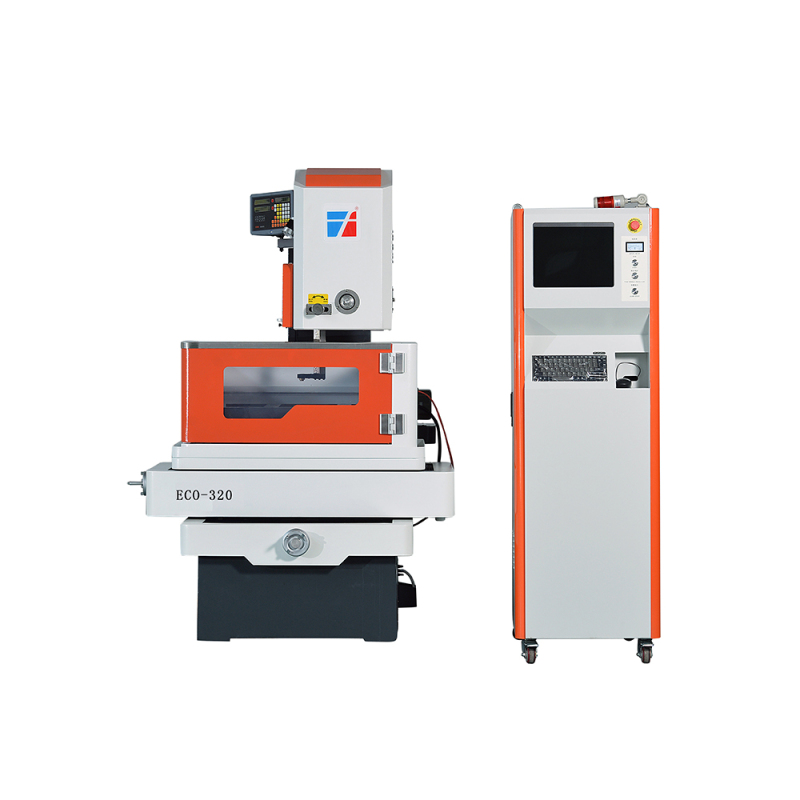

ECO-320 Stepper Motor Middle Speed Wire Cutting CNC Machines - Hot Selling EDM
Contact Now
Description
产品描述
Tongfang CNC full-servo closed-loop (TF series) medium wire cutting machine is manufactured with slow wire travel structure, and the machine body (TF series) part adopts the "凸" shape machine base (the basic of low speed wire cutting machine). When moving in the Y direction, the workpiece will not move out of the body part, which greatly improves the rigidity of the machine tool kinematics and ensures the long-term stability of the machine tool. Both X and Y axes use Taiwan's high-precision linear guides and Taiwan's high-precision ball screws, and are directly driven with Japan's Panasonic AC servo motor, which ensures the high precision of the machine tool for long-term use and avoids transmission errors when moving! In response to market demand, the company also launched the ECO series. It adopts the " ▋" shape machine base, Taiwan Shangyin linear guide, high precision ball screw. While ensuring the quality of the machine, it also greatly reduces the customer's budget.The following are the main parameters of TF series machines:
1. Standard maximum cutting taper: ±6°/80mm; (±10° optional)
2. Accuracy ≤±0.0025mm, positioning accuracy ≤±0.0025mm, in line with GB7926-2005 standard;
3. The best surface roughness Ra≤0.8μm;
4. Molybdenum wire diameter: 0.12-0.2mm;
5. Max. Cutting speed ≥200mm²/min;
6. Voltage: three-phase 380V (single-phase 220V, three-phase 220V or other voltages can be customized), power: 2.8KW;
7. Working fluid: water-based emulsion.
|
Type
|
ECO-320
|
|
Dimension of working table
|
760*550mm
|
|
Travel of working table
|
320*400mm
|
|
Maximum cutting slope/ thickness of the workpiece
|
±6°/80
|
|
Main shaft trip（electric adjustable）
|
300mm
|
|
Max LoadCarring
Capacity |
400kg
|
|
Total weight
|
1500kg
|
|
Overall dimensions
|
1700*1400*1900mm
|
|
Air pressure
|
86-106kpa
|
|
Maximum cutting speed
|
≥200mm²/min
|
|
Optimum machining surface roughness
|
R≤0.8μm
|
|
Wire diameter
|
φ0.12-0.2mm
|
|
Wire feeding speed of wire drum
|
Variable frequency speed regulation
|
|
Working liquid
|
Dedicated
|
|
Minimum mechanical equivalent
|
1μm
|
|
Processing power supply current
|
0~20A
|
|
Maximum working current
|
8A
|
|
Multi-knife cuttig accuracy
|
≤±0.0025mm
|
|
Ratio of output pluse gap to pulse width
|
2~15
|
|
No-load voltage of processing power supply
|
100V
|
|
Consumed power
|
≤2.8KW
|
|
Electric power
|
380V±10% / 50/60Hz / 2kVA
|
|
The temperature
|
Temperature 15-30℃ / Humidity 40-80%
|
|
型
|
Motor type
|
Machine base type
|
工作台行程（mm）
|
Worktable size (mm)
|
最大切割厚度（mm）
|
最大负载（kg）
|
外形尺寸（mm）
|
重量（kg）
|
|
SF-320
|
servo motor
|
"凸" shape
|
400*320
|
760*520
|
250（optional500）
|
400
|
1720*1300*1800
|
1860
|
|
SF-400
|
servo motor
|
"凸" shape
|
500*400
|
850*600
|
250（optional500）
|
500
|
1850*1420*1800
|
2160
|
|
SF-500
|
servo motor
|
"凸" shape
|
630*500
|
1000*750
|
300（optional500）
|
800
|
2050*1600*1900
|
2750
|
|
SF-630
|
servo motor
|
"凸" shape
|
800*630
|
1170*830
|
350（optional500）
|
1000
|
2300*2100*2160
|
3800
|
|
SF-800
|
servo motor
|
"凸" shape
|
800*1200
|
1600*1050
|
500（optional850）
|
1500
|
2600*2400*2500
|
5000
|
|
SF-1000
|
servo motor
|
"凸" shape
|
1000*1400
|
1800*1250
|
500（optional850）
|
2000
|
2800*2600*2500
|
6500
|
|
SF-1200
|
servo motor
|
"凸" shape
|
1200*1600
|
2020*1470
|
500（optional850）
|
2000
|
3600*2800*2800
|
8000
|
|
ECO-320
|
stepper motor
|
“▋”shape
|
320*400
|
760*550
|
250（optional500）
|
400
|
1700*1400*1900
|
1500
|
|
ECO-400 系列
|
stepper motor
|
“▋”shape
|
400*550
|
860*600
|
250（optional500）
|
600
|
1800*1500*1900
|
1800
|
|
ECO-500 系列
|
stepper motor
|
“▋”shape
|
500*700
|
1070*750
|
300（optional500）
|
800
|
2100*1800*2000
|
2000
|
