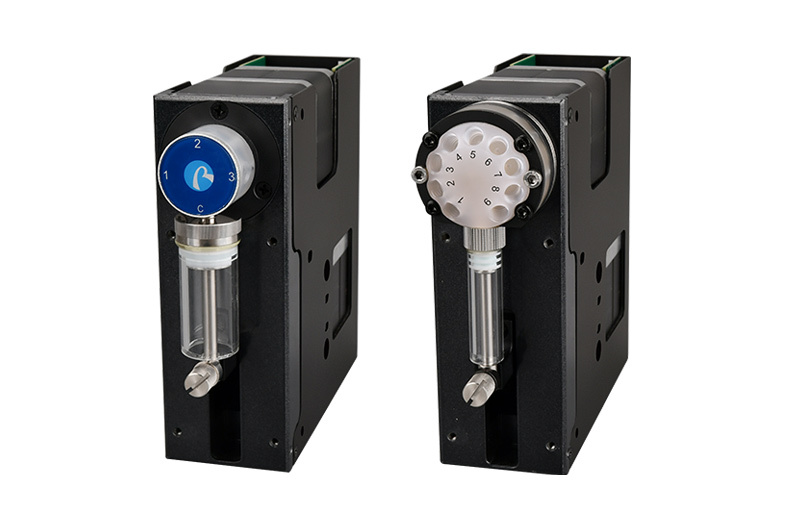

Multi Channel Syringe Pump
Contact Now
Description
产品描述
Multi Syringe Pump is a precision syringe pump specially designed for high precision liquid handling with a small footprint applied in limited spaces. The fluid path borosilicate glass, PCTFE, sapphire is workable for strong corrosive chemicals in a wide application range. It is available to select from a variety of syringe volumes and valve configurations.
Model Numbers of Multi Channel Syringe Pump
Smart SY-01B syringe pump is the newest member in the series of micro-syringe pumps self-developed by Runze Fluid, which can handling fluids from microliters to milliliters with extraordinary accuracy and precision. Accommodates distribution valves and syringe in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps. The excellent performance of Smart SY-01B syringe pump provides a guarantee on the R & D and application for users. efficiency maintenance-free stepper motor drive system. Address up to 24 pumps individually via RS485 or CAN Communication.
Specification of Multi Channel Syringe Pump
Accuracy ≤1%@100% stroke
Precision (Repeatability) 0.3%~0.5%@100% stroke
Rated stroke (control steps) 30mm(12000 steps standard mode; 96000 steps micro-step mode)
Maximum speed 450rpm
Linear speed 0.0067mm/s ~ 15mm/s(media: water ; 1 rated stroke=one time)
Running time (per rated stroke) 2s-4500s(media: water ; 1 rated stroke=one time)
Resolution 0.0025mm (per step)
ILS Syringe 25μl, 50μl, 125μl, 250μl. 500μl, 1.25ml, 2.5ml, 5ml
Valve Model(available) M01、M02、M03、M04、M05、M06、M10、M12
Wetted material Borosilicate glass, PTFE, Sapphire, PCTFE
Max. Pressure Rating 0.7Mpa
Actuator Trapezoidal screw (Lead 1mm/2mm)
Connection 1/4-28UNF
Baud rate RS232/RS485: 9600bps, 38400bps
Communication addres Up to 15 individual addresses can be provided
Firmware Programmable acceleration/deceleration, termination of movement, programmable piston speed, diagnostic query error, programmable clearance compensation, absolute position or relative position, change speed on the fly, programmable Non-Volatile Memory
Power supply DC24V/3A
Operating temperature 5℃~55℃
Operating humidity <80% relative humidity, non-condensing
Dimension (L*W*H) 45*143.3*127mm
Max Power 25W
Net weight 1.5kg
Model Numbers of Multi Channel Syringe Pump
Smart SY-01B syringe pump is the newest member in the series of micro-syringe pumps self-developed by Runze Fluid, which can handling fluids from microliters to milliliters with extraordinary accuracy and precision. Accommodates distribution valves and syringe in a variety of configurations. Transfers liquid in high precision which can meet most users' requirements. Can be used in series with multiple pumps. The excellent performance of Smart SY-01B syringe pump provides a guarantee on the R & D and application for users. efficiency maintenance-free stepper motor drive system. Address up to 24 pumps individually via RS485 or CAN Communication.
Specification of Multi Channel Syringe Pump
Accuracy ≤1%@100% stroke
Precision (Repeatability) 0.3%~0.5%@100% stroke
Rated stroke (control steps) 30mm(12000 steps standard mode; 96000 steps micro-step mode)
Maximum speed 450rpm
Linear speed 0.0067mm/s ~ 15mm/s(media: water ; 1 rated stroke=one time)
Running time (per rated stroke) 2s-4500s(media: water ; 1 rated stroke=one time)
Resolution 0.0025mm (per step)
ILS Syringe 25μl, 50μl, 125μl, 250μl. 500μl, 1.25ml, 2.5ml, 5ml
Valve Model(available) M01、M02、M03、M04、M05、M06、M10、M12
Wetted material Borosilicate glass, PTFE, Sapphire, PCTFE
Max. Pressure Rating 0.7Mpa
Actuator Trapezoidal screw (Lead 1mm/2mm)
Connection 1/4-28UNF
Baud rate RS232/RS485: 9600bps, 38400bps
Communication addres Up to 15 individual addresses can be provided
Firmware Programmable acceleration/deceleration, termination of movement, programmable piston speed, diagnostic query error, programmable clearance compensation, absolute position or relative position, change speed on the fly, programmable Non-Volatile Memory
Power supply DC24V/3A
Operating temperature 5℃~55℃
Operating humidity <80% relative humidity, non-condensing
Dimension (L*W*H) 45*143.3*127mm
Max Power 25W
Net weight 1.5kg
