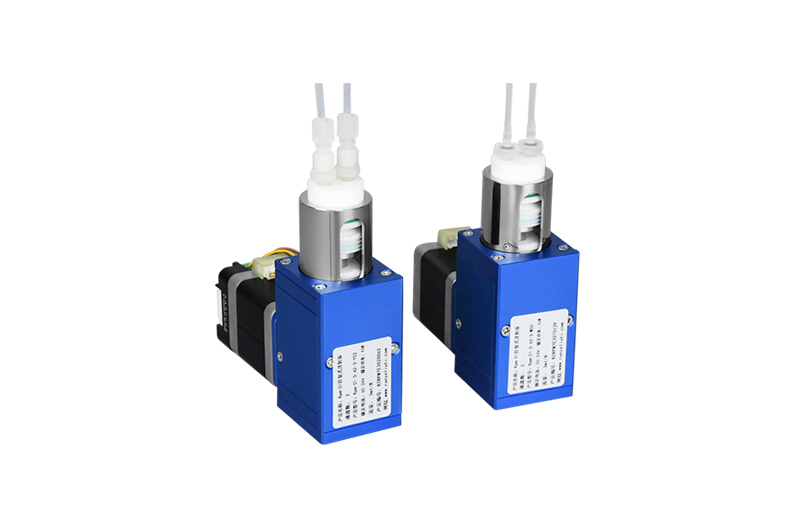

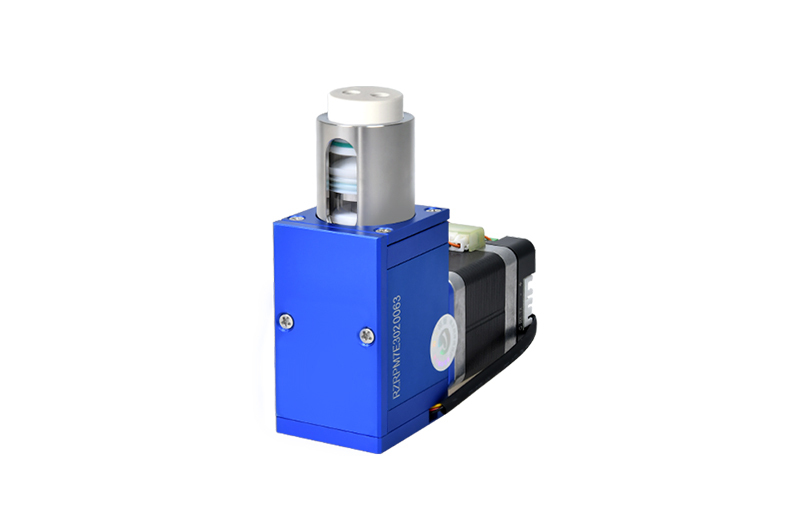

Stepper Motor Syringe Pump
Contact Now
Description
产品描述
Rpm-01 syringe pump is a perfect replacement of the peristaltic liquid pump to have liquid transferred continuously in high precision because of its special eccentric structure, besides, the biocompatible fluid path makes this electric syringe pump corrosive resisting and non-contaminating to sample fluids, maintenance-free stepper motor driven system extend the service life to a desirable level and ensure the strong reliability.
Specification of Stepper Motor Syringe Pump
Syringe volume 1ml 2ml 3ml
Dispensing resolution 1ml 2ml 3ml
Rated max. speed 120rpm (RPM-01-D)
Rated min. speed 1rpm
Flow Rate 1-360ml/min (RPM-01-D)
Flow Regularity Continuous liquid dispensing instead of peristaltic pump
Accuracy ≤1%@100% stroke
Precision (Repeatability) 0.3%- 0.7% @100% stroke
Pressure rating 0.3Mpa (media: water)
Service life 3 million times no leakage (media: water)
Actuator Eccentric gear
Wetted material Borosilicate glass, PTFE
Connection 1/4-28UNF
Fluid Channel Double channel
Communication RS232/RS485/CAN (with driver)
Baud rate RS232/RS485: 9600dps, 19200dps, 38400dps, 57600dps, 115200dps
CAN: 100Kbps, 200Kbps, 500Kbps, 1Mbps
Address & Parameter setting Serial Pont (with driver)
Dimension (L*W*H) 98.3*42*116.4mm (RPM-01-D)
Power supply DC24V/1.5A
Max Power 15W
Operating temperature 5 – 55℃
Operating humidity < 80%
Net Weight 0.8kg (RPM-01-D)
Driver Port of Stepper Motor Syringe Pump
Port Description Port Description
H CANH B+/B- Phase B wiring
L CANL A+/A- Phase A wiring
A RS485 A O1 Optocoupler
wiring
B RS485 B O2
GND GND O3
RX RS232 RX V1
TX RS232 TX V2
- DC24V positive V3
+ DC24V negative GND
