Steel mesh welding machine
Description
Product description
Technical Specification
|
Item |
Technical Specification |
|
|
Welded mesh width （horizontal line length) |
2M |
|
|
Welded mesh length (Vertical line length) |
4.8M(Adjustable) |
|
|
Welding points(i.e. the number of vertical lines) |
14 |
|
|
Diameter of vertical line |
8-10mm |
|
|
Diameter of horizontal line |
8-10mm |
|
|
Minimum distance of vertical line |
150mm+(Adjustable) |
|
|
Minimum distance of horizontal line |
150mm+(Adjustable) |
|
|
Welding Speed |
20-25 rows/min (According to wire diameter, grid) |
|
|
Welding transformer (welding machine) |
7 sets of large water-cooled welding machines |
|
|
Vertical line feeding |
straightening and cutting,install pneumatic wire feeding device |
|
|
Horizontal line feeding |
straightening cutting, mechanical Hopper,automatic wire falling |
|
|
Driving Power |
variable frequency electromagnetic brake motor 5.5KW |
|
|
Reducer |
No. 6 cycloid needle wheel reducer |
|
|
Pulling mesh power |
Servo motor 2.6KW |
|
|
Pressing method |
Spring pressing |
|
|
Welding principle |
Current welding |
|
|
Pulling method |
Pneumatic circulation |
|
|
Outputting method |
By Manual |
|
|
Control system |
PLC. Programmable control |
|
|
Staff needs |
2-3 persons |
|
|
Machine weight |
4.5T Approx |
|

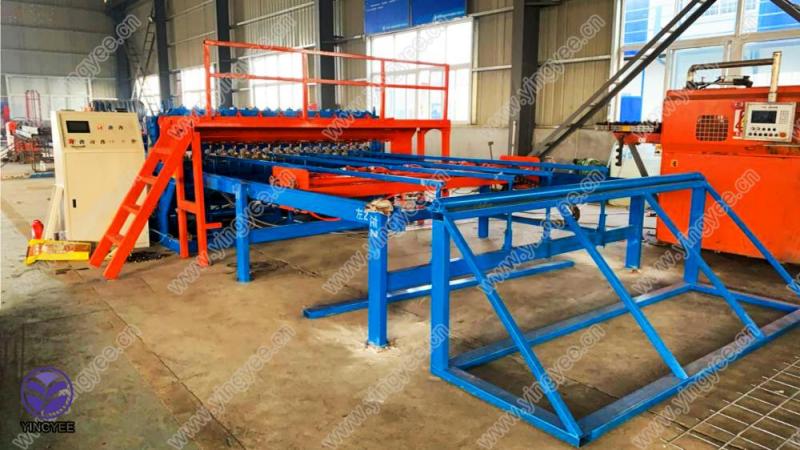

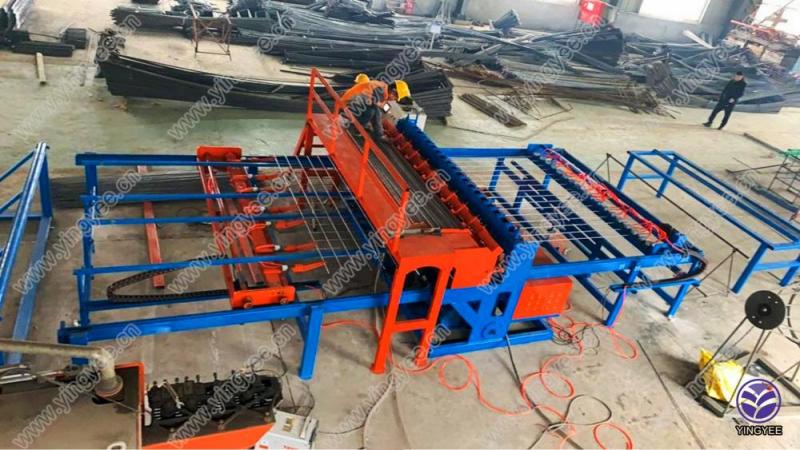

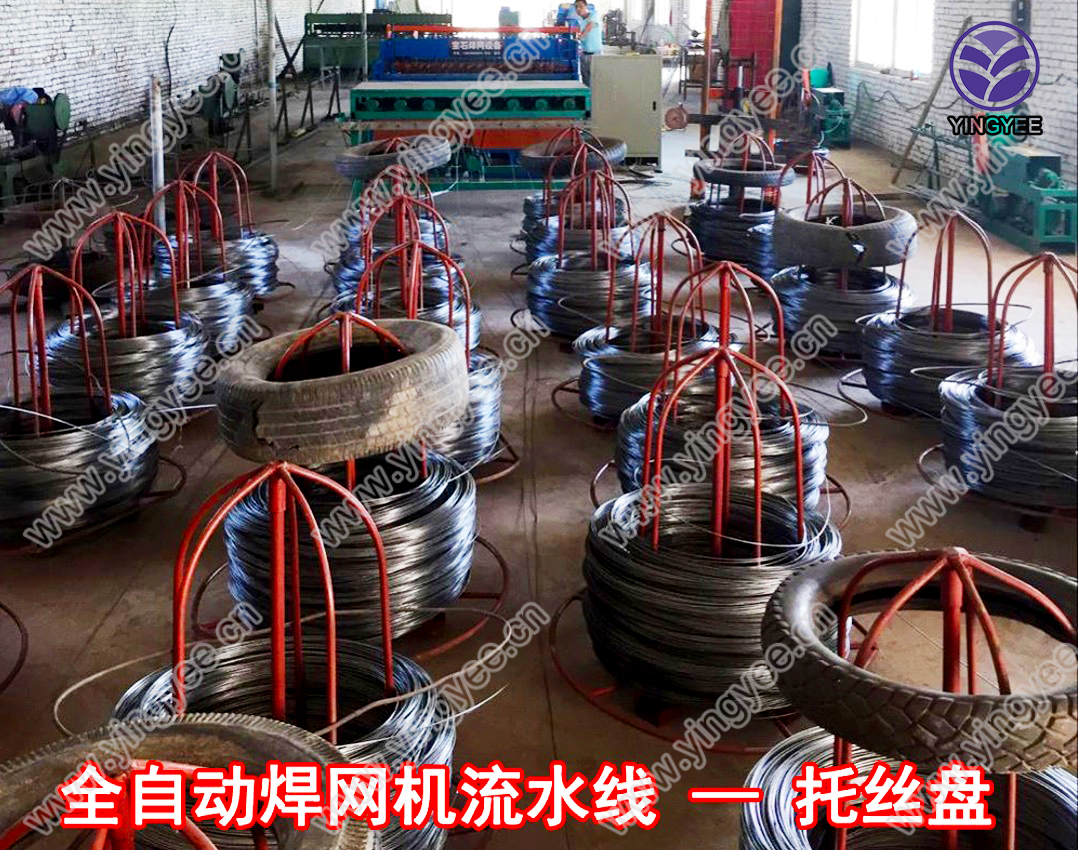

Layout of Steel Mesh Welding Machine

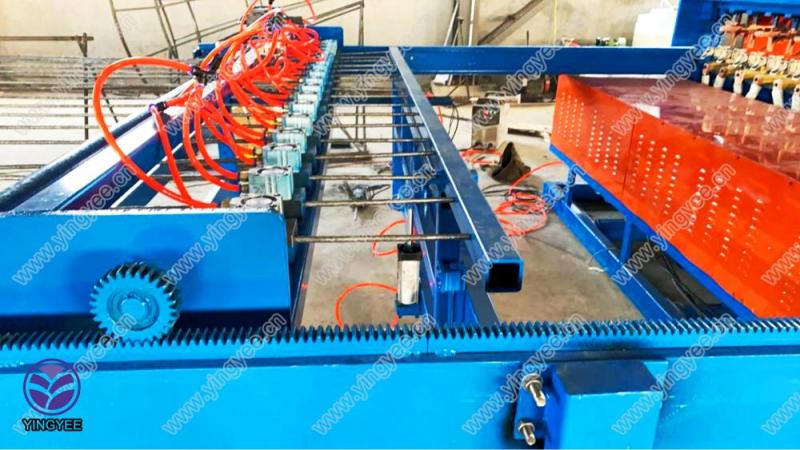

Pneumatic wire feeding device,welding machine host, track+pneumatic wire pulling device,control cabinet, roller bar.
★ Welding host is the vertical wire and horizontal wire pressure, current welding, the formation of welding point welding device.

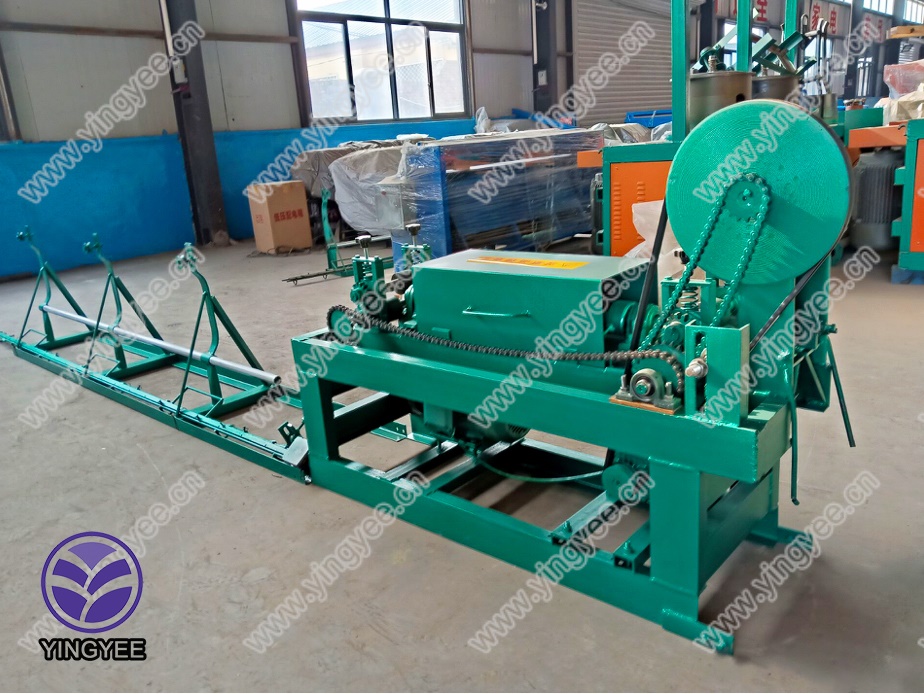

★ Horizontal and vertical lines pre-straightening cut off, horizontal mechanical Hopper automatically fall wire,vertical line artificial threading to the "pneumatic wire feeding device", automatic diameter to the welding point, automatic welding.
★Pull the net for the pneumatic hook loop pull the net.
★ Welding machine motor power, the use of synchronous control technology, sub-control welding and welding time by the digital programming system control, highly integrated, low failure rate.
★ The input panel is a touch screen, the operation is more intelligent and rational.
★ The main frame is made of thicker steel plate and steel welding,is the main structure is more firm, compact.
★ Pull the net using stepper motor pull the net way can solve the same mesh has different mesh size problems, pull the net control system using PLC control screen Chinese display.
★ The copper solder joints are used in line with national standards of chromium pick copper(chromium zirconium copper has high strength and hardness, electrical and thermal conductivity, wear resistance and wear reduction, after aging treatment hardness, strength, electrical and thermal conductivity are significantly improved, easy to weld), copper wires are bold.
★ No welding electrode, welding principle current welding, high frequency welding.
★pneumatic wire feeding device,can wear the diameter of the wire in advance, automatically send the diameter of the wire to the welding point, set the number of welding automatically return, continue to wear the second mesh of the diameter of the wire
Pneumatic hook loop pull net,reciprocating pull net, suitable for welding long mesh, small area.

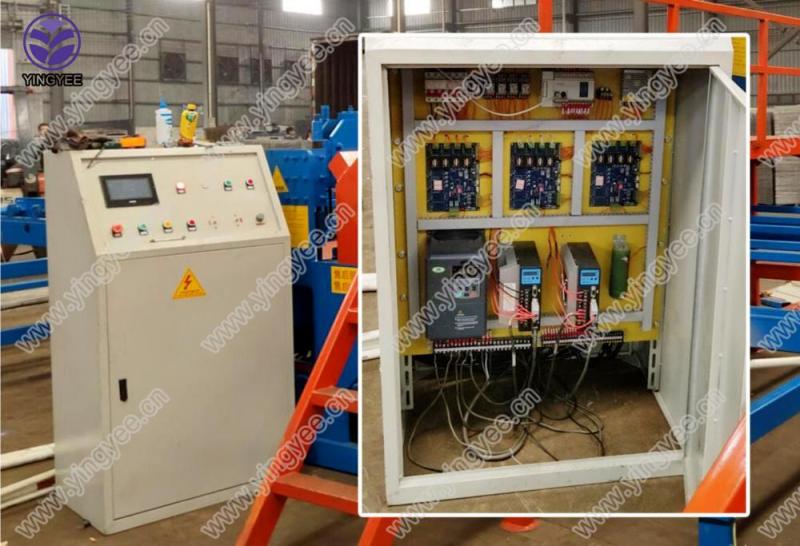

★PLC programmable control system, touch screen user interface. ★Each function structure is equipped with fault detection device, automatic alarm stop function. ★Screen specifications and operating parameters can be set through the touch screen interface.
