Structural Steel H Beam Assembly Production Line
Contact Now
Description
Product description
Parameter
|
Web plate height
|
Web plate thickness
|
Welding sped
|
Flange plate width
|
Flange plate thickness
|
Suitable work piece length
|
Power
|
|
160-3000mm
|
6-80mm
|
0.15-1.5m/min
|
150-3000mm
|
6-80mm
|
6000-15000mm
|
16.5KW
|

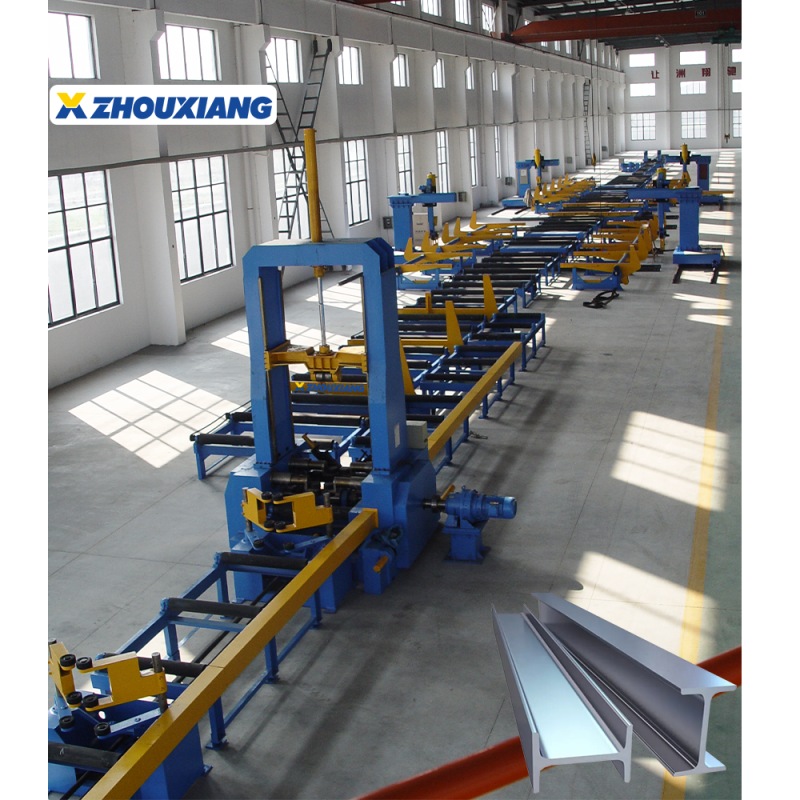

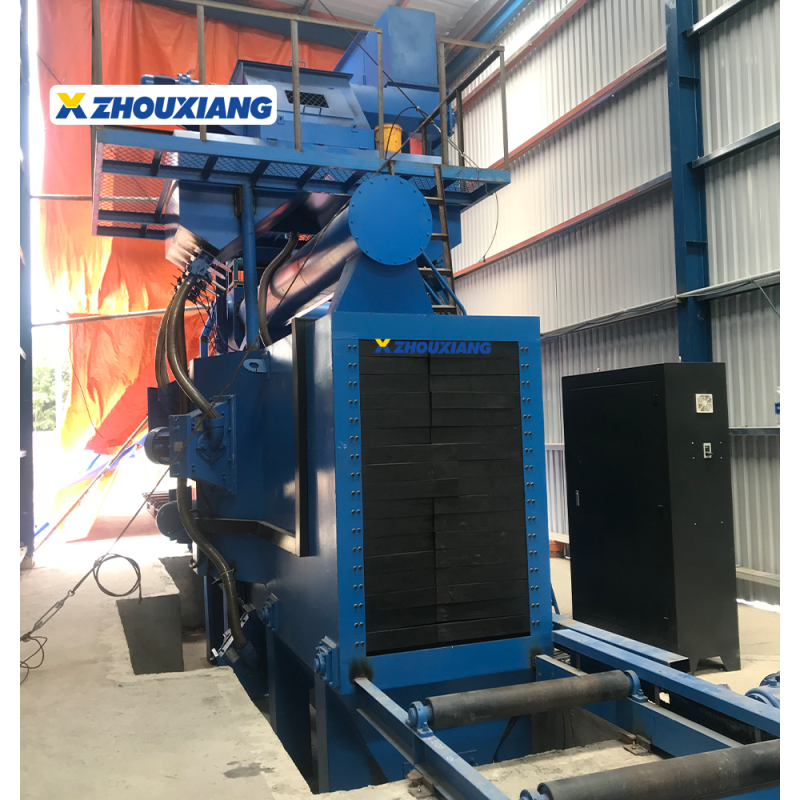

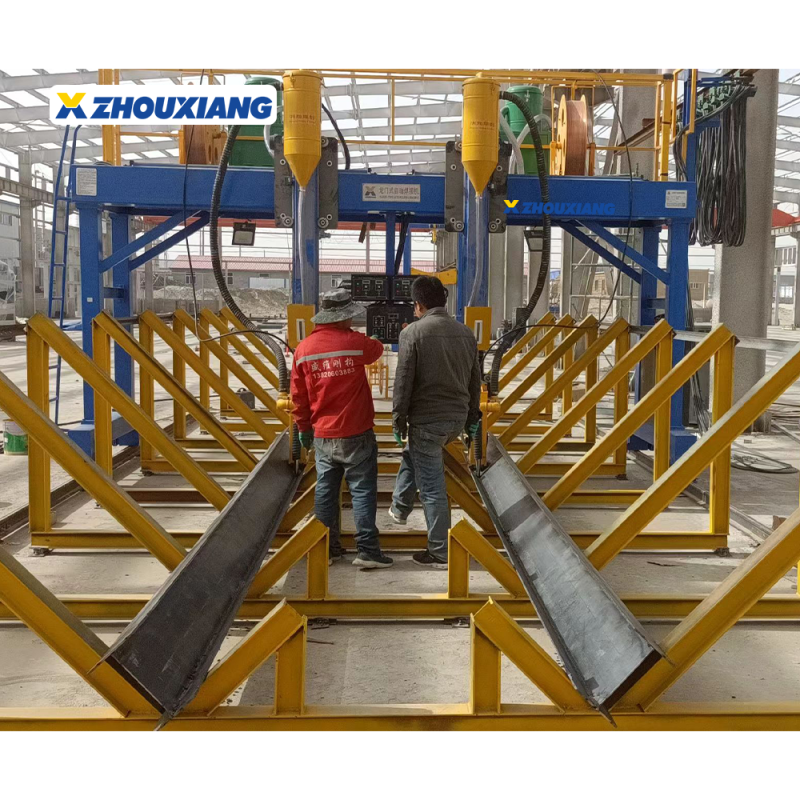

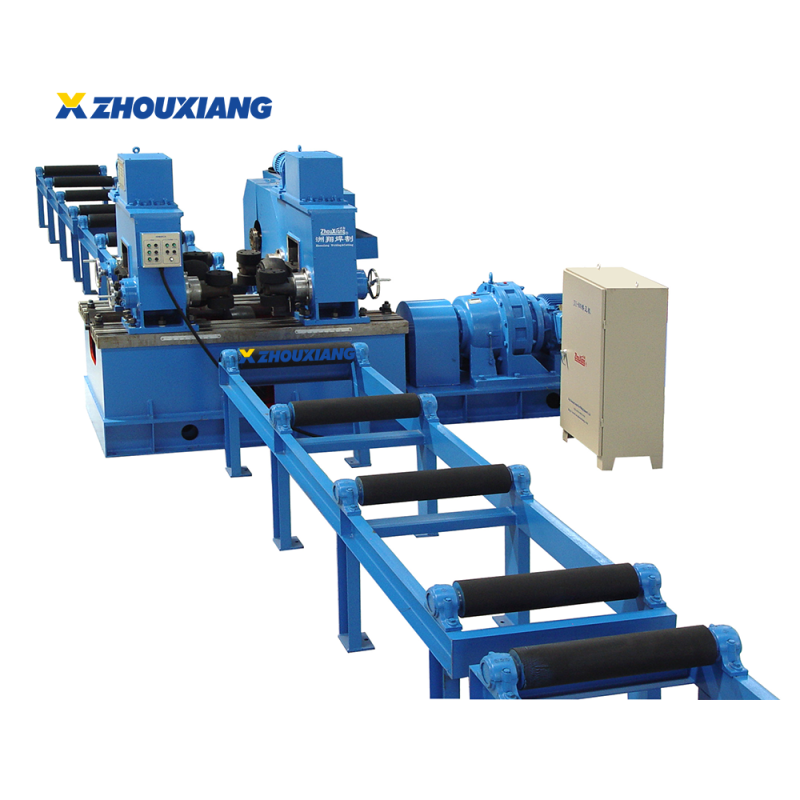

The production line consists of cnc flame cutting machine, h beam assembly machine, h beam welding machine, h beam straightening machine and shot-blasting machine. For the production of heavy H-beam, there are also turning machine, steel moving machine, cantilever welding machine and other equipment.
Zhouxiang Steel Structure Processing H-Shaped Steel Welding Machine H Beam Production Line
Features:
According to the product requirements, it can be collocated with single machine at will.
The product is highly automated and can be used for the flow production of H-beam.
Zhouxiang Steel Structure Processing H-Shaped Steel Welding Machine H Beam Production Line
Features:
According to the product requirements, it can be collocated with single machine at will.
The product is highly automated and can be used for the flow production of H-beam.
Products Description

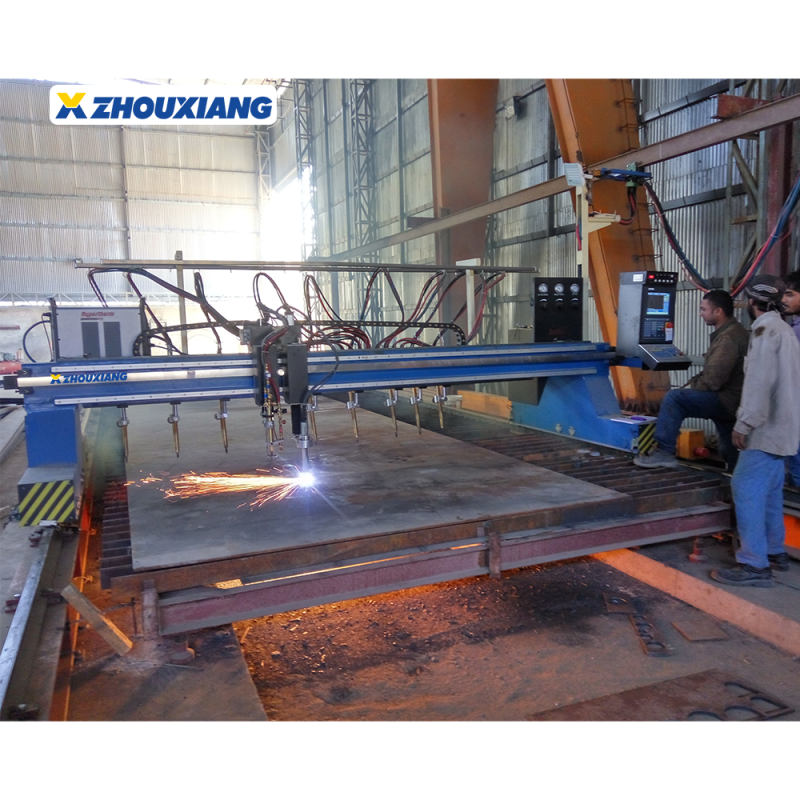

CNC Steel Plate Cutting Machine
Zhouxiang Steel Structure Processing H-Shaped Steel Welding Machine H Beam Production Line
1. Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance.
2. The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.
3. The side of driving end beam equipped with horizontal guiding wheels which can make the guiding wheel press rail tightly by adjusting its eccentric shaft, therefore, the stability and accuracy during the whole moving can be assured.
4. The longitudinal guide rails are all made by high intensity track, all the contact surface of track have precision machining
and accurate grinding racks are installed outside the guide way.
5. The longitudinal guide rails are firmed by pressing plate backing board and connecting sleeve, which can ensure the
longitudinal straightness and parallelism of rail.
6. Automatic igniter and height controller of torch can be chosen according to customer’s requirement, with convenient operation.
7. There’s backfire arrester equipped on the torch which can prevent the safety hazards during cutting process.
1. Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance.
2. The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.
3. The side of driving end beam equipped with horizontal guiding wheels which can make the guiding wheel press rail tightly by adjusting its eccentric shaft, therefore, the stability and accuracy during the whole moving can be assured.
4. The longitudinal guide rails are all made by high intensity track, all the contact surface of track have precision machining
and accurate grinding racks are installed outside the guide way.
5. The longitudinal guide rails are firmed by pressing plate backing board and connecting sleeve, which can ensure the
longitudinal straightness and parallelism of rail.
6. Automatic igniter and height controller of torch can be chosen according to customer’s requirement, with convenient operation.
7. There’s backfire arrester equipped on the torch which can prevent the safety hazards during cutting process.
H Beam Assembly Machine
Zhouxiang Steel Structure Processing H-Shaped Steel Welding Machine H Beam Production Line
1. This heavy duty H beam assembly machine can produce H beam with larger size according to customers requirement, the maximum size of web height can reach 3 meter.
2. The automatic centering of flange and web adopts hydraulic motor and gear, with high centering precision and good retentivity.
3. This machine is equipped with auxiliary supporting device for large web.
4. The material of pressing wheel, guiding wheel and main transmission wheel is 40Cr, with high frequency quenching process on the surface, has the advantages of good abrasion resistance and long service time. The main transmission wheel uses integral forging processwith good pressure resistance and high abrasion resistance.
5. This machine adopts centralized lubrication system, it can ensure that the wide distributed lubrication points can be
lubricated well, and realize the purpose of good lubrication, reducing abrasion and prolong service life of the equipment.
1. This heavy duty H beam assembly machine can produce H beam with larger size according to customers requirement, the maximum size of web height can reach 3 meter.
2. The automatic centering of flange and web adopts hydraulic motor and gear, with high centering precision and good retentivity.
3. This machine is equipped with auxiliary supporting device for large web.
4. The material of pressing wheel, guiding wheel and main transmission wheel is 40Cr, with high frequency quenching process on the surface, has the advantages of good abrasion resistance and long service time. The main transmission wheel uses integral forging processwith good pressure resistance and high abrasion resistance.
5. This machine adopts centralized lubrication system, it can ensure that the wide distributed lubrication points can be
lubricated well, and realize the purpose of good lubrication, reducing abrasion and prolong service life of the equipment.
