How to Use Tapers Lights Pole Welding Machine?
Description
Product description
Street Lamp Post Shut & Welding Machine
Why choose us--- China Zhouxiang Complete Set of Welding Equipment Co.,Ltd ?
As the largest H-beam and Automatic Welding Machine manufacturing equipment manufacturer in China, we have strong design and manufacturing capabilities, with an annual production capacity of US$40 million.
How to produce qualified automatic welding machine? It is an important category of our continuous research for 30 years. Our main products are: CNC Control Flame/Plasma cutting machine、H beam assembling machine、H beam welding machine、H beam straightening machine、H beam shot blasting machine、H beam assembly-welding-straightening multi-functions machine、H beam horizontal productions line、Automation welding machine、Street pole productions line etc.
1、Shut & Welding Machine Overview :
This type light pole shut and welding machine is suitable for polygonal or circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull (or push) the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.
2、Street Post Shut and Welding Machine Main Parts:
1) Long working table with rack for pull dolly.
2) Dolly for pulling pole
3) Pole clamping and welding center
4) Submerged Arc Welding and Gas-shielded welding(CO2) Welding system, including welding wire feeding system.
5) The flux transport and recovering system
6) Back support unit
7) Hydraulic controlling system
8) Electric control system
3、Street Post Main Technical Parameters:
Light pole shape: taper polygonal or circle
Workable Diameter : 60-500 mm
Workable length : 12000 mm
Dolly length : 1500 mm
Power of pump station : AC 4 KW
Power of pulling dolly : AC,4 KW , Speed changeable by VFD
Working Speed : 1.1~2m/min
Welding Machine : 630A,( 68046505,Submerged Arc Welding or Gas-shielded welding(CO2) Welding)
Welding wire diameter : 1.2、1.6、2mm welding wire, according the pole thickness and welding type SAW or CO2 way.
Gross weight : 7000 kg
Overall sizes(L x W x H): 22000x2000x2000 mm
4、Suitable Street Post Diameter and Thickness ( Low carbon steel yield strength Q235)
|
Diameter (mm) |
60 |
70 |
200 |
250 |
450 |
|
Thickness (mm) |
≤3 |
≤4 |
≤5 |
≤6 |
≤8 |

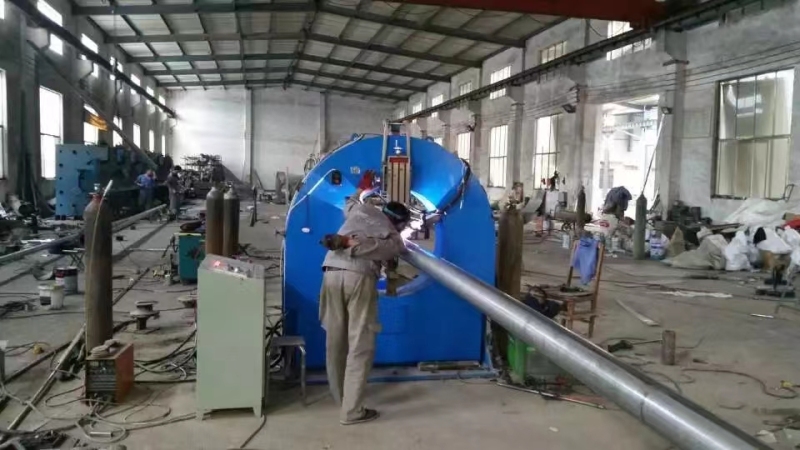

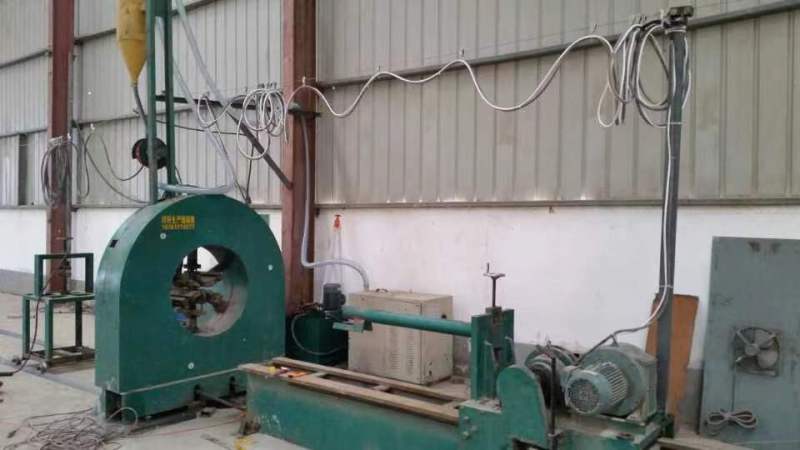

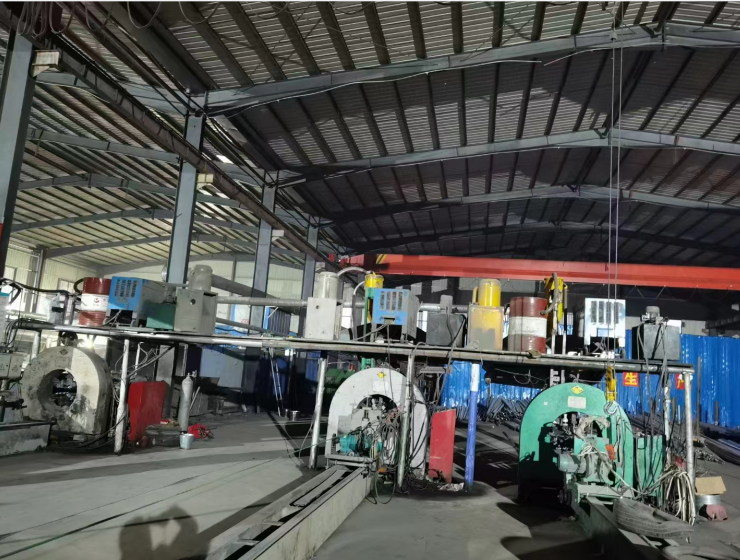

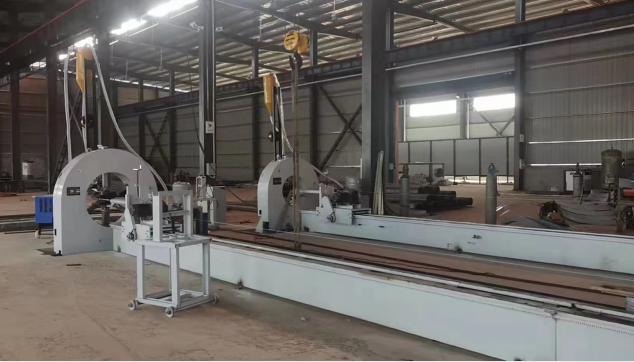

5、 Street Post Shut & Welding Machine Details
Lincoln CO2 Gas Shield Welding Type often used in the welding of thin-plate street light poles
