Durable 201 Stainless Steel Wire Rope Tension Clamp for Optical Fiber
Description
Overview
Tabular Data
Basic Info.
- Model NO. clamp
- Material Shape Flat Wire
- Allowed Lateral Pressure >1000(N/100mm)
- Allowed Tensile Strength 1000N<10000N
- Core Tension Clamp
- Certification RoHS, CE, ISO9001, VDE, CCC
- Brand OEM
- Product Name Product Name
- Material Nylon and Stainless Steel Wire
- Tensile Strength(N) 5n
- Color Black Fiber Tension Clamp
- Main Cable Diameter 3-6mm
- Branch Cabel Diameter 3-6mm
- Keywords 1 Fiber Tension Clamp
- Keywords 2 Fiber Optic Cable Tension Clamp
- Transport Package Carton
- Specification 330m*62mm*32mm
- Trademark Fibconet/OEM
- Origin Ningbo, China
- Production Capacity 800000 Pieces/Month
Product Description

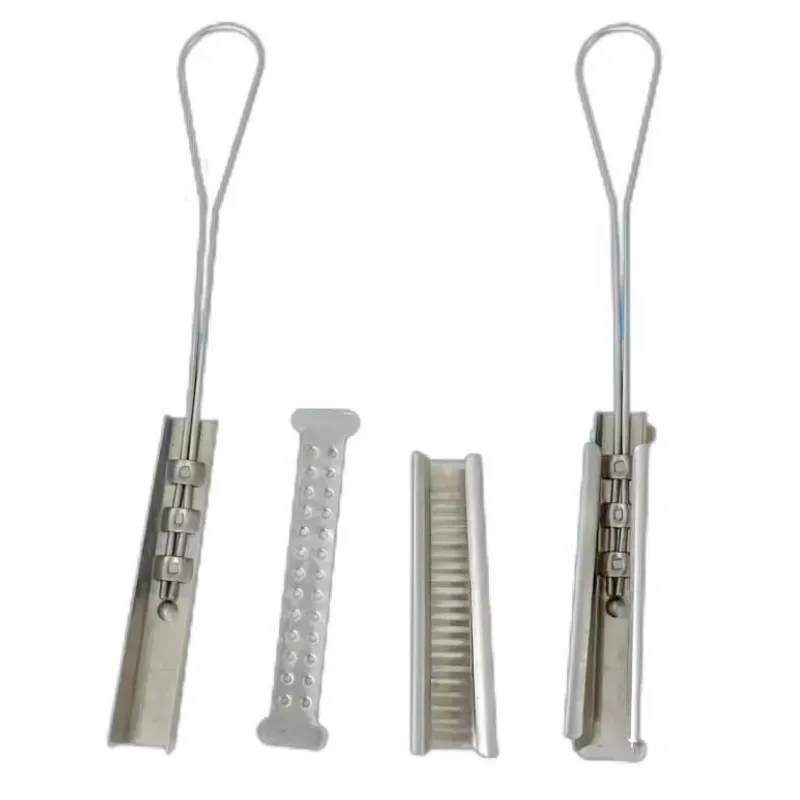

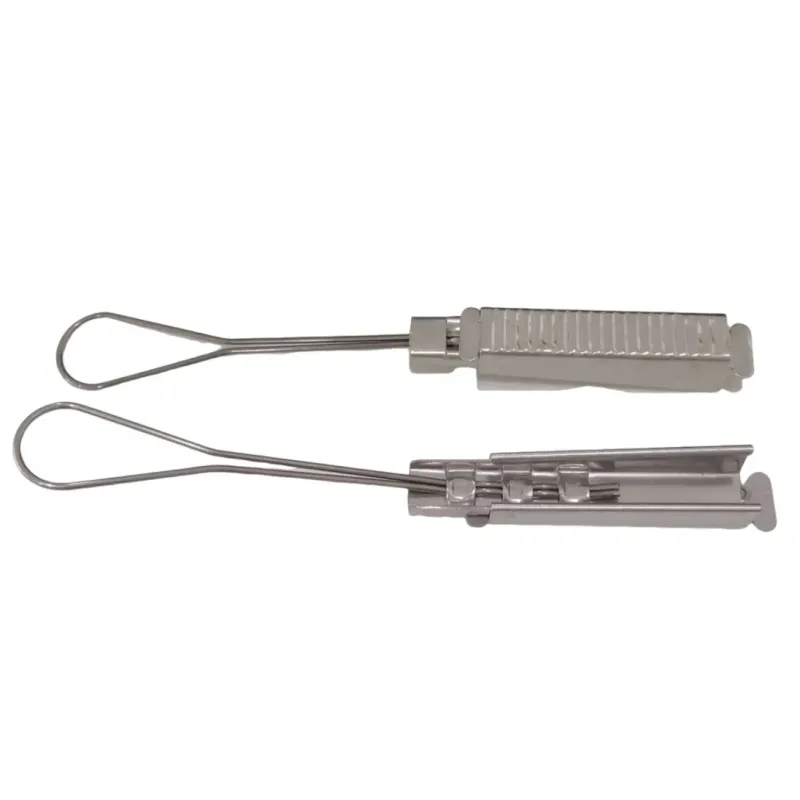

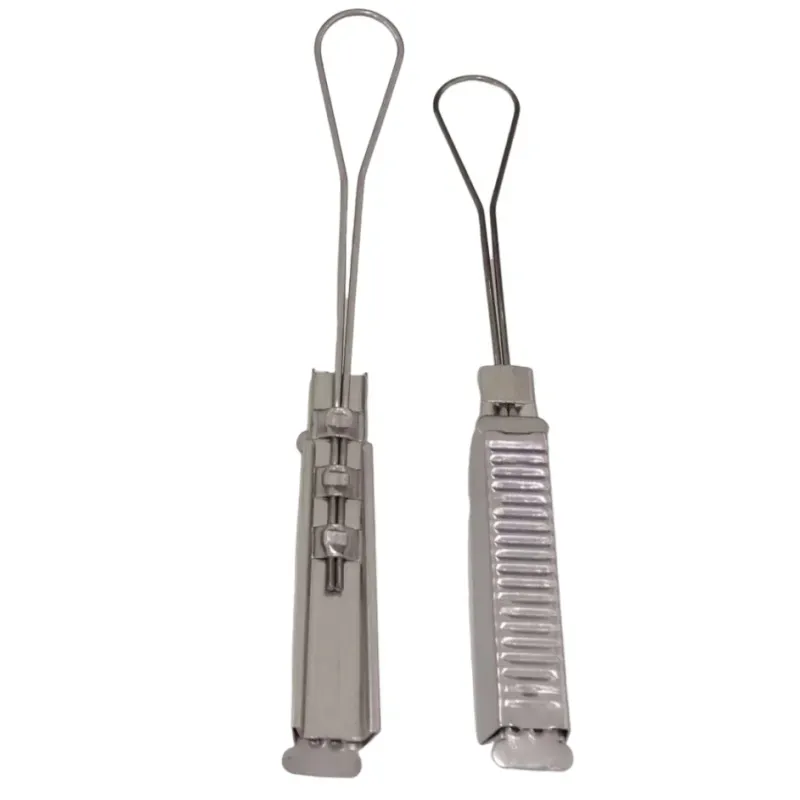

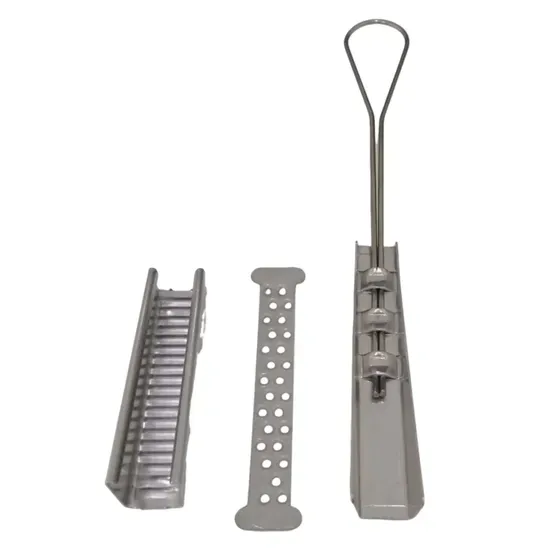

This Drop cable tension clamp is made of 201 stainless steel wire rope and nylon body. With one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail. Its different sizes offer a wide range of gripping capacities and mechanical resistances to fit the various ADSS cable designs. Suitable for wire diameters ranging from 3-6mm, the product is easy to install and has a solid body. With the addition of UV resistant materials, the product has a longer lifespan. The special teeth of the wedge increase the friction force with the optical cable, making it a successful and mature product.
Features
- Optimal anti-corrosion performance
- Superior abrasion and wear resistance
- Maintenance-free reliability
- Long-lasting durability
- Effortless installation process
- Secure grip for cable stability
- Proven tensile strength
- Compatible with FTTH networks
- Suitable for various drop cable diameters
- Used on dead-end fiber optic cables
Applications
- Fiber optic network installations
- FTTx
- Residential broadband
- Telecommunications infrastructure
Tabular Data
| Model | Size | Cable Diameter | Weight | Breaking Load | Cable Diameter | Warranty Time |
|---|---|---|---|---|---|---|
| XS-A01 | 200*23*17 mm | 201.410.304 | 45 g | 1.5 KN | 2-8 mm | 10 year |
| XS-A03 | 210*24*20 mm | 201.410.304 | 49 g | 1.5 KN | 2-8 mm | 10 year |
FAQ
Q: The History of our factory?
A: In 2000, Fibconet started our adapters business first and accumulated funds, then we started producing jumpers in 2006. In 2009 We developed the splitter workshop. The sales volume exceeded 15 million US dollars in 2015. In the same year, we began to explore foreign markets.
Q: What kind of package do you usually apply for?
A: We usually use cartons, but they also can be customized.
Q: Warranty policy?
A: Fiber Equipment Warranty Notice
Warranty period: 24 months after buying, Generally, there are no questions for application in 20 years.
