Custom Roof Solar Mounting System Bracket - Short Mini Rail
Contact Now
Description
Overview
| Model NO. | CYC-R1A01 |
| Certification | ISO |
| Application | Commercial |
| Material | Aluminum Alloy |
| Type | Roof Bracket |
| Port of Loading | Xiamen Port |
| OEM | Acceptable |
| Color | Silver/Black |
| Surface Treatment | Mill Finish or Clear Anodized or Black Anodized |
| Lead Time | 7-21 Days |
| Supply Capacity | Over 100,000 Set Per Week |
| Transport Package | Carton/Pallet Packaging |
| Trademark | CYC ENERGY |
| Origin | Xiamen |
| HS Code | 76169990 |
| Production Capacity | 20,000 PCS Per Week |
Packaging & Delivery
| Package Size | 60.00cm * 25.00cm * 25.00cm |
| Package Gross Weight | 10.000kg |
Product Description

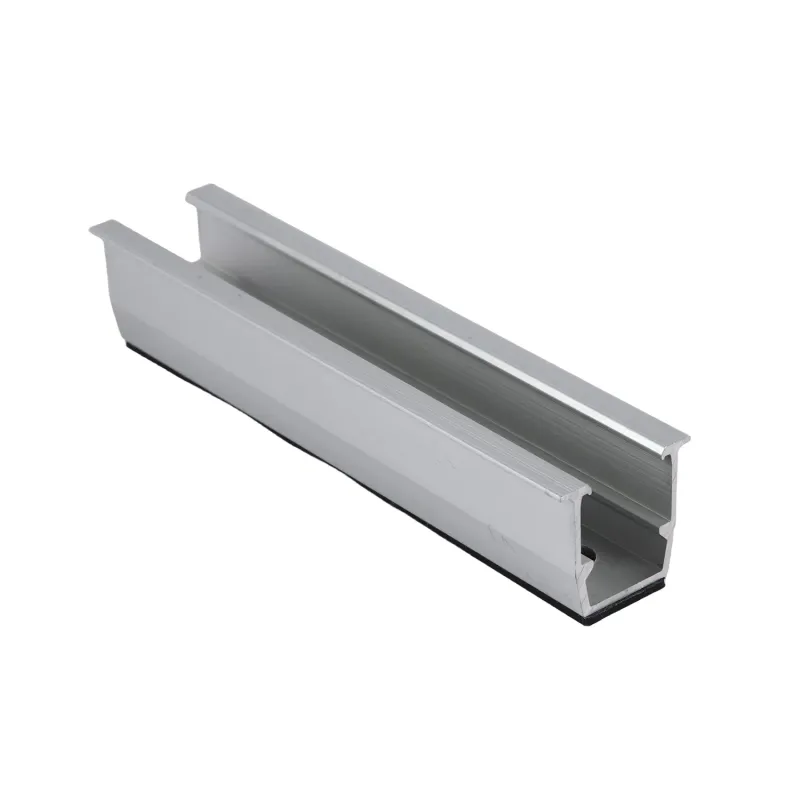

Solar Mount System Aluminum Quick Installation Mini Rail for Mounting Solar Racking. CYC Energy quick release rails are made of material AL6005-T5 for corrosion resistance and high strength; Customisable length 100~500mm, economical and easy to transport. Suitable for solar panels to be placed horizontally and vertically. Comply with European, American and Japanese design standards.
Detailed Photos
Product Parameters
| Installation location | Metal Roof |
| Installation angle | parallel |
| Applicable module type | Mono-crystalline, Poly-crystalline, Double wave and Thin film |
| Module Orientation | Horizontal, Vertical |
| Design standard | AS/NZS1170, JIS C 8955-2017, ASCE7-16 |
| Material | AL6005-T5, SUS304, EPDM |
| Warranty & Duration | 15 years & More than 20 years |
