Basic Info.

Model NO.	SPT-12K
Certification	ISO, TUV, CE
Application	Industrial
Material	Stainless Steel
Type	Tracking Bracket

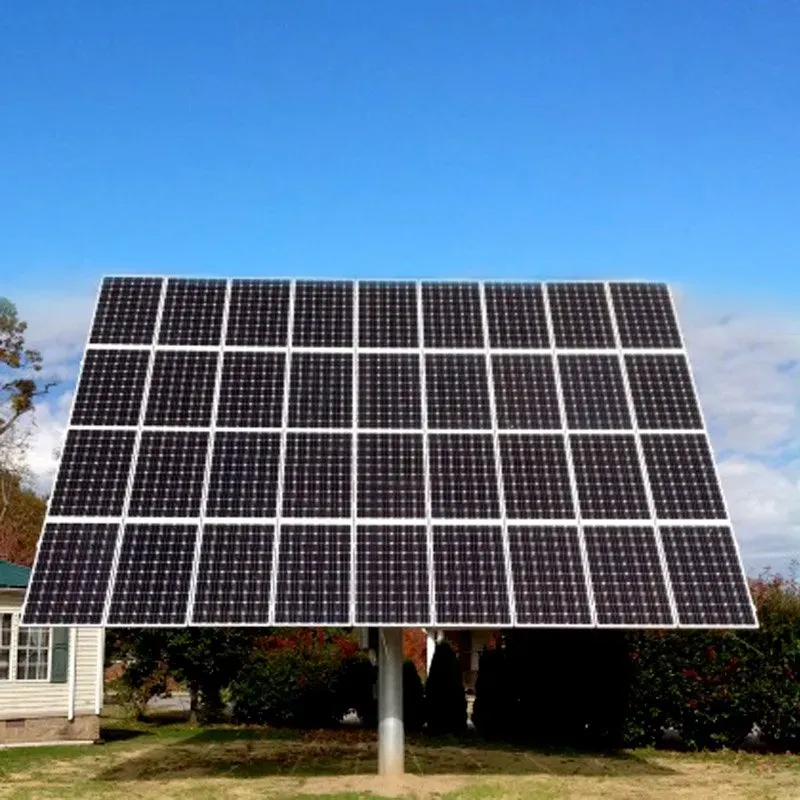

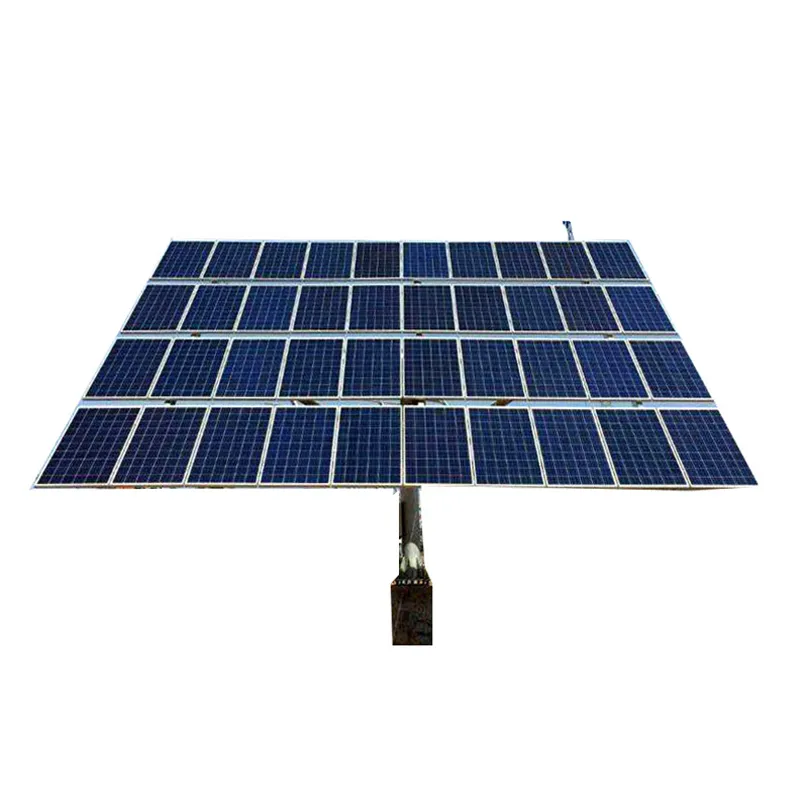

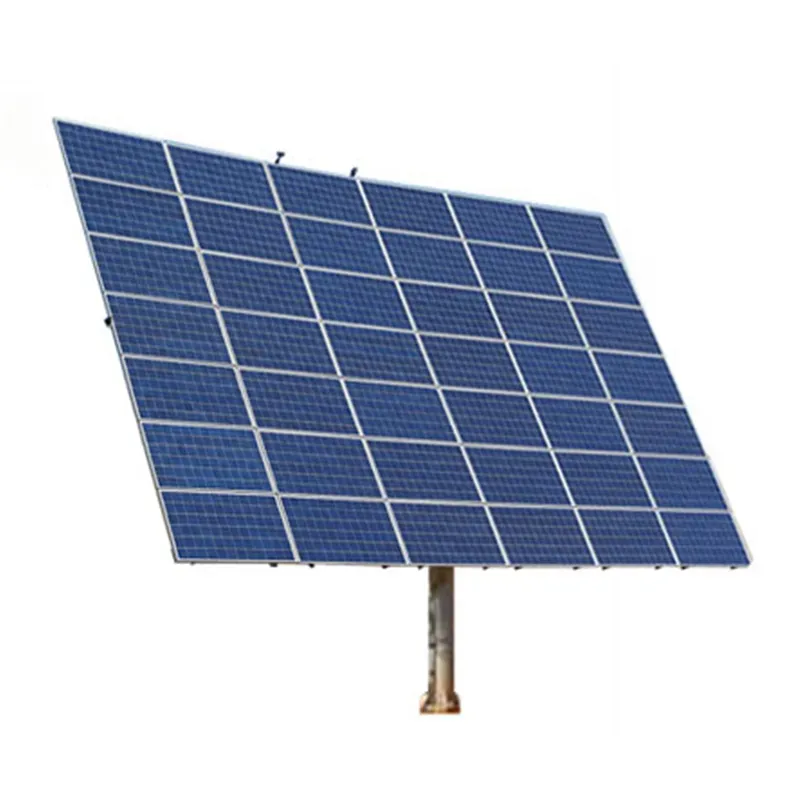

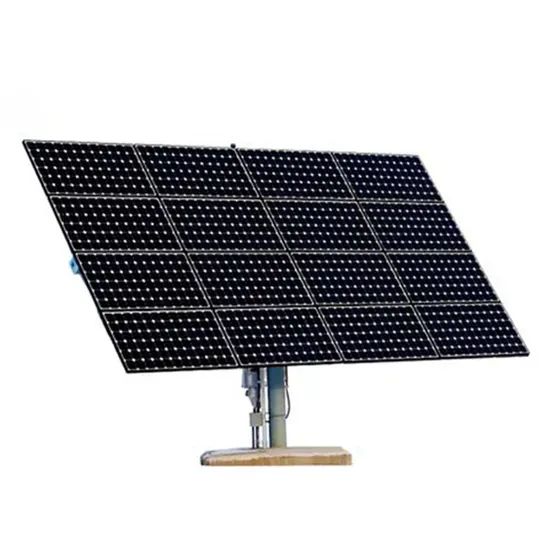

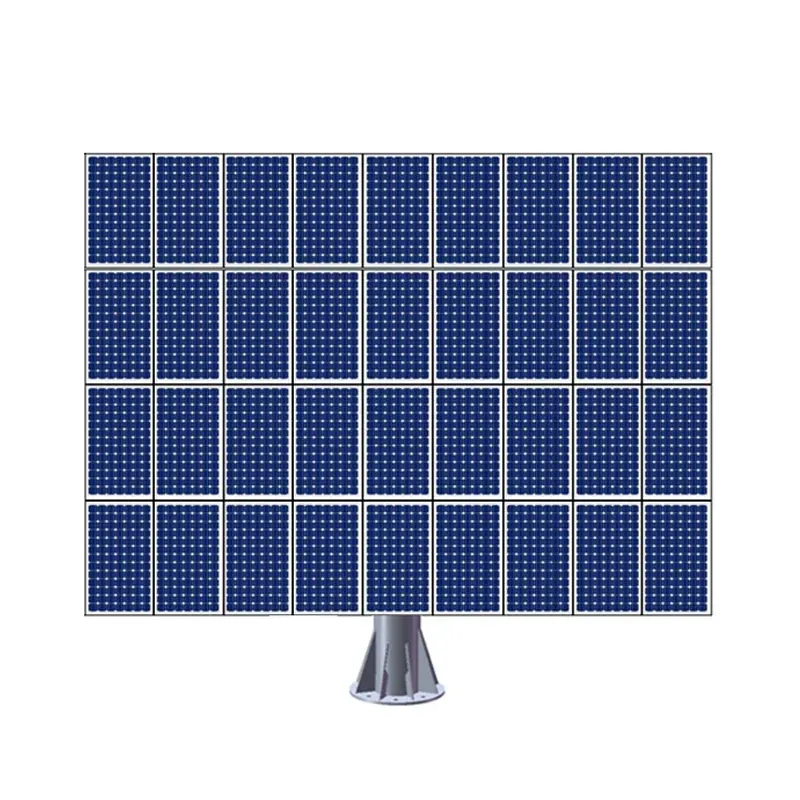

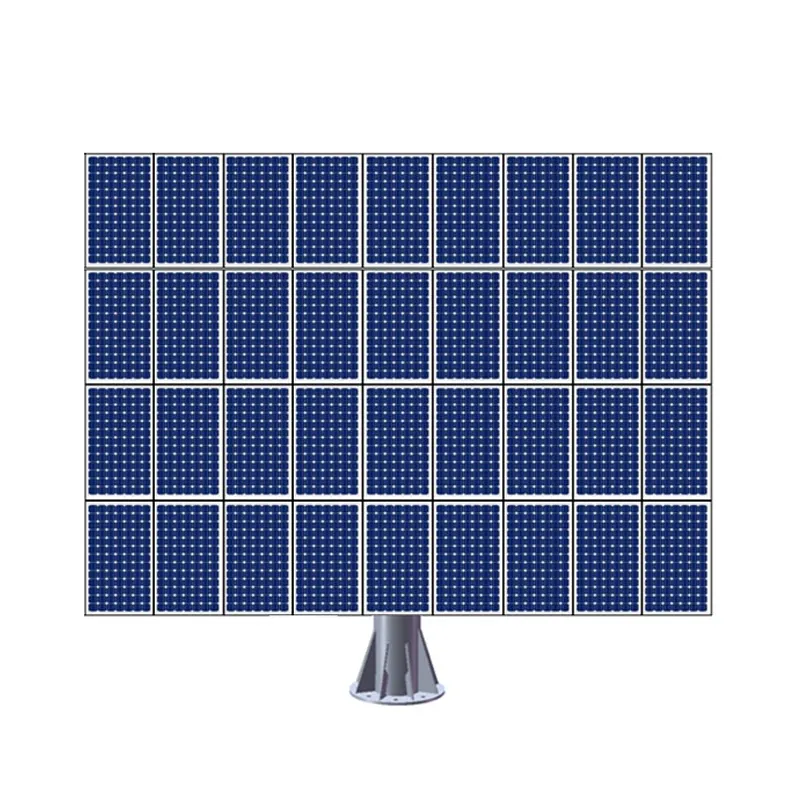

Product Name	Solar Tracker
Model Number	Spt-12K
Module Size	165099240mm
Weight	1600kg
Scope of Rack	66m2
Power Supply	110V / 220V
Driving Power	450W
Daily Power Consumption	<1.25kwh
Protection Level	IP65
Communication Protocol	RS485
Transport Package	Standard Carton
Specification	165099240mm
Trademark	Bessent
Origin	China
Production Capacity	100000 Watts Per Month

Packaging & Delivery

Package Size	170.00cm * 105.00cm * 10.00cm
Package Gross Weight	1600.000kg

Product Description

Specification

Model	SPT-12K
Solar Panel Type	165099235mm
Number Of Solar Panels	40 PCS
Grid Area	≈66 m2
Safe Working Wind Speed	17 m/s

Survival

Wind Speed	37m/s (Wind Speed Can Be Customized, <60m/s)
Snow Load	0.8-1.6KN/m2

Control Algorithm

Astronomical Algorithm + Position Sensor Closed Loop Control

Working Temperature

-30ºC~+70ºC

Azimuth Tracking Range X Axis

-125°~+125°

Azimuth Tracking Range Y Axis

30°~90° (Customizable Angle)

Drive Power (W)

450W

Protection Level

IP65

Product Description

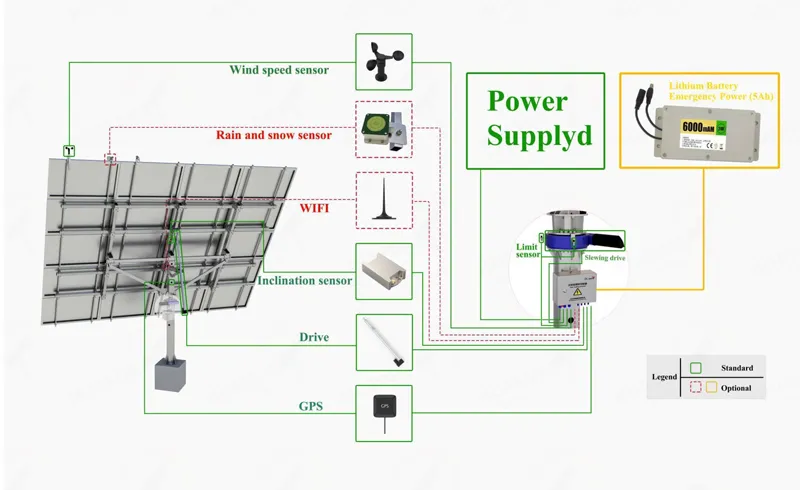

The control unit adopts inclination sensor feedback + closed-loop control system, which has high tracking accuracy, high accuracy and reliability. Compared with the stationary type, it can increase the power generation by about 35-50%; The 5KW dual-axis solar tracking bracket is compatible with 98% of the panel specifications on the market, and the design versatility is better; The operating power of the system is small, and the daily self-use power of the system is less than 0.85 kwh;
