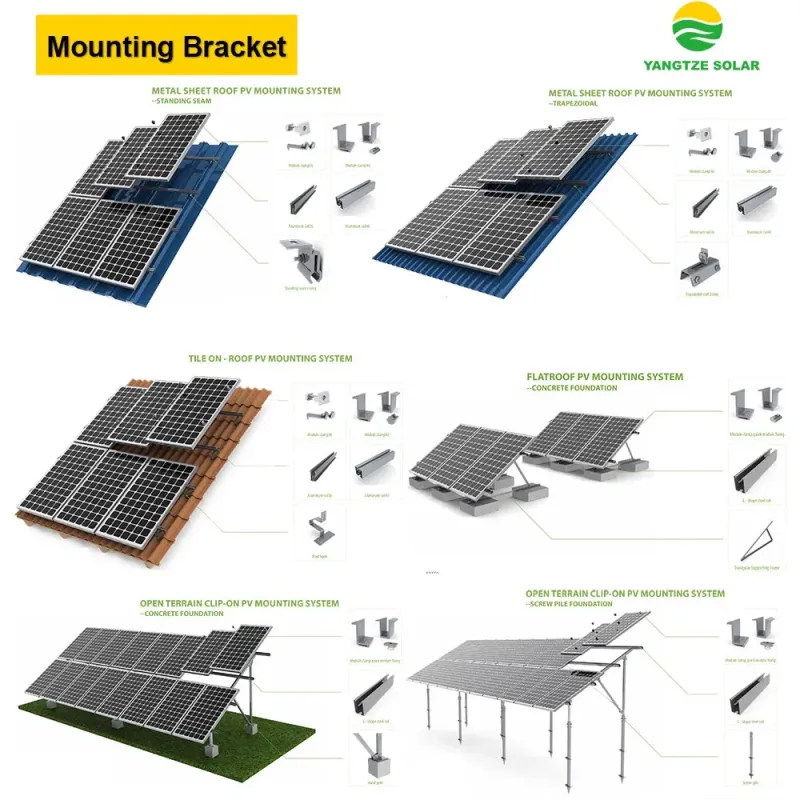

Yangtze 5kW Solar Panel Mounting System for Flat Roof
Description
Basic Info.
- Model NO. YS-5K-ON
- Application Home
- Specification Normal, 5KW
- System Warranty 25 Years
- AC Frequency 50 or 60 Hz
- Load Power 5kw
- System Type on Grid
- AC Connection 1 Phase or 3 Phase
- System Efficiency More Than 90%
- Output Voltage 110V 120V 220V 230V 240V 380V 400V
- OEM Order Acceptable
- Life Span 30 Years
- Working Time 10~12 Hours
- Transport Package 2PCS /Carton, 26PCS/Pallet
- Trademark Yangtze Solar
- Origin China
- HS Code 8541402000
- Production Capacity 100 Sets /Week

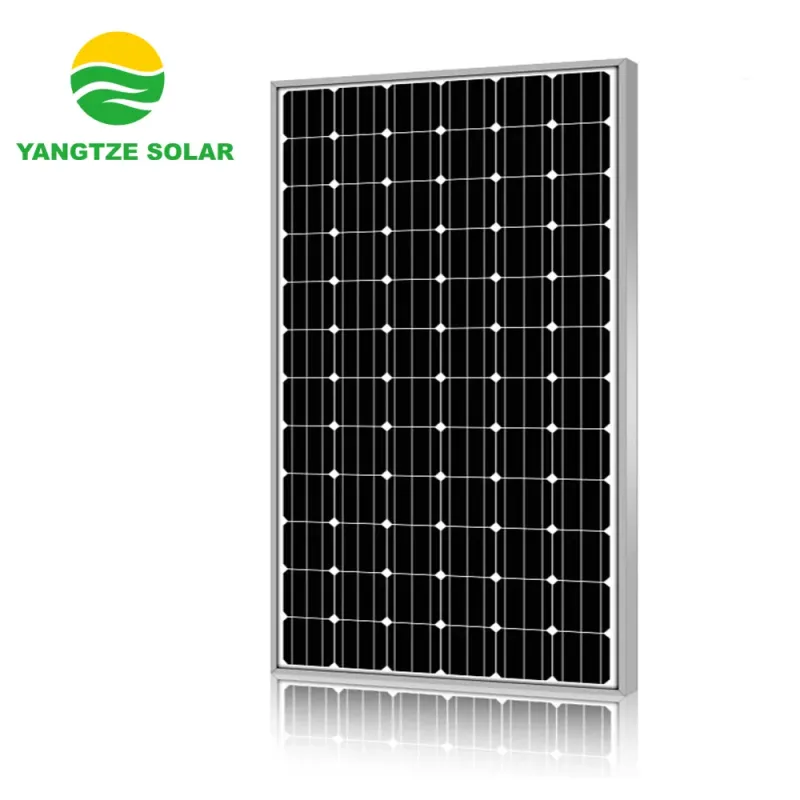

Product Description

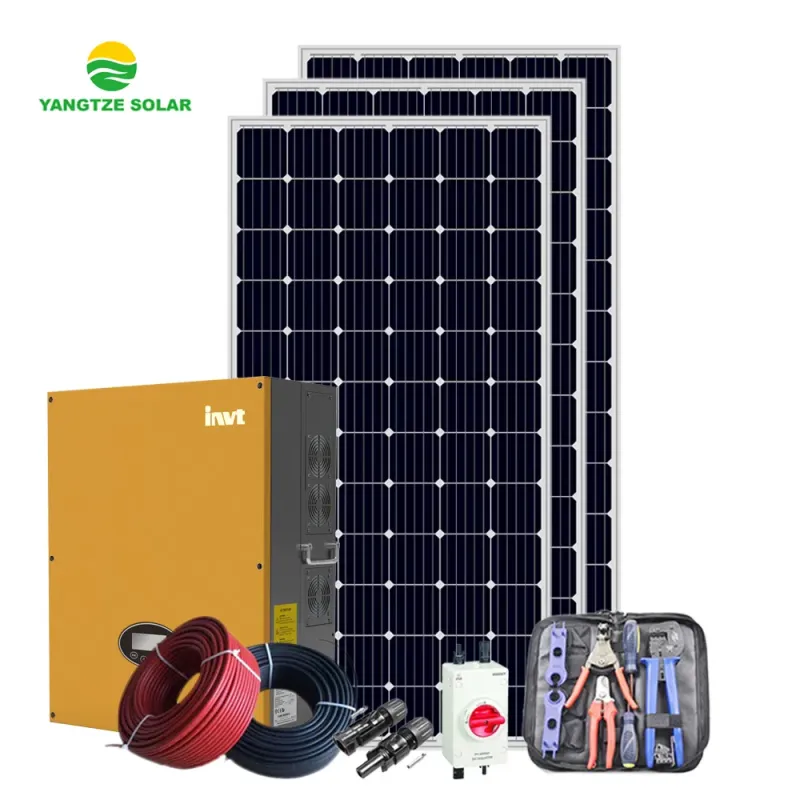

***** best price 5kw on grid solar energy system *****
Model
- YS230P-60
- YS240P-60
- YS245P-60
- YS250P-60
- YS255P-60
- YS260P-60
- YS270P-60
Rated Maximum Power at STC
- 230W
- 240W
- 245W
- 250W
- 255W
- 260W
- 270W
Maximum Power Voltage (Vmp)
- 29.3V
- 29.6V
- 29.9V
- 30.5V
- 30.8V
- 31.1V
- 31.6V
Maximum Power Current (Imp)
- 7.86A
- 8.11A
- 8.19A
- 8.22A
- 8.28A
- 8.37A
- 8.54A
Open Circuit Voltage (Voc)
- 36.5V
- 36.9V
- 37.2V
- 37.5V
- 37.7V
- 38.1V
- 38.4V
Short Circuit Current (Isc)
- 8.51A
- 8.63A
- 8.67A
- 8.85A
- 8.92A
- 8.98A
- 9.13A
Module Efficiency
- 14.16%
- 14.78%
- 15.09%
- 15.40%
- 15.71%
- 16.02%
- 16.62%
Power Tolerance
- 0~+3%
- 0~+3%
- 0~+3%
- 0~+3%
- 0~+3%
- 0~+3%
- 0~+3%
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5
Mechanical Parameters
- Cell Type Poly-crystalline 156x156mm (6inch)
- No. of Cells 60 (6x10)
- Dimension 1650x990x35/40mm
- Glass 3.2mm, High Transmission, Low Iron, Tempered Glass
- Junction Box IP65 & IP67 Rated
- Output Cable Section Size: 4mm² , Length: 900mm
- Frame Anodized Aluminum Alloy
- No. of Bypass Diodes 3 & 6
- Connector MC4 Compatible
Working Conditions
- Maximum System Voltage DC 1000V(IEC) / 1500V(IEC)
- Operating Temperature -40°c~+85°c
- Maximum Series Fuse 15A
- NOCT 45±2°c
- Application Class Class A
Temperature Coefficient
- Temperature Coefficient of Pmax -0.41%/°c
- Temperature Coefficient of Voc -0.31%/°c
- Temperature Coefficient of Isc +0.06%/°c
♦ Founded in 1994 , 300MW solar panel production capacity , solar panel power range 3watt to 360watt for both polycrystalline and monocrystalline solar panel
♦ 10 years total workmanship and materials warranty , 10 years for at least 90% and 25 years for 80% linear power output warranty
♦ 100% EL test before package and shipping
♦ Two factories , solar panel factory , battery factory
♦ Cooperated with world famous big companies like Trina Solar , Suntech Solar , Yingli Solar , HUAWEI
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) , CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
