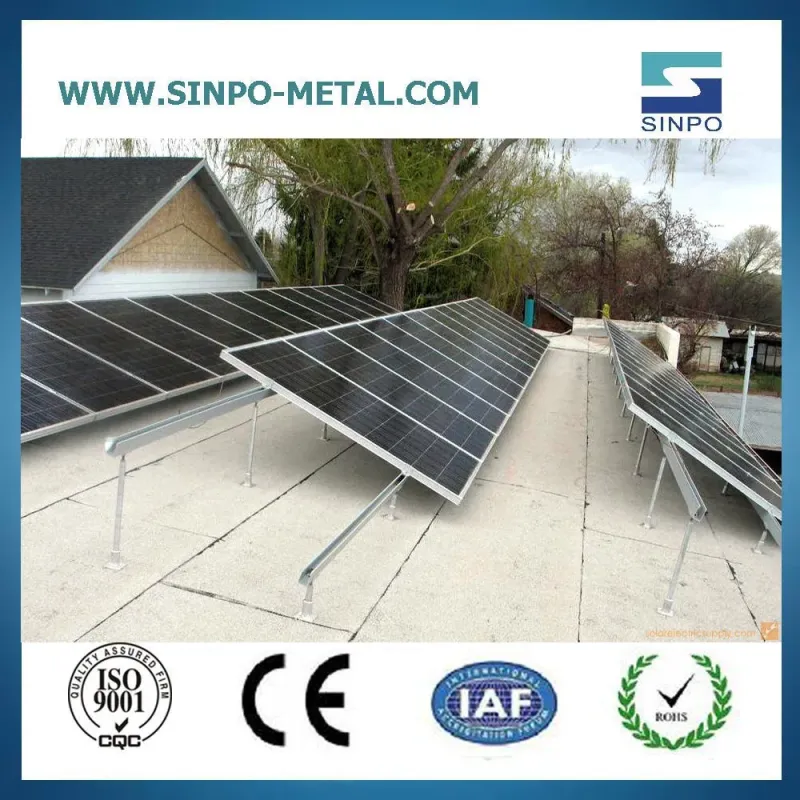

Flat Roof Solar Mounting System
Description
Basic Info.
Application: Home
Material: Aluminum Alloy
Type: Roof Bracket
Wind Load: 60m/S
Snow Load: 1.4kn/M2
Product: Solar Mounting Structure for Solar Energy Panel
Transport Package: Shrinking Film, Carton, Wooden Pallet or by Custom
Specification: Aluminum Alloy
Trademark: SP
Origin: China
HS Code: 76109000
Production Capacity: 50000ton/Year
Product Description
1. Enables easy, fast and cost-effective installation.
2. Flexible post spacing withstands different wind & snow loads.
3. High quality material in Aluminum and SUS 304.
4. Highly corrosion resistant surface treatment.
5. Screws and nuts go with every components needed.
6. Fasteners and rail nut fully configured to save extra parts purchasing.
7. Mechanical calculation and reliability tested to ensure highest product quality.
8. 12-25 years system and structural guarantee.

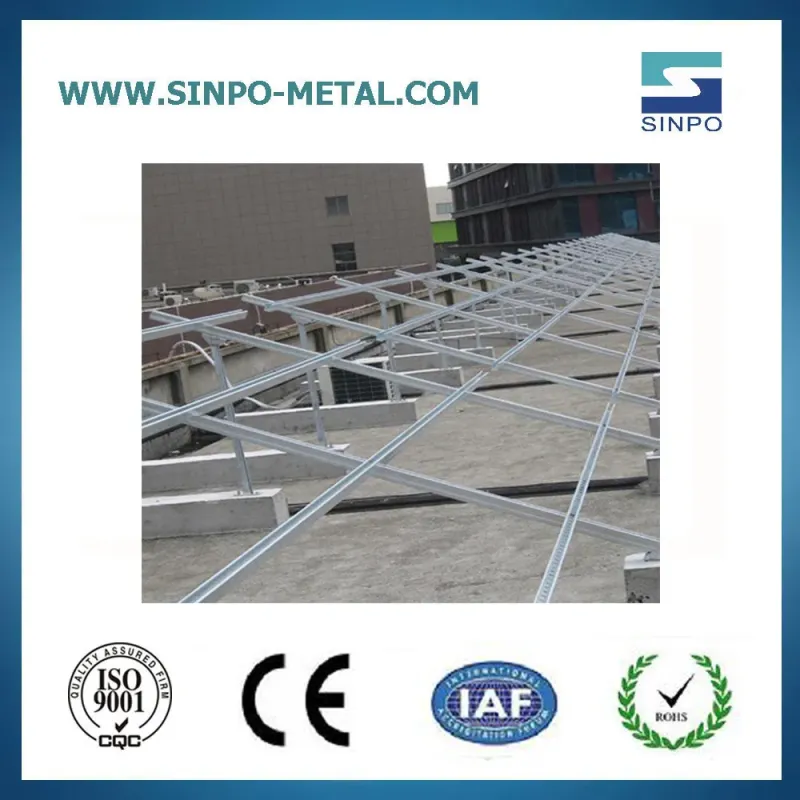

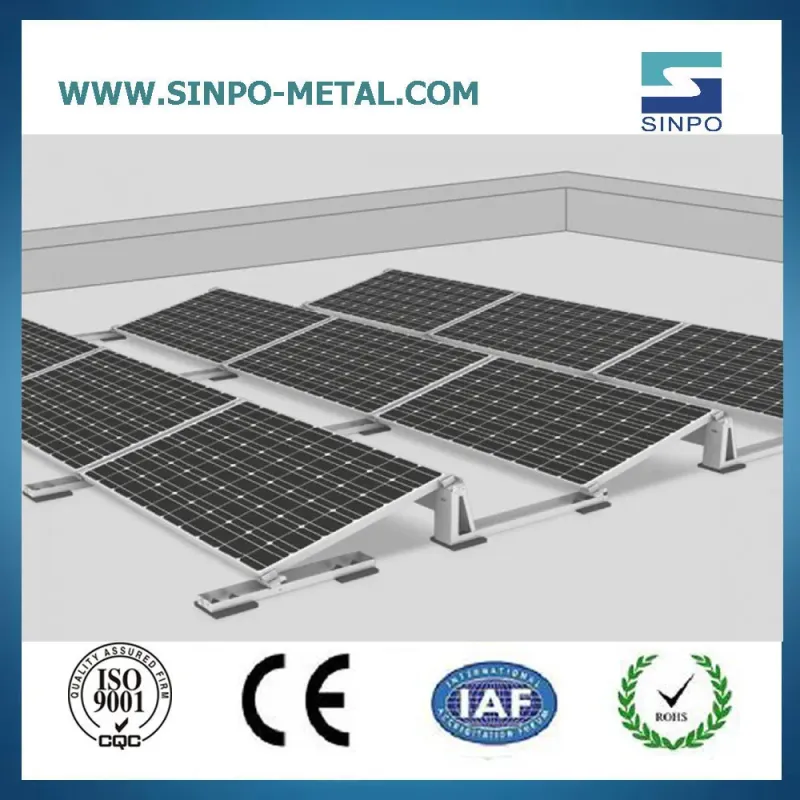

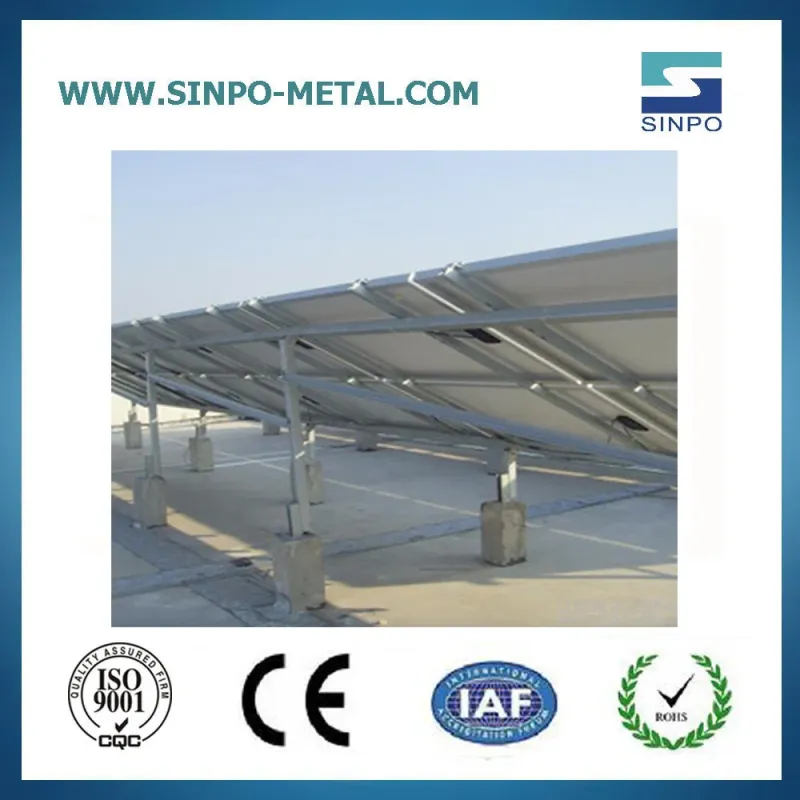

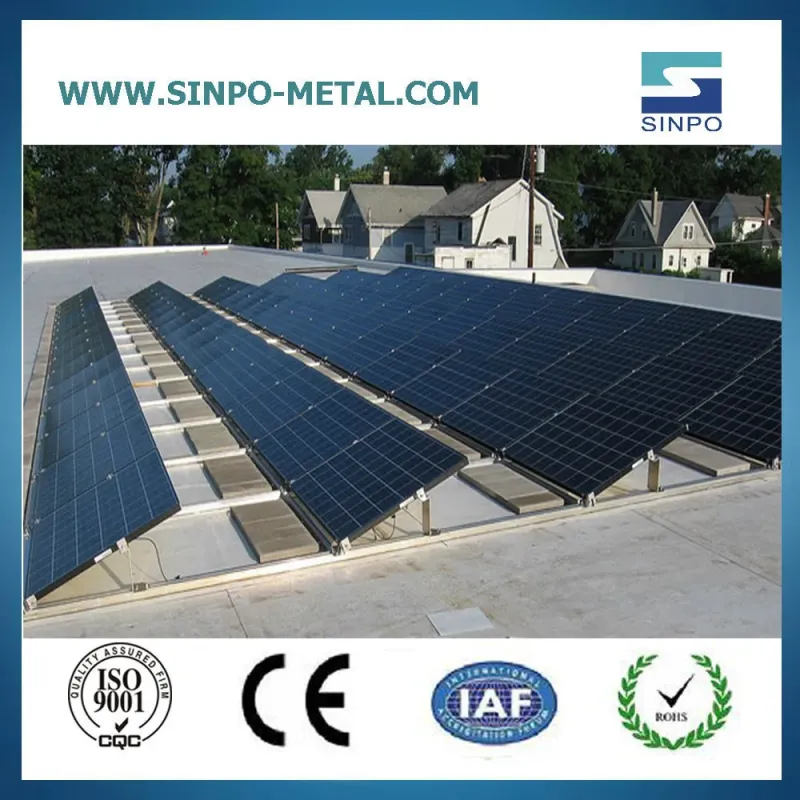

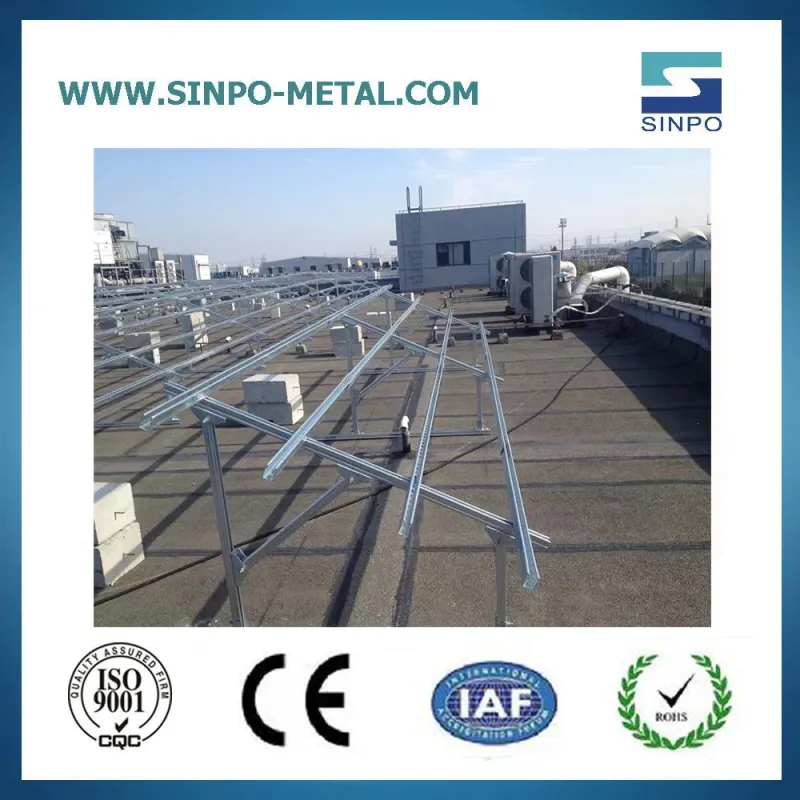

Type: Solar mounting system for flat concrete roof
Installation site: According to your requirements
Material: Aluminum 6000 series;
Fasten material: Aluminum
Survival Wind Speed: < 60m/s
Design Snow load: Up to 1.4KN/ Square meters
Solar panel type: Framed or Frameless
Panel Orientation: Transverse or vertical
Design Standard: CE; IOS9001; SGS
Quality warranty: 12-25 years
Duration: More than 20 years
Delivery time: 7-15 days
Package: Standard Packing
Materials List For 1KW
| NO. | Name | Size(mm) | QTY | Material |
|---|---|---|---|---|
| 1 | Front Column | 41*41*2 | 3 | Q235 |
| 2 | Back Column | 41*41*2 | 3 | Q235 |
| 3 | Beam | 41*41*2 | 3 | Q235 |
| 4 | Rail | 41*41*2*2100 | 4 | Q235 |
| 5 | Base | 150 | 6 | Q235 |
| 6 | Adaptor | 6 | Q235 | |
| 7 | Rail Joiner | 2 | Q235 | |
| 8 | Mid Clamp | 30-47-60 | 6 | AL6063 |
| 9 | End Clamp | W40-60-16 | 4 | AL6063 |
| 10 | Hexagon Socket Screw | M10*70 | 12 | Galvanized |
| 11 | Hexagon Socket Screw | M10*25 | 24 | Galvanized |
| 12 | Hexagon Socket Screw | M8*40 | 10 | 304 |

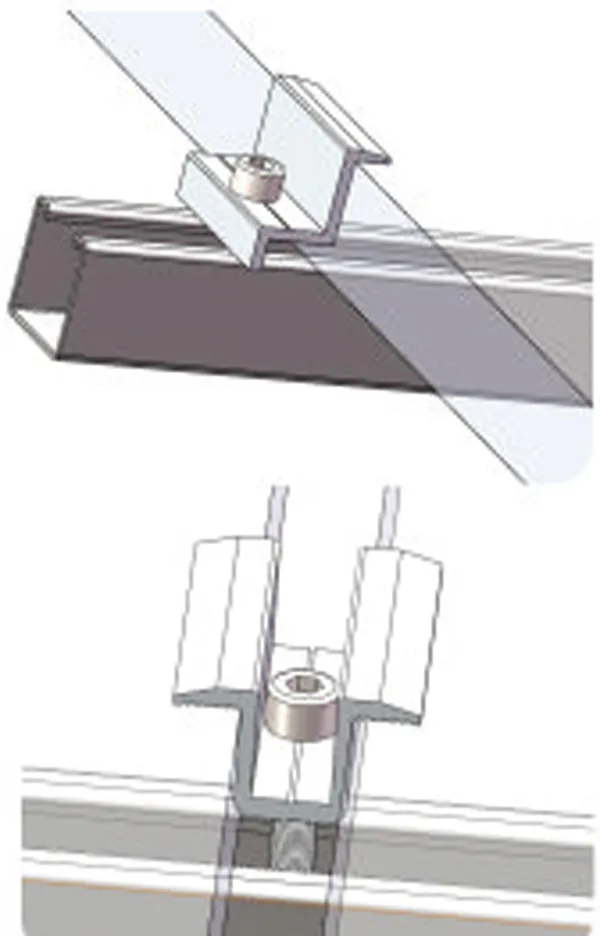

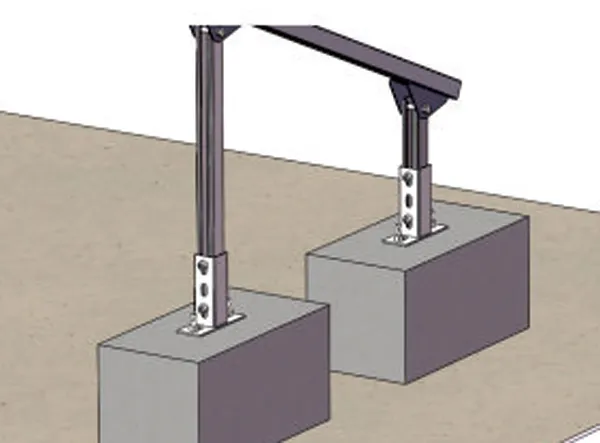

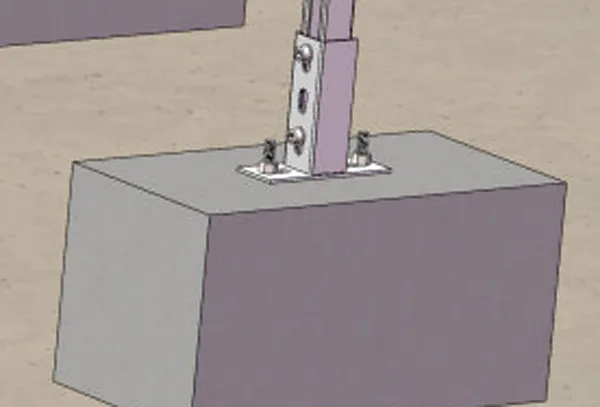

Mounting Steps

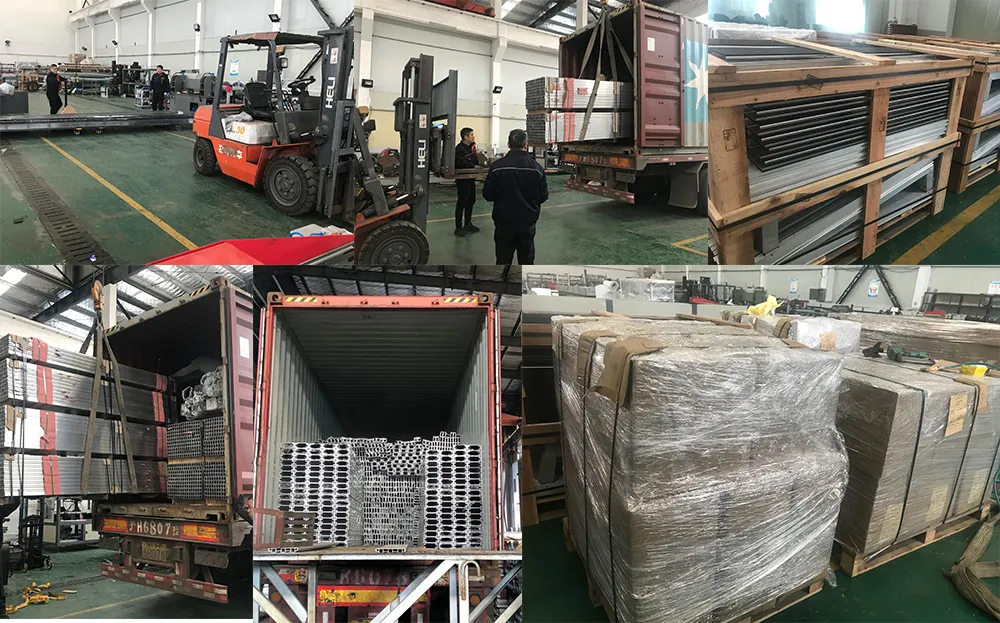

Packaging & Shipping

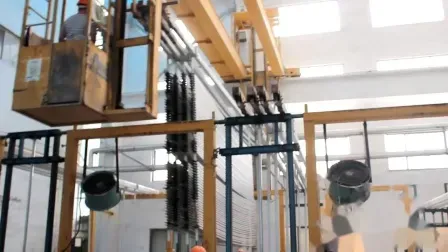

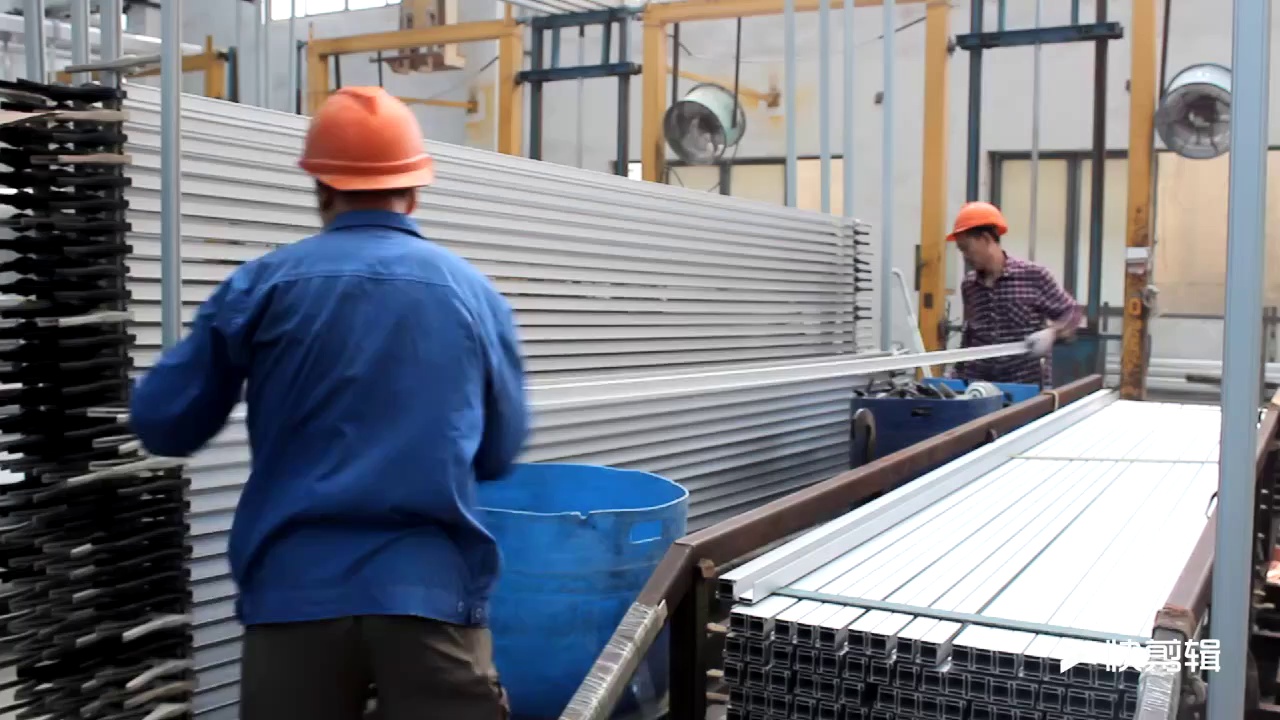

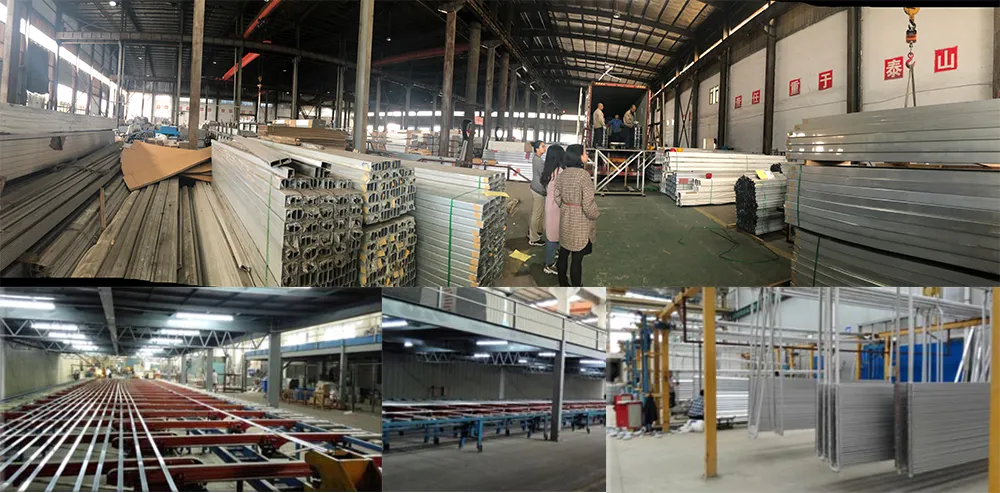

Factory
Customer Visit
FAQ
Q1: What is your MOQ? A: 500kg for general products. More than 5 tons for new products.
Q2: Can you produce aluminum profiles by drawing? A: We have professional engineer to design CAD drawing and establish mould according to customers' requirement.

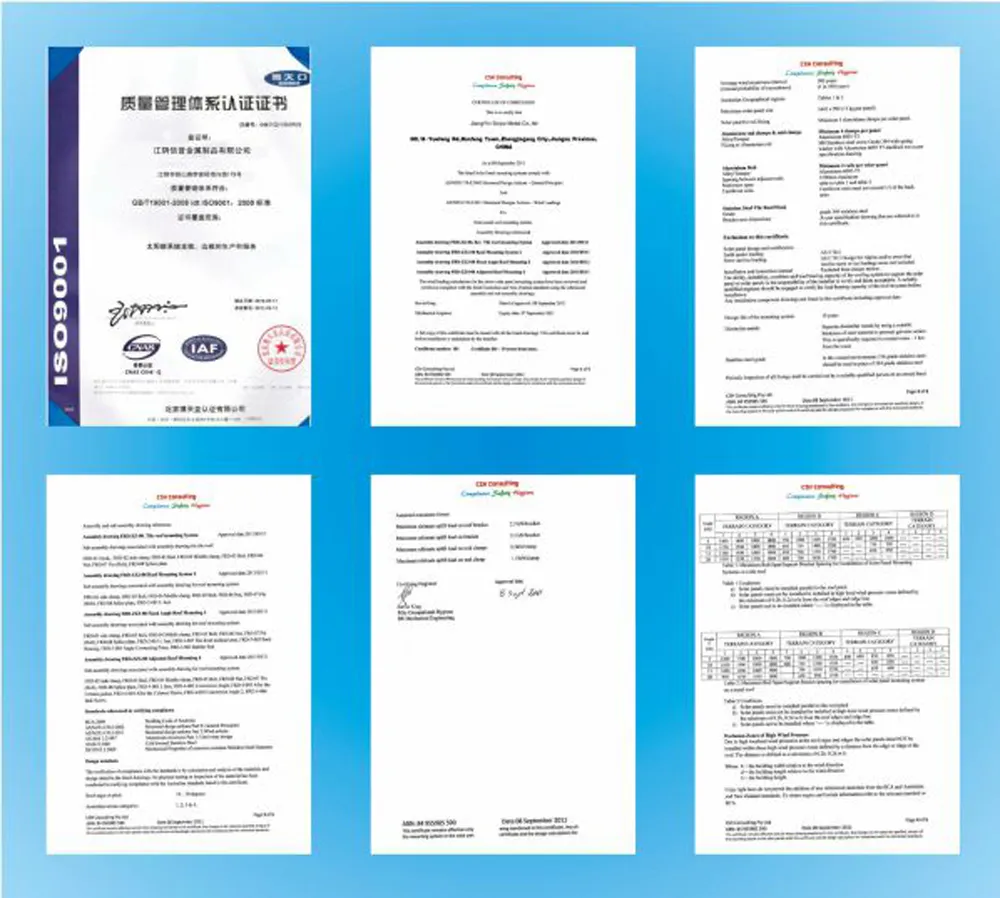

Q3: What certification do you have? What's your standard? A: We have ISO certification. Our standard is DIN, AAMA, AS/NZS, China GB.
Q4: What's the delivery time for samples and mass production? A: (1). 2-3 weeks to open the new moulds and make free samples. (2). 3-4 weeks after receipt of deposit and confirmation of the order.
Q5: What's the packing way? A: Commonly we use shrink films or kraft paper, also we can make as per customers' requirements.
Q6: What's the payment terms? A: Usually by T/T, 30% deposit and the balance paid before shipment, L/C is also acceptable.
Company Profile
We are one of the professional manufacturer for the Aluminum products with 20 years experience in China. We supply over 15 countries and the United States. We do customer design and we also have a variety of ready-made products that you can choose from.
We have an excellent track record for producing Aluminum products that fit into your market and country. We do research and trends of each country to give you the best possible product that will sell in your country. We have been the gold supplier of International Committee Red Cross since 2012.
We will work hard to fit your maximum quantity orders. As we know this is very important. We will also organize and schedule all shipping to your office.
If you are interested, pls don't hesitate to contact us. We hope to be your valued supplier in coming future.
In order to help you get the right system, please offer the following necessary info:
- Dimension of solar panels (length*width*thickness)?
- Solar panels array?
- Where to install (which kind of rooftop or ground)?
- Tilt angle?
- Any requirements about wind load and snow load?
