Product ID: 68589097
Solar-Ready Flat Concrete Cement Roof Mounting System
Contact Now
Description
Basic Info.
- Model NO. BR-RMS1
- Certification GB, ISO, TUV, CE, RoHS, FCC
- Application Commercial
- Material Aluminum & Stainless Steel
- Type Roof Bracket
- Applicable Module Framed or Frameless
- Surface Treatment Anodized
- Module Orientation Portrait or Landscape
- Trademark BR
- Origin Xiamen, China
- HS Code 7610900000
- Production Capacity 1000000 PCS/Month
Product Description

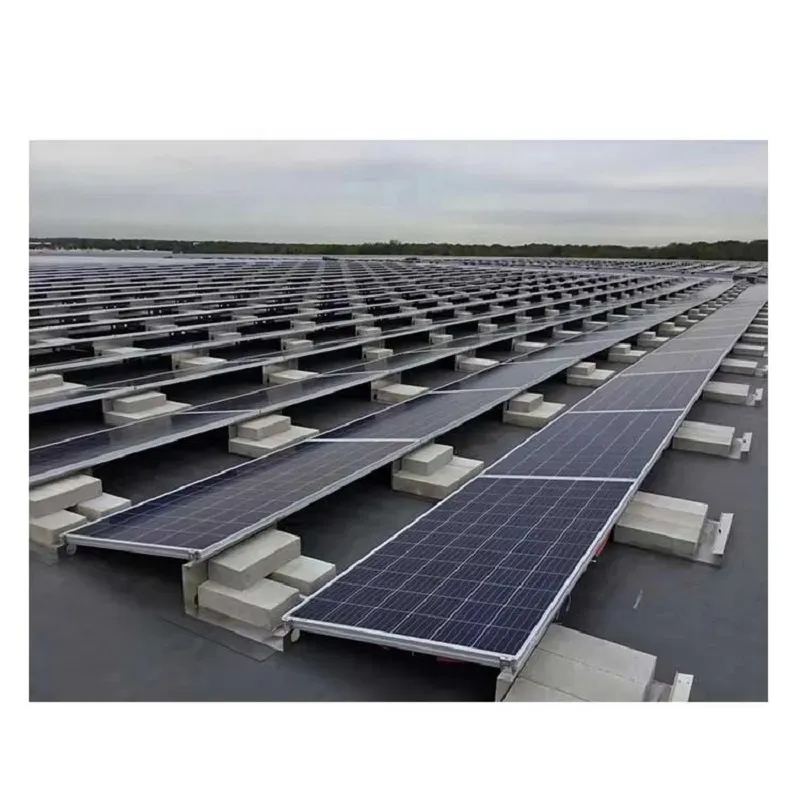

Topic: Solar Roof Mounting Structure Flat Concrete Cement Roof Non Penetration Ballast Mounting System
Product Advantages
- Light weight, easy transportation, convenient installation and safe construction.
- High corrosion resistance, salt tolerance.
- Professional and specific solutions to meet customers' requirements.
Specifications
- Brandname Bright New Energy
- Material aluminum & stainless steel
- Standard AS/NZS 1170
- Wind load 216 km/h = 60 m/s
- Snow load 1.4 kn/m²
- Applicable module framed or frameless
- Module orientation portrait or landscape
- Surface treatment anodized
- Certificate ISO9001, CE, etc.
- Application solar panel mounting system
- Installation site tile roof
- Dimensions customized
- Lengths customized
- Warranty 10-year warranty, 20-year service life
FAQ:
Necessary Information Quotes:
- The information of the solar panel: L: ___ mm, W: ___ mm, T: ___ mm; Power: ________ w, Frame or Frameless?
- Panel array: row ________ ; column ________
- Wind load: _____ m/s
- Snow load: ______ cm
- Installation angle: _____ degree, Portrait or Landscape?
- Where is solar panel installed? Salinity control or not?
- (1) Ground
- Structure type: common ground, carpot or solar farm?
- Foundation: contrete, ground screw, C pile or U pile?
- Minimum ground clearance: ______ mm
- Earth report or not
- (2) Roof
- Roof type: tin roof, tile roof or concrete?
- Fixed solution: hook, L foot, clamp, ballast or tripod?
- Purlin span: _____ mm
- Roof sheeting cross section drawing or photo
