Overview

Basic Info.

Model NO. Iron Roof Mounting System 2
Certification ISO, CE
Application Home
Material Aluminum Alloy
Type Roof Angle Bracket
Install Site Tin Roof
Module Orientation Landscape, Portrait
Anti-Corrosive Anodized
Max Wind Speed 60m/S
Max Snow Load 1.6kn/M²
Duration More Than 20 Years
Transport Package Carton or Iron Frame
Trademark Wintop
Origin Xiamen
HS Code 7610900000
Production Capacity 1gw/Years

Product Description

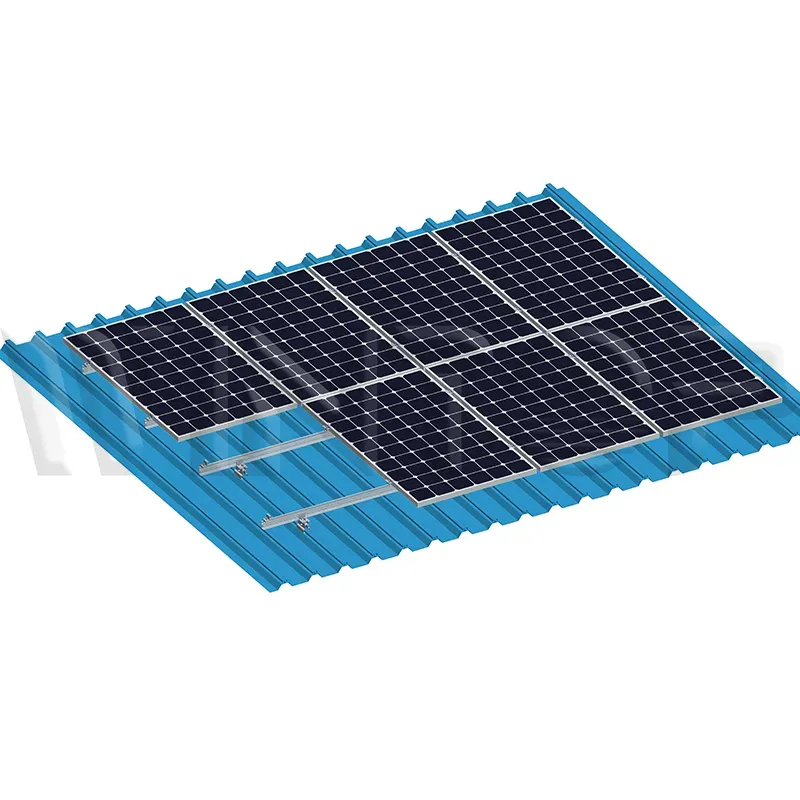

PV Module Tin Roof Solar Rail Installation Racking System

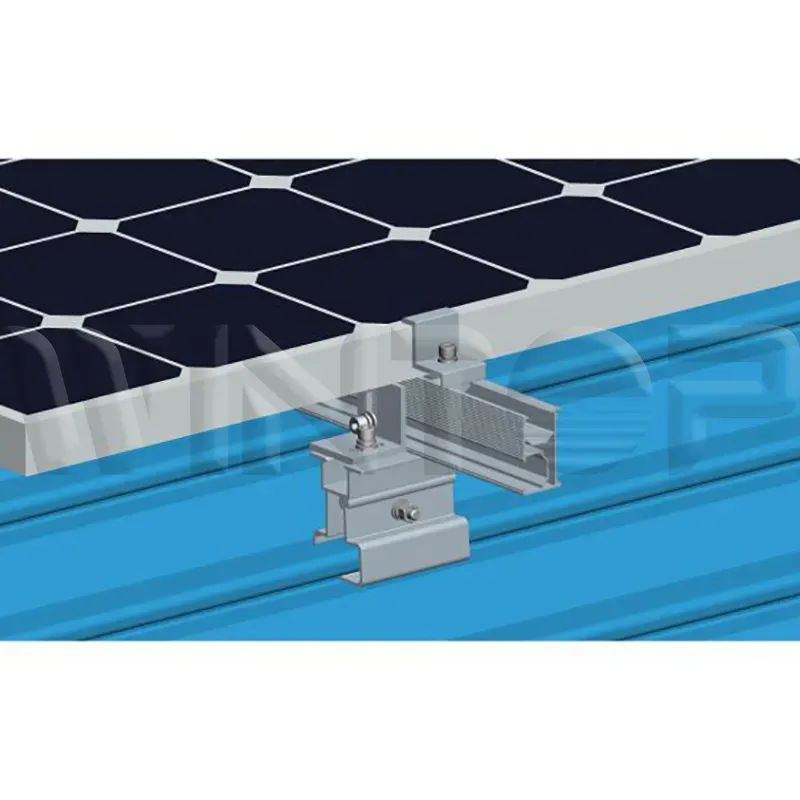

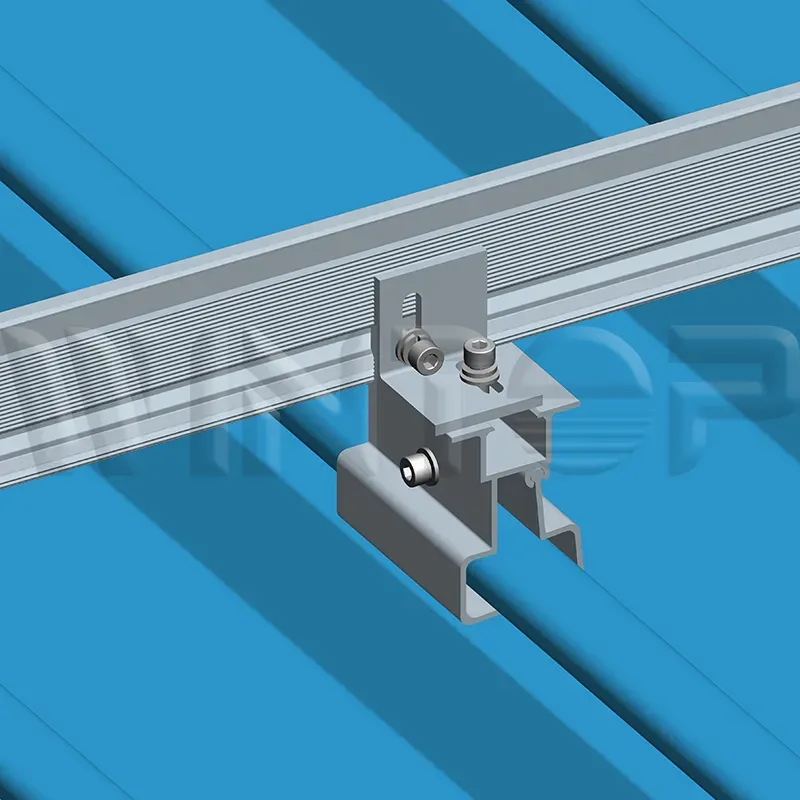

Solar tin roof mounting system can be fastened to almost any type of tin roofing substrate. Panels are mounted to either rails or baskets using roof clamps. The mounting system is typically either ballasted or directly fastened to the roof deck using watertight flashings.

Product Parameters

Installation location Roof
Installation foundation Tin Roof
Installation angle 0°
Wind load 60m/s (216km/h / 133mph)
Snow load 1.4KN/m²
Distance from module lowest point to the ground Roof height
Applicable module type Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation Horizontal, Vertical
Design standard AS/NZS1170, JIS C 8955-2017
Bracket material AL6005-T5 (Anodized Oxidation)
Fastener Material Stainless steel SUS304
Warranty & Duration 10 years & More than 20 years

Features & Benefits

Professional structural design to ensure the strength of the bracket system;
Lightweight stand, good flexibility and strength;
Flexible and easy component installation, saving labor cost and installation time;
Various installation methods, suitable for tin roof;
For commercial or residential use.
Cost-effectively
