Product ID: 68589004
Solar Mounting Structure System
Contact Now
Description
Overview
Basic Info.
- Model NO. KS-GM
- Certification ISO, CE, SGS
- Application Industrial, Commercial
- Material Aluminum Alloy
- Type Ground Bracket
- Surface Treatment Anodized
- Lead Time 5-15 days
- Color Silver and Customized
- Installation Site Open Field
- Feature Quick Installation
- Product Name Ground Mounting System
- Transport Package Box + Wooden/Steel Pallet
- Specification Normal and Customized
- Trademark kingsolar
- Origin Xiamen
Product Description

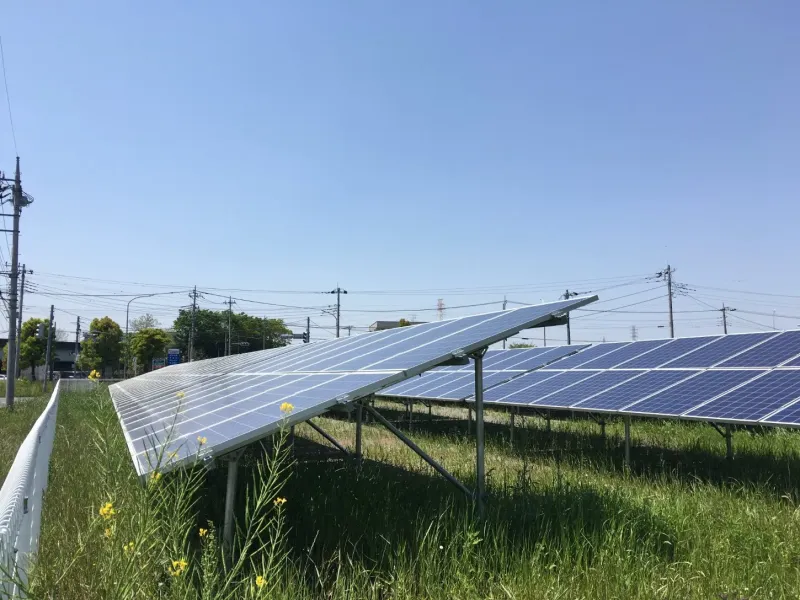

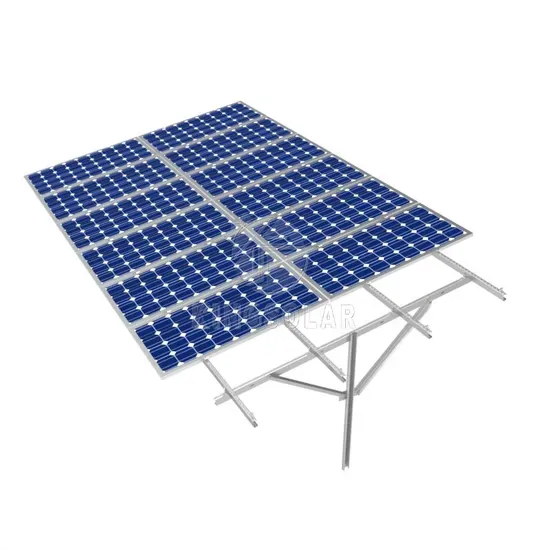

KINGSOLAR Alu Ground Mounting is applicable for open field, it can be installed for residential or commercial project. High pre-assembled makes install efficient and easy. The structure is made by high quality Aluminum alloy.

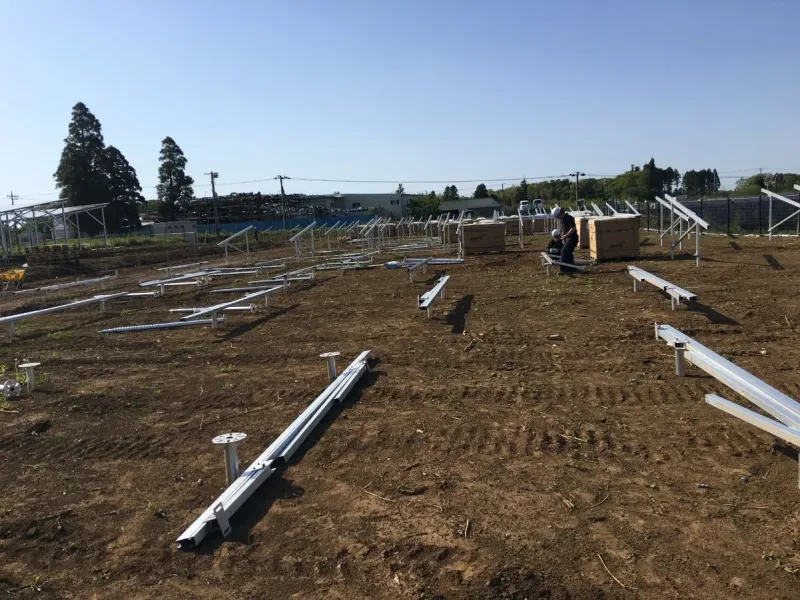

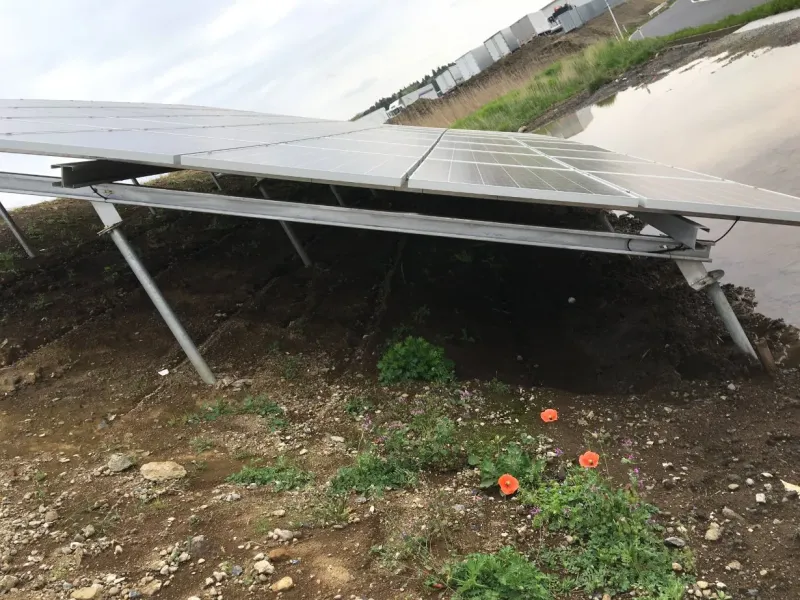

Foundation type:
Pile driven, ground screw
Advantage:
Ground Screw Based Ground Mounting System create robust structure fully utilizing benefits of ground screw, cost competitive while environment friendly, able to cope with harsh conditions like heavy snow load or high wind speed.

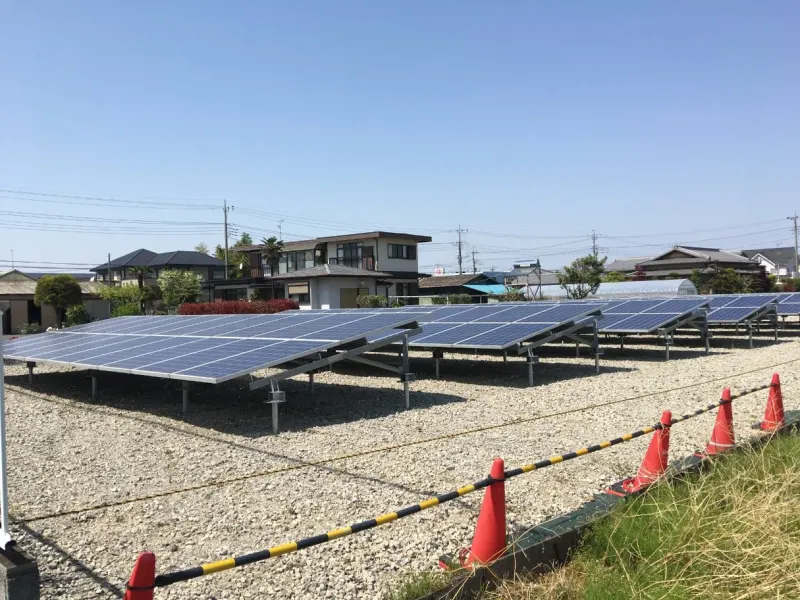

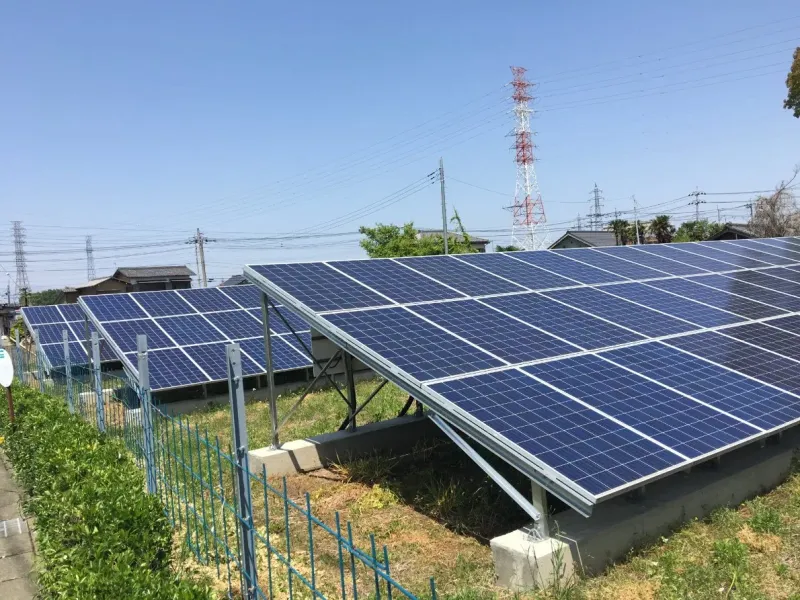

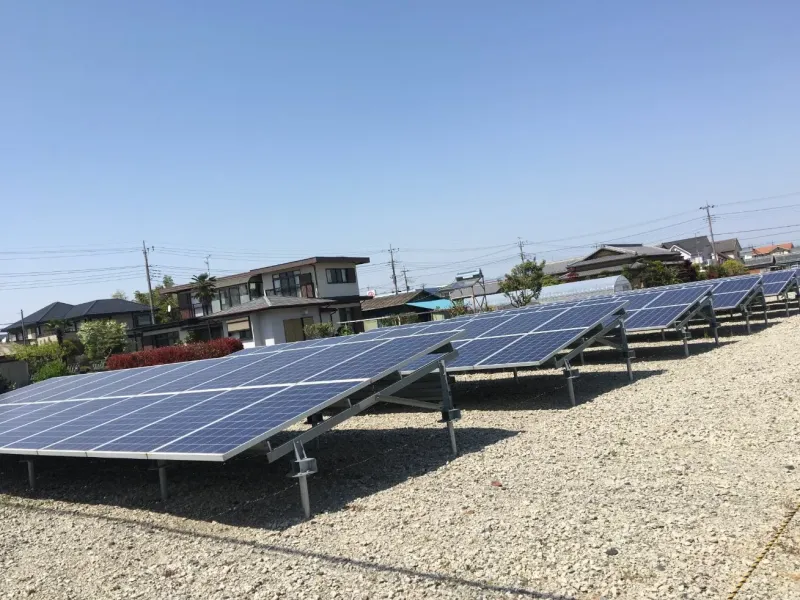

Foundation type:
Concrete Base
Advantage:
- Best suited where ground excavation is not permitted
- The size is adjusted based on the static requirements and location.
- Also suitable for cement flat roofs
Technical Details
- Material Anodized AL6005-T5, HDG steel Q235B, SUS304
- Foundation Ground Screw and Concrete Base
- Warranty 10 years warranty and 25 years service life
- Standard AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
- Max Wind Load Up to 60m/s
- Snow Load Up to 1.4KN/M²
- Applicable Module Framed Or Frameless
- Module Orientation Portrait or Landscape
Product advantages:
- Lightweight, easy transportation and installation, safe construction.
- High corrosion resistance, salt tolerance.
- Maximum pre-assembly, save construction time and labor cost.
- Environmental protection, suitable for variety of geological conditions. It is durable and recyclable.
- Many solutions to meet different customers' requirements.
