Overview

Basic Info.

• Model NO. flat roof bracket
• Certification GB, ISO, CE, RoHS
• Application Commercial
• Material Aluminum Alloy
• Type Roof Bracket
• System Type 2~5rows Linked Type/Independent Type
• Motor DC24vgear Motor/1.5ax1 (DC24V/1.5A×1)
• Max.Wind Speed in Operation 24m/S
• Max. Wind Speed in Horizontal Position 37m/S
• Rust Protection Oxide Oxidation
• Operation temperature -40°ºC ~ +75ºC
• Control model Astronomical Algorithms+ Tilt Sensor close loop Cont
• Tracking accuracy ≤2°(Configurable)
• Backtracking Yes
• Wind/Snow Protection/Rain Yes
• IP protection IP66
• Land Area(1 mm) 12500~20000m²
• Profile Tied with Steel Strips
• Parts Wooden Boxes or Pallets
• Transport Package Wooden Pallets or Boxes
• Specification custom
• Trademark JCHX
• Origin Tianjin, China
• Production Capacity 100000 Tons / Year

Packaging & Delivery

• Package Size 25.00cm * 20.00cm * 27.00cm
• Package Gross Weight 500.000kg

Product Description

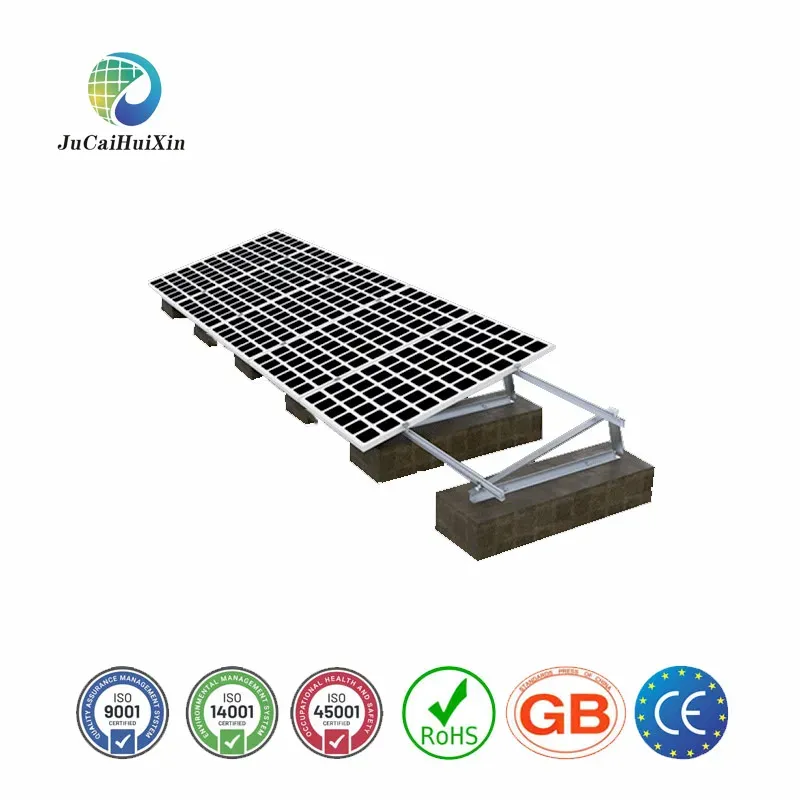

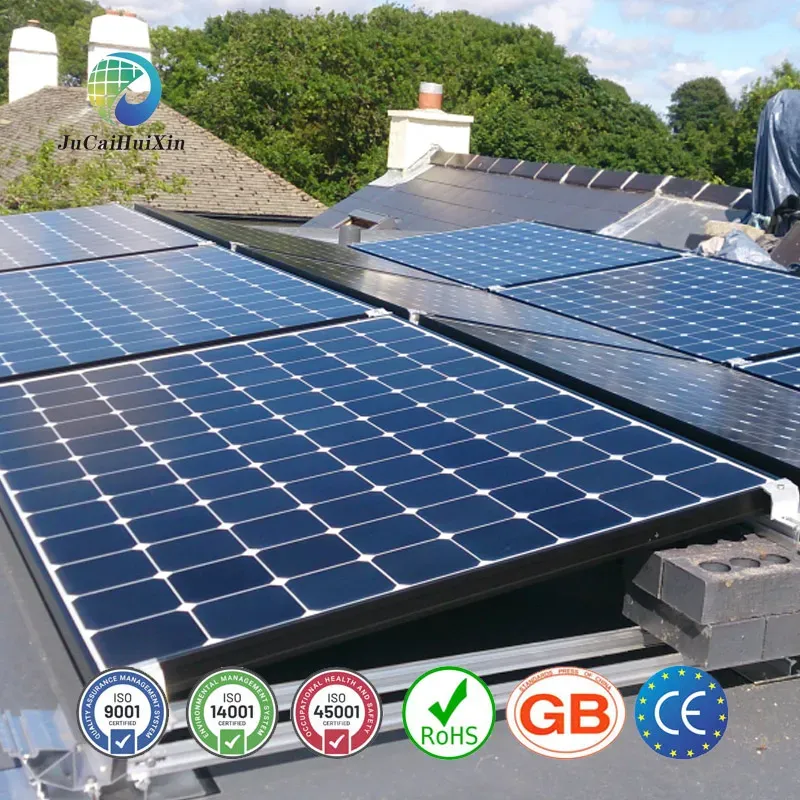

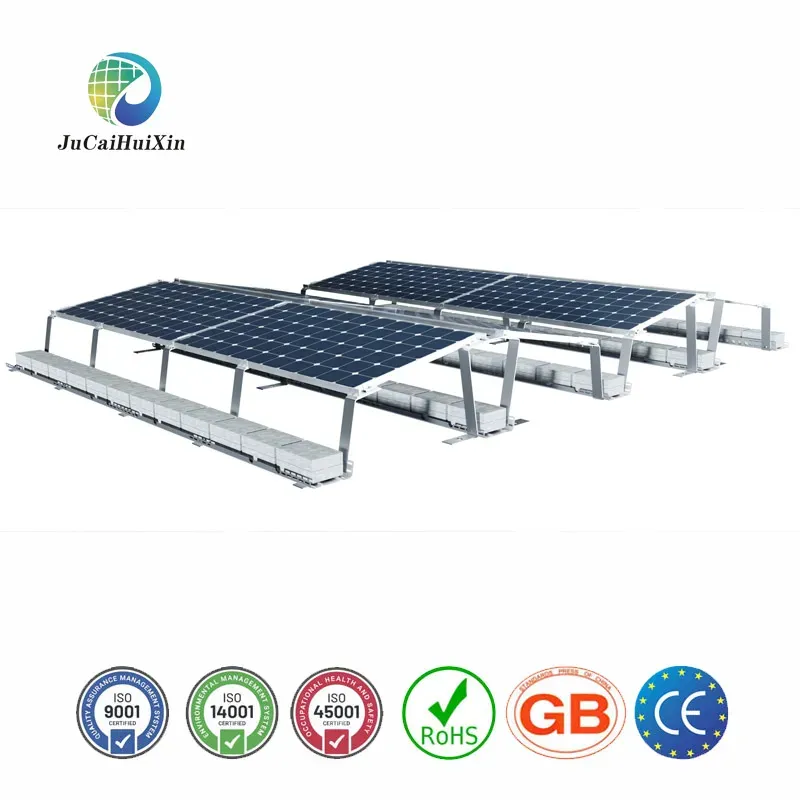

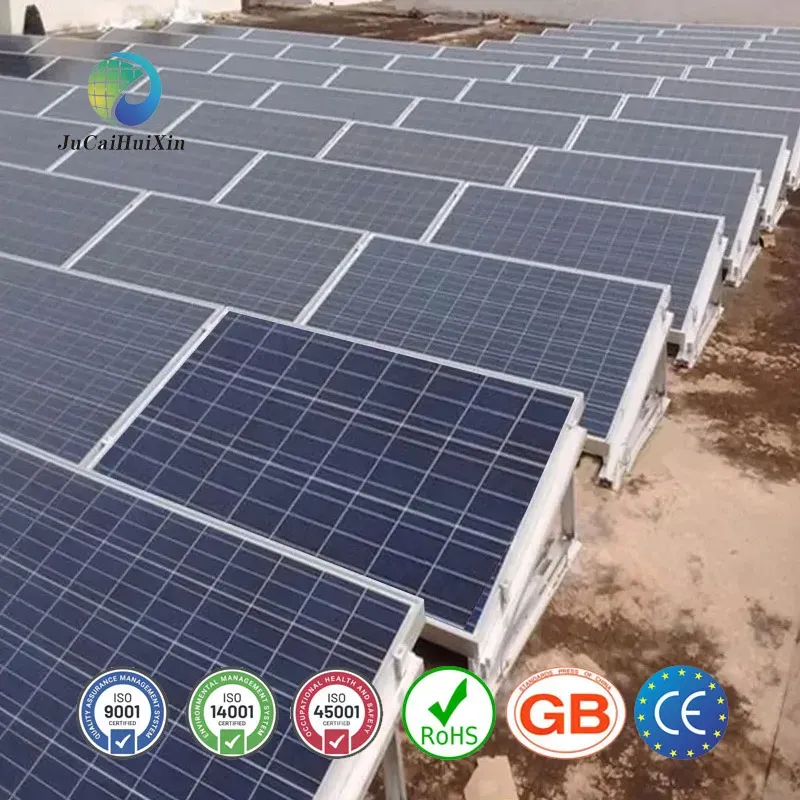

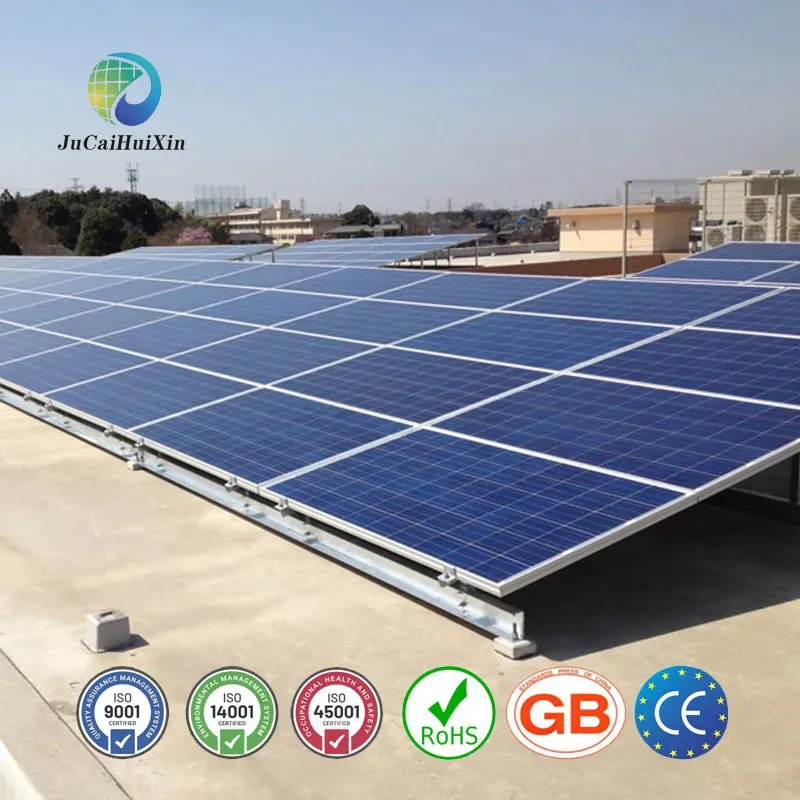

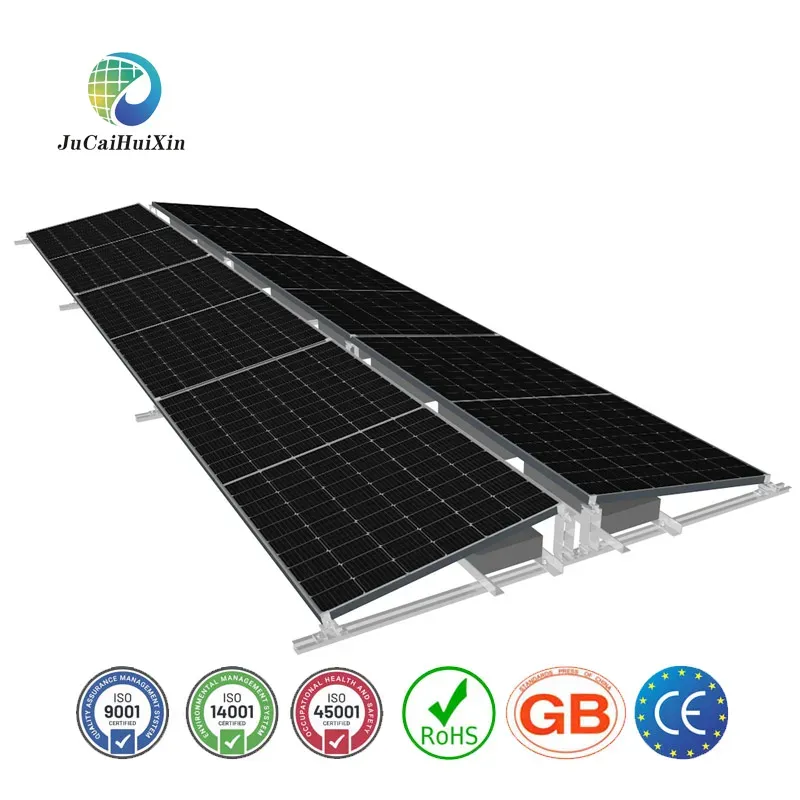

Solar pv mounting brackets for flat roof is a structural support system designed for flat roofs to securely and efficiently fix solar panels. It is made of lightweight, corrosion-resistant aluminium alloy or stainless steel. The modular design adapts to different roof sizes and solar panel layouts, optimising the angle of sunlight (e.g. adjustable from 0° to 30°) while ensuring that the waterproof layer of the roof is not damaged. It is suitable for flat roof scenarios such as homes, commercial buildings, warehouses, etc. and is compatible with mainstream solar panel models.

Material

• AL Alloy
• Grade 6005
• Size 120*50*20mm
• Wall Thickness 1.8-2.5mm
• Coating Anodic oxidation
• Weight/Piece 11.7-15.4 kg
• Inventory Specification 200*70*20/150*50*20/160*60*20/180*60*20/120*50*20
• Customization Yes

Surface Treatment

• spray painting
• Service Life over 25 year
• Transport Package Bundled straps, wooden boxes, or wooden pallets
• Spot Inventory Quantity 10000 Tons
• Annual Capacity 1000000 Tons per year
• Delivery Time 3-45 Days
• Samples Free
• Payment Method TT,alipay,wechat,bank card,etc
• Accept OEM or not can accept oem odm
• Production Capacity 2000 Ton/Week
• Country Of Origin Tianjin China
• Corrosion Resistance very strong

Features & Benefits

• 1. Lightweight and High Strength: Aircraft-grade aluminium alloy material, corrosion-resistant, extreme weather-resistant, load-bearing capacity of 100kg/group or more.
• 2. Flexible Angle Adjustment: Support 0°~30° tilt angle adjustment, maximise the efficiency of sunlight absorption, adapt to different seasonal light demand.

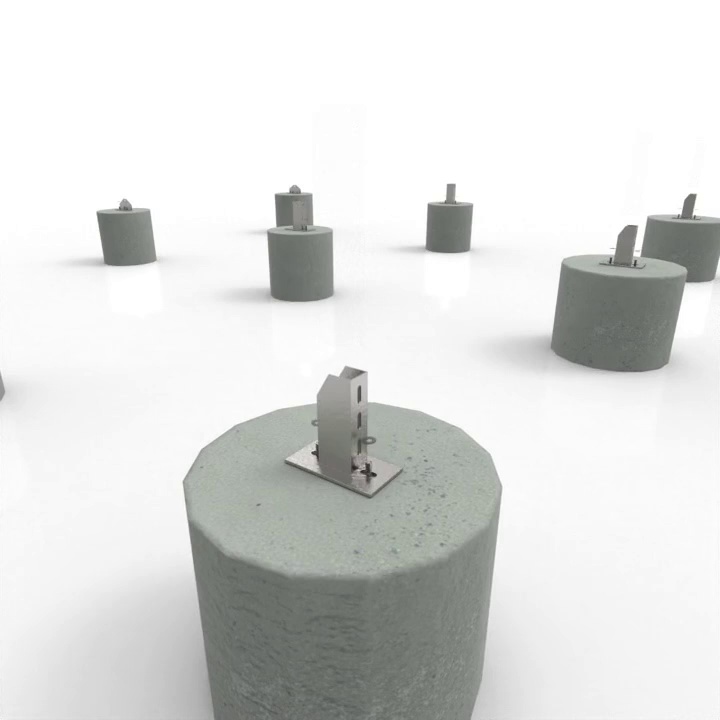

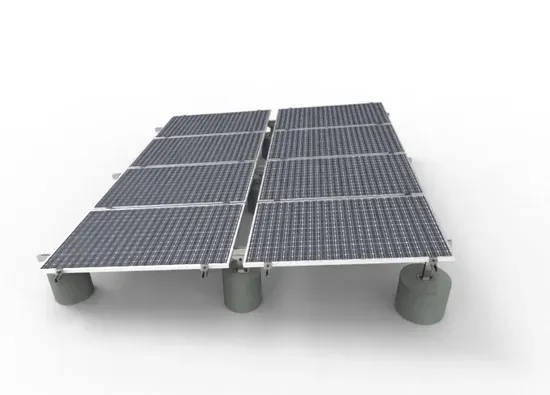

• 3. Non-destructive installation: Weighted base (optional concrete block or bolt fixing) to avoid penetrating the roof and protect the integrity of the waterproof layer.
• 4. Quick Installation: Modular design, pre-assembled holes and standardised fittings reduce installation time by 50%.
• 5. Excellent wind resistance: Dynamic wind tunnel test, can withstand strong winds of class 12 (≥ 120km/h), in line with international building safety standards.
• 6. Environmental compatibility: 100% recyclable materials, compatible with monocrystalline silicon, thin film and other solar panel types.

Installation Instructions

1. Tool preparation: electric drill, level, spanner, safety rope, counterweight block/expansion bolt.
2. Roof Assessment: Confirm roof load-bearing capacity (≥25kg/m²) and drainage paths, avoiding pipes or vulnerable areas.
3. Positioning Marking: According to the solar panel layout plan, use chalk to mark the position of the racking base, keeping the horizontal spacing consistent.
4. Fixing the base: Counterweight type: place concrete blocks and fix the base; Bolt type: drill holes and install waterproof spacers and lock them.
5. Assemble the bracket: Connect the vertical rod with the horizontal beam according to the instructions, use stainless steel bolts to reinforce, make sure the vertical error is <2°.
6. Adjust the angle: Loosen the angle adjusting bolt, set the inclination angle and lock it (recommended local latitude +5°~10°).
7. Install solar panel: Snap the panels into the bracket rails, fix them with clamps and check that there is no looseness or offset.
8. Final Inspection: Test the wind-resistant cable (if any), review all connection points and clean up the site.

Safety tips: Installation by a professional team is recommended, wear protective equipment when working at height, and follow local building codes.

FAQ

Q1: Is it suitable for all flat roof types?

A: It is suitable for common flat roofs such as concrete, asphalt, EPDM, etc. Before installation, it is necessary to make sure that the roof structure is intact and the load bearing is up to standard.

Q2: What is the maximum load capacity of the bracket system?

A: A single set of brackets can carry 100-150kg (depending on the configuration), and the overall load bearing capacity of the roof should be ≥25kg/m².

Q3: Do I need to apply for a permit for installation?

A: Some areas require a building permit, please consult local regulations and provide proof of structural safety in advance.

Q4: How is the wind resistance guaranteed?

A: It adopts aerodynamic design + double fixing of foot weights/bolts, and complies with IEC 61215 wind resistance standard.

Q5: Do I need regular maintenance?

A: It is recommended to check the bolt tightness, clear snow/debris and check the state of the waterproof layer every year.

Q6: How long is the life of the bracket?

A: The material life is more than 25 years, and accessories (e.g. rubber gasket) are recommended to be replaced every 10 years.

Q7: Can I install it by myself?

A: Modular design supports DIY, but it involves roof safety and electrical connection, professional operation is strongly recommended.

Q8: Is it environmentally friendly?

A: The materials are 100% recyclable, and the production process complies with ISO 14001 environmental management system.
