Basic Info.

• Model NO. hsah
• Heat Source Type Ground Source Heat Pump (GSHP)
• Color White/Optional Other Colors
• Delivery Time 30days
• Tailor Made Available
• OEM/ODM Available
• Capacity 288-2306kw
• Refrigerant R22/R407c/R134A
• Compressor Type Screw
• Compressor Brand Fusheng/Hanbell/Famous Brand
• Transport Package Film/Wooden Package
• Trademark OEM/ODM/HYC
• Origin China
• Production Capacity 1000sets

Packaging & Delivery

• Package Size 1.00cm * 1.00cm * 1.00cm
• Package Gross Weight 1.000kg

Product Description

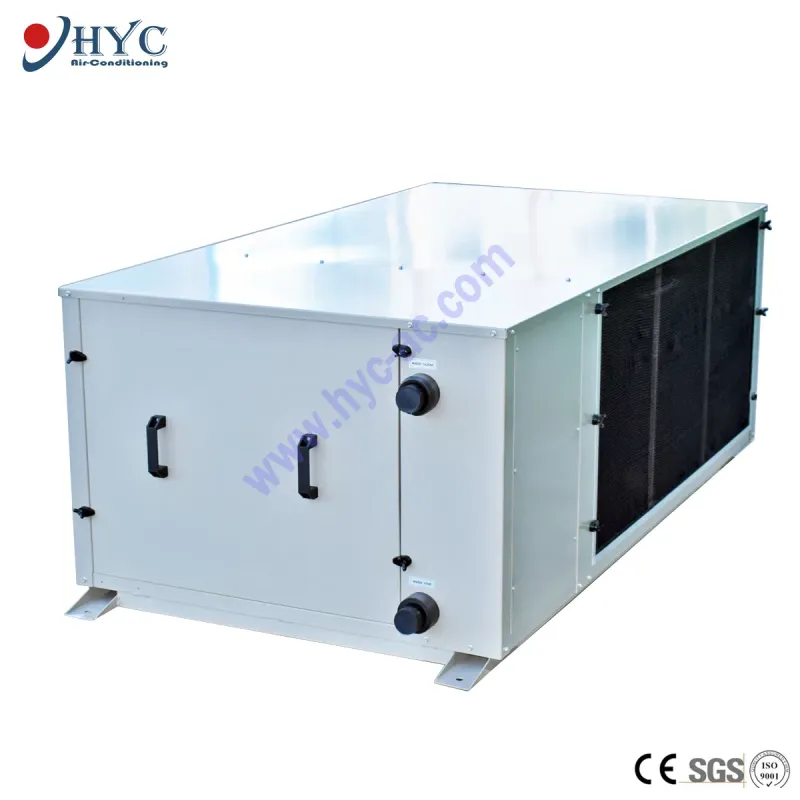

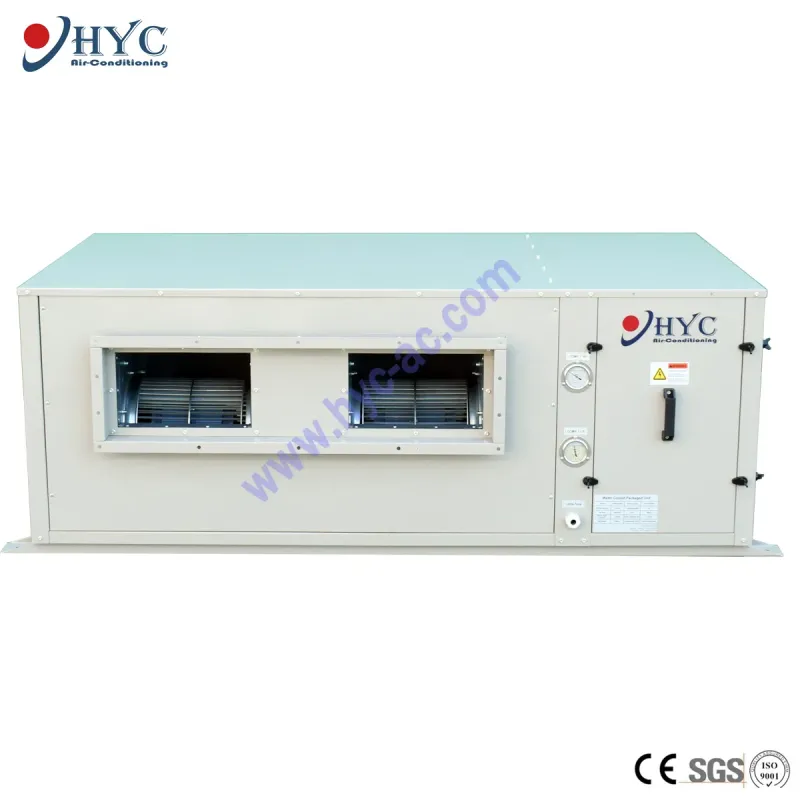

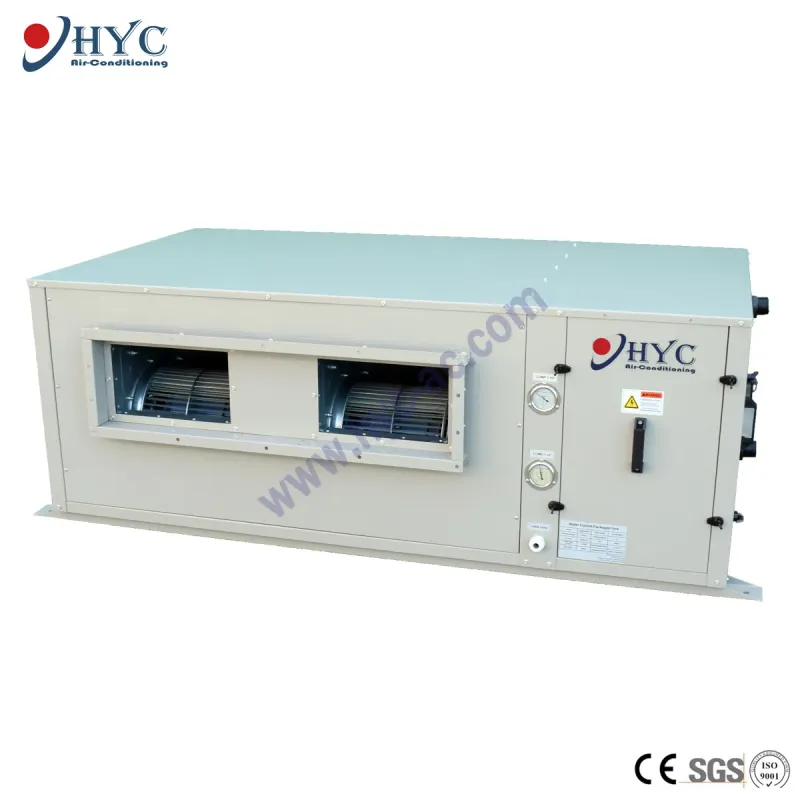

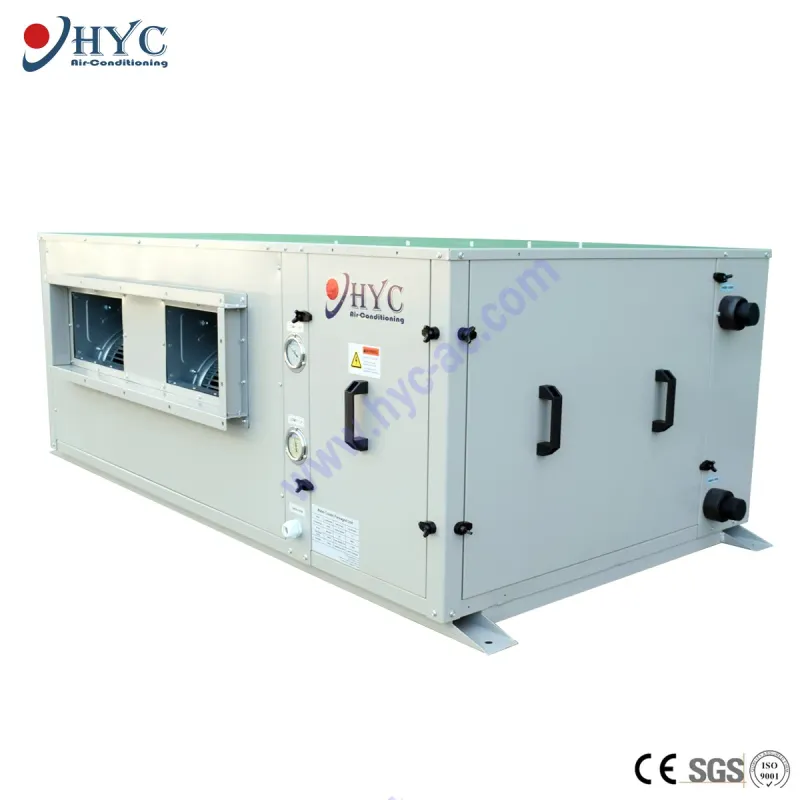

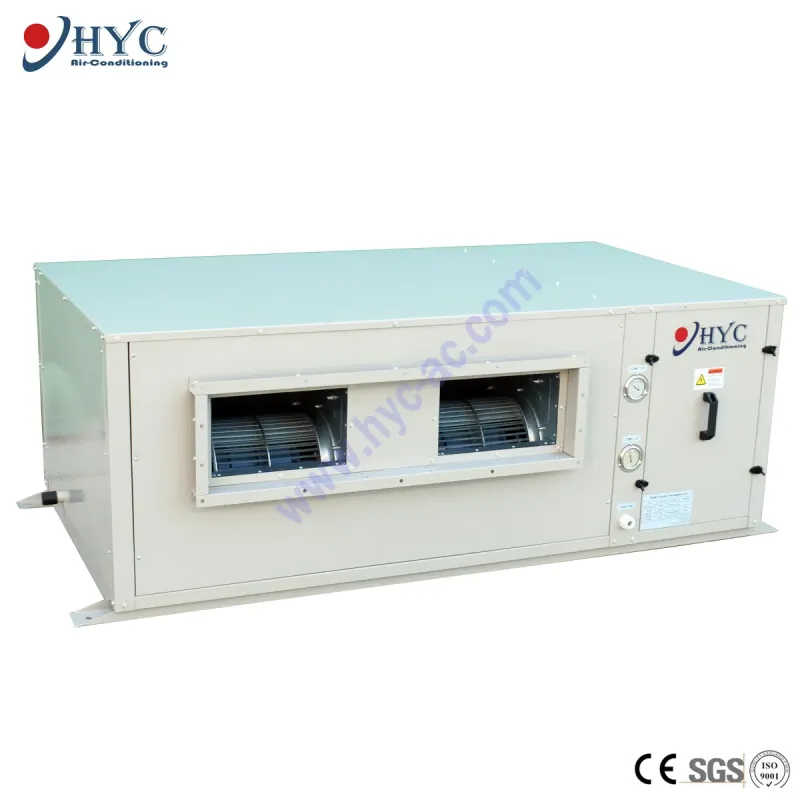

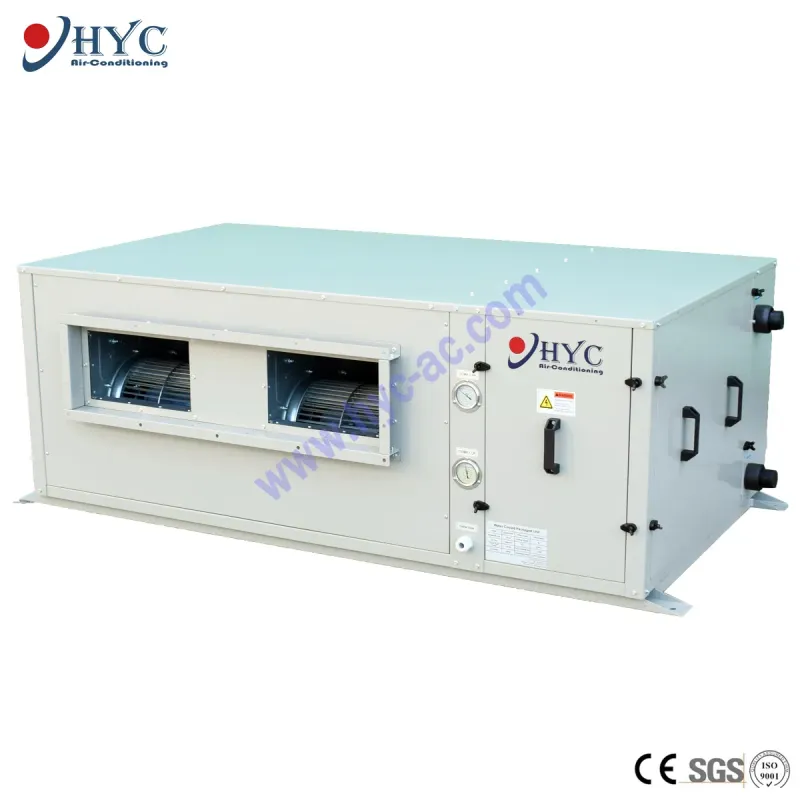

HYC Air to Water Heat Pump System - A Higher Level of Comfort

HYC heat pump unit delivers Year-round comfort with exceptional efficiency to design a complete Heat pump system for any building. Whether removing heat and humidity from the air to keep you cool, or drawing heat indoors to keep you warm.

DC Inverter Air Source Heat Pump

DC Inverter heat pump refers to the inverter compressor. The most common types of compressors are the fixed speed compressor. The fixed speed will run at 100% of its capacity and will stop and start automatically to maintain the desired temperature. An inverter compressor will vary its speed in order to maintain a consistent temperature. They convert the AC power into DC to all the control of the outdoor unit compressor speed. This gives the unit better accuracy to provide a constant temperature and less energy wastage.

Comparison with non-frequency conversion Heat Pump:

• More comfortable With a wider range of temperatures modes for heating and cooling, the inverter is able to operate in even the most extreme outdoor temperatures. An inverter compressor can also operate faster than non-inverter air conditioners thus allowing the air conditioners to reach the set temperature faster and bring you comfort sooner.
• More Comfortable When the air conditioner is initially activated to either heat or cool, the compressor will operate at maximum speed to reach the desired temperature is achieved, unlike non-inverter air conditioners that turn the compressor on and off, inverter units adjust and constantly vary the compressor speed to maintain the desired temperature with minimal fluctuation to ensure that your comfort is not compromised.
• More Energy-efficient Compressor and motor speed in non-inverter type air conditioners remains constant and temperature is adjusted by turning the compressor and more ON and OFF, which consumes more energy. In inverter type air conditioners, temperature is adjusted by changing compressor frequency/motor speed without turning them ON and OFF. Therefore, the power loss of the inverter air conditioner is smaller, with can increase energy efficiency by about 35%.
• More Economics All inverter systems are engineered and manufactured, ensuring performance, reliability, and efficiency. The increased efficiency and operation of our inverter systems reduce the wear tear on the compressor, contributing to durability and longevity of the system.

FEATURES

• CAPACITY RANGE Capacity ranging from 2.5Ton to 640Ton. Cooling performance: -5~50ºC. Heating performance: -25~24ºC.
• EASY INSTALLATION It is supplied as a complete package ready for operation, with no extra controls or other items to be installed. The units have a single power point entry with simple connections. Quick start-up is assured once installation is completed, as each unit is manufactured in an ISO9001:2000 listed facility to guarantee quality. All units are tested at the factory to provide reliable start up.
• HIGHLY QUALITY COMPONENTS AND RELIABLE PERFORMANCE DC inverter type compressor and high quality world known brand cooling parts, which ensures units' reliable performance.
• STRUCTURE Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
• HERMETIC COMPRESSOR The units use high efficiency, hermetically sealed, compressors, oil return lubrication and rubber vibration damper. The thermal overload cut-out, phase sequence relay and crankcase heater are integrated as the security protection to enhance reliability and performance.
• AXIAL FAN External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.
• EVAPORATOR Evaporator built with high efficiency plate type heat exchanger, factory insulated with flexible close cell material.
• CONDENSER Condenser built with seamless internal screw thread copper tubes mechanically expanded into blue wave hydrophilic aluminum fins.
• HYDRAULIC CIRCUIT Hydraulic circuit built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.
• ELECTRIC PANEL Electric panel consist of: Compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit). Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
• OPTIONAL • Pressure differential/Flow switch; • Metallic filter for hydraulic circuit; • Water pump; • Rubber anti-vibration mounting. • BMS • Stainless steel covering

Model

• 8
• 10
• 12
• 14
• 20
• 25
• 30
• 35
• 40
• 50

Power supply

• /220-240V/1Ph/50Hz
• 380-415V/3Ph/50Hz

Cooling

• Cooling capacity kW: 8, 10, 12, 14, 20, 25, 28, 35, 40, 50
• Cooling input power kW: 3.05, 3.85, 4.51, 5.13, 7.09, 8.61, 10.05, 11.27, 13.66, 17.18

Heating

• Heating capacity kW: 10, 12.5, 14.7, 16, 22, 27.2, 30, 38, 44, 55
• Heating input power kW: 3.05, 3.85, 4.51, 5.13, 7.09, 8.61, 10.05, 11.27, 13.66, 17.18

Compressor

• Qty: /1, 1, 1, 1, 2, 2, 2, 2, 2, 2
• Input power kW: 2.81, 3.37, 4.03, 4.65, 2x3.27, 2x4.03, 2x4.65, 2x5.26, 2x6.28, 2x8.04
• Running current A: 13.12, 16.43, 7.02, 8.32, 2x6.26, 2x7.02, 2x8.32, 2x10.03, 2x12.01, 2x14.79
• Axial fan qty: /1, 2, 2, 2, 1, 1, 1, 2, 2, 2
• Expansion type: thermal expansion type

Evaporator

• Type: Plate type or tank type heat exchanger
• Water flow m3/h: 1.4, 1.7, 2.1, 2.4, 3.4, 4.3, 4.8, 6.2, 6.9, 8.6
• Water pressure drop kPa: 33, 33, 33, 36, 36, 38, 42, 50, 52, 52
• Water pipe in/out mm: DN25, DN25, DN25, DN25, DN32, DN32, DN32, DN32, DN32, DN40

Dimension

• Length mm: 1250, 1250, 1250, 1250, 1600, 1600, 1600, 2000, 2000, 2000
• Width mm: 452, 452, 452, 452, 940, 940, 940, 900, 900, 900
• Height mm: 1180, 1180, 1180, 1180, 1080, 1080, 1080, 1080, 1080, 1080
• Net weight kg: 150, 155, 150, 180, 282, 310, 339, 310, 470, 520
• Noise dB(A): 58, 58, 60, 64, 64, 66, 68, 70, 70, 70

Model

• 20
• 30
• 40

Power supply

• V-Ph-Hz: 380v/3ph/50hz, 380v/3ph/50hz, 380v/3ph/50hz

Cooling*

• cooling capacity KW: 65, 97.5, 130
• cooling power input KW: 20.8, 31.2, 41.6
• cooling current input A: 38.50, 55.8, 74.3

Heating**

• heating capacity KW: 68, 103, 141
• heating power input KW: 21.5, 32.25, 43
• heating current input A: 38.4, 57.6, 76.8

Compressor

• qty: /2, 3, 4
• input power kW: 10.1*2, 10.1*3, 10.1*4
• input current A: 17.6*2, 17.6*3, 17.6*4

Condensor

• condensor coil qty: /3, 4, 5
• air flow m3/h: 12700*2, 17800*2, 23800*2
• axial fan qty: /2, 2, 2
• motor power input KW: 0.75*2, 1.1*2, 1.5*2

Evaporator

• type: /shell and tube, shell and tube, shell and tube
• water flow m3/h: 11.2, 16.8, 22.4
• water pressure drop kPa: 38, 38, 38
• water pipe mm: DN50, DN50, DN50
• Noise level dB(A): 60, 74, 78
• Dimension(L*W*H) mm: 2020*1000*1920, 2020*1000*1920, 2020*1000*1920
• Net weight kg: 605, 830, 925

Qingdao Hongyu Cles Air Conditioning Co., Ltd. Hongyu cles air conditioning (HYC) are dedicated to providing market leading innovations and new technologies that are easy-to-use solutions with the goal to always offer our client reduced energy outlay whilst empowering complete control to customize the solution for their business.

Air Source Heat Pump Production Line

Production Machinery

Test Lab

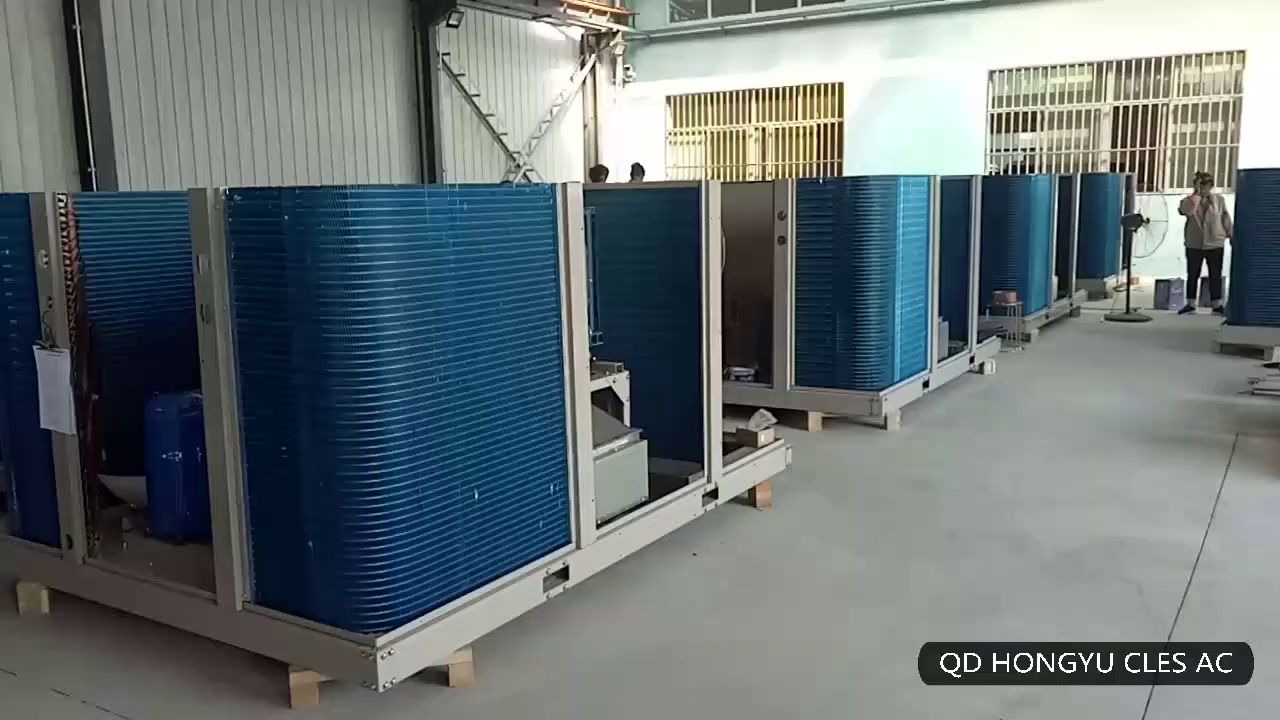

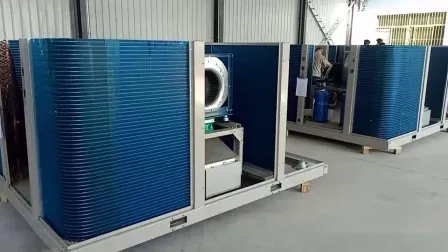

Sincerely welcome to visit our factory at your convenience. Customer could witness their order production real conditions by online videos or photos at any time during production.
