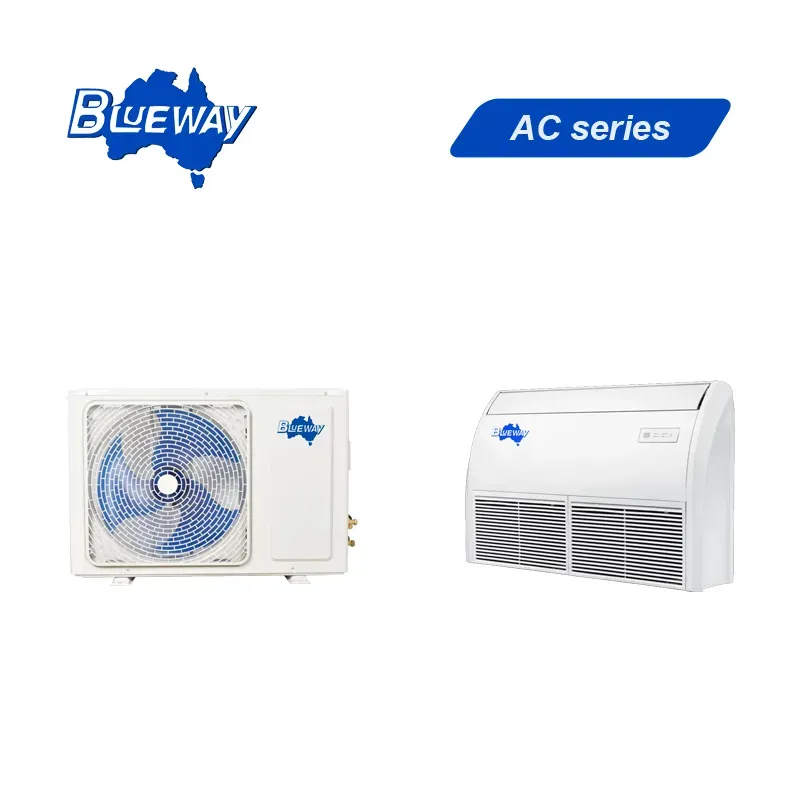

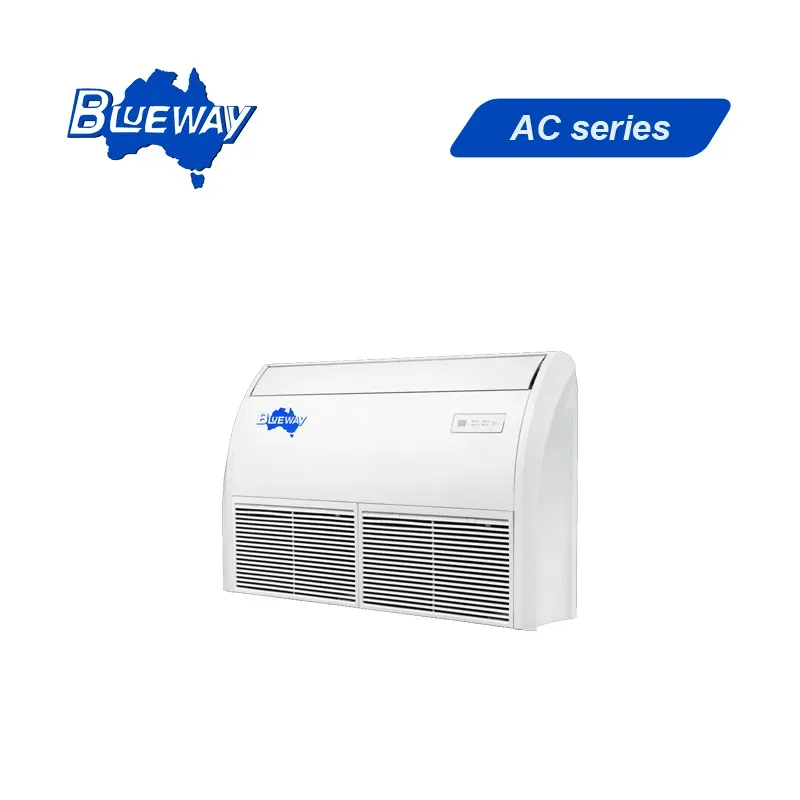

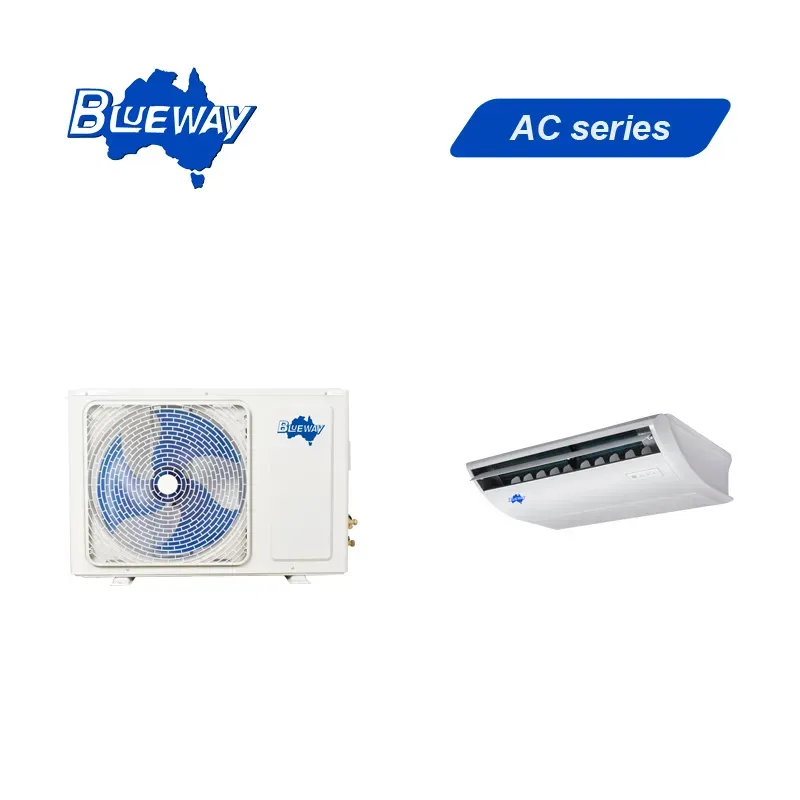

Mini Air Conditioning Floor Ceiling Split Type with Remote Controller
Description
Overview
Basic Info.
| Model NO. | BLA-18Z (18K) |
| Corrosion Durability | General |
| Noise Level | Ultra Quiet |
| Mounting | Ceiling Mount |
| Certification | RoHS, ISO, CE, CCC |
| Condition | New |
| Material | Galvanized Steel Powder Coated |
| Service | OEM |
| Controller | Remote Controller |
| Control | WiFi/RS485 |
| Cooling Capacity | 18K |
| Design | Split |
| Transport Package | Carton Packing for Container Order |
| Trademark | Blueway |
| Origin | Guangdong, China |
| HS Code | 8415102210 |
| Production Capacity | 1000 Sets/Month |
Product Description
PRODUCTION DESCRIPTION
Floor Ceiling Air Conditioner offers flexibility due to their placement either on the floor or on the ceiling, depending on the rooms' peculiarities. With control panel as standard, optional on-off and inverter type. Through new, advanced technology, inverter type is much more economical to operate and quieter to run than conventional unit.
KEY FEATURES
- Streamlined Outlook: Panel fashionable and exquisite, and elegant decoration integration, commercial home decoration value choice.

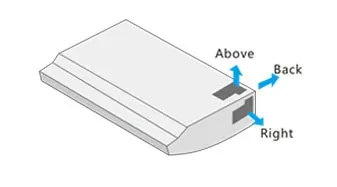

- Open Dress Design: Simple pipe connection, wiring work can be completed on the ground, the installation process is simple and efficient, shorten the installation period, ensure the quality of installation.

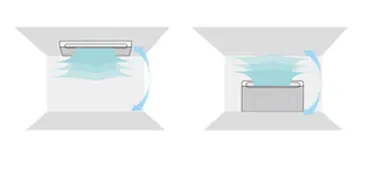

- Various Installation Methods: Floor-ceiling AC-T TexIreTmIstallation method, ceiling or landing maximum for you to save space.
- Multiple Protection Functions: The unit has multiple protection, such as "pressure protection", "temperature protection", "current protection","communication fault " and so on, which guarantees the reliable operation of the unit in an all-round way.

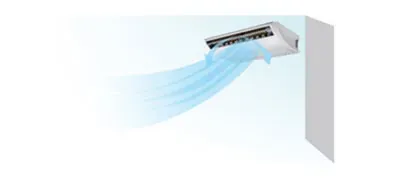

- Personalized Return Air Way: Unique swing design, the wind direction can be adjusted at will, to achieve 3D air supply, so that the room temperature distribution is more uniform.
TECHNICAL SPECIFICATIONS
Options: R410a Split Floor Ceiling Air Conditioner (Inverter & On-Off, Normal & Low Ambient Type)
Specifications of Inverter Universal Outdoor Unit (R410A Cooling & Heating)
| Outdoor Unit | Model | Capacity | Cooling Capacity | kW | Heating Capacity | kW | Electrical Parts | Air Flow Volume | Noise Level | Outdoor Dimension | Packing(W×H×D) | Outdoor Weight | Piping Size | Max.Pipe Length | Max.Height Difference | Operating Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BLA-18HA/DVO | 18000 | 5.300 | 19800 | 5.800 | 220-240V~/50Hz/1Ph | 2600 | 55 | 780×605×290 | 863×653×412 | 33 | φ6.35 | 35 | 25 | 21~43 |
Specifications of Inverter Floor & Ceiling Air Conditioner (R410A Cooling & Heating)
| Indoor Unit | Model | Capacity | Cooling Capacity | kW | Heating Capacity | kW | Electrical Parts | Power Input(W) | Performance | Air Flow Volume | Noise Level | Indoor Dimension | Packing(W×H×D) | Indoor Weight | Piping Size | Drainage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BLA-18ZHRA/DVI | 18000 | 5.300 | 19800 | 5.800 | 220-240V~/50Hz/1Ph | 1635 | 3.32 | 850/750/650 | 43/41/38 | 905×673×243 | 1030×765×311 | 24 | φ6.35 | OD25 |
Specifications of On/Off Universal Outdoor Unit - Normal Ambient Type (R410A Cooling & Heating)
| Outdoor Unit | Model | Capacity | Cooling Capacity | kW | Heating Capacity | kW | Electrical Parts | Air Flow Volume | Noise Level | Outdoor Dimension | Packing(W×H×D) | Outdoor Weight | Piping Size | Max.Pipe Length | Max.Height Difference | Operating Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BLC-18HRA/UO | 18000 | 5.300 | 20000 | 5.900 | 220-240V~/50Hz/1Ph | 2100 | 49 | 780×605×290 | 863×653×412 | 38 | φ6.35 | 25 | 15 | 21~43 |
Specifications of On/Off Floor & Ceiling Air Conditioner (R410A Cooling & Heating)
| Indoor Unit | Model | Capacity | Cooling Capacity | kW | Heating Capacity | kW | Electrical Parts | Power Input(W) | Performance | Air Flow Volume | Noise Level | Indoor Dimension | Packing(W×H×D) | Indoor Weight | Piping Size | Drainage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BLC-18ZHRA/UI | 18000 | 5.300 | 20000 | 5.900 | 220-240V~/50Hz/1Ph | 1712 | 3.10 | 850/750/650 | 43/41/38 | 905×673×243 | 1030×765×311 | 24 | φ6.35 | OD25 |
Specifications of On/Off Universal Outdoor Unit - Low Ambient Type (R410A Cooling & Heating)
| Outdoor Unit | Model | Capacity | Cooling Capacity | kW | Heating Capacity | kW | Electrical Parts | Air Flow Volume | Noise Level | Outdoor Dimension | Packing(W×H×D) | Outdoor Weight | Piping Size | Max.Pipe Length | Max.Height Difference | Operating Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BLC-18CHRA/UO-L | 18000 | 5.300 | 20000 | 5.900 | 220-240V~/50Hz/1Ph | 2100 | 49 | 780×605×290 | 863×653×412 | 38 | φ6.35 | 25 | 15 | -15~43 |
MANUFACTURING & SHIPMENT
ADVANTAGES & MARKET OVERVIEW
- Blueway has around 30 years of rich HVAC manufacturing experience.
- Over 1000 original R&D products, Blueway is qualified to be OEM/OBM/ODM.
- Over 10000 engineering solutions with great success provided by Blueway.
- Online technical service is available twenty-four hours a day without break.
- Blueway intelligent control system with precise timing, temperature control & remote monitoring function.
With advanced technology and R&D capacity, Blueway has obtained over more than 20 patents and become one of the leading HVAC manufacturers in China. Meanwhile, 70% of Blueway products have been exported to oversea markets, including Australia, Europe, North America, Middle East, South Africa, South America and obtained worldwide recognition. Additionally, it has over 20 representative offices located in different cities of China, and also has its authorized distributors in Europe, Middle East, North America and South America.
So far, Blueway has already provided over 10000 engineering solutions with great success. What's more, Blueway is also the recommended brand by Hilton Hotel in Chinese market. Blueway will continue its endeavor and commitment to serve its worldwide partners by providing solutions and innovative products of high efficiency.
FAQ
- Q: Recommended places of use?
- A: Shops, lobbies, offices, restaurant, etc.
- Q: How to install?
- A: Flexible installation method, ceiling or landing, maximum for you to save space.
- Q: How's the air feeling?
- A: Unique swing design, the wind direction can be adjusted to achieve 3D air supply for uniform room temp. distribution.
- Q: Adopt which refrigerant type?
- A: R410a.
- Q: With remote controller?
- A: Yes, remote controller as standard. And WIFI control is for your option.
- Q: Hong long is the warranty time?
- A: 1 year for the whole unit, 3 years for the compressor.
- Q: How about the outlook?
- A: Panel fashionable and exquisite, and elegant decoration integration, commercial home decoration value choice.
