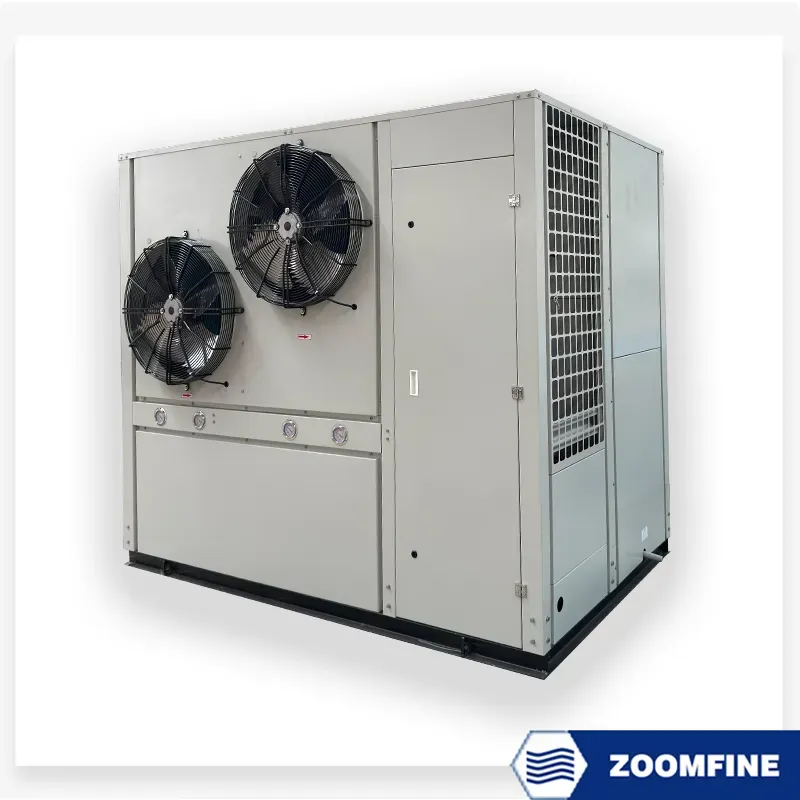

Constant Temperature Mushroom Cultivation Room with Deodorizing Air Conditioning
Description
Overview
Product Description
Low Ambient Temperature Air Source Heat Pump Unit/Air Cooled Chiller. Among these innovations, high-temperature air source heat pumps and chillers stand out as a revolutionary hot water solution that can effectively replace traditional hot water boilers. Operating in ambient temperatures of 60°C and above, these pumps deliver water at outlet temperatures ranging from 60°C to 75°C, with the capability of reaching up to 80°C. This versatility allows them to meet the diverse hot water demands of both residential and industrial applications.
- Maintain a constant temperature, with a precision of 0.1 °C.
- Manage cooling, heating, humidification, and dehumidification processes.
- Regulate the concentration of CO2 in the mushroom cultivation room.
- Control light intensity.
- Enable remote control functionality.
Our air cooled chillers are widely utilized throughout the production process of rare edible fungi, including Pleurotus eryngii, crab-flavored mushrooms, Grifola frondosa, Flammulina velutipes, Bailing mushrooms, Agaricus bisporus, and Cordyceps sinensis.
By choosing ZOOMFINE high temperature air source heat pumps, you're making a smart investment that not only enhances energy efficiency but also significantly reduces reliance on traditional, high-pollution heating methods like fuel oil and coal-fired boilers. In doing so, you contribute to a cleaner urban environment and promote sustainability. Embrace this advanced technology and be part of the future of energy-saving solutions in our country!
Air Cooled Chiller Categorized into Three Main Types:
1. High water temperature, low ambient temperature air-cooled screw units.
2. Modular low ambient temperature air source heat pumps.
3. Household air source heat pumps designed for the "coal to electricity" transition.
Technical Sheet & Drawing
Dimensions Drawing for EFR Series Air-cooled Chiller (cold/hot water) - Environmentally Friendly Refrigerant Series
| Item | Unit | EFR-100 | EFR-200 | EFR-300 | EFR-400 | EFR-500 | EFR-600 | EFR-700 | EFR-800 |
|---|---|---|---|---|---|---|---|---|---|
| Amm | mm | 2110 | 2110 | 2110 | 2110 | 2110 | 2110 | 2110 | 2110 |
| Bmm | mm | 1056 | 2460 | 3830 | 5200 | 6570 | 7940 | 9310 | 10680 |
| Cmm | mm | 1830 | 1830 | 1830 | 1830 | 1830 | 1830 | 1830 | 1830 |
Product Configuration

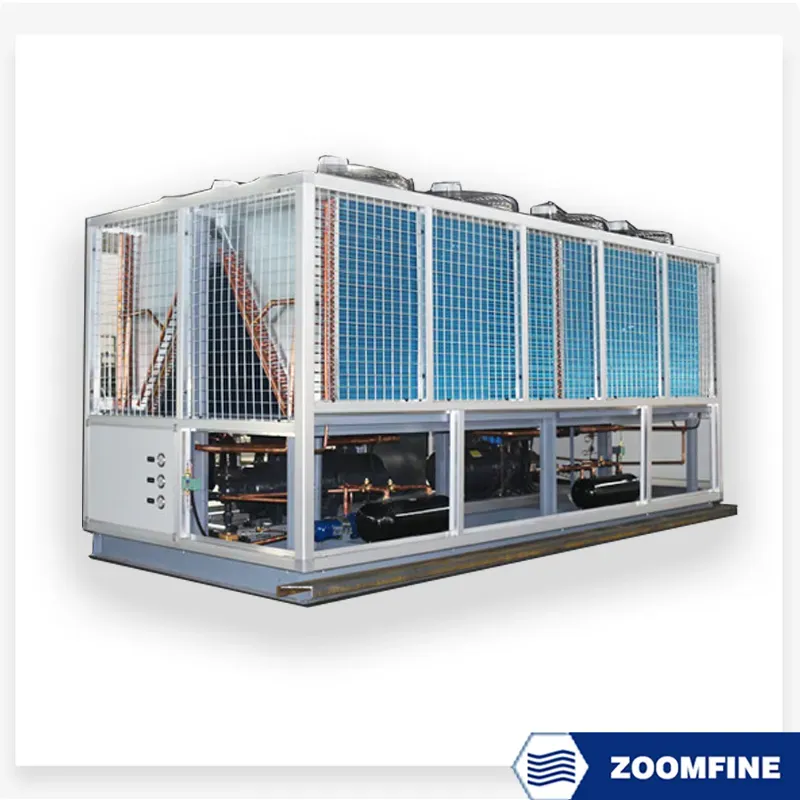

Ultra-low Temperature Air-cooled Screw Series Chiller Units
| No. | Parts Name | Brand |
|---|---|---|
| 1 | Two-stage Screw Compressor | Hanbell |
| 2 | Finned Heat Exchanger | Zoomfine |
| 3 | Shell and Tube Heat Exchanger | Zoomfine |
| 4 | Expansion Valve | Carel/Sporlan/Emerson |
| 5 | PLC Programmable Controller | Siemens |
| 6 | Electrical Components | Siemens |
| 7 | Four-way Valve | Dunan |
| 8 | Filter Drier | FaSiKe/Emerson |
| 9 | Gas-liquid Separator/Liquid Receiver | Zoomfine |
| 10 | High and Low Pressure Sensors | Emerson |
| 11 | Condensing Fan | Ruibo |
Features
High-Efficiency Air-Cooled Screw Unit for Optimal Heating in Extreme Conditions

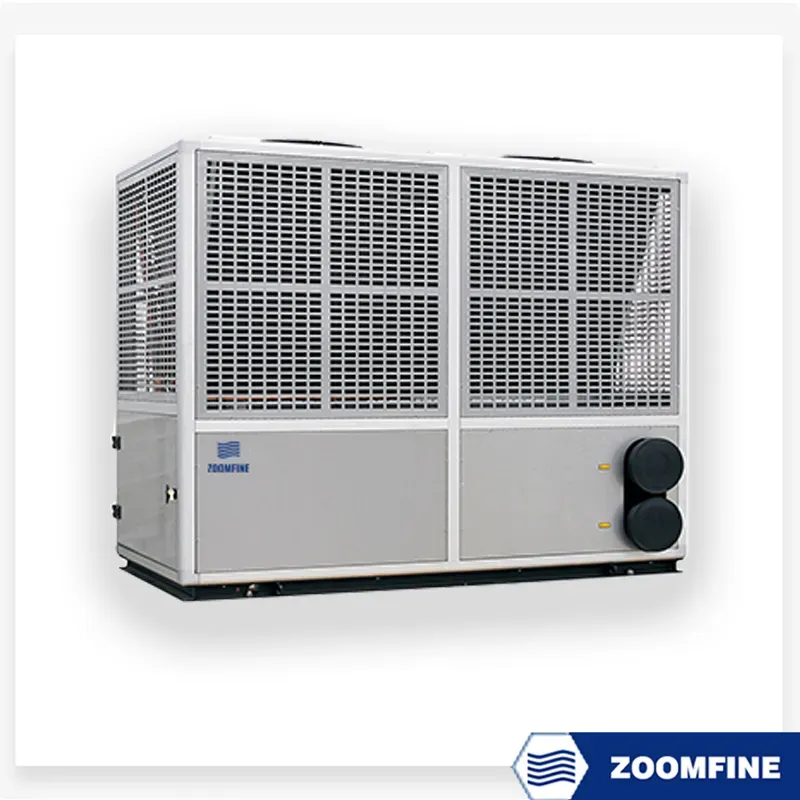

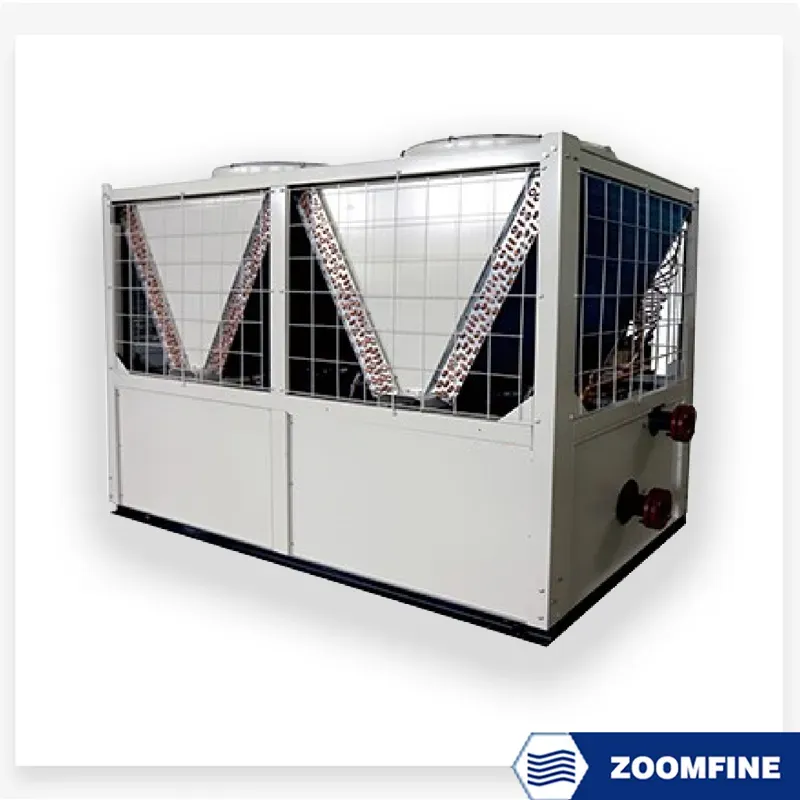

Low Ambient Temperature Air Source Heat Pump (AR Series Modular Type)
Implementation Standards for Low-Temperature Air Source Heat Pump Units
- Commitment to Safety and Environmental Responsibility: Our unit employs the internationally endorsed refrigerant R134a, ensuring an eco-friendly operation without compromising on safety.
- Advanced Two-Stage Compression for Superior Performance: Experience the power of our innovative single-machine two-stage compressor, delivering exceptional performance even in the harshest heating conditions with ambient temperatures as low as -30℃ and up to 20℃.
- Reliable High-Temperature Water Supply: Enjoy peace of mind knowing that when the ambient temperature exceeds 0℃, our unit can effortlessly produce water heated to 80℃. Even under more challenging conditions, such as -10℃ to -20℃, you can expect a steady supply of 70℃ hot water. In extreme temperatures of -30℃, the system guarantees a water outlet temperature above 60℃, ensuring comfort and reliability.
- Intelligent Control for Longevity and Energy Savings: Experience cutting-edge technology with Siemens PLC intelligent control. This sophisticated system, paired with a refrigerant branch control mechanism, allows for precise and efficient operation, significantly extending the service life of the unit while optimizing energy consumption.
Elevate your heating solutions with our robust, efficient air-cooled screw unit designed to perform in even the harshest climates!
- Commitment to Safety and Environmental Stewardship: Our heat pump proudly uses R410A and R407C, which are recognized worldwide as eco-friendly refrigerants. This ensures you can enjoy reliable heating without compromising the environment.
- Exceptional Performance in Extreme Conditions: Experience unprecedented efficiency with our innovative two-stage compressor design. This robust system operates seamlessly, delivering excellent performance in ambient temperatures from a chilling -25°C to a comfortable 20°C.
- Unmatched High-Temperature Water Output: Enjoy reliable hot water on demand! When temperatures rise above 0°C, our system can provide water up to 65°C. Even in colder conditions, from -10°C to -20°C, it guarantees a steady supply of 60°C water, all while maintaining optimal functionality down to -25°C.
- Advanced Intelligent Control for Efficiency and Durability: Benefit from cutting-edge technology with our intelligent defrost control and state-of-the-art ice suppression systems. This not only enhances precise operational control but also significantly extends the lifespan of the unit, leading to impressive energy savings for you.
Upgrade to our AR Series Modular Type Heat Pump and experience comfort, efficiency, and eco-friendliness like never before!
GB/T25127-2010 Low Ambient Temperature Air Source Heat Pump Unit
Cooling Mode: - Achieve optimal performance with a condensing side inlet air dry bulb temperature of 35℃. - Experience efficient water flow at 0.172 m³/[h·kW]. - Enjoy a refreshing outlet water temperature of 7℃. - Note: Return water temperature not specified.
Heating Mode: - Benefit from reliable heating, even in extreme conditions, with an evaporation side inlet air dry bulb temperature of -12℃ and a wet bulb temperature of -14℃. - Maintain efficient water flow at 0.172 m³/[h·kW]. - Delight in a warm outlet water temperature of 41℃. - Note: Return water temperature not specified.
This low-temperature air source heat pump unit guarantees consistent and stable operation without the need for electric auxiliary heating in environments as cold as -20℃. Choose this innovative solution to ensure comfort and efficiency, no matter the weather conditions!

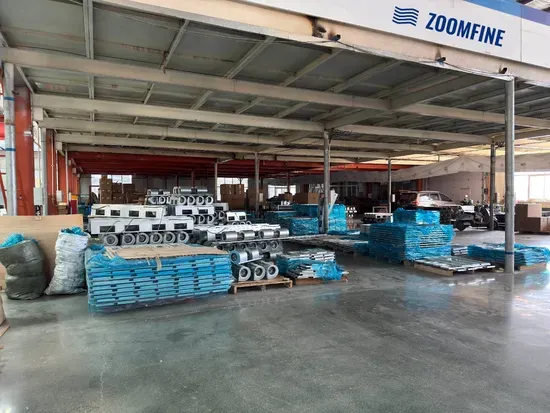

Production Workshop
Company Overview
Qingdao Zoomfine Indotech Co., Ltd. stands at the forefront of innovation, specializing in the research, development, design, production, sales, and maintenance of cutting-edge central air conditioning systems, advanced composite materials, and sustainable solar energy products. Our high-quality offerings have successfully reached over 100 countries, demonstrating our global impact.
At Zoomfine Indotech, we are committed to becoming your premier partner in custom central air conditioning solutions. We provide not only tailored energy solutions but also the expertise to manage large-scale international projects. Trust us to deliver excellence and transform your energy needs into reality.
Application
This cutting-edge series of water-cooled process cryogenic chiller units is designed to meet a wide range of demanding applications. Whether you're in low-temperature cold storage, industrial production of petroleum and chemicals, or sectors like medicine and light industry, these chillers are the solution you need. They excel in facilitating low-temperature testing for scientific research. They are particularly effective for food processing and the preservation of aquatic products. Enhance your operations with our reliable chiller units, perfect for refrigeration houses and beyond. Trust in our technology to optimize your processes and ensure quality at every stage.
Customer Cases

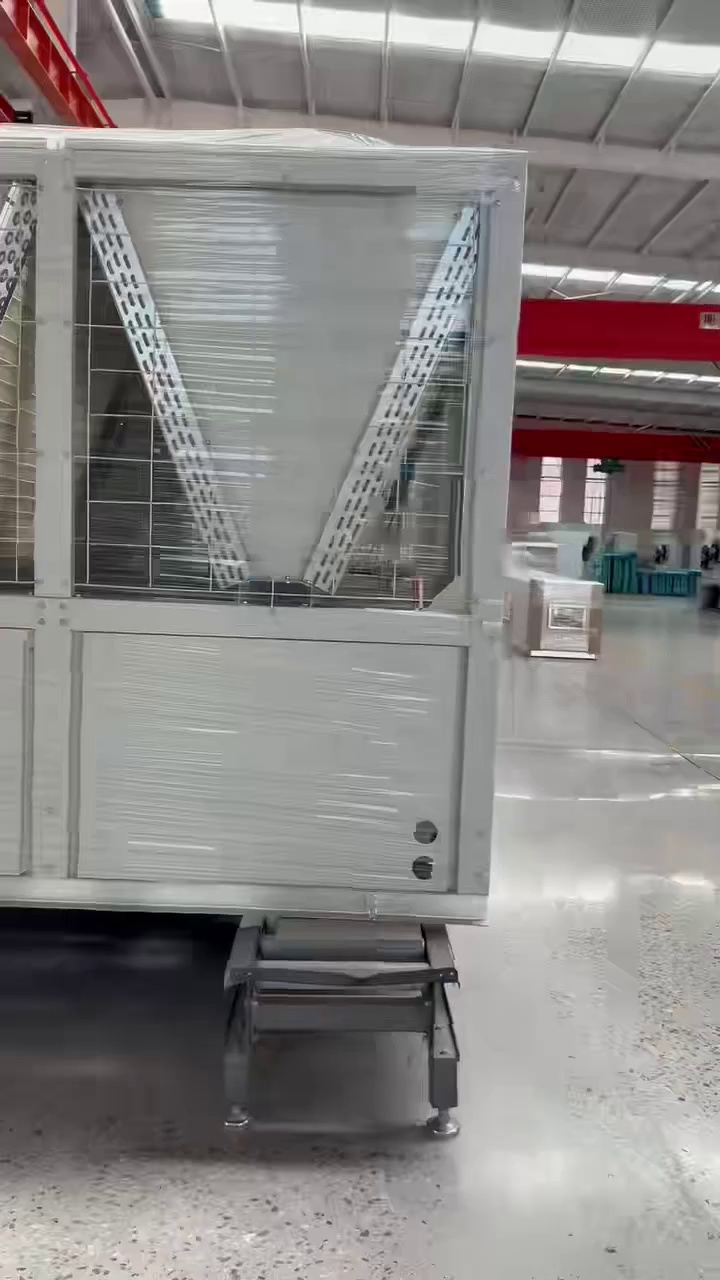

Packing & Delivery
Standard Warranty: Enjoy peace of mind with our comprehensive one-year warranty from the start-up date or 18 months from shipment—whichever comes first. For even greater assurance, consider our extended warranty options. Plus, we offer seamless worldwide installation and commissioning to ensure your experience is smooth and hassle-free. Invest in quality and support with us!
