Product ID: 68589326
Air Cooled Industrial Chiller with Scroll Compressor
Contact Now
Description
Basic Info.
Model NO.
SMCT-ST1HA
Unit Structure
Packaged
Selected Voltage
50Hz/60Hz
Compressor Number
2-4
Noise Level
Low
Application Fields
Commercial & Industrial Field
Certification
ISO, CE, CCC
Condition
New
Refrigerant
R410A
Compressor
Scroll
Condenser Fan
Axial / Direct
Water Side Heat Exchanger
Shell & Tube
Hydraulic Module
Optional
Heat Recovery
Optional
Transport Package
Plastic Film Wrapped
Specification
66kW-502kW
Trademark
SENDO or OEM
Origin
China
HS Code
8418
Production Capacity
5000 Sets
Product Description
Air Cooled Industrial Chiller Air Conditioner with Scroll Compressor
SENDO is a professional manufacturer of quality air conditioning products.
Sendo could supply most products in HVAC field, such as Rooftop Packaged Unit, Split Commercial Unit, Air Cooled Water Chiller, Water Cooled Water Chiller, Chilled Water Air Handling Unit and Fan Coil Unit etc.
Sendo also supplies made-to-measure HVAC solutions. We engineer and manufacture Air Conditioner to suit the building design and application.

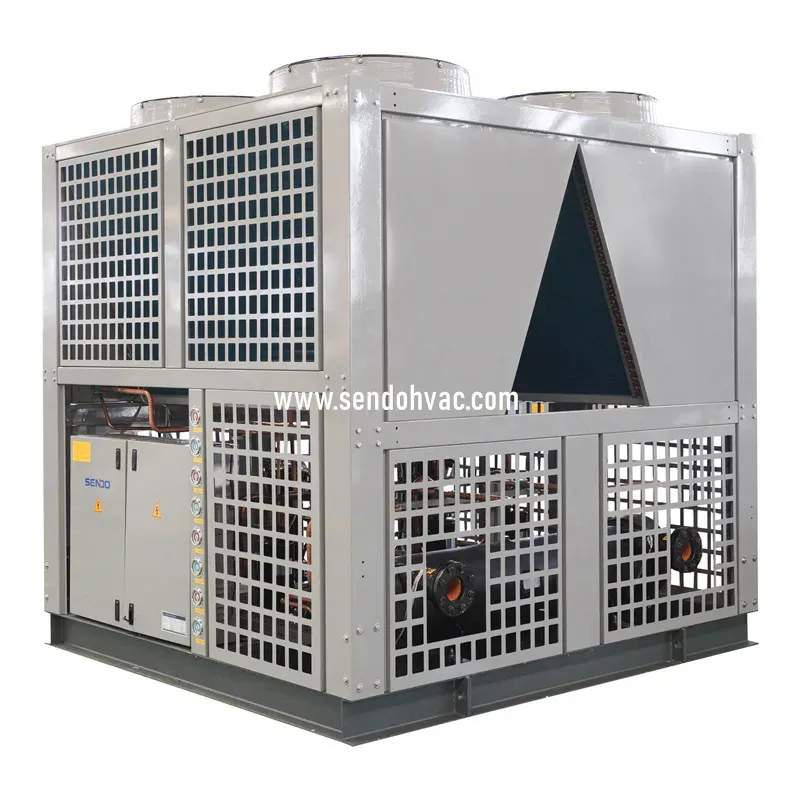

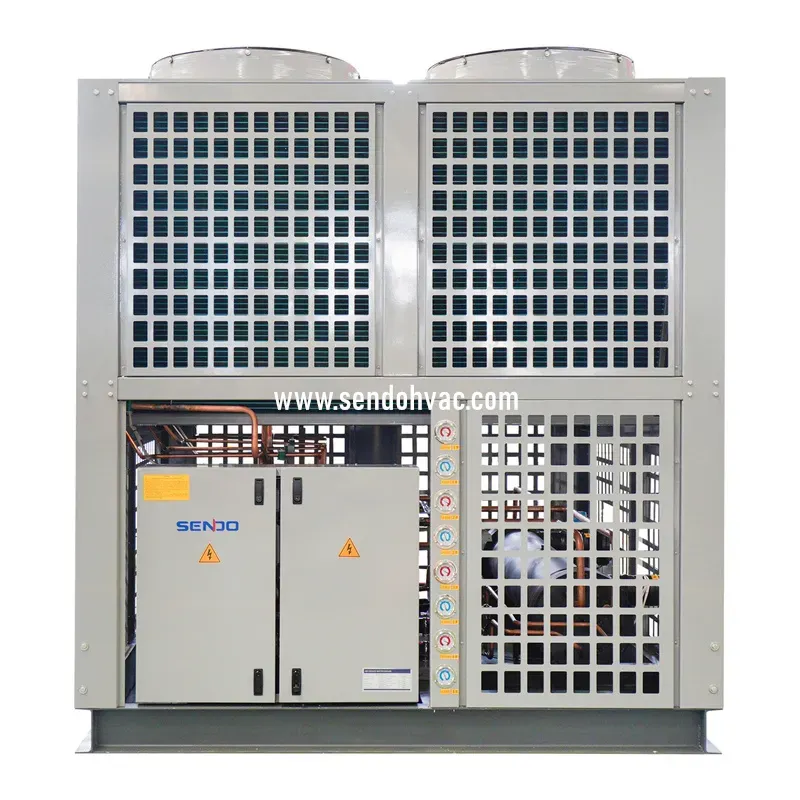

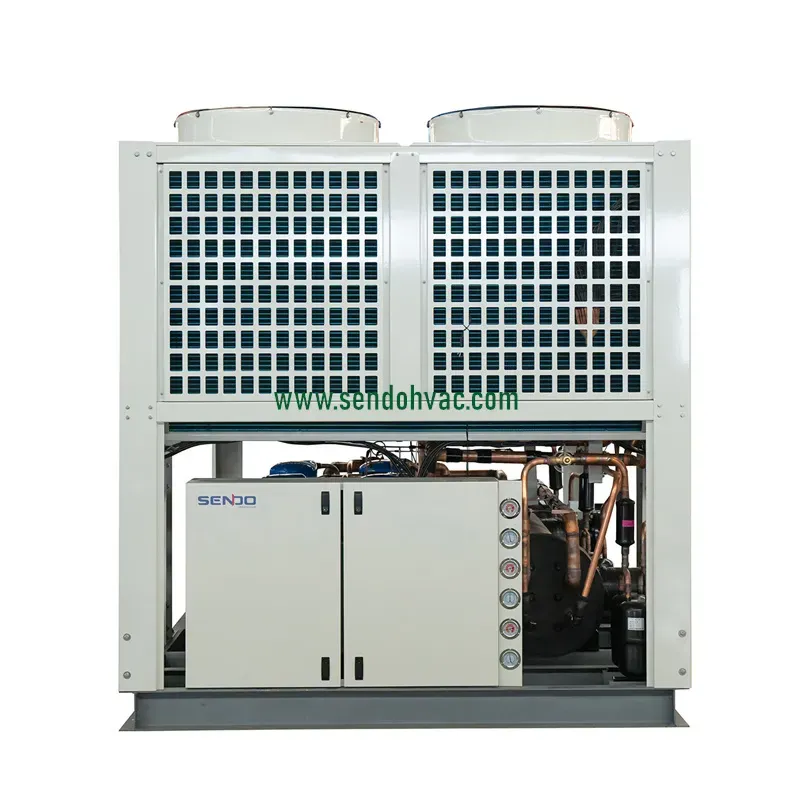

Conventional Modular Type Air Cooled Water Chiller & Heat Pump
Modular type chillers adopt V shape air side heat exchanger and single unit' capacity from 66kW to 135kW.
Colors can be ordered in either white or dark grey.
Features
SENDO is a professional manufacturer of quality air conditioning products.
Sendo could supply most products in HVAC field, such as Rooftop Packaged Unit, Split Commercial Unit, Air Cooled Water Chiller, Water Cooled Water Chiller, Chilled Water Air Handling Unit and Fan Coil Unit etc.
Sendo also supplies made-to-measure HVAC solutions. We engineer and manufacture Air Conditioner to suit the building design and application.
Conventional Modular Type Air Cooled Water Chiller & Heat Pump
Modular type chillers adopt V shape air side heat exchanger and single unit' capacity from 66kW to 135kW.
Colors can be ordered in either white or dark grey.
Features
1. The master module can work independently or together with up to 16 slave modules, capacity from 66 to 2160kW.
2. Back-up functions, In a combination system, if one module failed, other modules can be back-up instead of the failed one for continuing operation.
3. In one combination module, all slave units operate as alternative in cycle duty to keep equal running time for better reliability and longer lifespan.
4. Panels & frame are made from galvanized steel protected with polyester powder painting to ensure durability and protect against corrosive agents.

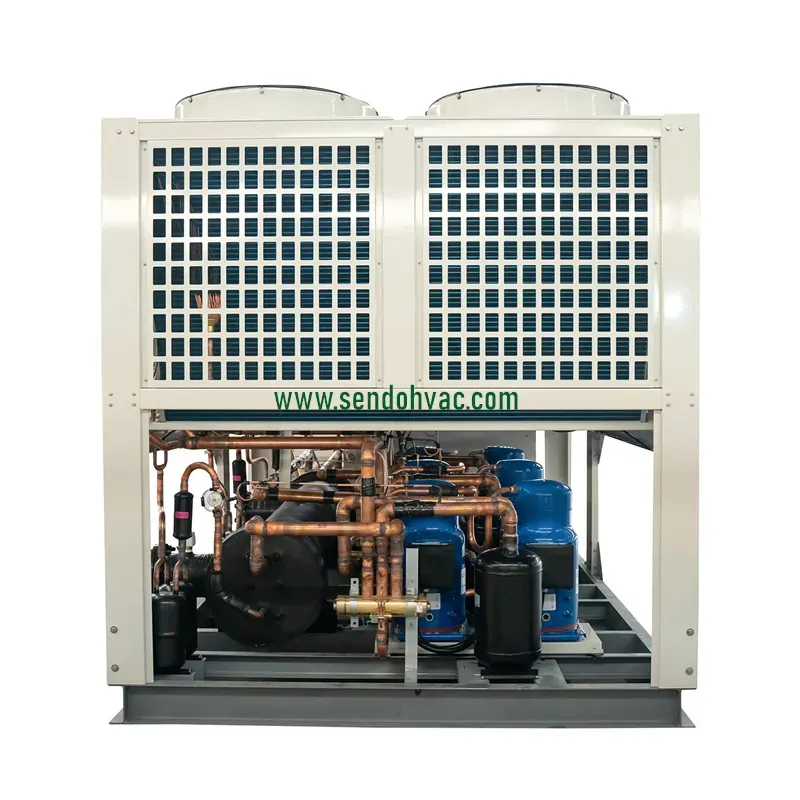

5. Hermetic scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration isolators.
6. External rotor type axial fans, equipped with direct drive motors, low noise, protection level IP54, provided with a protective outlet grille.
7. The condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
8. Evaporator built with high efficiency shell & tube type heat exchanger, factory insulated with flexible close cell material.
9. Electric panel consists of breakers and contactors for compressors & condenser fan motors, phase sequence protector and other necessary protection devices for the main components. All electric parts are Schneider Electric brand.
Option
Optional built-in hydronic module, the integral structure design saves you much installation labor and cost.
Optional golden condenser for some area need special anti-corrosion.
Specification

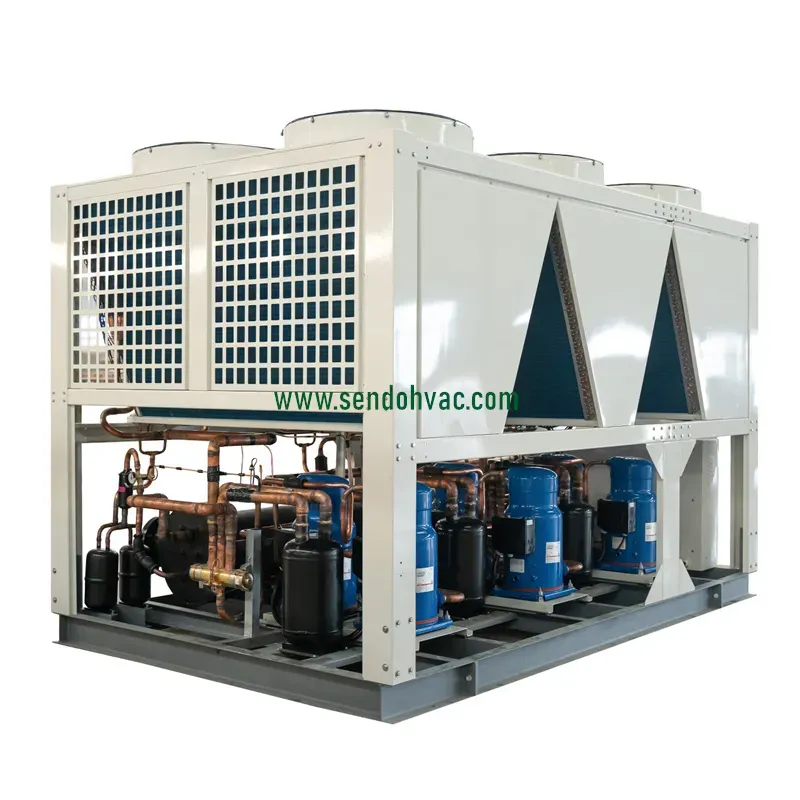

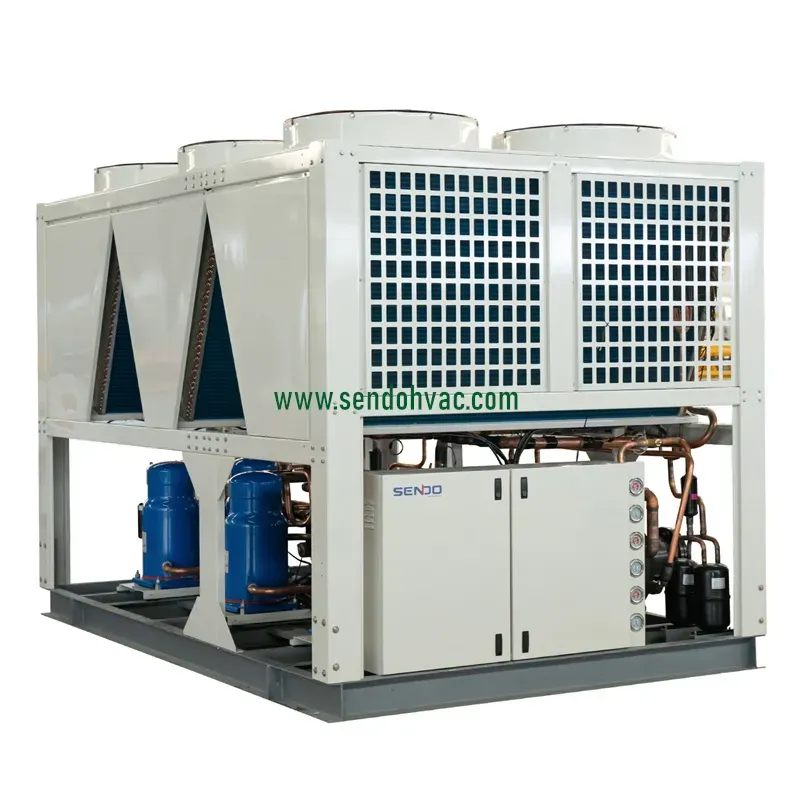

Large Size Air Cooled Scroll Chiller & Heat Pump
Single unit's capacity from 165kW to 502kW.
Colors can be ordered in either white or dark grey.
Features
1. Panels and frame are made from galvanized steel protected with polyester powder painting to ensure durability and protect against corrosive agents.
2. Hermetic scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration isolators.
3. External rotor type axial fans, equipped with direct drive motors, low noise, protection level IP54, provided with a protective outlet grille. Saw-shaped impellers provide large air volume, high durability and high air supply efficiency with low noise.
4. The condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
5. Evaporator built with high efficiency shell & tube type heat exchanger, factory insulated with flexible close cell material.
6. Electric panel consists of breakers and contactors for compressors & condenser fan motors, phase sequence protector and other necessary protection devices for the main components. All electric parts are Schneider Electric brand.
7. Convenient installation and Lowest total cost of ownership
No need equipment rooms and cooling tower, low initial investment.
The chiller has been equipped with the water flow switch, and has been filled with refrigerant before delivery. Each unit was extensively tested to verify its operational reliability, the unit can be placed in service after being connected with power supply and water supply during field installation.

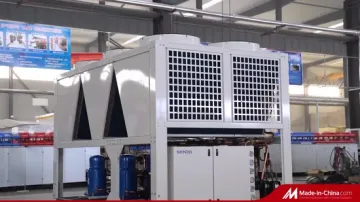

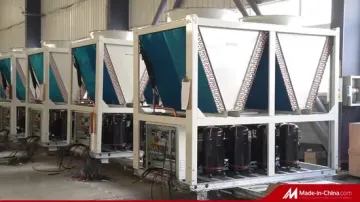

Workshop
Project Reference
2. Back-up functions, In a combination system, if one module failed, other modules can be back-up instead of the failed one for continuing operation.
3. In one combination module, all slave units operate as alternative in cycle duty to keep equal running time for better reliability and longer lifespan.
4. Panels & frame are made from galvanized steel protected with polyester powder painting to ensure durability and protect against corrosive agents.
5. Hermetic scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration isolators.
6. External rotor type axial fans, equipped with direct drive motors, low noise, protection level IP54, provided with a protective outlet grille.
7. The condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
8. Evaporator built with high efficiency shell & tube type heat exchanger, factory insulated with flexible close cell material.
9. Electric panel consists of breakers and contactors for compressors & condenser fan motors, phase sequence protector and other necessary protection devices for the main components. All electric parts are Schneider Electric brand.
Option
Optional built-in hydronic module, the integral structure design saves you much installation labor and cost.
Optional golden condenser for some area need special anti-corrosion.
Specification
| Model | SMCT-ST1H65A | SMCT-ST1H90A | SMCT-ST1H100A | SMCT-ST1H130A | ||
| Cooling | Capacity | kW | 66 | 88 | 105 | 135 |
| Power Input | kW | 21.70 | 26.62 | 38.85 | 43.4 | |
| Running Current | A | 42.52 | 53.70 | 76.20 | 84.04 | |
| Heating | Capacity | kW | 70 | 95 | 110 | 140 |
| Power Input | kW | 21.85 | 26.10 | 38.10 | 42.60 | |
| Running Current | A | 41.90 | 52.60 | 74.50 | 82.40 | |
| Power Supply | 380~415V/3Ph/50Hz | |||||
| Refrigerant | Type | R410a | ||||
| Compressor | Type | / | Scroll | |||
| Quantity | Nos. | 2 | 4 | 4 | 4 | |
| Air Side Heat Exchanger |
Type | / | Copper Pipe + Anticorrosion Aluminium Fin | |||
| Fan | Type | Axial / Direct | ||||
| Qty | 2 | 2 | 2 | 2 | ||
| Airflow | m3/h | 28000 | 30400 | 34000 | 44000 | |
| Water Side Heat Exchanger |
Type | / | High Efficient Shell & Tube Heat Exchanger | |||
| Water Flow | m3/h | 11.4 | 15.1 | 18.1 | 23.2 | |
| Pressure Drop | kPa | 43 | 42 | 41 | 48 | |
| Connect Pipe | mm | DN50 | DN65 | DN65 | DN65 | |
| Sound Level | dB(A) | 70 | 72 | 72 | 75 | |
| Dimension | Length | mm | 2000 | 2240 | 2240 | 2240 |
| Width | mm | 1060 | 1360 | 1360 | 1360 | |
| Height | mm | 1915 | 1985 | 1985 | 1985 | |
| Net Weight | Kg | 650 | 850 | 900 | 1180 | |
Cooling: Chilled water inlet/outlet temperature: 12/7°C, outdoor ambient temperature 35°C DB.
Heating: Warm water inlet/outlet temperature: 40/45°C, outdoor ambient temperature 7°C DB/6°C WB.
Large Size Air Cooled Scroll Chiller & Heat Pump
Single unit's capacity from 165kW to 502kW.
Colors can be ordered in either white or dark grey.
Features
1. Panels and frame are made from galvanized steel protected with polyester powder painting to ensure durability and protect against corrosive agents.
2. Hermetic scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration isolators.
3. External rotor type axial fans, equipped with direct drive motors, low noise, protection level IP54, provided with a protective outlet grille. Saw-shaped impellers provide large air volume, high durability and high air supply efficiency with low noise.
4. The condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
5. Evaporator built with high efficiency shell & tube type heat exchanger, factory insulated with flexible close cell material.
6. Electric panel consists of breakers and contactors for compressors & condenser fan motors, phase sequence protector and other necessary protection devices for the main components. All electric parts are Schneider Electric brand.
7. Convenient installation and Lowest total cost of ownership
No need equipment rooms and cooling tower, low initial investment.
The chiller has been equipped with the water flow switch, and has been filled with refrigerant before delivery. Each unit was extensively tested to verify its operational reliability, the unit can be placed in service after being connected with power supply and water supply during field installation.
Specifications
Cooling: Chilled water inlet/outlet temperature: 12/7°C, outdoor ambient temperature 35°C DB.
| Model | SMCT-ST1H165A | SMCT-ST1H260A | SMCT-ST1H330A | SMCT-ST1H440A | SMCT-ST1H500A | ||
| Cooling | Capacity | kW | 165 | 260 | 301 | 440 | 502 |
| Power Input | kW | 53.2 | 83.8 | 105.3 | 141.9 | 175.5 | |
| Heating | Capacity | kW | 180 | 280 | 345 | 475 | 575 |
| Power Input | kW | 56.20 | 87.40 | 104.1 | 148.4 | 173.5 | |
| Power Supply | 380~415V/3Ph/50Hz | ||||||
| Refrigerant | Type | R410a | |||||
| Compressor | Type | / | Scroll | ||||
| Quantity | Nos. | 4 | 4 | 3 | 4 | 5 | |
| Air Side Heat Exchanger |
Type | / | Copper Pipe + Anticorrosion Aluminium Fin | ||||
| Fan | Type | Axial / Direct | |||||
| Qty | 4 | 4 | 6 | 8 | 10 | ||
| Airflow | m3/h | 60000 | 112000 | 126000 | 172000 | 210000 | |
| Water Side Heat Exchanger |
Type | / | High Efficient Shell & Tube Heat Exchanger | ||||
| Water Flow | m3/h | 28.4 | 44.7 | 51.8 | 75.7 | 86.3 | |
| Pressure Drop | kPa | 45 | 45 | 47 | 52 | 50 | |
| Connect Pipe | mm | DN80 | DN100 | DN125 | |||
| Dimension | Length | mm | 2200 | 2400 | 3610 | 4440 | 5970 |
| Width | mm | 1720 | 2200 | 2260 | 2260 | 2260 | |
| Height | mm | 2000 | 2235 | 2515 | 2460 | 2515 | |
| Net Weight | Kg | 1420 | 2025 | 2900 | 3700 | 4500 | |
Heating: Warm water inlet/outlet temperature: 40/45°C, outdoor ambient temperature 7°C DB/6°C WB.
Workshop
Project Reference
Sendo contribution to combat rising energy costs and global warming is to design innovative, efficient and dependable AC products, while providing best comfort and air quality. We are optimistic about the response that we expect to get from our potential customers because we strive to ensure that our customers get the quality products when they approach us and we are determined to ensure that our customers can obtain various benefits when they buy Sendo Air Conditioners.
Get in touch with us and book a Factory Tour! Sincerely welcome to visit our factory at your convenience.
