Overview

Basic Info.

• Model NO. COB0.9
• Pixel Pitch 0.9
• Pixel Configuration 1R,1G,1B
• System Operating Platform WIN2000
• Display Type LED Video Display
• Application Stage Performance, Advertising, Shopping Guide
• IP Rating IP65
• Certification CE
• Pixel Pitch (mm) 0.78
• Module Resolution (W*H) 192*216
• Module Dimensions (W*H) (mm) 150*168.75
• Brightness (CD/M2) Standard 600 (Customizable to 2000)
• Color Temperature (K) 3000-10000 Adjustable
• Viewing Angle Horizontal 170degree/ Vertical 170degree
• Brightness Uniformity 97%Min
• Chroma Uniformity +/-0.003cx, Within Cy
• Color Gamut 115%Min
• Contrast Ratio 10000:1 Min
• Maximum Power Consumption (W/M2) 350min
• Average Power Consumption (W/M2) 112min
• Operating Voltage AC 100-240V (50/60Hz)
• Image Frame Change Rate (Hz) 50/60
• Refresh Rate (Hz) 3840
• Transport Package Flip COB
• Specification 600*337.5*32
• Trademark Inspur
• Origin China
• HS Code 8528591090

Product Description

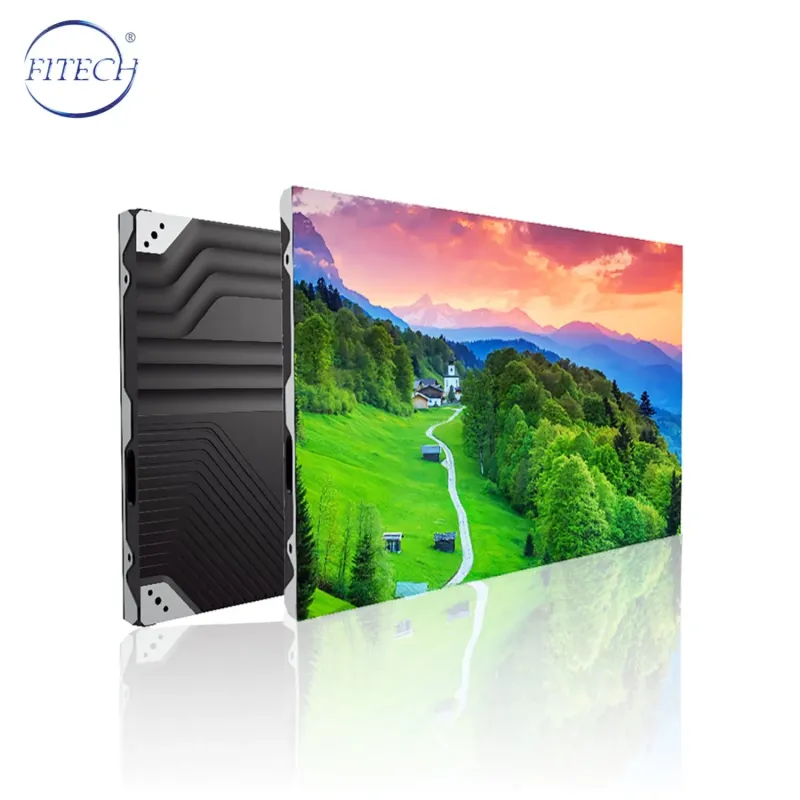

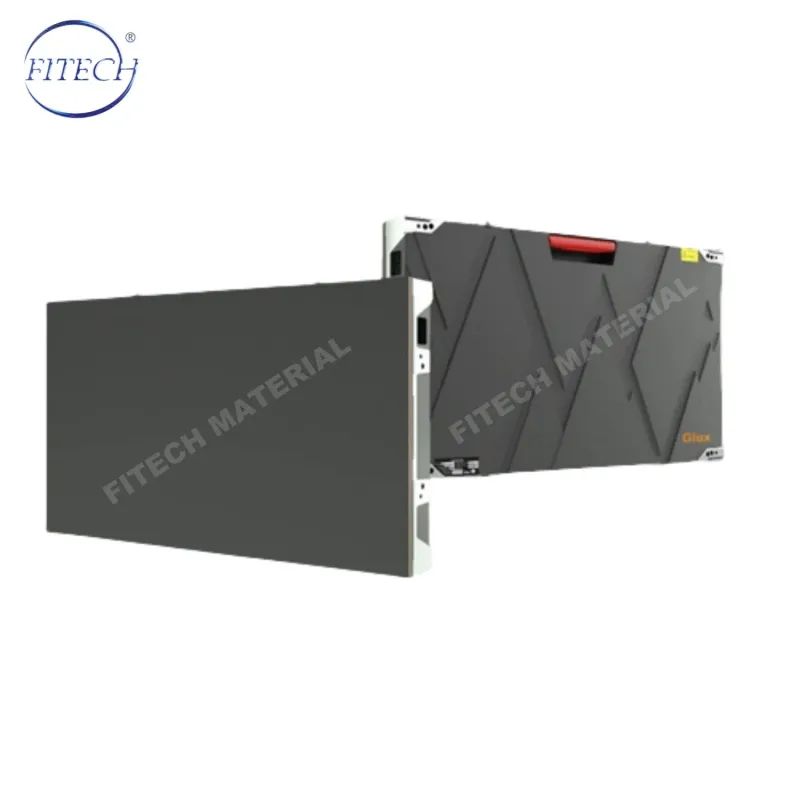

LED Display Terminal (COB0.9)

Based on a new generation of full-flip COB microdisplay technology, the LED small-pitch splintered screen of this series supports advanced HDR digital image technology, and has the characteristics of super large, ultra-thin, ultra-clear, ultra-bright, ultra-reliable, ultra-protection, etc. The flip-flip COB small-pitch ultra-clear display will become the ultimate solution for large scene display in the era of micro display.

Product Features

1. Flip COB packaging technology, welding parts from "point" to "surface", stable and reliable performance
2. 16:9 design, point-to-point matching FHD/4K/8K display
3. 115% ultra-wide field of view, 170 degrees viewing Angle, arbitrary Angle color, brightness consistent color
4. Panel surface anti-glare anti-blu-ray technology, effectively reduce light intensity radiation, look comfortable
5. High density and lightweight box design, aluminum alloy integrated die-casting molding, strong toughness, high precision
6. Black optical processing technology, high ink consistency, 10,000:1 ultra-high contrast, the picture more deep immersion
7. Protection level IP65, corrosion, collision, shock, moisture, water, dust, salt spray, anti-static
8. Unique temperature control and heat dissipation technology, the surface temperature of the screen body is uniform, and the power consumption is reduced by 20% compared with the conventional display
9. HDR(High Dynamic Range image) digital image technology, image details are rich, static and high dynamic picture quality fine lossless
10. Full front maintenance, no need to reserve a maintenance channel on the back

Product Specification

• Model LED Display Terminal IV6307B
• Module Composition Pixel Composition RGB
• Package Method Flip COB
• Pixel Pitch (mm) 0.9375
• Pixel Density (points /m2) 1137777
• Module Resolution (W×H) 160×180
• Module Dimensions (W×H) (Mm) 150×168.75
• Cabinet Unit Size (W×H×D) 600×337.5×32
• Unit Resolution (W×H) 640×360
• Unit Weight (kg) 4.3
• Maintenance Method Front maintenance
• Protection Level IP65 (front)
• Cabinet Material Die-cast aluminum
• Flatness 0.15 mm
• Optical Parameters Point-By-Point Correction Support
• Flash Storage Function Support
• Brightness (cd/m2) Standard 600 (Customizable to 2000)
• Color Temperature (K) 3000-10000 adjustable
• Viewing Angle Horizontal 170°/ Vertical 170°
• Brightness Uniformity ≥97%
• Chroma Uniformity ±0.003Cx, within Cy
• Color Gamut ≥115%
• Contrast Ratio ≥10000:1
• Electrical Parameters Maximum Power Consumption (W/M2) ≤350
• Average Power Consumption (W/M²) ≤112
• Operating Voltage AC 100-240V (50/60Hz)
• Handling Performance Number Of Scans 54
• Image Frame Change Rate (Hz) 50/60
• Refresh Rate (Hz) 3840
• Grayscale (bits) 16
• Usage Parameters Lifespan Typical Value(h) ≥100000
• Operating Temperature/Humidity Range -10ºC - 40ºC / 10%-90%RH (non-condensing)
• Storage Temperature/Humidity Range -20 ° C - 60 ° C / 10%-90%RH (non-condensing)

Product Dimensions

Note:

• The above parameters are typical values of the product. Different batches of products may vary. The actual parameters of the product are subject to the factory inspection report.
• The product will be continuously optimized and iterated during the production process, and the product specification sheet will be adjusted at any time. Consult regional distributors before purchasing.
• For customized products, the specification sheet needs to be reissued.
