P0.9 P1.2 P1.5 HD COB Fine Flip-Chip Indoor 4K/8K Full Color Small Pixel Pitch LED Video Wall Display

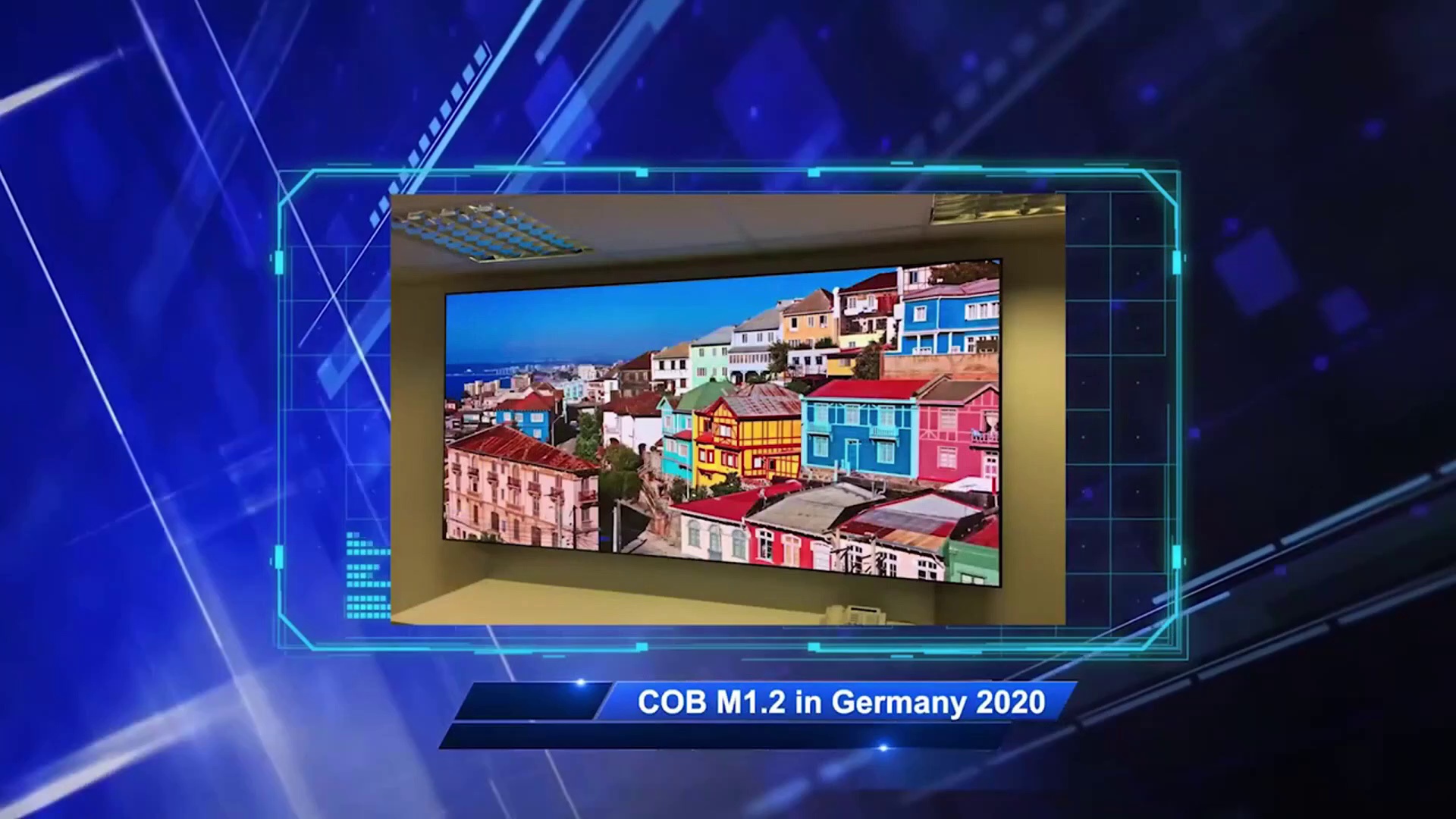

Video

Product ID: 68589435

P0.9 P1.2 P1.5 HD COB Fine Flip-Chip Indoor 4K/8K Full Color Small Pixel Pitch LED Video Wall Display

Contact Now

Description

Overview

Basic Info.

Model NO. AE009
Pixel Pitch 0.9375mm
Pixel Configuration 1R,1G,1B
Pixel Density 1,137,777 Pixels/M²
Scanning Mode 1/45 Scan
System Operating Platform Windows10
Display Type LED Video Display
Application Stage Performance, Advertising, Shopping Guide
IP Rating IP65
Certification CE, RoHS, CCC
LED Type Inverted COB
Unit Resolution 640*360dots
Unit Ratio 16:9
Materials Die-Cast Aluminum
Contrast Ratio 20,000:1
Overall Thickness(mm) 27mm
Transport Package Wooden Case
Specification 600mm*337.5mm*27mm
Trademark ALLSEELED
Origin Shenzhen
HS Code 8528591090

Packaging & Delivery

Package Size 60.00cm * 2.70cm * 33.75cm
Package Gross Weight 7.800kg

Product Description

(1) RGB full inverted COB
(2) Unit aspect ratio 16:9, enabling point-to-point splicing at 720P, 1080P, 4K, 8K and above;
(3) Ultra-high reliability rate, pixel failure rate less than 5PPM;
(4) Anti-knock, moisture-proof;
(5) Common shade solution, fast heat dissipation, low power consumption, longer life;
(6) Ultra-high contrast ratio, large viewing angle, good module consistency, non-reflective;
(7) No bracket design, simplify the process, better quality control;
(8) Low brightness and high gray design: 14bit or more gray scale display under 300nits brightness;
(9) 15000:1 maximum contrast ratio and 16.7M high color reproduction display;
(10) The unit is made of cast aluminium, easy to dissipate heat, light weight and high precision;
(11) Maintainable in front and rear of the product;
(12) Fanless and silent design.

Product Parameters

Unit Parameters	Parameter Name	P0.7	P0.9	P1.2
Model Number	AE007	AE009	AE012	AE015
Pixel Pitch (mm)	0.78mm	0.9375mm	1.25mm	1.5625mm
Pixel Configuration	RGB	RGB	RGB	RGB
LED Type	Inverted COB	Inverted COB	Inverted COB	Inverted COB
Pixel Density	1638400pixels/M2	1,137,777pixels/M2	640000pixels/M2	409600 pixels/M2
Unit Size(WxH)	600mm*337.5mm	600mm*337.5mm	600mm*337.5mm	600mm*337.5mm
Unit Resolution	768*432Dots	640*360Dots	480*270Dots	384*216Dots
Unit Ratio	16:9	16:9	16:9	16:9
Unit Weight	6.4kg/panel	7.5kg/panel	7.5kg/panel	6.5kg/panel
Drive Mode	Constant current driver	Constant current driver	Constant current driver	Constant current driver
Materials	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum
Maintenance Type	Front / Rear maintenance	Front / Rear maintenance	Front / Rear maintenance	Front / Rear maintenance
Brightness (Max.)	0-600nit	0-600nit	0-600nit	0-600nit
Unit Power (Max.)	120w	90w	90w	120w
Unit Power (Typical)	40w	30w	30w	40w
Color Temperature (Adjustable)	3000K~10000K	3000K~9000K	3000K~9000K	3000K~10000K
Viewing Angle	H: ≥160°;V: ≥160°	H: ≥170°;V: ≥170°	H: >165°; V: >165°	H: >165°; V: >165°
Max Contrast Ratio	15000:1	15000:1	15000:1	8000:1
Brightness Control	Manual/automatic	Manual/automatic	Manual/automatic	Manual/automatic
Input Voltage	AC 100~240V	AC 100~240V	AC 100~240V	AC 100~240V
Input Power Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Processing Depth (bits)	13bit	13bit	13bit	13bit
Gray Scale	16384levels per color	16384levels per color	16384levels per color	16384levels per color
Color	4.3980trillion	4.3980trillion	4.3980trillion	4.3980trillion
Frame Rate	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Refresh Frequency (Hz)	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
Recommended Viewing Distance	2M	2M	2M	2M
Operating Temperature	-10ºC~+40ºC/10~90%RH	-10ºC~+40ºC/10~90%RH	-10ºC~+40ºC/10~90%RH	-10ºC~+40ºC/10~90%RH
Storage Temperature	-20ºC~+60ºC/10~60%RH	-20ºC~+60ºC/10~60%RH	-20ºC~+60ºC/10~60%RH	-20ºC~+60ºC/10~60%RH
Communication Connection	CAT5 cable transmission (L≤100m); Single-mode fiber (L≤15km)	CAT5 cable transmission (L≤100m); Single-mode fiber (L≤15km)	CAT5 cable transmission (L≤100m); Single-mode fiber (L≤15km)	CAT5 cable transmission (L≤100m); Single-mode fiber (L≤15km)
