Overview

Basic Info.

Model NO. Indoor P0.9 COB LED Screen
Pixel Pitch 0.975mm
Pixel Configuration 1R, 1G, 1B
Pixel Density 1136356dots
Scanning Mode 1/45s
System Operating Platform WIN XP
Display Type LED Video Display

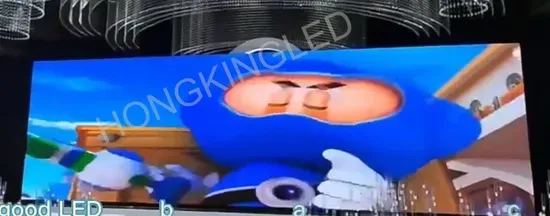

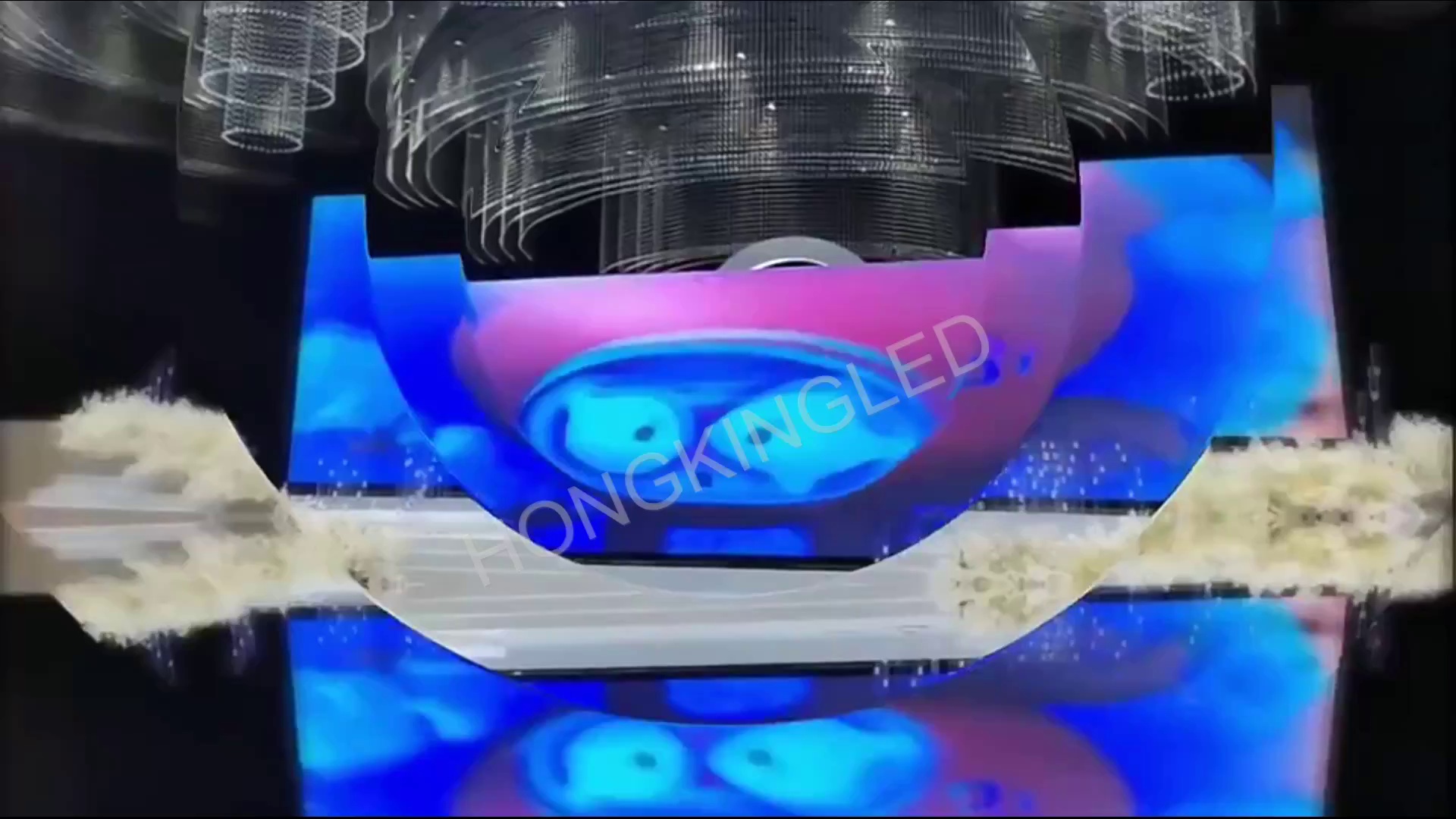

Application Stage Performance, Advertising
IP Rating IP65
Certification CE, RoHS, CCC, ISO9001 ISO14001
Cabinet 600*337.5mm
Module Size 150*168.75mm
Refresh Rate 3840Hz
Driver IC Mbi5124
Brightness 1000CD/Sqm
Module Weight 0.7kg
Product Time 15days
Control System Linsn, Nova-Star
Gray Level 65536 Degree
Transport Package Wooden Case, Flight Case, and Carton
Specification CE 3C ROHS FCC ISO: 9001 ISO: 14001
Trademark HONGKING
Origin Shenzhen China
HS Code 8528591090
Production Capacity 50000sqm/Month

Product Description

What is COB? COB products are widely used in various lighting fields. It is a product with huge market potential and has many future development spaces and opportunities. COB products are a semiconductor packaging technology that directly adheres multiple bare chips to a substrate. Different from traditional single LED packaging, COB technology integrates multiple LED chips on a substrate to form a large light source module, achieving high performance. Density of light output.

Product Parameters

COB LED Display	model	P0.9	P1.25
Pixel Pitch	0.93mm	1.25mm	1.56mm
Unit Size	600X 337.5MM	600X 337.5MM	600X 337.5MM
LED Type	SMD1010	SMD1010	SMD1212
Pixel / Unit	640*360	480*270	384*216
Pixel density	1155625 dots/m²	640000 dots/m²	410881 dots/m²
Scan Mode	1/45 scan	1/45 scan	1/54 scan
Unit Weight	7 Kg	7 Kg	7 Kg
Module Size	150 x 168.75 mm
Viewing Angle	H160 degree V160 degree	H160 degree V160 degree	H160 degree V160 degree
Application	Storage-40°~60° C, working-20°~50° C,	Storage-40~60° C, Working-20~50° C	Storage-40~60° C, Working-20~50° C
Protection Level	For indoor use only	For indoor use only	For indoor use only
Power Consumption	Max:320w/m2; Average:128w/m2	Max:280w/m2; Average:112w/m2	Max:250w/m2; Average:100w/m2
Frame Refresh	≥ 60Hz	≥ 60Hz	≥ 60Hz
Refresh Rate	3840Hz	3840Hz	3840Hz
Processing	16bit	16bit	16bit
Brightness	800-2000nits	800-2000nits	800-2000nits
Power Supply	AC110/240V, 50~60Hz	AC110/240V, 50~60Hz	AC110/240V, 50~60Hz
MTBF	≥ 1, 000 Hours	≥ 1, 000 Hours	≥ 1, 000 Hours
Life Span	≥100, 000 Hours	≥ 100, 000 Hours	≥ 100, 000 Hours
Pixel Failure
Maintenance Method	Front Maintenance
Woking Humidity	10% to 90%
