Full Color Indoor COB P2 LED Advertising Display Screen
Description
Overview
Basic Info.
- Model NO. UHD-P2
- Pixel Pitch 2mm
- Pixel Configuration 1R,1G,1B
- Pixel Density 250000 DOT/M2
- Scanning Mode 1/32 Scan
- System Operating Platform Windows
- Display Type LED Video Display
- Application Stage Performance, Advertising, Shopping Guide
- IP Rating IP31
- Certification CE, RoHS, CCC, ETL
- Cabinet Aluminium
- Weight 6kg/M2
- Brightness 800nits
- Refresh Rate >1920Hz
- Contrast Rate 3000:1
- Voltage AC110-240V
- Viewing Distance 2m
- LED Lamps Epistar
- Driver IC Constent Current
- PSU MW
- Service Solution Front Service
- Installation Back Bolted Hanging
- System Nova
- Software OS Windows
- Transport Package Plywood Cases
- Specification 600x337.5mm
- Trademark LEDventure
- Origin China
- HS Code 8528591090
- Production Capacity 2000sqm/Month
Product Description
We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display, stadium sport led display screen, led sign, led display board and led billboard.
P0.6 P0.93 P1.25 P1.56 P1.66 P1.87 P2 P2.5 P3 Indoor LED Video display Wall for advertising is popular for indoor advertising media, such as in airport, shopping mall, shows etc, it is light weight design, HD resolution with high contract rate, also refresh rate is good level to ensure image quality, hot sale pixels are P2.5mm and P3mm.
Pixel Pitch
- 0.6mm
- 0.93mm
- 1.25mm
- 1.56mm
- 1.66mm
- 1.87mm
- 2mm
- 2.5mm
- 3mm
Brightness
- 800nits
Cabinet Size
- 600x337.5mm
Max. Power Consumption
- 250W/panel
LED Brand
- Epistar
Driver IC
- Constent Current
PSU
- MW
Refresh Rate
- >3840HZ

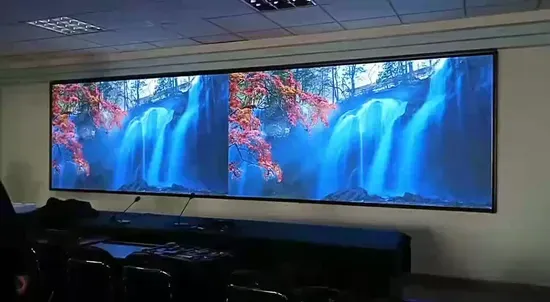

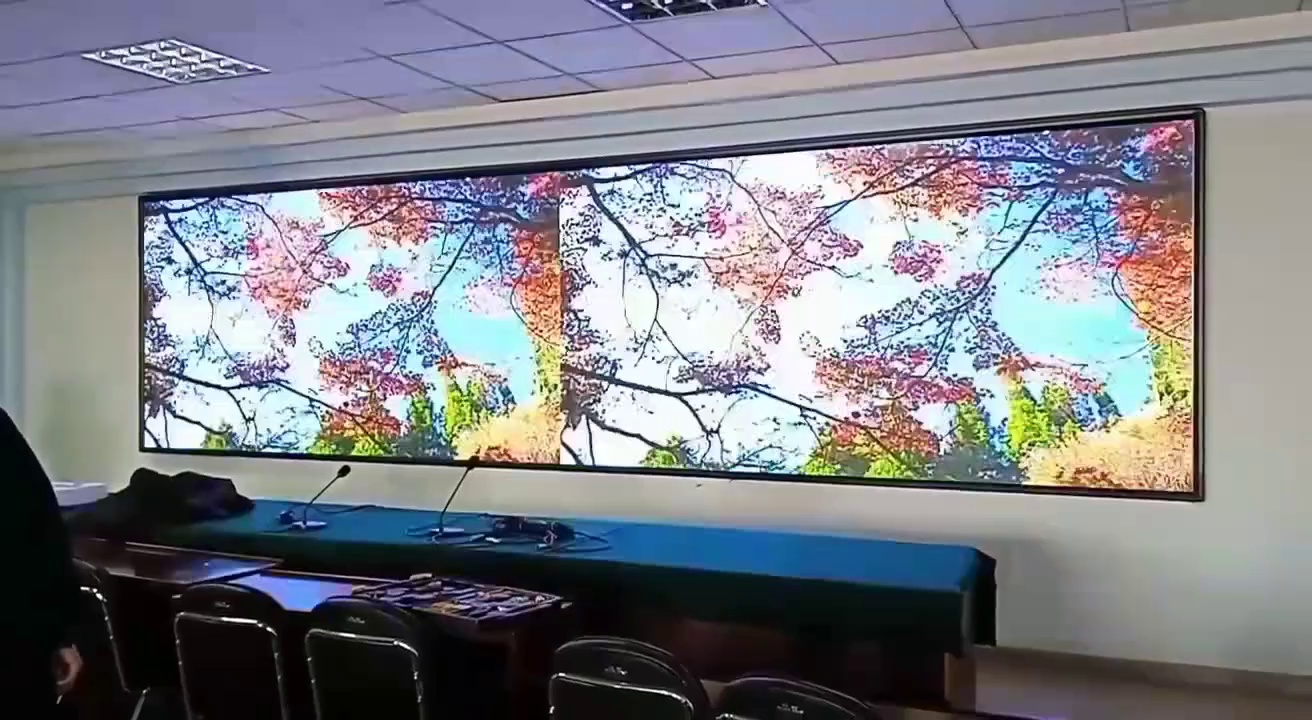

Detailed Photos
New Design UHD LED Video Wall with P0.6 P0.93 P1.25 P1.56 P1.66 P1.87 P2 P2.5 P3 for Indoor Outdoor RGB Advertising Digital Billboard Display Screen COB PanelIndoor led video wall detail images included hardware.
Material Quality Level
All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
Technical Specification
| Item | Full Color Indoor P2 LED Advertising Screen Panel LED Video Wall |
|---|---|
| Module Number | P2 |
| Pixel Pitch | 2mm |
| Pixel Density | 250000 pixels/M2 |
| Pixel Configuration | 1R1G1B |
| LED Type | Epistar,SMD |
| Module Size | 150x337.5mm/150x168.75mm |
| Module Resolution | 64*72 pixels |
| Min. Viewing Distance | 2m |
| Brightness | 800 nits |
| Viewing Angle(degree) | ≤140° |
| Average Power Consumption | 300 W/M2 |
| Scan Mode | 1/32 Scan |
| Protection Level | IP31 |
| Cabinet Size | 600x337.5mm |
| Color Temperature | The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements |
| Input Voltage | AC110-240V, 50HZ/60HZ |
| Refresh Rate | > 3840hz |
| Color | 65535 Levels |
| Horizontal/Vertical Viewing Angle | <140° |
| Gray Scale | 16 bits |
| Effective Communication Distance(without relay) | <100 meters |
| Lifespan | ≥100,000 hours |
| Environment Temperature | Storage: -40°C~+85°C , Operation: -20 °C~+45°C |
| Blind Spot Rate | <0.0001(led display industry standard is less than 0.0003) |
| Control Mode | Video frequency synchronization |
Installation Methods
Indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
About US & Certificates
Work Shop
Packing Information
By plywood cases, packing well and easy to load.
FAQ
- Q1: Can I get a sample before official order?
- A: Sample orders are available for quality check and market test.
- Q2: What is your payment method?
- A: Our usually practice for payment is by T/T for the mass order. At least 30-50 % deposit in advance, and the balance should be paid before delivery.
- Q3: What is your shipping and packing way?
- A: We do plywood case or flight case as per customers' requests. For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airline.
- Q4: Can we make any size of led display?
- A: Nope, according the led module size or cabinet size.
- Q5: How to install led display?
- A: We will provide drawing of steel structure or hanging truss according to your requirements, you can install the led display according to the installation guide.
- Q6: Is Available to print customer required logo on your LED product?
- A: Surely it is. Please inform and confirm the logo design details with our team ahead of the production. Then, we will follow your requirements.
