Product ID: 68589433
Indoor Full Color COB LED Display
Contact Now
Description
Basic Info.
| Model NO. | ph2.5, ph1.8, ph1.5, 1.2 |
|---|---|
| Pixel Pitch | 2.5 |
| Pixel Configuration | 1R,1G,1B |
| Pixel Density | 160000 Dots/Sqm |
| System Operating Platform | WIN2000 |
| Display Type | LED Video Display |
| Application | Stage Performance, Advertising, Shopping Guide |
| IP Rating | 32 |
| Certification | CE, RoHS, CCC, ETL |
| Cabinet Weight | 6.5kg |
| Transport Package | Plywood Case |
| Specification | 480*480mm |
| Trademark | XD Vision |
| Origin | Shenzhen, China |
| HS Code | 8528591090 |
| Production Capacity | 50000piece/Year |
Product Description
We are a professional manufacturer of LED display. We have excellent R&D department, independent design ability.
Our main products include led single color display, indoor full color led display screen, led display, outdoor full-color led to wireless car use screen, etc. Can be used for shopping, banking, bus station, railway stations, urban centers, airports, schools, factories, buses, taxis, creative/flexible screen and so on.

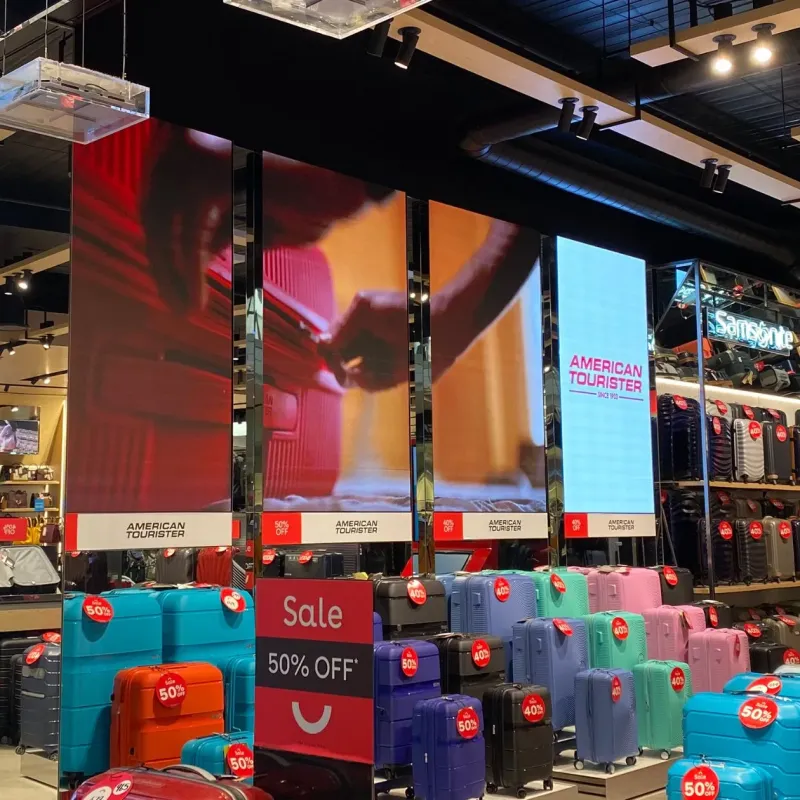

Advertising LED displays, Stadium perimeter LED screen, Mobile led display for mobile media, shopping mall LED billboard for logo showing, bank & stock exchange LED message signs for rates showing, train & bus station, airport, telecommunication LED video wall, stage performances, conference room, etc.
XD-COB series small pitch features and advantages:
- Surface light source: healthier and safer;
- Seamless stitching: the picture is delicate and clear, seamless, meeting the needs of indoor close-up viewing;
- Installation: risk of safety, quickness, anti-mite, and no liquid leakage;
- High reliability: no electroplating, reflow soldering, patching and other processes, greatly improving the stability of the LED display;
- Wide viewing angle: the package does not require mask protection, and the optical design is optimized. The viewing angle is increased to over 175° without dead angle.
- Wide color gamut: NTSC color gamut of broadcasting and television standard;
- Brightness and comfort: The light is soft, and the brightness can be adjusted according to the surrounding brightness and darkness, ensuring that the picture remains comfortable in various brightness environments.
Panel Specification
| XD-COB2.5 | XD-COB1.8 | XD-COB1.5 | XD-COB1.2 |
|---|---|---|---|
| Pixel parameter LED Configuration: RGB LED COB |
Pixel parameter LED Configuration: RGB LED COB |
Pixel parameter LED Configuration: RGB LED COB |
Pixel parameter LED Configuration: RGB LED COB |
| Pixel Pitch (mm) 2.5 |
Pixel Pitch (mm) 1.875 |
Pixel Pitch (mm) 1.5 |
Pixel Pitch (mm) 1.25 |
| Pixel Density (Pixel/m2) 160000 |
Pixel Density (Pixel/m2) 284444 |
Pixel Density (Pixel/m2) 444444 |
Pixel Density (Pixel/m2) 640000 |
| Cabinet parameter Cabinet Resolution (W/Pixel × H/Pixel): 192 × 192 Cabinet Size (W/mm × H/mm): 480 × 480 Cabinet Material: Die-cast aluminum Cabinet Weight (kg/Pcs): 6.5 Cabinet area(m2): 0.2304 Cabinet flatness (mm): ≤0.1 Maintenance: Before/After |
Cabinet parameter Cabinet Resolution (W/Pixel × H/Pixel): 256 × 256 Cabinet Size (W/mm × H/mm): 480 × 480 Cabinet Material: Die-cast aluminum Cabinet Weight (kg/Pcs): 7 Cabinet area(m2): 0.2304 Cabinet flatness (mm): ≤0.1 Maintenance: Before/After |
Cabinet parameter Cabinet Resolution (W/Pixel × H/Pixel): 320 × 320 Cabinet Size (W/mm × H/mm): 480 × 480 Cabinet Material: Die-cast aluminum Cabinet Weight (kg/Pcs): 7 Cabinet area(m2): 0.2304 Cabinet flatness (mm): ≤0.1 Maintenance: Before/After |
Cabinet parameter Cabinet Resolution (W/Pixel × H/Pixel): 384 × 384 Cabinet Size (W/mm × H/mm): 480 × 480 Cabinet Material: Die-cast aluminum Cabinet Weight (kg/Pcs): 7 Cabinet area(m2): 0.2304 Cabinet flatness (mm): ≤0.1 Maintenance: Before/After |
| Optical parameter Point-by-point uniform correction: Yes White balance brightness (cd/m2): ≥600 bright adjustment: Program control / automatic / manual Color temperature (K): 3000 - 10000 Horizontal view angle (°): 175 Vertical view angle(°): 175 Contrast: 5000:1 Brightness uniformity: ≥ 97% |
Optical parameter Point-by-point uniform correction: Yes White balance brightness (cd/m2): ≥600 bright adjustment: Program control / automatic / manual Color temperature (K): 3000 - 10000 Horizontal view angle (°): 175 Vertical view angle(°): 175 Contrast: 5000:1 Brightness uniformity: ≥ 97% |
Optical parameter Point-by-point uniform correction: Yes White balance brightness (cd/m2): ≥600 bright adjustment: Program control / automatic / manual Color temperature (K): 3000 - 10000 Horizontal view angle (°): 175 Vertical view angle(°): 175 Contrast: 5000:1 Brightness uniformity: ≥ 97% |
Optical parameter Point-by-point uniform correction: Yes White balance brightness (cd/m2): ≥600 bright adjustment: Program control / automatic / manual Color temperature (K): 3000 - 10000 Horizontal view angle (°): 175 Vertical view angle(°): 175 Contrast: 5000:1 Brightness uniformity: ≥ 97% |
| Electrical parameters Max.Power Consumption (W/m2): 600 Ave.Power Consumption (W/m2): 200 Power supply requirements: AC100~240V(50-60Hz) |
Electrical parameters Max.Power Consumption (W/m2): 600 Ave.Power Consumption (W/m2): 200 Power supply requirements: AC100~240V(50-60Hz) |
Electrical parameters Max.Power Consumption (W/m2): 600 Ave.Power Consumption (W/m2): 200 Power supply requirements: AC100~240V(50-60Hz) |
Electrical parameters Max.Power Consumption (W/m2): 600 Ave.Power Consumption (W/m2): 200 Power supply requirements: AC100~240V(50-60Hz) |
| Processing performance Drive mode: Constant current drive Frame change frequency (Hz): 60 Refresh Frequency (Hz): ≥ 2280Hz |
Processing performance Drive mode: Constant current drive Frame change frequency (Hz): 60 Refresh Frequency (Hz): ≥ 3840Hz |
Processing performance Drive mode: Constant current drive Frame change frequency (Hz): 60 Refresh Frequency (Hz): ≥ 3840Hz |
Processing performance Drive mode: Constant current drive Frame change frequency (Hz): 60 Refresh Frequency (Hz): ≥ 3300Hz |
| Using parameters Operating Life (h): 100000 IP Rating (front/back): IP54 Operating Temperature (ºC): 0 ~ +40 storage temperature (ºC): -10~ +60 Operating Humidity (RH): 10% ~ 80% storage Humidity (RH): 10% ~ 85% |
Using parameters Operating Life (h): 100000 IP Rating (front/back): IP54 Operating Temperature (ºC): 0 ~ +40 storage temperature (ºC): -10~ +60 Operating Humidity (RH): 10% ~ 80% storage Humidity (RH): 10% ~ 85% |
Using parameters Operating Life (h): 100000 IP Rating (front/back): IP54 Operating Temperature (ºC): 0 ~ +40 storage temperature (ºC): -10~ +60 Operating Humidity (RH): 10% ~ 80% storage Humidity (RH): 10% ~ 85% |
Using parameters Operating Life (h): 100000 IP Rating (front/back): IP54 Operating Temperature (ºC): 0 ~ +40 storage temperature (ºC): -10~ +60 Operating Humidity (RH): 10% ~ 80% storage Humidity (RH): 10% ~ 85% |
Other parameters
Support on-site point-by-point consistency correction
Support loop signal dual backup
Support Input: AV, S-Video, VGA, DVI, HDMI, SDI, DP
Note: Parameter indicators can be adjusted according to specific needs.
