Hob COB Small Pitch P1.25 P1.5 High Digital Indoor Full Color LED Display Panel
Description
Basic Info.
| Model NO. | indoor P1.25 LED screen |
| Pixel Pitch | 1.25 |
| Pixel Configuration | 1R,1G,1B |
| Pixel Density | 640000 |
| System Operating Platform | Windows7/8/10 |
| Display Type | LED Video Display |
| Application | Stage Performance, Advertising, Shopping Guide |
| IP Rating | IP43 |
| Certification | CE, RoHS, CCC |
| Product Name | LED Display P1.25 |
| Driver IC | 3840Hz |
| Brightness CD/Sqm | 900CD/M2 |
| Grey Scale | 65536 Degree |
| Life Time | More 100,000 Hours (80%) |
| Mtbf | More 50,000 Hours |
| Humidity | 10%-95% |
| Color Temperature | 12500-9500K |
| Transport Package | Wooden Case Flight Case and Carton |
| Specification | 200*150mm |
| Trademark | hongking |
| Origin | Shenzhen China |
| HS Code | 8528591090 |
| Production Capacity | 5000 Sqm/Year |
Product Description
HOB COB Small Pitch P1.25P1.5 High Digital Indoor Full Color LED Display Panel

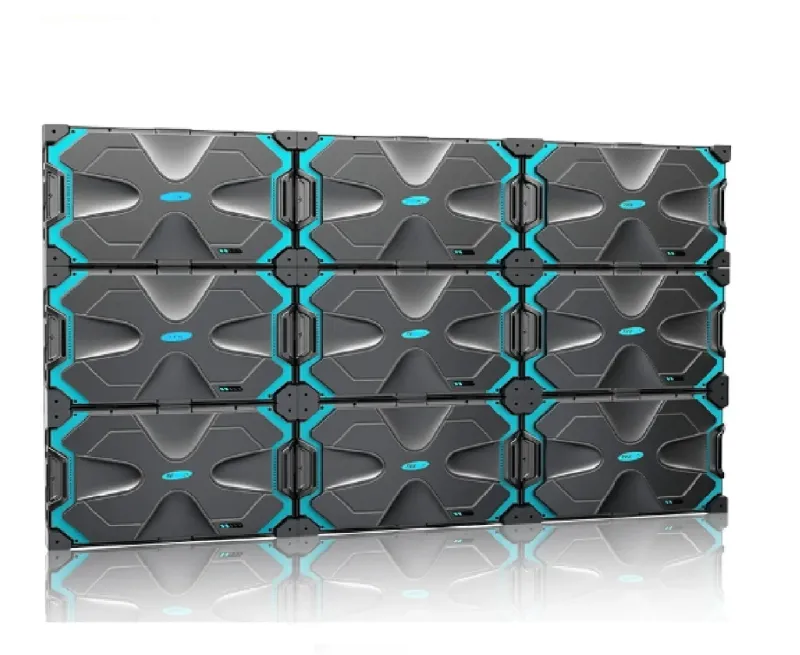

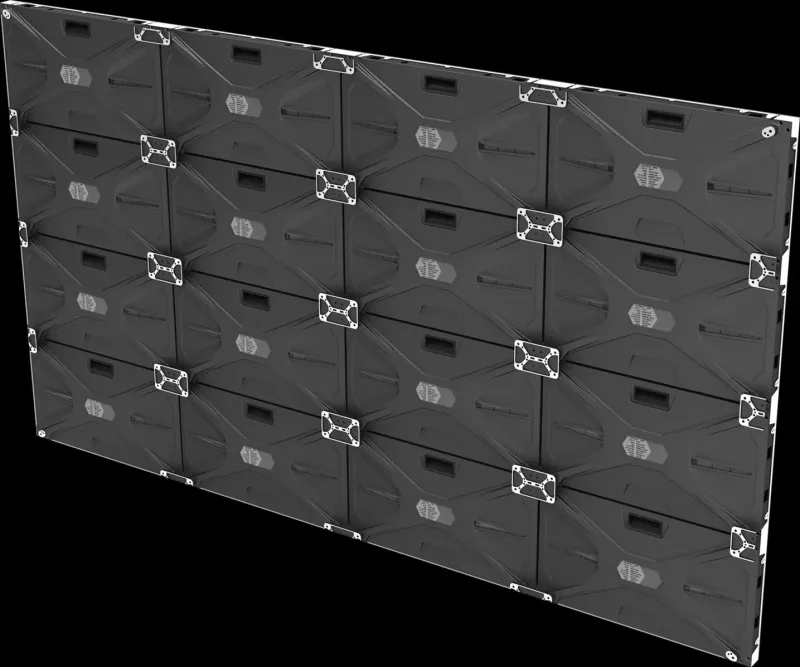

- Durable, reliable, precisely made Aluminum die-casting, fanless design, small expansion coefficient
- Spring locks connect the cabinets vertically
- Signal and power indicator & reset button well shows the working condition of the whole screen
- Fast spring locks connect the cabinets horizontally, only 10 seconds for per cabinet
- Light-weight 4.6kg/pc. for panel with light-weight sub-frame structure design
- Nanotechnology and unique positioning system, making the installation and dismantlement in one step
Product Description
| No. | Product name | P1.25 led display screen |
|---|---|---|
| 1 | Pixel Pitch(mm) | 1.25mm |
| 2 | Pixel configuration | 1R1G1B/SMD1010 lamp |
| 3 | Pixel density | 640000 dots/m2 |
| 4 | Brightness | 900 cd/m2 |
| 5 | Module size(W*H) | 200*150mm |
| 6 | Module Resolution (W*H) | 240 dots x 135dots |
| 7 | Module weight | 500g |
| 8 | Cabinet size (W*H) | 400mm×300mm or 600MM X 337.5 |
| 9 | Drive IC | MBI5153 or ICN 2153 |
| 10 | Drive mode | 1/26scan |
| 11 | Viewing Angle(V/H) | 140 ºC |
| 12 | Grey Scale | 65536 degree |
| 13 | Life time | >100,000 Hours (50%) |
| 14 | MTBF | >50,000 Hours |
| 15 | Operating Voltage | AC110V/220V±10% |
| 17 | Screen Power Consumption | Average:260w/m2 |
| 18 | Input Power Frequency | 50/60Hz |
| 19 | Operating temperature | -30--60ºC |
| 20 | Humidity | 10%-95% |
| 21 | Refresh Rate | ≥3840HZ |
| 22 | Control Method | Synchronized with computer monitor |
| 23 | Color Temperature | 6500K-9500K |
| 24 | LED control system | LINSN,Nova-star,Colorlight is selectable |
| 25 | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km |
| 26 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
| 27 | Systems Operating Platform | Windows 7 / windows 8 /8.1 / windows 10 |
Features:
- Gorgeous Picture: Non-reflective screen, which brings better viewing experience.
- Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
- Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble.
- Standard Size: We use professional buckles and standard modular panels which can snap together easily.
- Our products get low energy cost and high efficiency.
Our Production Process:
Every step of the production we following the serious quality check, from material check - PCB printer - Led lamp SMT- Waving soldering machine - Test - aging test every step have professional person to following 6S Quality check. Modules aging test 72 hours, Whole Led display screen aging test 72 hours, delivery goods before double check.
Our Services
Hongking has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
- Reply enquiries in 24 hours.
- Market research and forecast for customer.
- Provide unique and professional solutions based on customer's requirement.
- Data sheet and samples offer.
- Other services, such as special packing design, factory visiting and so on.
In-sale service:
- Tracking report in producing.
- Quality test report for every order.
- Photos and videos as per customer's requirement.
- Free spare parts.
Our client feedback :
We have the professional engineer team, 24 hours after -service, professional installagion and design team. All your project question can be easy find solution here.

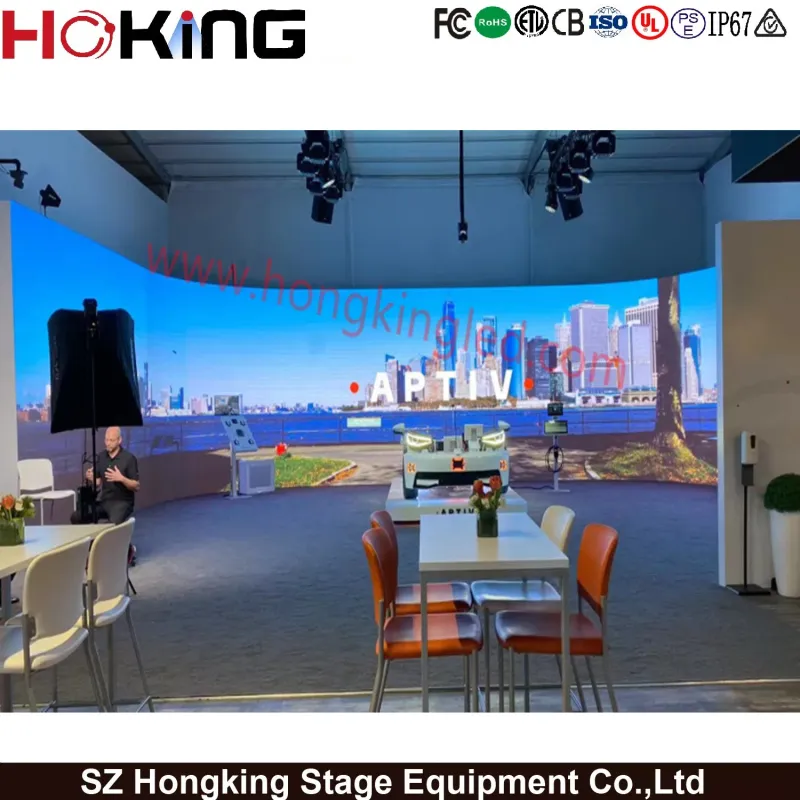

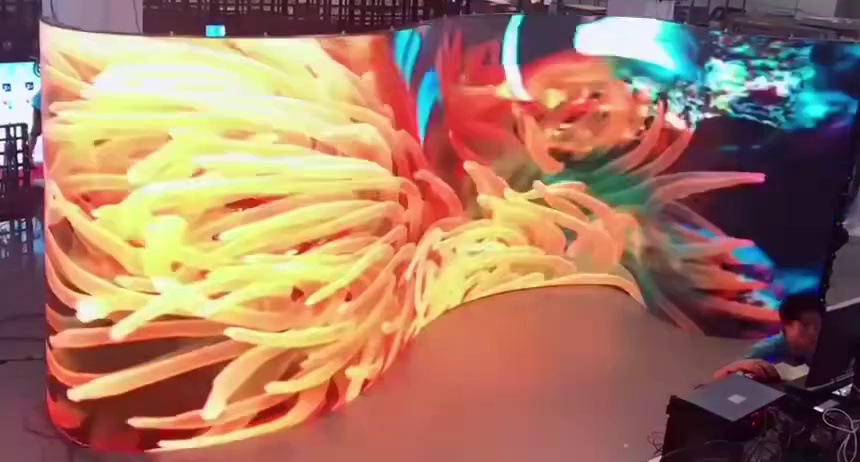

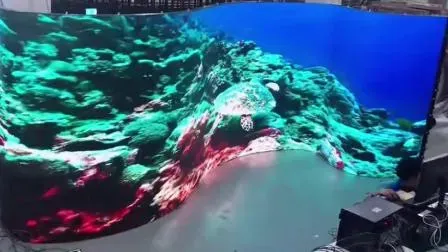

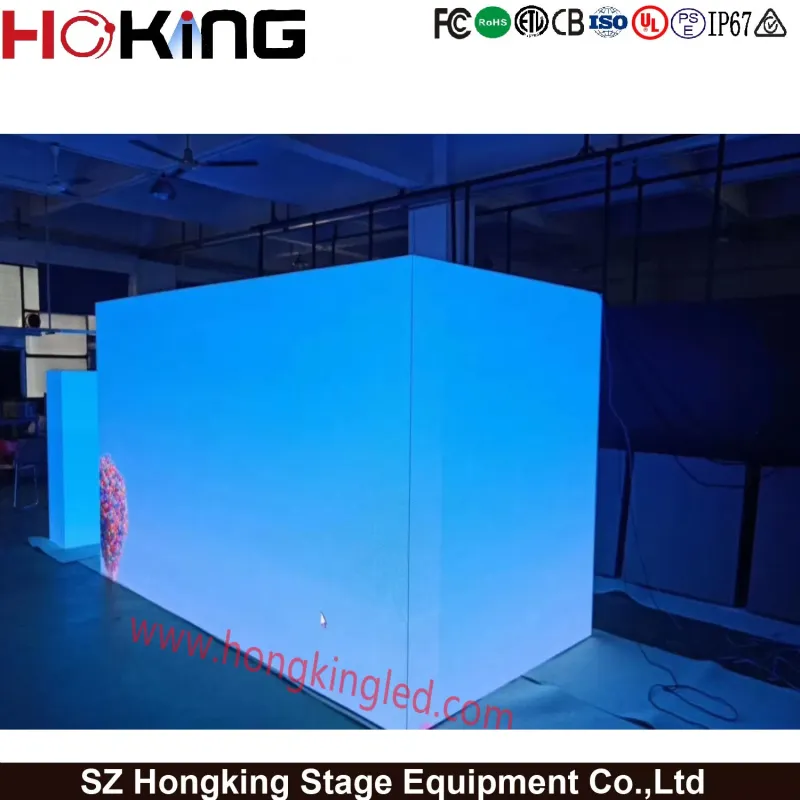

Our project show:
Company description:
Hongkingled company was established in 2013. HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 10 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
FAQ
- Q1: Are you a manufacturer or trading company?
- A1: We are a Professional OEM/ODM manufacturer which has specialized in led display industry for ten years.
- Q2: How does your factory do regarding quality control?
- A2: Quality is priority. Our company always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail. Our factory has gained CE, ROHS, FCC, IP65 authentication.
- Q3: What is your MOQ?
- A3: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
- Q4: When will you make the delivery?
- A4: Generally, we can make the delivery within 10 working days according to the size and quantities of your order.
- Q5: What technical supports can you offer?
- A5: We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory.
- Q6: How long is the warranty?
- A6: The standard warranty is 2 year. It could be longer upon request.
- Q7: Do you provide any free spare parts in each order?
- A7: Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
