Product ID: 68591769

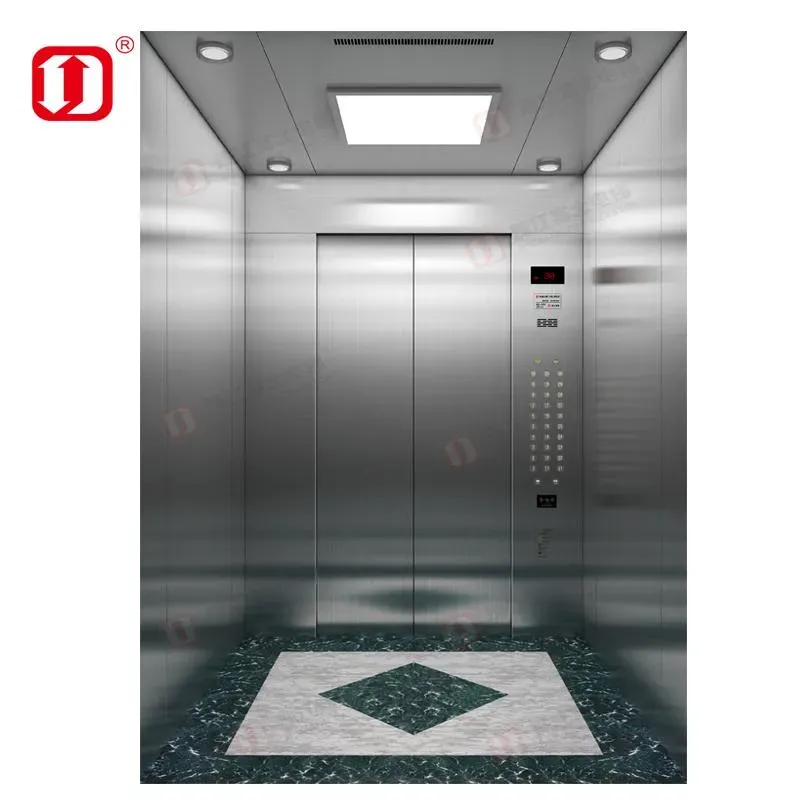

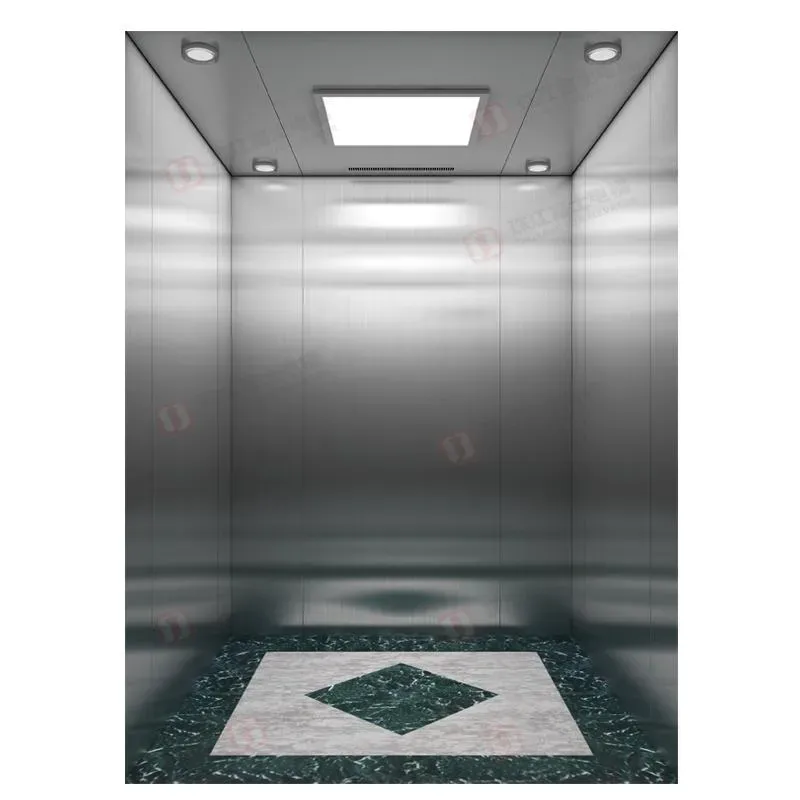

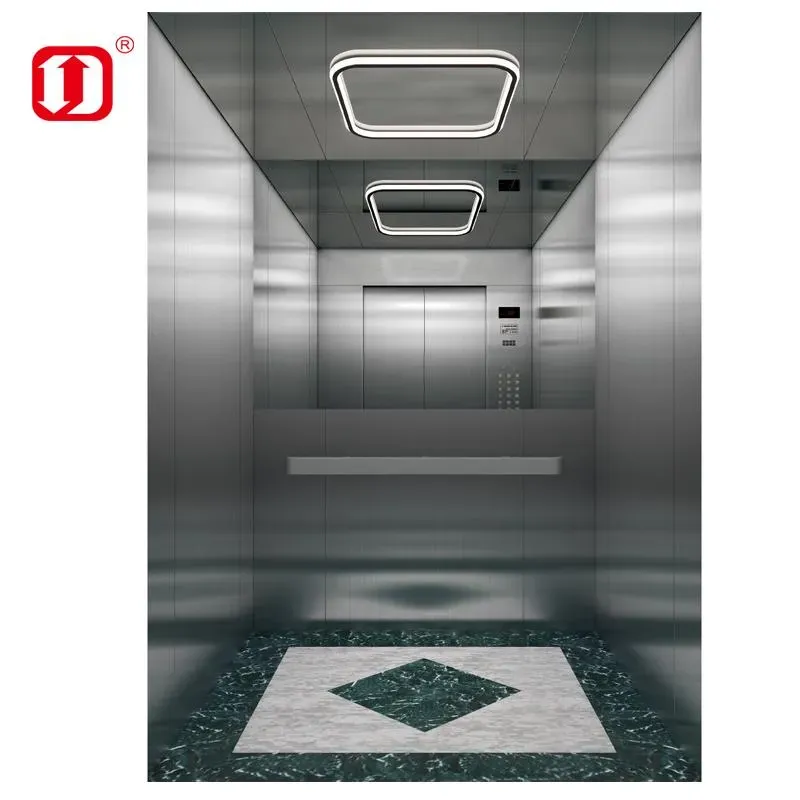

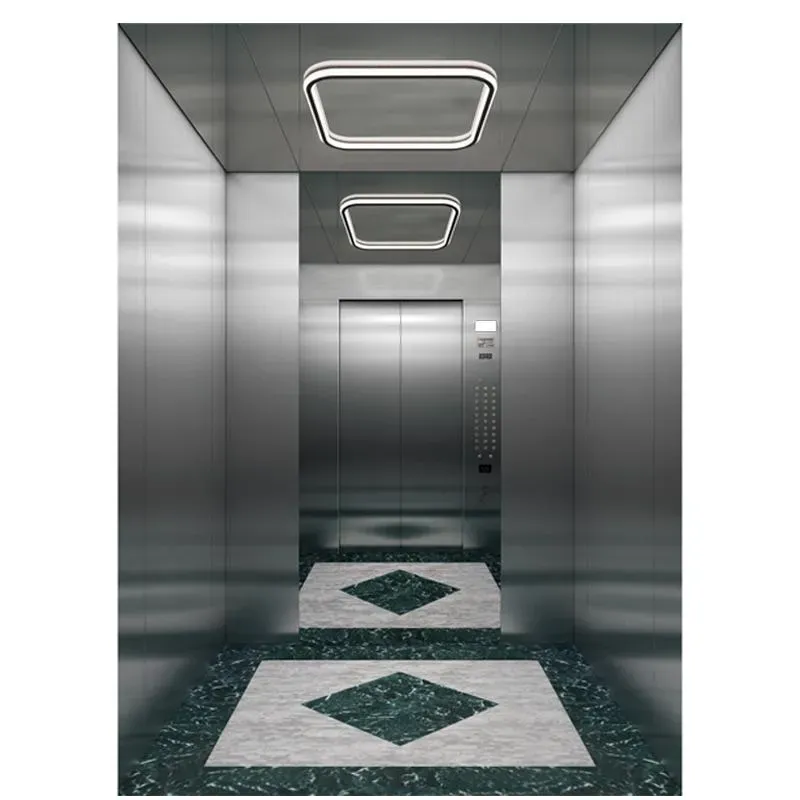

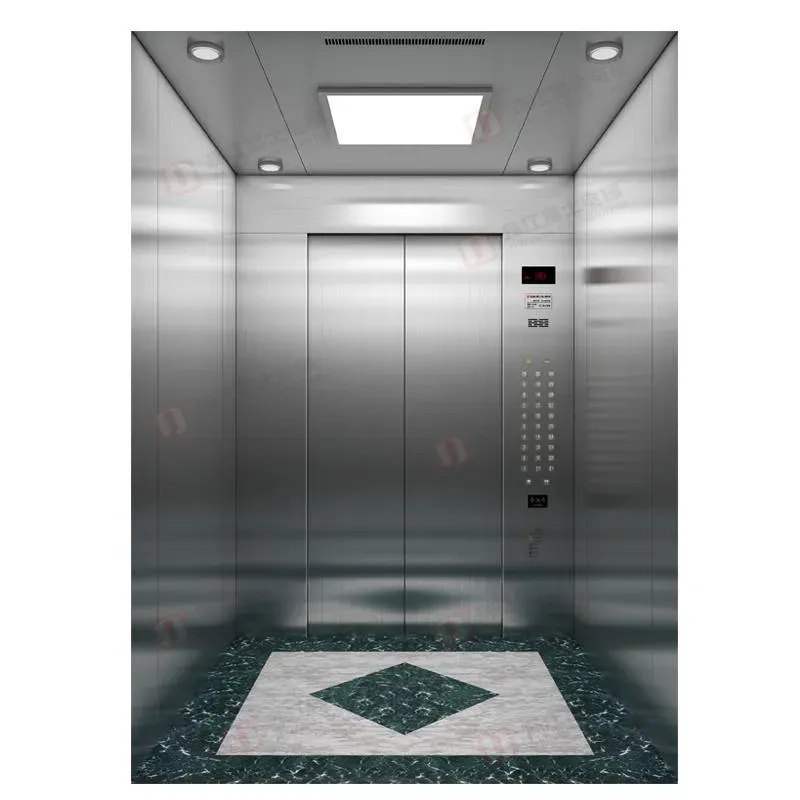

Panoramic Lift for Residential and Commercial Buildings
Contact Now
Description
Overview
Basic Info.
| Model NO. | GSTJW |
| Capacity | 320kg - 1600kg |
| Persons | 4 - 21 |
| Speed | 0.4m/S - 3m/S |
| Control Mode | Signal Control |
| Position of Computer Room | up |
| Elevator Door | Center Opening Door |
| Door Knife | Single |
| Deceleration Device | With Deceleration Device |
| Attendant | N/a |
| Certification | En-81, ISO9001 / ISO1400 / ISO OHSAS18001 |
| Control | Vvvf Elevator Control System |
| Drive Type | AC |
| Usage | House, Villa, Shopping Mall, Supermarket, Shop, etc |
| Material | Hairline Stainless Steel |
| Project Solution Capability | Graphic Design, 3D Model Design, Total Solution For |
| After-Sale Service | Online Technical Support, Onsite Installation, Ons |
| Brand | Zhujiang FUJI |
| Transport Package | Wooden Box |
| Specification | 8 - 15CBM |
| Trademark | Zhujiang Fuji |
| Origin | Guangdong |
| HS Code | 8428101090 |
| Production Capacity | 100000 |
Packaging & Delivery
| Package Size | 70.00cm * 50.00cm * 60.00cm |
| Package Gross Weight | 250.000kg |
Product Description
Product Parameters
GS-J01
Technical specifications of the Home-use elevator (Counterweight at side)
| Persons | Capacity(kg) | Speed(m/s) | Model number | Inner Dimension W x D (mm) | Door Opening Size W x D (mm) | Shaft Size W x D (mm) |
|---|---|---|---|---|---|---|
| 4 | 320 | 0.4 | JSTJW320-12 | 900x1100 | (Right opening) 800x2100 | 1550x1500 |
| 1000x1000 | (Center opening) 700x2100 | 1650x1400 | ||||
| 5 | 400 | 0.4 | JSTJW400-12 | 900x1200 | (Right opening) 800x2100 | 1550x1600 |
| 1000x1100 | (Center opening) 700x2100 | 1650x1500 |
| Capacity(kg) | Rate speed(m/s) | Top Floor Height (mm) | Pit Depth (mm) |
|---|---|---|---|
| 320~400 | 0.4 | ≥3500 | ≥600 |
Product Function
- Group control for 2-8 elevators
- Independent service for passengers
- Automatic leveling against power failure (With storage battery)
- Fireman operation
- Automatic return to base station in fire alarm
- Automatic return when door opening & closing hindered
- Mischief prevention function
- Collective control operation
- Delay closing operation
- Attendant operation
- Collective control of lighting and fans
Technical Specification
