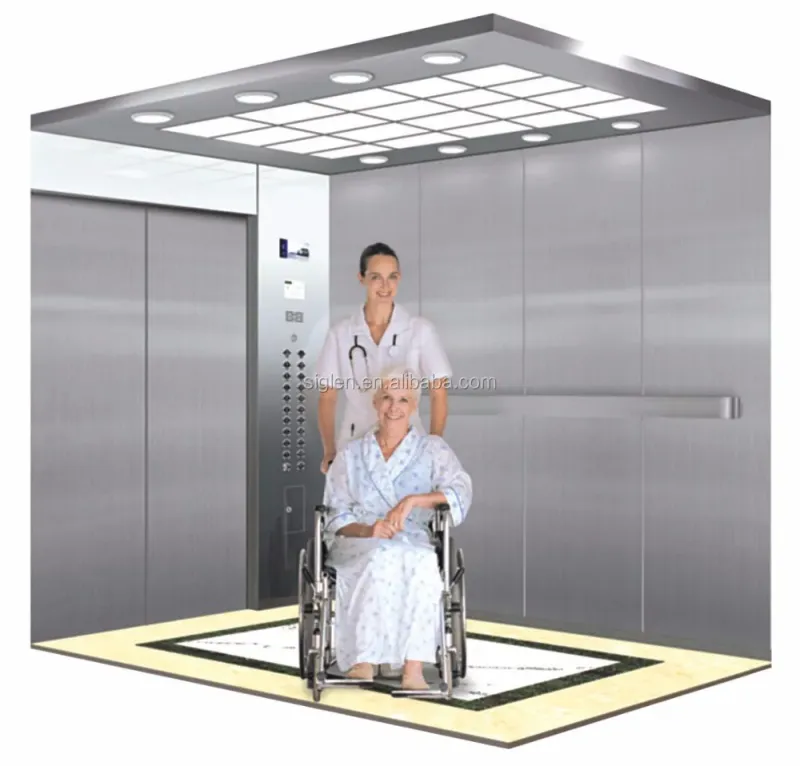

Eac CE ISO Qualified Center Opening Stretcher Bed Elevator
Description
Overview
Basic Info.
| Model NO. | DM-BE011 |
| Driving Type | AC Elevator |
| Capacity | >1000kg |
| Persons | 11 - 19 |
| Speed | <1.00m/s |
| Control Mode | Signal Control |
| Position of Computer Room | up |
| Elevator Door | Center Opening Door |
| Door Knife | Single |
| Deceleration Device | With Deceleration Device |
| Attendant | With Attendant |
| Power | 3phase 380V ,3phase 220V or Customized |
| Control System | Monarch ,Step System,Blue Light |
| Cabin Material | Glass ,Hairline Stainless Steel,Golden Etched,etc |
| Open Way | Center Opening , Side Opening,Manually Operated |
| Open Size | 600mm-1000mm ,Customized According to Shaft |
| Ropping | 2:1 ,1:1 |
| Machine | Machine Room,Machine Roomless,Small Machine Room |
| Control | Vvvf |
| Doors | 2-40 Floors |
| Cabin | Size Can Be Customized |
| Design | Modern |
| Traction Machine | Geared or Gearless Machine |
| Material | Wooden or Marble Design |
| Transport Package | Export Wooden Case |
| Specification | 10CMB |
| Trademark | DEMAN |
| Origin | Jiangsu, China |
| HS Code | 8431310090 |
| Production Capacity | 2000 Units/Year |
Product Description
DEMAN traction type Bed elevator applies new generation permanent synchronous and gearless host and high performance digital variable frequency technology and group computer combined control technology, It can save more than 33% of the energy, What is more, It saves the mechanical energy loss in the traditional gearbox transmission and further enhances the efficiency.
Ceiling
Hairline stainless steel, acrylic arc decorative board
C.O.P.
Can be choosed, hairline steel or golden steel
Indicator
Dot matrix display ,LCD display, LED display
Cabin wall & door
Hairline stainless steel or painted steel
Cabin flooring
PVC or marble or steel
Loading Capacity
630kg 800kg 1000kg 1150kg 1250kg 1600kg 2000kg
Detailed Photos

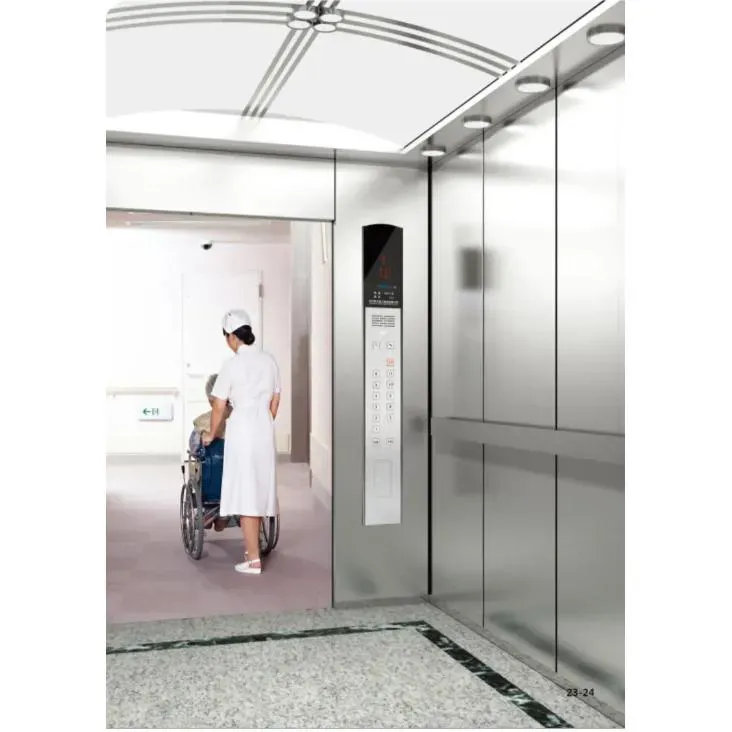

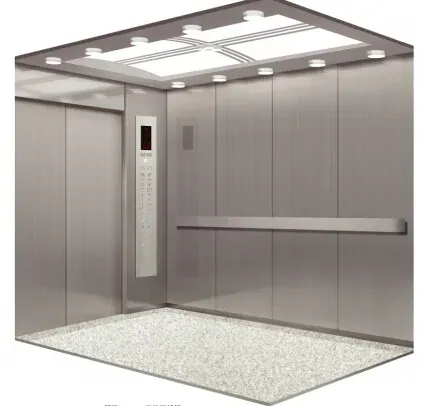

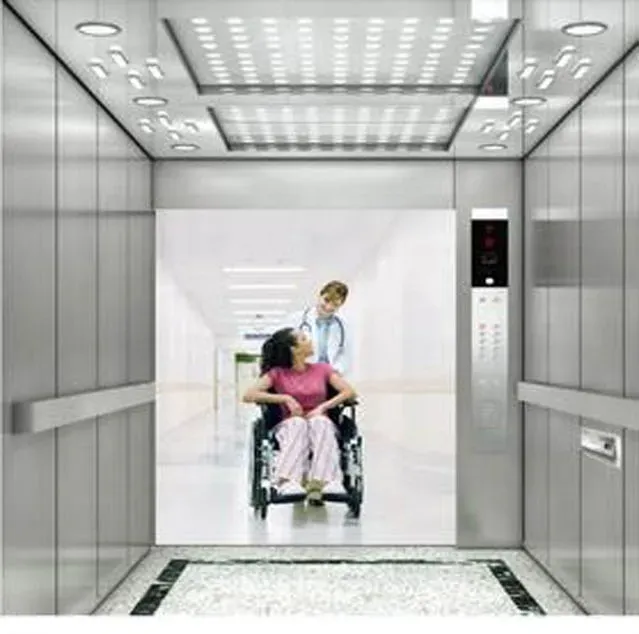

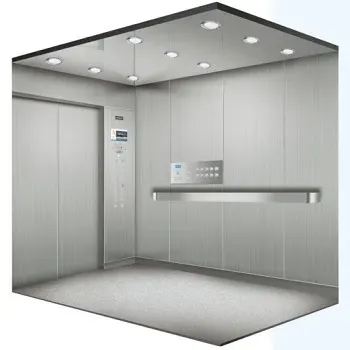

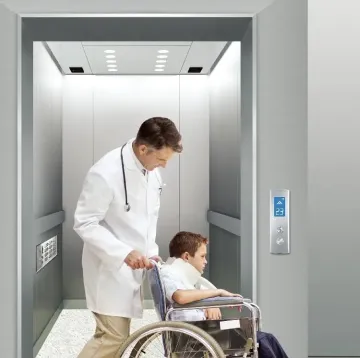

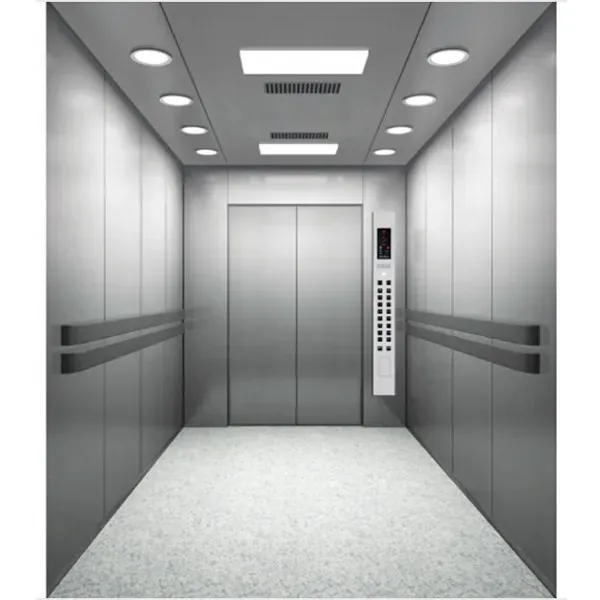

*The car cabin decoration can be choosed
*The Human-machine interface
*The attachment of decoration
*The Control System:
Our factory uses Microcomputer group supervision management system.
Duty on/off rush-hour running mode: IT satisfies the running requirements in the rush hours of duty on/off the public occasions in the office and etc, Even operationn mode: It adopts the minimized waiting period dstribution principle with the prompt and reasonable elevator response, Idle running model: The elevators have been evenly distributed in the designated area to wait for call in idle times in order to guarantee the quick and timely response towards the outer calls
*Traction Motor System:
Motanari Brand , Shunda Brand , XIZI brand, FAXI brand , Blue light brand , and other chinese motor brand can be choosen
Product Parameters
| Loading capacity(kg) | Speed(m/s) | car net size(mm) | Hoistway net size(mm) | Machine room size(mm) |
|---|---|---|---|---|
| 450/6 | 0.5 | Width: 1150 | Width: 1700 | Width: 1700 |
| 630/8 | 1.0 | Depth: 1100 | Depth: 1750 | Depth: 1750 |
| 800/10 | 1.5 | |||
| 1000/13 | 1.0 | |||
| 1150/15 | 1,5 | |||
| 1.75 | ||||
| 2.0 | ||||
| 2.5 | ||||
| 3.0 |
| Speed | Pit | Top floor | load | Opening net width | Car net size | Hoistway net size |
|---|---|---|---|---|---|---|
| 1.0 | 1400 | 4200 | 1600 | 1100 | 1400 2400 | 2300 2900 |
| 1.5 | 1500 | 4500 | 2550 2900 | |||
| 1.75 | 1700 | 4700 | 2550 2900 | |||
| 2.0 2.5 | 2000 | 5100 | 2000 | 1200 | 1600 2750 | 2350 3300 |
| 2700 3300 | ||||||
| 3.0 | 2200 | 5300 | 2700 3300 |
