Description
Overview
Basic Info.
- Model NO. DM-BE004
- Driving Type AC Elevator
- Capacity >1000kg
- Persons 11 - 19
- Speed <1.00m/s
- Control Mode Signal Control
- Position of Computer Room up
- Elevator Door Center Opening Door
- Door Knife Single
- Deceleration Device With Deceleration Device
- Attendant With Attendant
- Power 3phase 380V ,3phase 220V or Customized
- Control System Monarch ,Step System,Blue Light
- Cabin Material Glass ,Hairline Stainless Steel,Golden Etched,etc
- Open Way Center Opening , Side Opening,Manually Operated
- Open Size 600mm-1000mm ,Customized According to Shaft
- Ropping 2:1 ,1:1
- Machine Machine Room,Machine Roomless,Small Machine Room
- Control Vvvf
- Doors 2-40 Floors
- Cabin Size Can Be Customized
- Design Modern
- Traction Machine Geared or Gearless Machine
- Material Wooden or Marble Design
- Transport Package Export Wooden Case
- Specification 10CMB
- Trademark DEMAN
- Origin Jiangsu, China
- HS Code 8431310090
- Production Capacity 2000 Units/Year
Product Description
DEMAN traction type Bed elevator applies new generation permanent synchronous and gearless host and high performance digital variable frequency technology and group computer combined control technology. It can save more than 33% of the energy. What is more, it saves the mechanical energy loss in the traditional gearbox transmission and further enhances the efficiency.
Detailed Photos

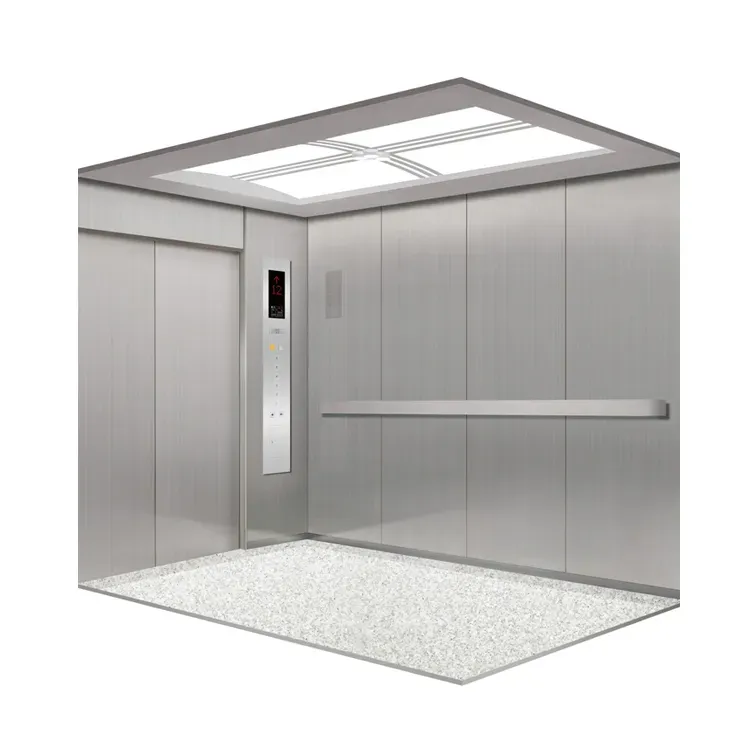

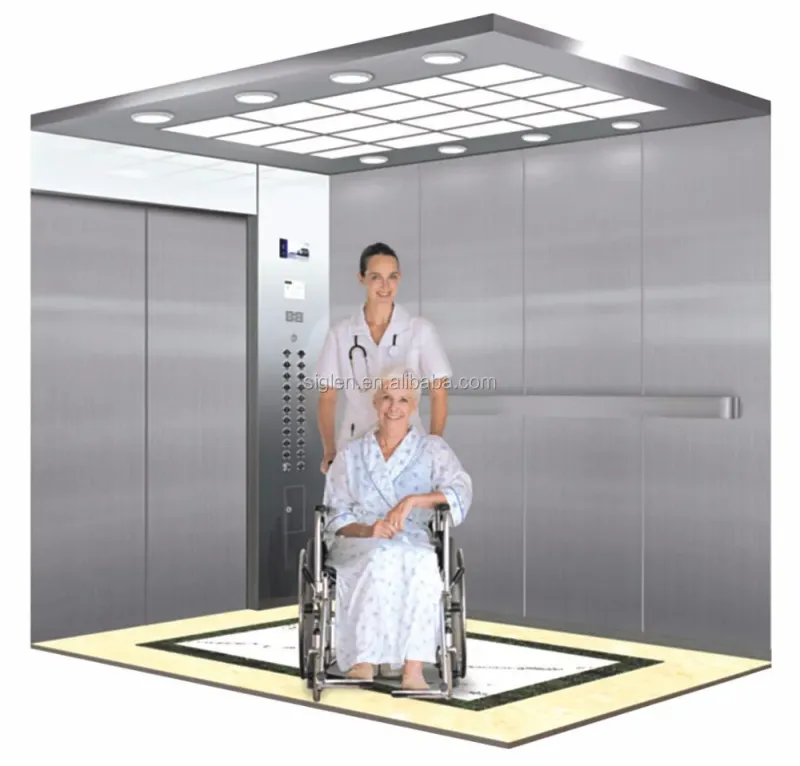

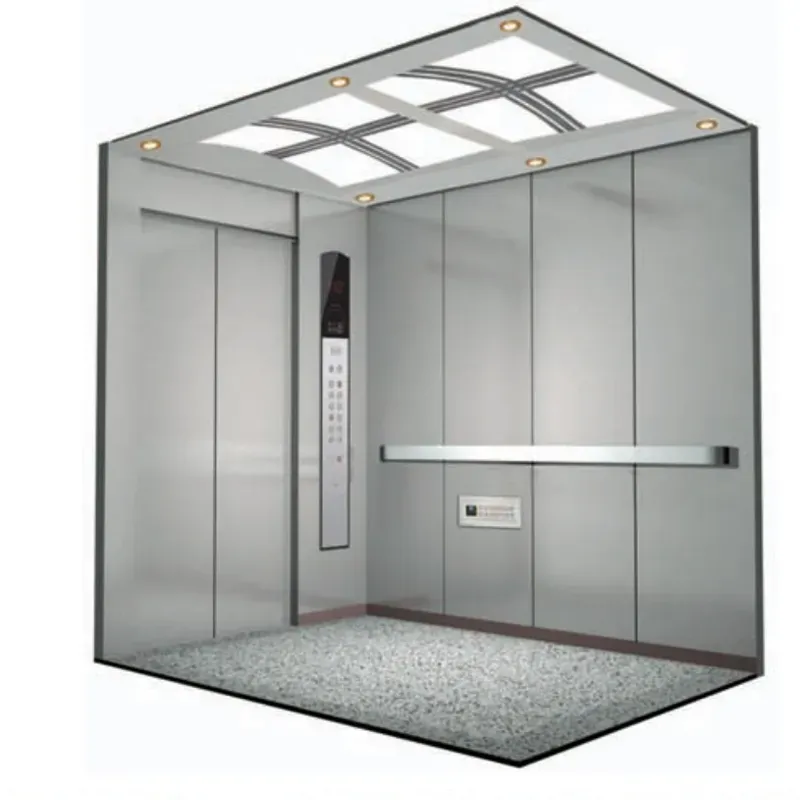

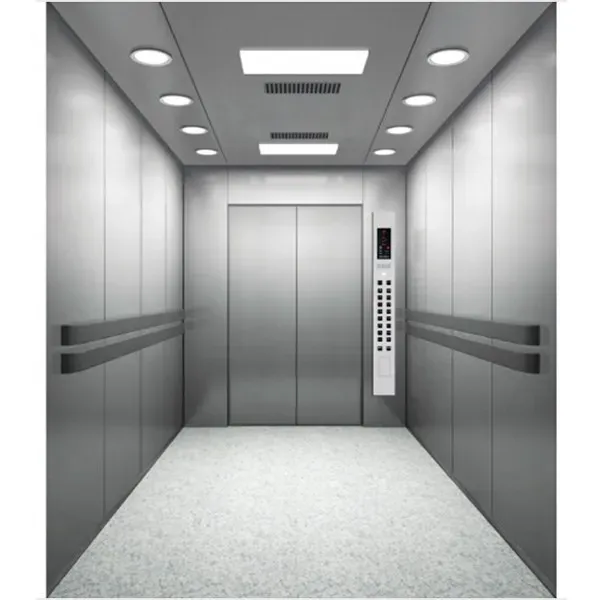

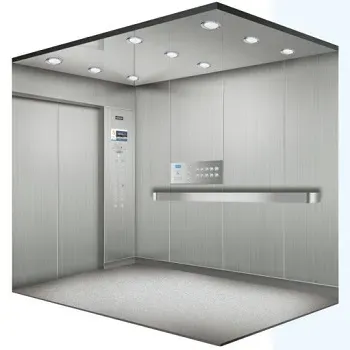

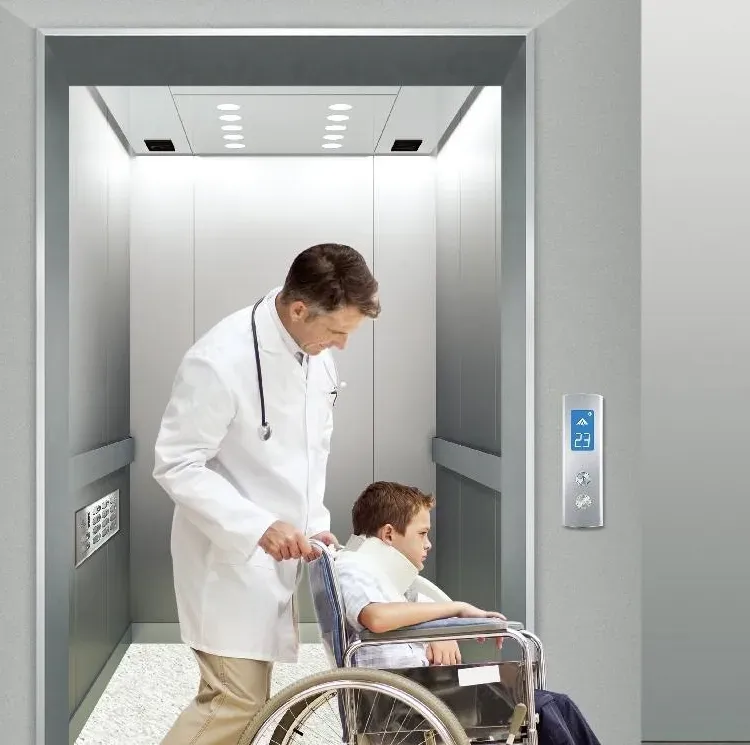

*The car cabin decoration can be chosen
*The Human-machine interface
*The attachment of decoration
*The Control System:
Our factory uses Microcomputer group supervision management system.
Duty on/off rush-hour running mode: IT satisfies the running requirements in the rush hours of duty on/off the public occasions in the office and etc,
Even operationn mode: It adopts the minimized waiting period distribution principle with the prompt and reasonable elevator response,
Idle running model: The elevators have been evenly distributed in the designated area to wait for call in idle times in order to guarantee the quick and timely response towards the outer calls
*Traction Motor System:
Motanari Brand , Shunda Brand , XIZI brand, FAXI brand , Blue light brand , and other chinese motor brand can be chosen
Product Parameters
| Loading capacity(kg) | 450/6 | 630/8 | 800/10 | 1000/13 | 1150/15 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Speed(m/s) | 0.5 | 1.0 | 1.5 | 1.0 | 1,5 | 1.75 | 1.0 | 1.5 | 1.75 | 2.0 | 2.5 | 1.0 | 1.5 | 1.75 | 2.0 | 2.5 | 3.0 | 1.0 | 1.5 | 1.75 | 2.0 | 2.5 | 3.0 |
| car net size(mm) | Width | 1150 | 1400 | 1400 | 1600 | 1700 | |||||||||||||||||
| depth | 1100 | 1100 | 1350 | 1500 | 1500 | ||||||||||||||||||
| Door opening way | Center opening | ||||||||||||||||||||||
| Door-opening size(mm) | Width | 700 | 800 | 800 | 900 | 1000 | |||||||||||||||||
| Height | 2100 | 2100 | 2100 | 2100 | 2100 | ||||||||||||||||||
| Hoistway net size(mm) | Width | 1700 | 2000 | 2000 | 2200 | 2300 | |||||||||||||||||
| depth | 1750 | 1750 | 2000 | 2200 | 2200 | ||||||||||||||||||
| Machine room size(mm) | Width | 1700 | 2000 | 2000 | 2200 | 2300 | |||||||||||||||||
| Depth | 1750 | 1750 | 2000 | 2200 | 2200 | ||||||||||||||||||
| Height | 2500 | 2500 | 2500 | 2000 | 2500 |
Speed
| Pit | Top floor | load | Opening net width | Car net size | Hoistway net size | |
|---|---|---|---|---|---|---|
| m/s | PP | OH | kg | JJ | AA BB | AH BH |
| 1.0 | 1400 | 4200 | 1600 | 1100 | 1400 2400 | 2300 2900 |
| 1.5 | 1500 | 4500 | 2550 2900 | |||
| 1.75 | 1700 | 4700 | 2550 2900 | |||
| 2.0 2.5 | 2000 | 5100 | 2000 | 1200 | 1600 2750 | 2350 3300 |
| 2700 3300 | ||||||
| 3.0 | 2200 | 5300 | 2700 3300 |
