2024 New Designed Home Elevator Traction Platform Villa Elevator
Description
Overview
Basic Info.
| Model NO. | OT-30 |
| Type | Gearless Motor |
| Speed | 1.00 - 2.00m/s |
| Capacity | >1000kg |
| Persons | 6 - 10 |

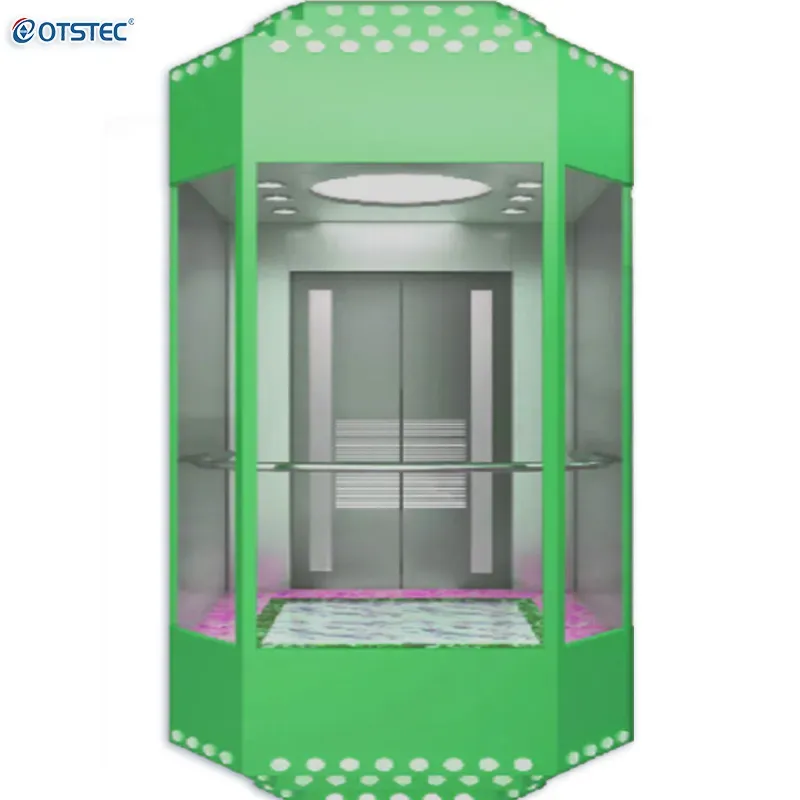

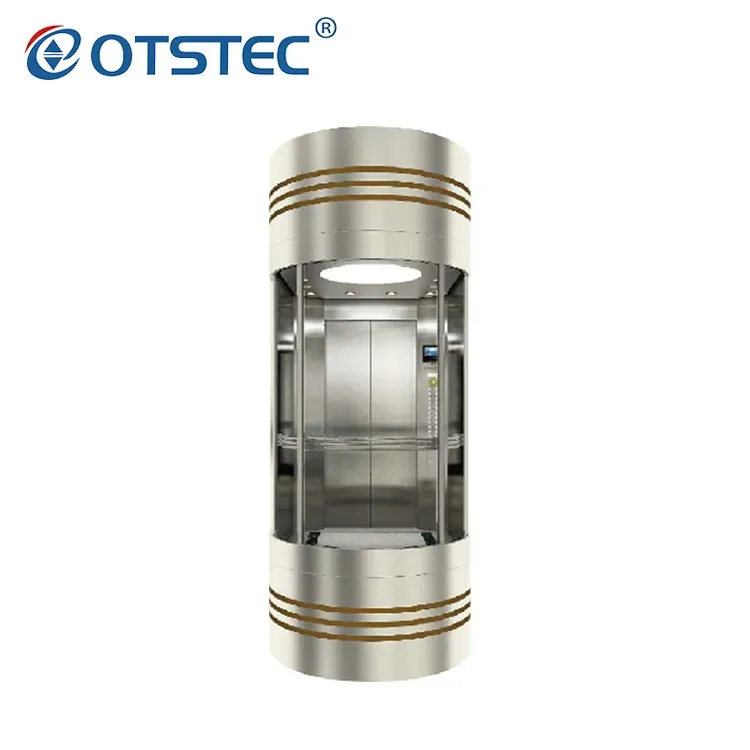

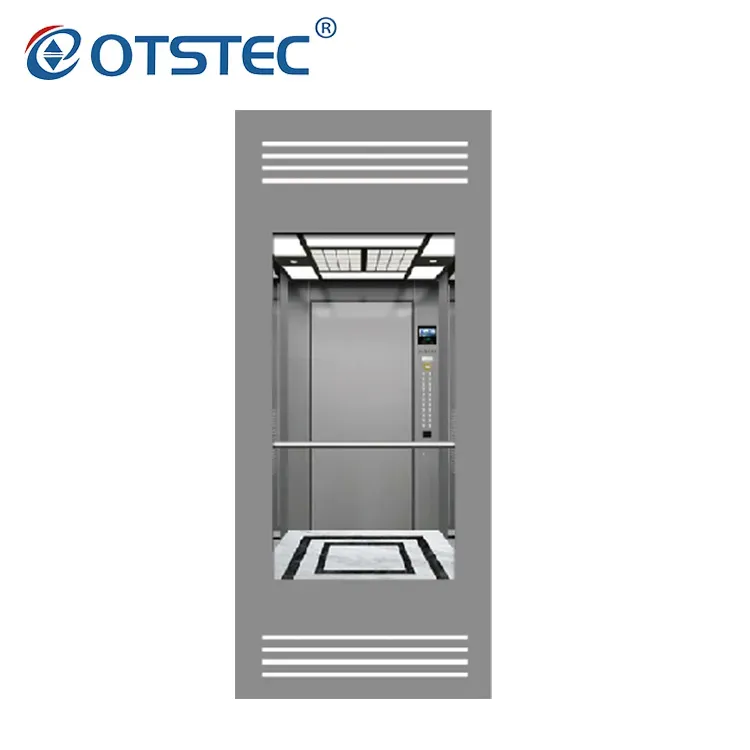

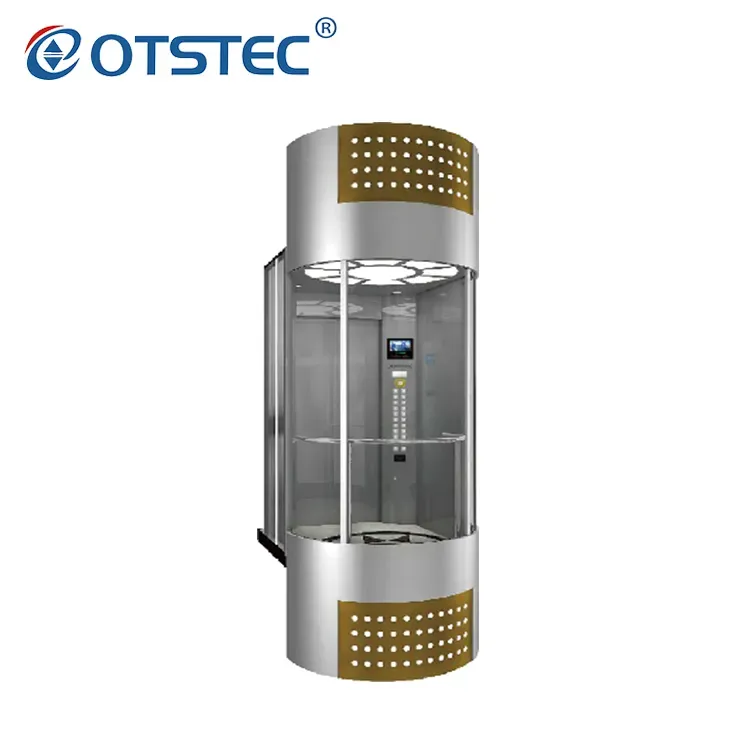

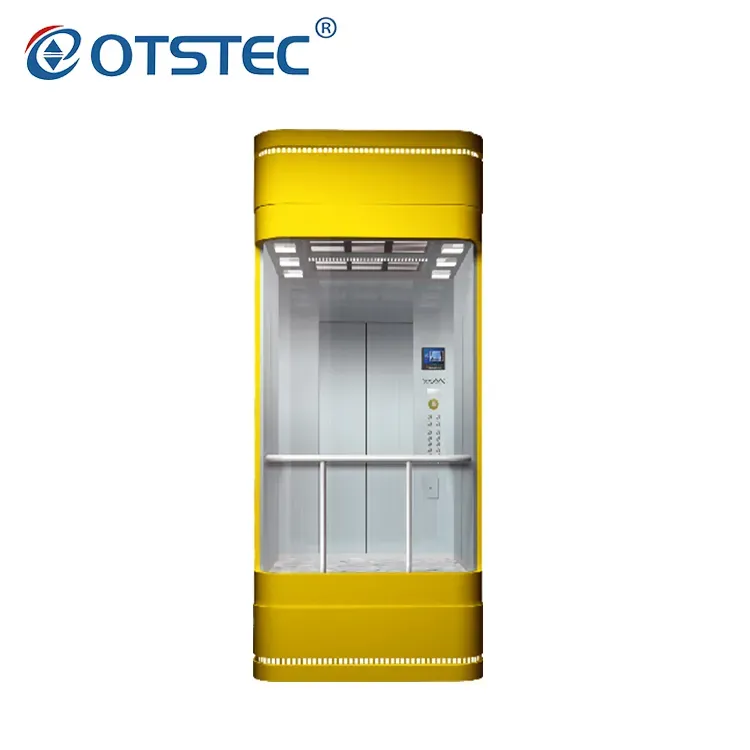

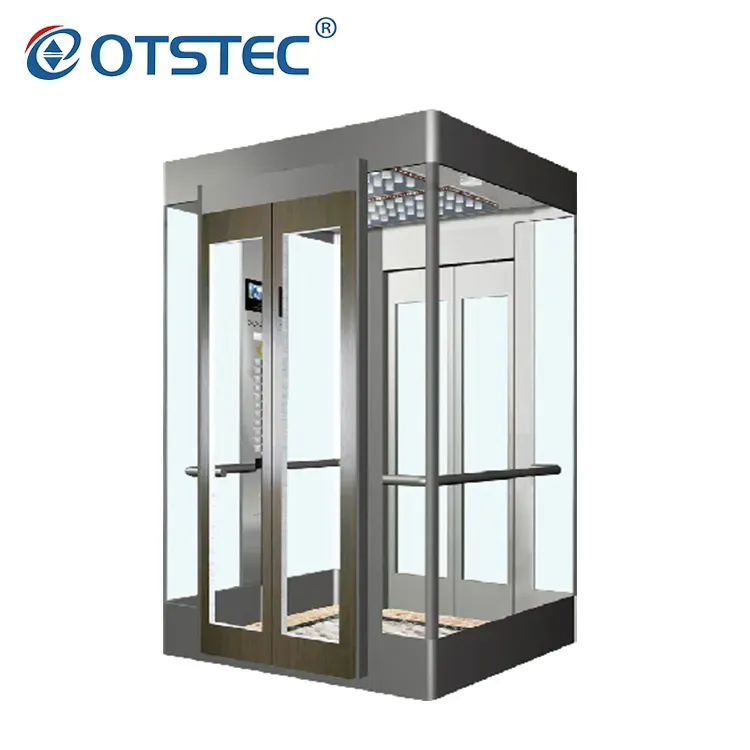

| Shape | Half Circle/Circle /Square |
| Driving Type | Gearless Motor |
| Control Mode | Effective Vector Vvv F |
| Elevator Door | Automatic or Manual |
| Door Knife | Single |
| Ceiling | Mirror Stainless Steel Frame |

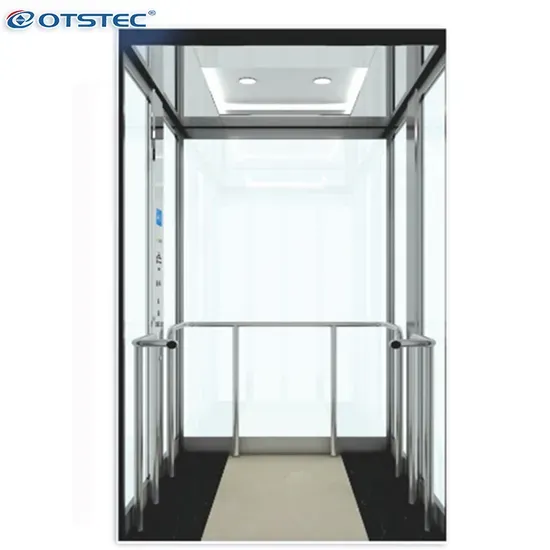

| Car Wall | safety Laminated Glass |
| Car Floor | PVC or Marble |
| Door Opening | Central /Side |
| Certificates | CE/ISO |
| Transport Package | Standard Export Package |
| Specification | OEM/ODM |
| Trademark | OTSTEC |
| Origin | China |
| HS Code | 842810 |
| Production Capacity | 3000 Sets/Year |
Packaging & Delivery
| Package Size | 15.50cm * 80.00cm * 50.00cm |
| Package Gross Weight | 50.000kg |
Product Description
Product Parameters
| Small Machine Room | ||||||
|---|---|---|---|---|---|---|
| Loading Passenger | Loading Capacity | Speed | Car Size | Shaft(Min.) | Overhead Height | Rise(Max.) |
| Passenger | (Kg) | (m/s) | W*D*H(mm) | W*D(mm) | W*D(mm) | HQ(Max.)(m) |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2200*1650 | 4500 | 95 |
| 10 | 800 | 1.0-2.5 | 1400*1350*2400 | 2250*1850 | 4600 | 150 |
| 13 | 1000 | 1.0-2.5 | 1600*1500*2400 | 2400*1950 | 4800 | 150 |
| 16 | 1250 | 1.0-4.0 | 1950*1400*2400 | 2800*1900 | 4800 | 150 |
| 21 | 1600 | 1.0-4.0 | 1950*1750*2400 | 2800*2200 | 5000 | 150 |
| Machine Room less | ||||||
|---|---|---|---|---|---|---|
| Loading Passenger | Loading Capacity | Speed | Car Size | Shaft(Min.) | Overhead Height | Rise(Max.) |
| Passenger | (Kg) | (m/s) | W*D*H(mm) | W*D(mm) | W*D(mm) | HQ(Max.)(m) |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2250*1700 | 4800 | 90 |
| 10 | 800 | 1.0-2.5 | 1400*1350*2400 | 2250*1800 | 4800 | 120 |
| 13 | 1000 | 1.0-2.5 | 1600*1500*2400 | 2450*2000 | 4800 | 150 |
| 16 | 1250 | 1.0-2.5 | 1800*1550*2400 | 2600*2100 | 4800 | 150 |
| 21 | 1600 | 1.0-2.5 | 1950*1700*2400 | 2800*2200 | 5000 | 150 |
- Material: Painted, Hairline stainless steel, mirror, etched, Titanium gold, rose gold, golden recess, glass;
- Capacity: 250KG, 320kg, 400kg;
- Speed: 0.4m/s,1.0m/s,1.5m/s, 1.75m/s,2.0m/s
- Type: Traction home elevator, Strong drive home elevator, Steel belt home elevator, Knapsack frame structure home elevator;
- Machine Room: Machine Roomless (MRL)
- Control system: Monarch
Permanent Magnet Synchronous And Gearless Traction Machine
It uses rare earth materials, fully integrates coaxial transmission technology, digital frequency technology with group computer control technology, high-efficient and energy-saving, with minimum operation cost, low heat loss, and extremely high efficiency, can save up to 40% energy compared with general traditional technology. Besides, by using gearless traction machine doesn't need changing grease, no oil contamination, low noise design, creating a quiet riding space for you.
VVF New Controller
It can automatically adjust the current and precisely control the torque of the host machine according to the load of the car, fully making the elevator stable and comfortable.
Door System
The application of advanced VVF control technology into elevator door machine system ensures the smooth and quiet door opening and closing, increases the sensitivity of elevator door opening and closing, and automatically adjusts the most appropriate opening and closing speed for each landing ensures safety and reliability. Besides, the door load detector with self-learning ability can better improve the sensitivity of door opening and closing, monitor the changes of door load for each floor. and can reopen the elevator door automatically in case of abnormal resistance.

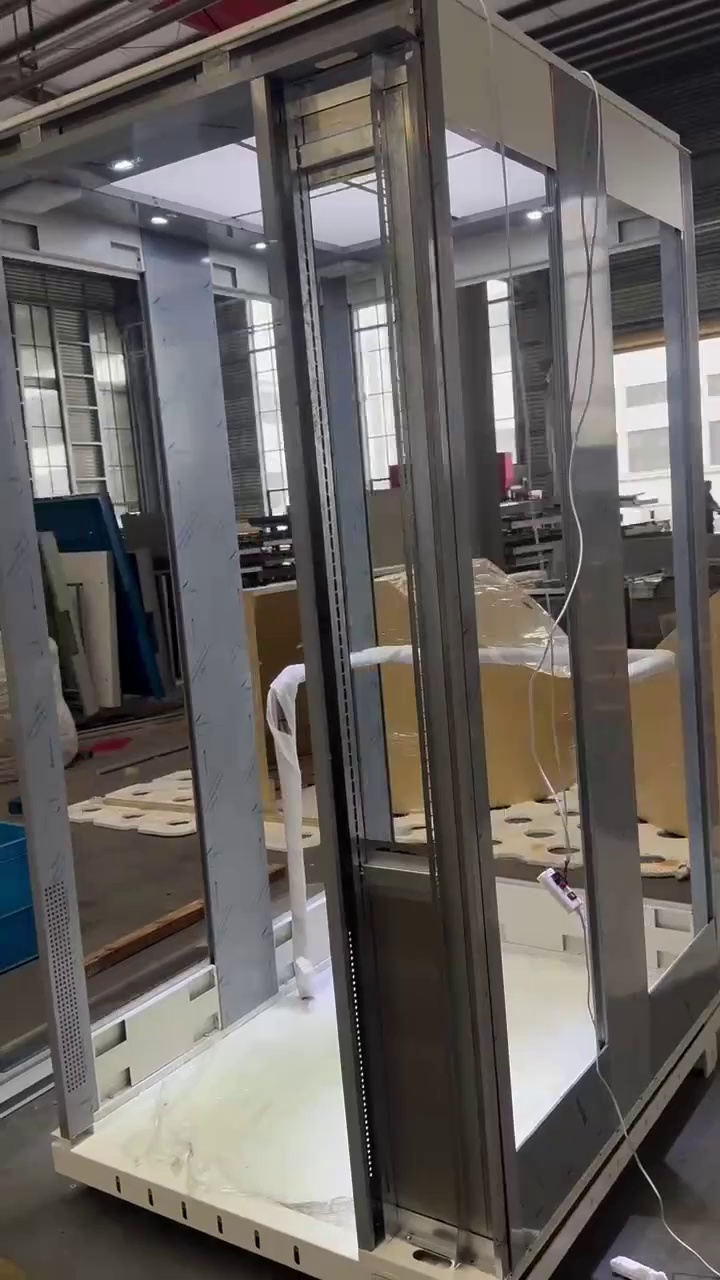

Production Process
