Overview

Basic Info.

Model NO. D450-asphalt
Application Asphalt
Usage Asphalt, Fresh Concrete, Refractory Brick
Manufacturing Arts Laser Welding
Kind Street Cutting Machine
Diameter 450mm/18 Inch
Standard Segment Dimension 40*3.4*10mm/12mm
Transport Package Common Packing or Customized Packing
Specification Europe standard EN 13236: 2001
Trademark OEM and ODM
Origin China
HS Code 82023910
Production Capacity 30000PCE / Month

Packaging & Delivery

Package Size 48.00cm * 54.00cm * 8.00cm
Package Gross Weight 19.000kg

Product Description

12 inch 14 inch 16 inch 18 Inch 36 inch 300mm to 900mm Laser Welded Asphalt Diamond Saw Blades for Fresh Concrete Cutting Blade

Higher quality diamond and long life
Dry or wet cutting
Applicable for table saw, walk-behind saw, handheld saw
Different quality grade: Economic, standard, premium, professional
1" arbor with drive pin holes standard. Custom arbor sizes are available.
Radius protection seg., slant protection seg., high protection seg.
Other special specifications and colors can be produced by clients' require

Detailed Photos

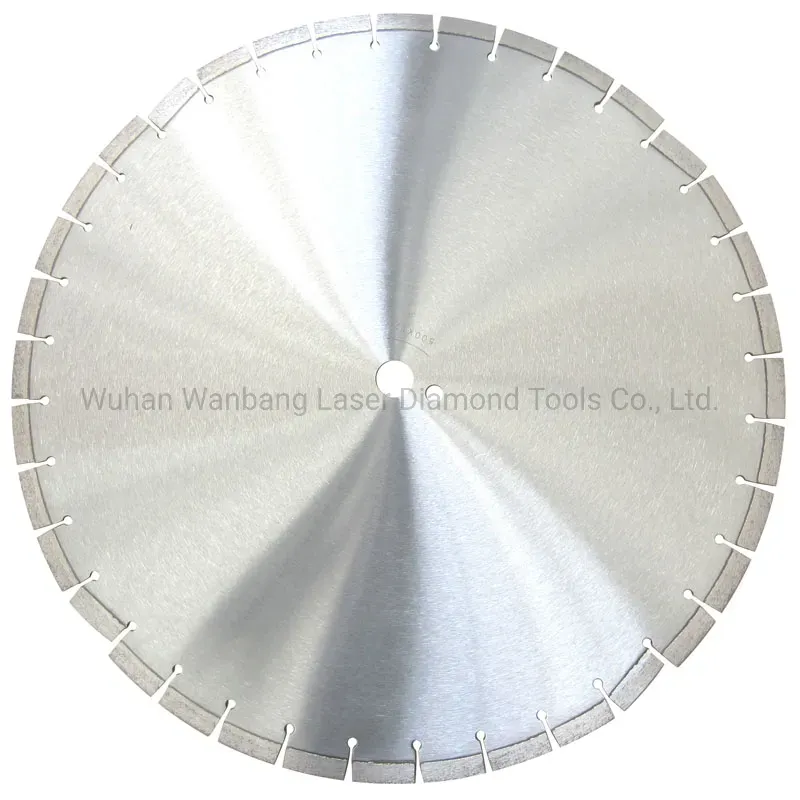

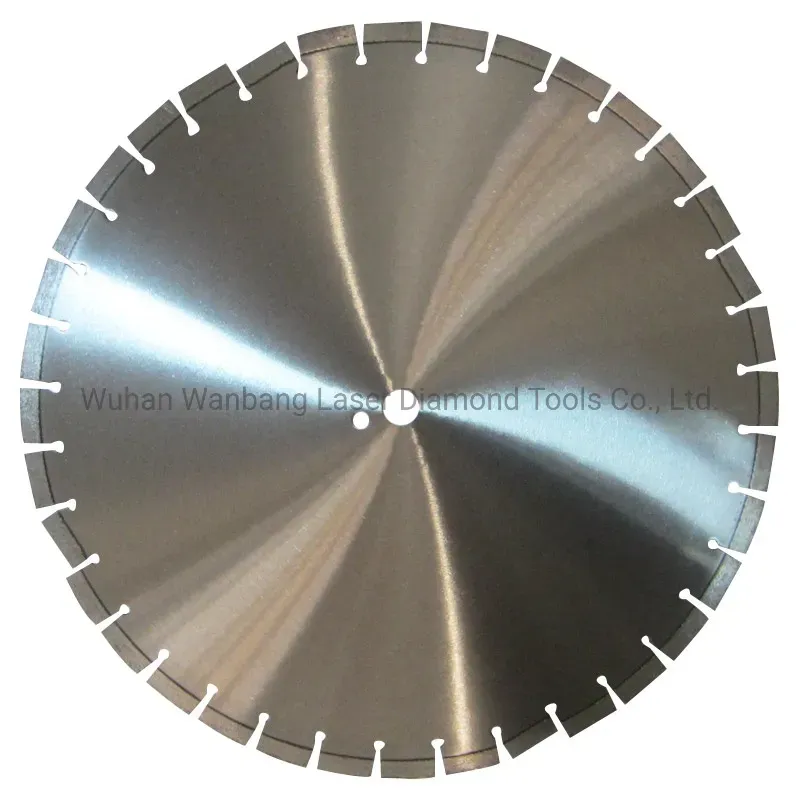

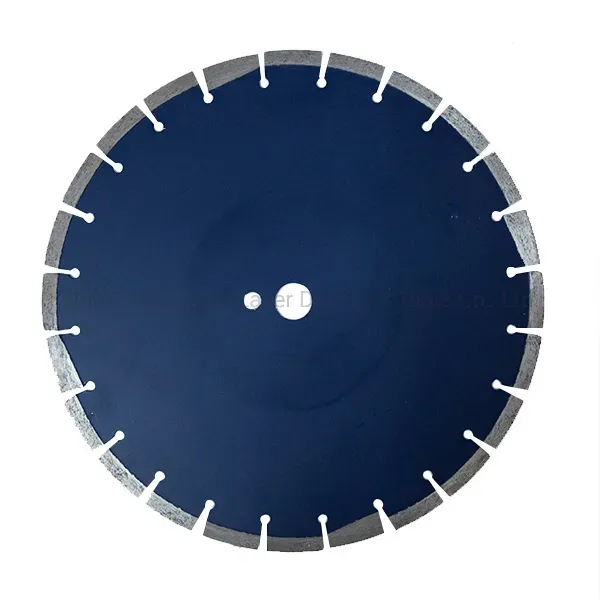

18" 450mm Laser Welded Asphalt Saw Blades Diamond Saw Blade for Asphalt Fresh Concrete Cutting Blade

Product Parameters

Diameter	Seg. LxT(mm)	Seg. height	Seg.No.	Cutting Materials
12"	300mm	40*3.2	10/12mm	21 - Asphalt/Green concrete
14"	350mm	40*3.2	10/12mm	24 - Asphalt/Green concrete
16"	400mm	40*3.4	10/12mm	28 - Asphalt/Green concrete
18"	450mm	40*3.6	10/12mm	32 - Asphalt/Green concrete
20"	500mm	40*3.6	10/12mm	36 - Asphalt/Green concrete

Diameter	Seg. LxT(mm)	Seg. height	Seg.No.	Cutting Materials
24"	600mm	40*4.0	10/12mm	42 - Asphalt/fresh concrete
26"	650mm	40*4.2	10/12mm	42 - Asphalt/fresh concrete
28"	700mm	40*4.6	10/12mm	45 - Asphalt/fresh concrete
32"	800mm	40*4.8	10/12mm	52 - Asphalt/fresh concrete
36"	900mm	40*4.8	10/12mm	60 - Asphalt/fresh concrete

For cut all kinds of non-metal material, marble, granite, tile, ceramic sandstone and so on, Diamond cutting saw blade with different specification from 105mm~3000 mm can be supplied according to customers' requirements.
