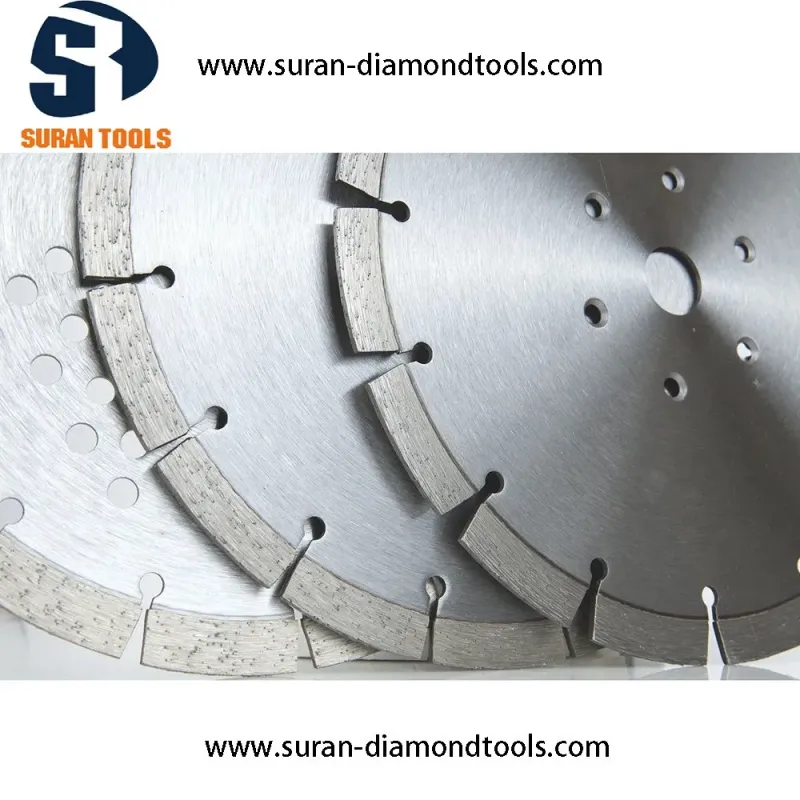

Laser-Welded Segmented Diamond Saw Blade for Cured Concrete and Hard Materials
Description
Overview
Basic Info.
- Model NO. laser welded diamond saw blade
- Application Ceramic/Porcelain/Granite etc.
- Body Material 30CrM
- Processing Laser Welded
- Surface As Your Request
- Packing Blister Card/White Box/Color Box/Carton/Pallet
- Service ODM, OEM, etc.
- Item No. 0501
- Transport Package Blister Card/White Box/Color Box/Carton/Pallet
- Specification 4"-24"/105mm-600mm
- Trademark SURAN, OEM or ODM
- Origin China
- HS Code 8202390000
- Production Capacity 1000000 Pieces/Year
Product Description

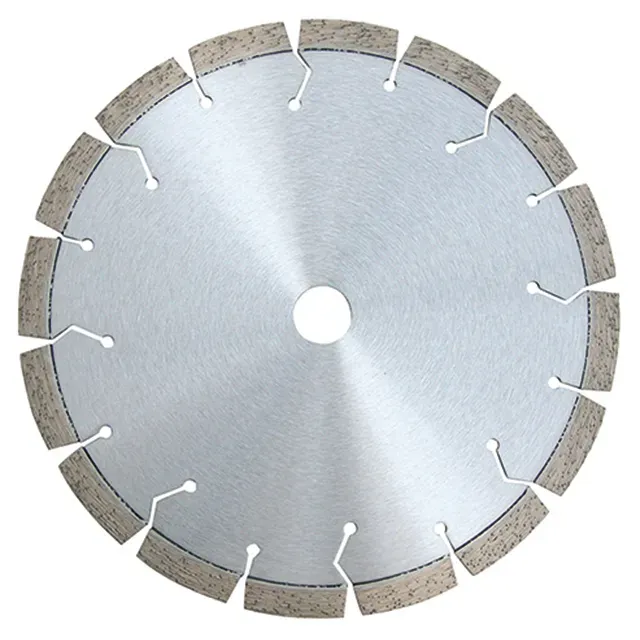

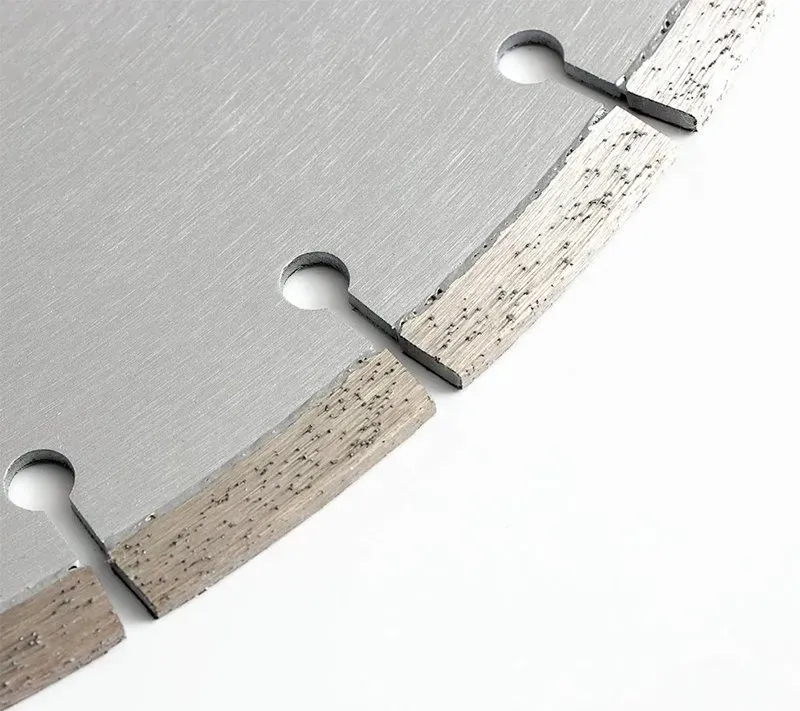

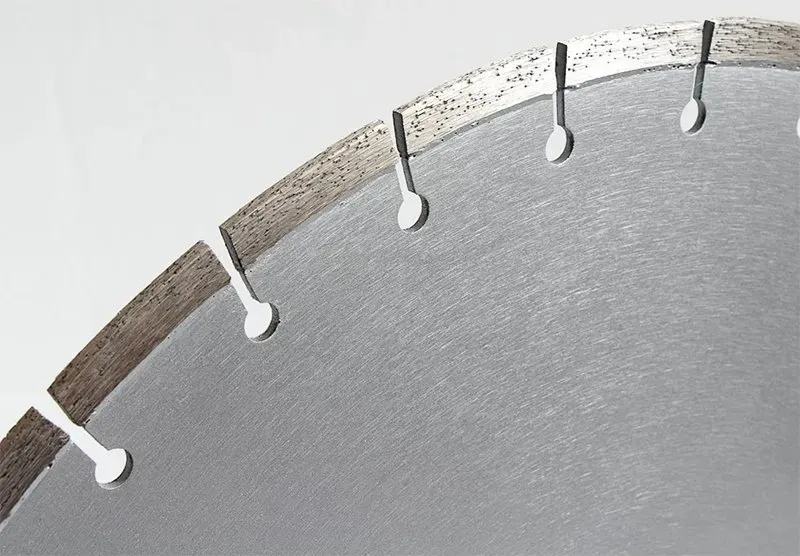

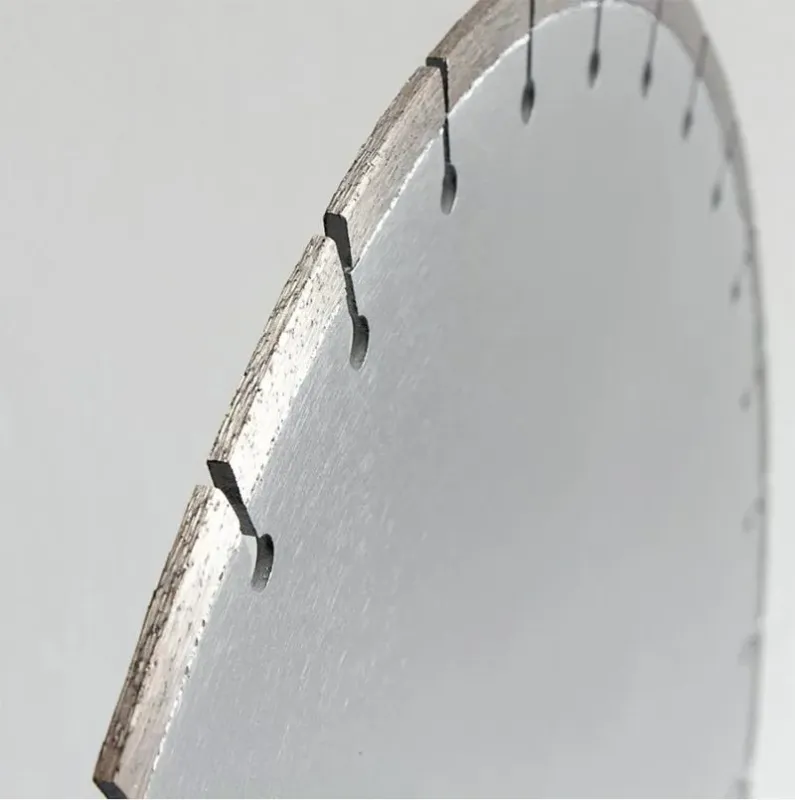

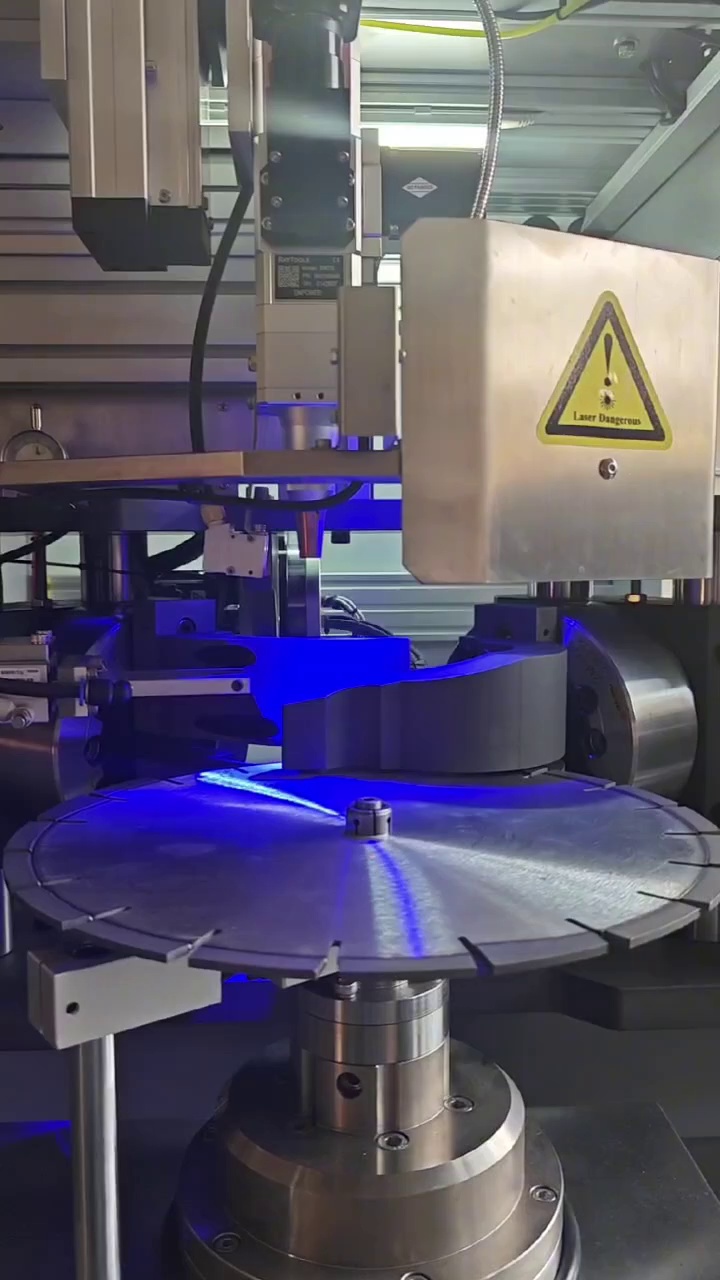

Laser welded diamond saw blade is bonded between diamond segments and the base by laser technology. The bonding strength between diamond segments and the base is high and the welding is firm.
Product Features
- Good sharpness, high efficiency and long lifespan.
- Smooth cutting without chipping.
- Stable cutting and high cost-effective.
- Silent and non-silent blade are available.
Product Information
| Item No. | Outer Diameter | Arbor | Seg.H | Seg.No | ||
|---|---|---|---|---|---|---|
| 0501105 | 4" | 105 | 7/8" | 22.23-20 | 2.0x8/10mm | 8 |
| 0501115 | 4.5" | 115 | 7/8" | 22.23-20 | 2.0x8/10mm | 9 |
| 0501125 | 5" | 125 | 7/8" | 22.23-20 | 2.2x8/10mm | 10 |
| 0501150 | 6" | 150 | 7/8" | 22.23 | 2.2x8/10mm | 12 |
| 0501180 | 7" | 180 | 7/8" | 22.23 | 2.4x8/10mm | 13 |
| 0501230 | 9" | 230 | 7/8" | 22.23 | 2.6x8/10mm | 16 |
| 0501250 | 10" | 250 | 1"-7/8" | 25.4-22.23 | 2.6x8/10/12/14mm | 17/18 |
| 0501300 | 12" | 300 | 2"-1" | 50-25.4 | 3.0x8/10/12/14mm | 20/21 |
| 0501350 | 14" | 350 | 2"-1" | 50-25.4 | 3.2x8/10/12/14mm | 24 |
| 0501400 | 16" | 400 | 2"-1" | 50-25.4 | 3.4x8/10/12/14mm | 28 |
| 0501450 | 18" | 450 | 2"-1" | 50-25.4 | 3.6x8/10/12/14mm | 32 |
| 0501500 | 20" | 500 | 2"-1" | 50-25.4 | 3.6x8/10/12/14mm | 36 |
| 0501550 | 22" | 550 | 2"-1" | 50-25.4 | 4.0x8/10/12/14mm | 38 |
| 0501600 | 24" | 600 | 2"-1" | 50-25.4 | 4.2x8/10/12/14mm | 42 |

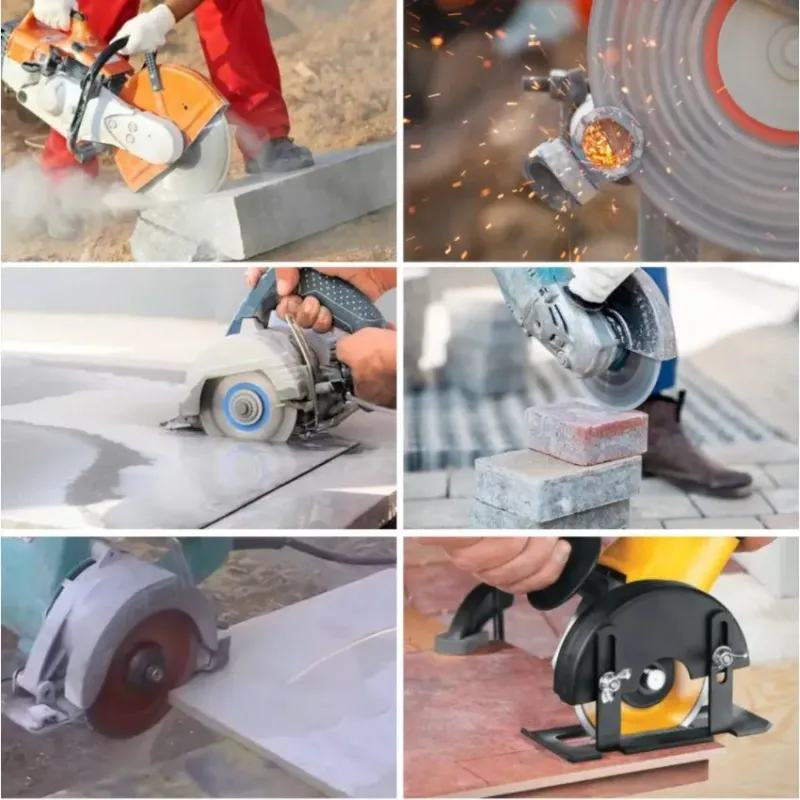

Applications
Packaging & Shipping
Double Blister/White Box/Color Box/Carton/Pallet
About Us
Suran Tools Co.,Ltd. is engaged in manufacturing and exporting diamond saw blade, laser welded diamond saw blade, diamond cup wheel, diamond tuck point blade, flexible polishing pad, diamond sanding block, diamond core bit, core bit adapter, TCT saw blade etc.

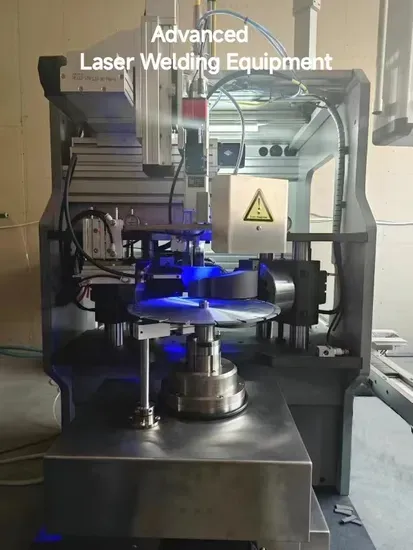

The company holds the managerial idea that "Quality proves strength, details reach to success". The company introduces the most advanced equipments. We have our own QC system, R&D Dept, so we can produce according to customer's samples, drawings and the specifications. Our Engineers and artwork designers are ready to provide you more qualified products and after-sales service.
We have long time business relationship with customers in European, South American, Africa, Asia, Middle East. We sincerely welcome you to visit our company or contact us for cooperation.
