Luyue 25HP Mini Track Skid Steer Loader
Description
Overview
Basic Info.
- Model NO. LY800T
- Certification TUV, ISO, CE
- Condition New
- Rated Load <1t
- Transmission Hydraulic
- Load and Unload Mode Front Discharge
- Walking Mode Crawler
- Type Small Loader
- Driven Type 4WD
- Engine Power 18.2kw
- Bucket Capacity 0.2cbm
- Dumping Height 1272mm
- Engine Brand Kubota
- Tandem Pump Eaton
- Hydraulic Motor Eaton
- Transport Package Nude
- Specification 1959*1103*1338mm
- Trademark LY
- Origin Shandong
- HS Code 8429510000
- Production Capacity 600 Units Per Year
Product Description

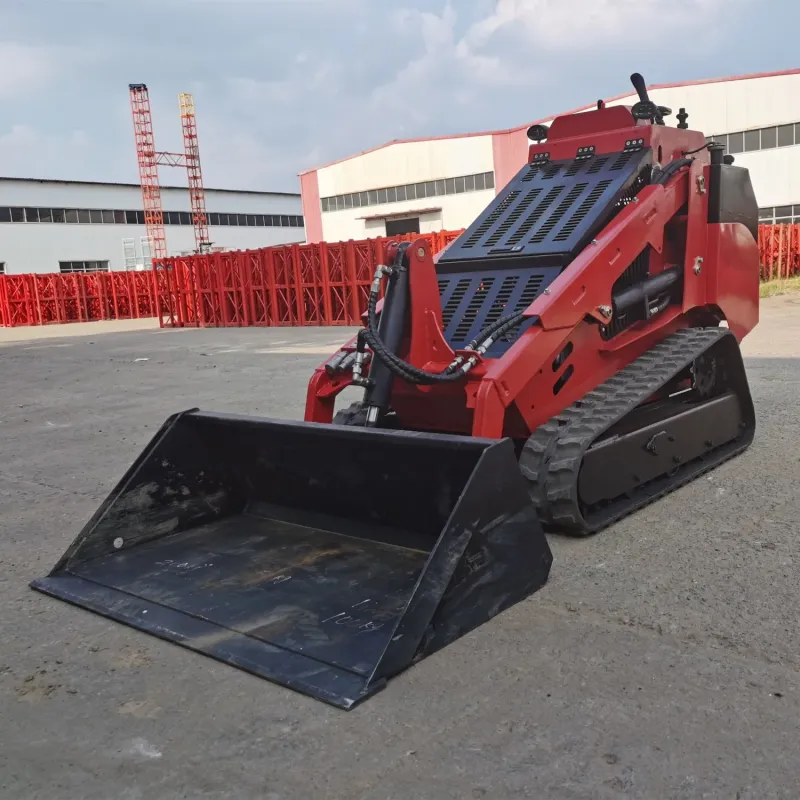

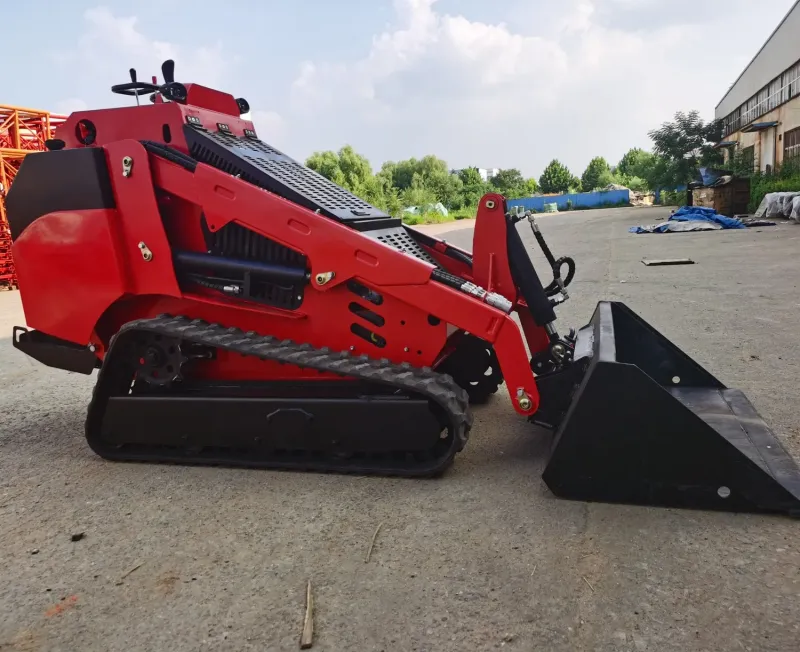

Luyue New 25HP Cheap Mini Track Skid Steer Loader with Kubota Diesel Engine
Company Profile
Taian Luyue Modern Agricultural Equipment Co., Ltd is one of the branch companies in JULING GROUP, China. It is one of the leading manufacturers of various kinds of skid steer loaders and attachments in China. Founded in 2003, it was the first company in China to cooperate with European counterparts for the mass production of skid steer loaders and attachments.
The main products of Taian Luyue Modern Agricultural Equipment Co., Ltd are wheel type skid steer loader, crawler type skid steer loader and all kinds of attachments. The horse power of the whole series of skid steer loaders ranges from 20HP to 140HP and the rated loading capacity is from 300kg to 1800kg.
It produces about 600 units of skid steer loaders and 7000 sets of loader attachments every year. 90% of our products are exported to North America, Europe, South America, Middle East, Southeast, Russia and etc.
Product Description
Main features of LY800T track skid steer loader
- Japanese Kubota brand diesel engine, 18.2kw
- Italian BP hydraulic pump
- American White hydraulic motor

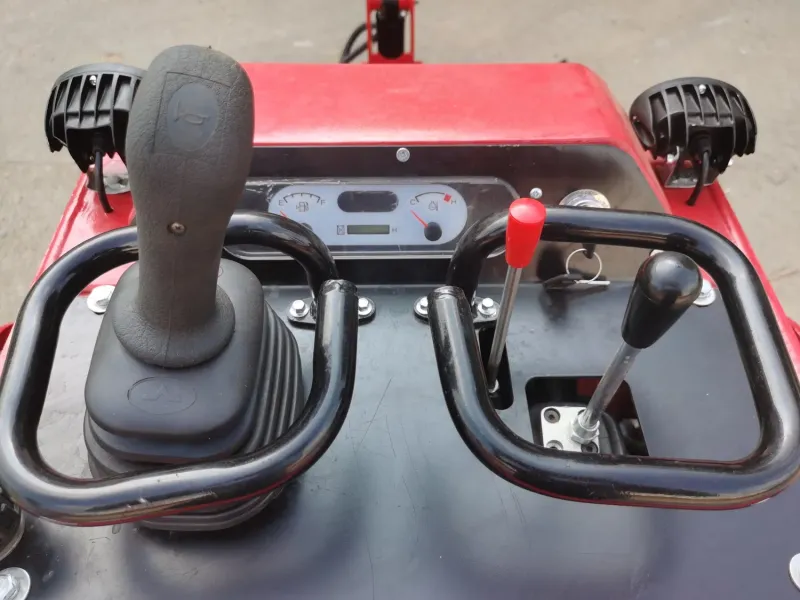

- Open cabin with joystick control system
- Universal type quick hitch and coupler
Technical parameters of LY800T track skid steer loader
| Performance | BS | SI |
|---|---|---|
| Speed | 3.5 mph | 5.6 km/h |
| Ground pressure (track width: 200 mm) | 3.79 psi | 0.261 bar |
| Tipping load | 917 lb | 416 kg |
| Machine weight (without accessories) | 2356 lb | 1069 kg |
| Bucket: 175 lb (80 kg), driver: 165 lb (75 kg) | 2696 lb | 1224 kg |
Dimensions of LY800T track skid steer loader
| Dimension | BS | SI |
|---|---|---|
| A - Departure angle | 20° | 20° |
| B - Distance from bucket hinge pin to ground | 7 in | 176 mm |
| C - Dumping angle | 37° | 37° |
| D - Dumping height | 51 in | 1272 mm |
| E - Dumping distance | 33 in | 833 mm |
| F - Clearance above ground level | 6 in | 141 mm |
| G - Ground clearance of foot pedal | 7 in | 171 mm |
| H - Height to bucket hinge pin | 74 in | 1869 mm |
| I - Machine overall height | 53 in | 1338 mm |
| Dimension | BS | SI |
|---|---|---|
| J - Length without accessories | 77 in | 1959 mm |
| K - Length with bucket | 103 in | 2619 mm |
| L - Machine Max. Operation height | 103 in | 2626 mm |
| M - Rollback angle of the bucket to the ground | 21° | 21° |
| N - Bucket Rollback at Full Height | 94° | 94° |
| O - Wheel base | 36 in | 918 mm |
| P - Front turning radius (the bucket is on the ground) | 62 in | 1575 mm |
| Q - Overall width | 43 in | 1103 mm |
| R - Tread width | 36 in | 903 mm |
| S - Machine width with bucket | 49 in | 1250 mm |
Production process
