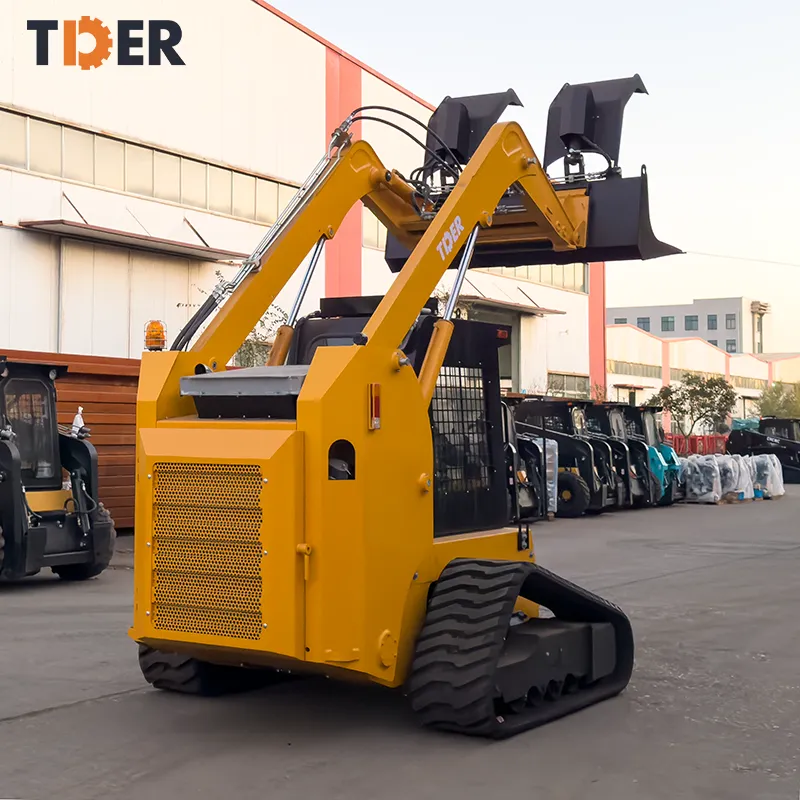

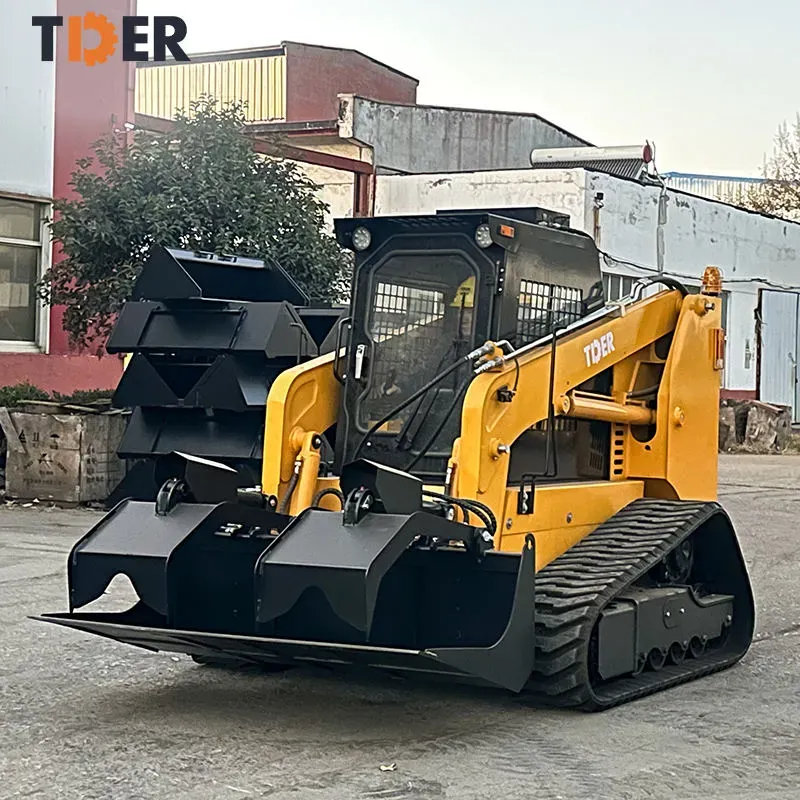

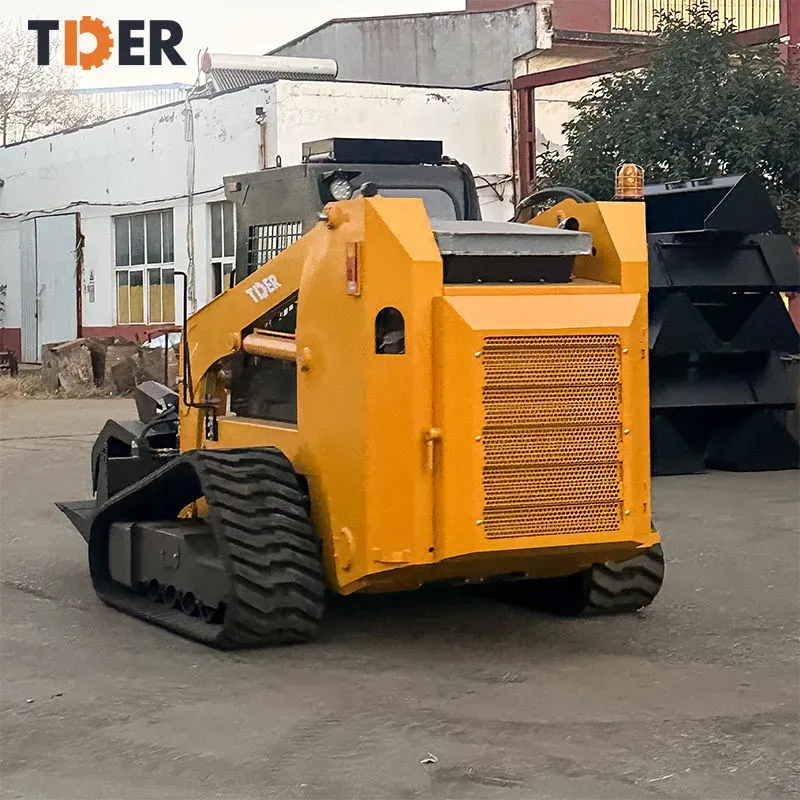

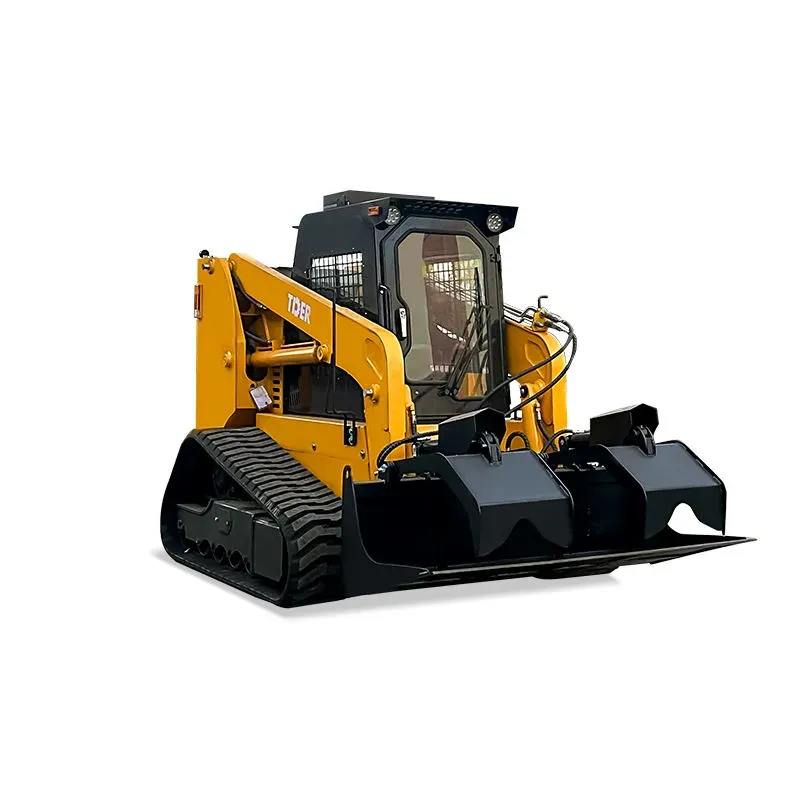

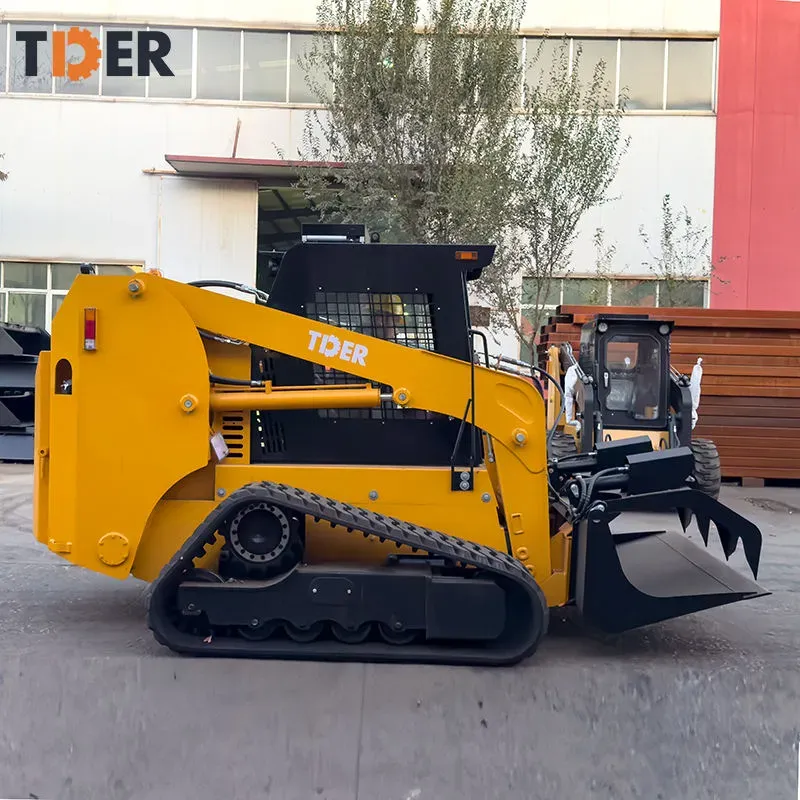

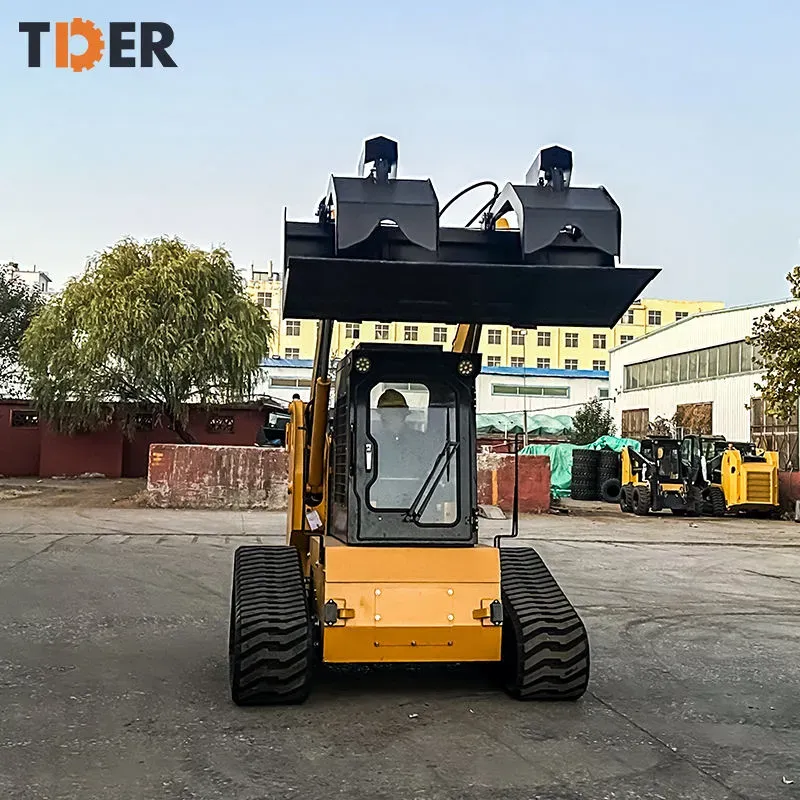

Tder Diesel Engine Track 125HP Mini Skid Steer Loader
Description
Overview
Basic Info.
Model NO. DS125
Certification TUV, ISO, RoHS, CE
Condition New
Rated Load 1-3t
Transmission Hydraulic
Load and Unload Mode Front Discharge
Walking Mode Crawler
Type Skid Steer Loader
Hydraulic Pump Brand Bondioli
Hydraulic Cylinder Brand Liyuan
Unique Selling Point High Operating Efficiency
Attachments Snow Bucket, Pallet Fork, Breaker, etc
Bucket Capacity 0.5 M3
Warranty of Core Components 1.5 Years
Item Mini Skid Steer Loader
Operating Weight 3300kg
Hydraulic Valve Brand Bondioli
Machinery Test Report Provided
Machine Weight 3300 Kg
Engine Brand Weichai
Cab Deluxe Enclosed Operator Cab
Color Custmized
Showroom Location Peru, Russia, Kenya, South Africa
Transport Package Nude Packing, Fixed in Container
Specification 1500kg
Trademark TDER
Origin Fujian, China
Production Capacity 160 Unit/Units Per
Packaging & Delivery
Package Size 300.00cm * 200.00cm * 250.00cm
Package Gross Weight 5000.000kg
Product Description
Product Parameters
| Model | DS25 | DS50 | DS65 | DS75 | DS100 | DS120 |
|---|---|---|---|---|---|---|
| Operating load (kg) | 380 | 700 | 1000 | 1050 | 1200 | 1500 |
| Max Speed(km/h) | 9 | 10 | 12\18 | 12\18 | 12\18 | 12\18 |
| Rated flux (L/min) | 50 | 60 | 80 | 80 | 88 | 88 |
| Tire(track) model | 200X72 | 300X52.5 | 320X84 | 320X84 | 320X84 | 450X86 |
| Engin | Kubota | Xinchai | Xinchai | Xinchai | Weichai | Weichai |
| Engin power | 18.7kw | 37kw | 55kw | 55kw | 74kw | 103kw |
| Rated power (Kw) | 18.7 | 36 | 55 | 55 | 74 | 103 |
| Fuel tank capacity (L) | 28 | 50 | 90 | 90 | 90 | 90 |
| Self weight bucket (kg) | 1400 | 3000 | 4200 | 4200 | 4800 | 4800 |
| Bucket capacity (m³) | 0.2 | 0.3 | 0.5 | 0.5 | 0.55 | 0.6 |
| Overall operating height (mm) | 3400 | 3350 | 3480 | 3480 | 4800 | 4070 |
| Height to top of cab (mm) | 1813 | 2050 | 2150 | 2150 | 2160 | 2160 |
| Without bucket length(mm) | 2200 | 2300 | 2750 | 2750 | 3000 | 3000 |
| Overall length with bucket(mm) | 3000 | 2950 | 3500 | 3500 | 3700 | 3700 |
| Dumping height(mm) | 2000 | 2100 | 2230 | 2230 | 2450 | 2450 |
| Width (mm) | 920 | 1402 | 1782 | 1782 | 1994 | 2124 |
Product Description
1. One way hydraulic leveling: when the swing warm is lifting, the bucket keeps leveling.
2. Hydraulic servo control: travelling and working equipments are controlled by pilot guide. Left handle controls the going forward and drawing back of skid steer loader; right handle controls the working equipments.
3. Cabin design in safe and comfortable: big view, all of instruments set up in forward. Front light, rear light, turning light, horn, back up buzzing.
4. Closed cabin: the two sides doors are equipped with tempered glasses, side window can removed, front doors are equipped with gate lock and windscreen wiper, also can equipped with air conditioner or fan heater according to customer's demand.
5. Optimization design, high strength chassis. Three kinds of driving modes: chain drive, gear drive, direct drive.
6. Quick-change coupler in standardization: Hydraulic quick-change coupler is the same as BO BCAT, and is suitable to our skid steer loader attachments as well as foreign attachments.
7. Equip with oversize radiator and oil tank, for satisfying the continues working requests in tropical zone.
Packaging & Shipping
*All products will be strictly tested before shipping.
*Before delivery, we will arrange our staff to take photos and videos of your machine.
*The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing machines.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
